P440-89FM Tripp Lite series P440-89FM DB9 to RJ45 Modular Serial Adapter (M/F)

General Information

The P440-89FM DB9 to RJ45 Modular Serial Adapter (M/F) is designed for connecting terminals, serial printers, modems, POS and other serial devices to your network via twisted-pair Cat5e/6 cabling. This saves you time and money by eliminating the need to upgrade your existing hardware.

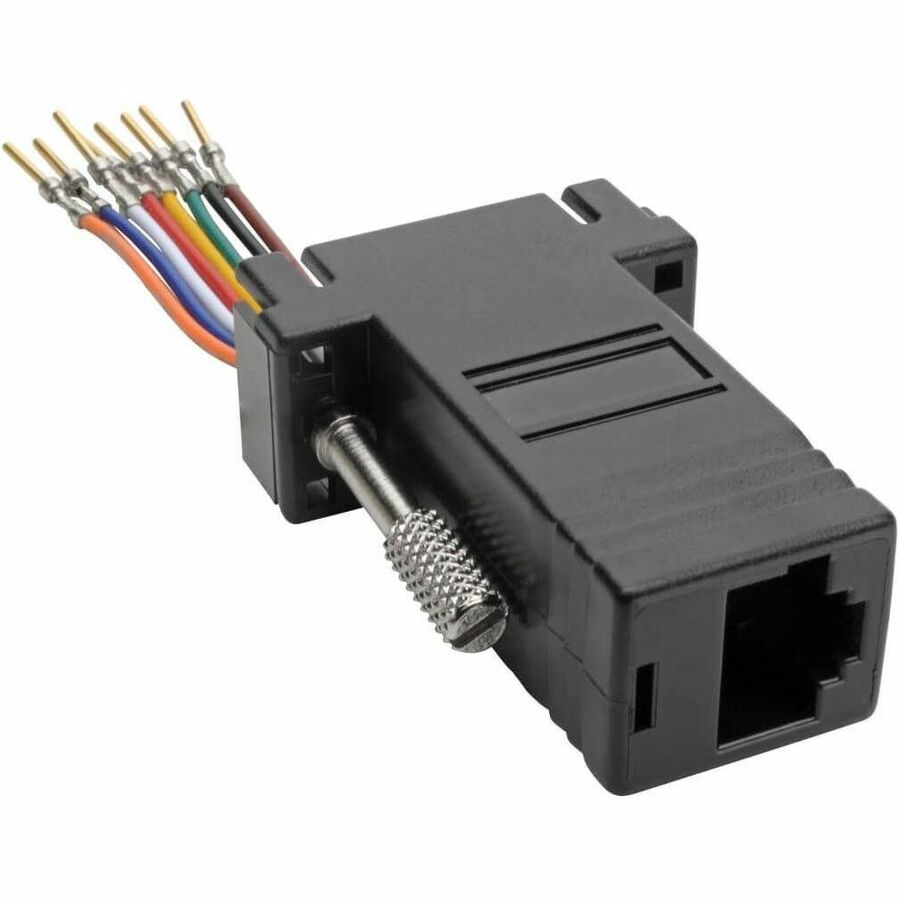

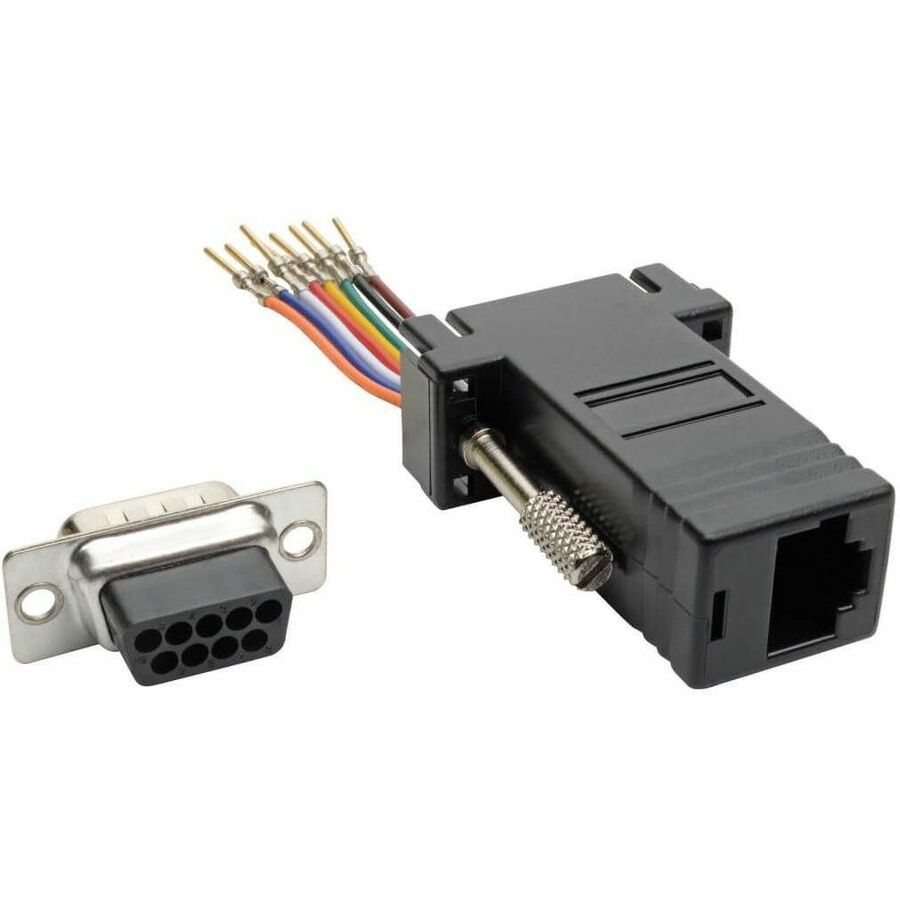

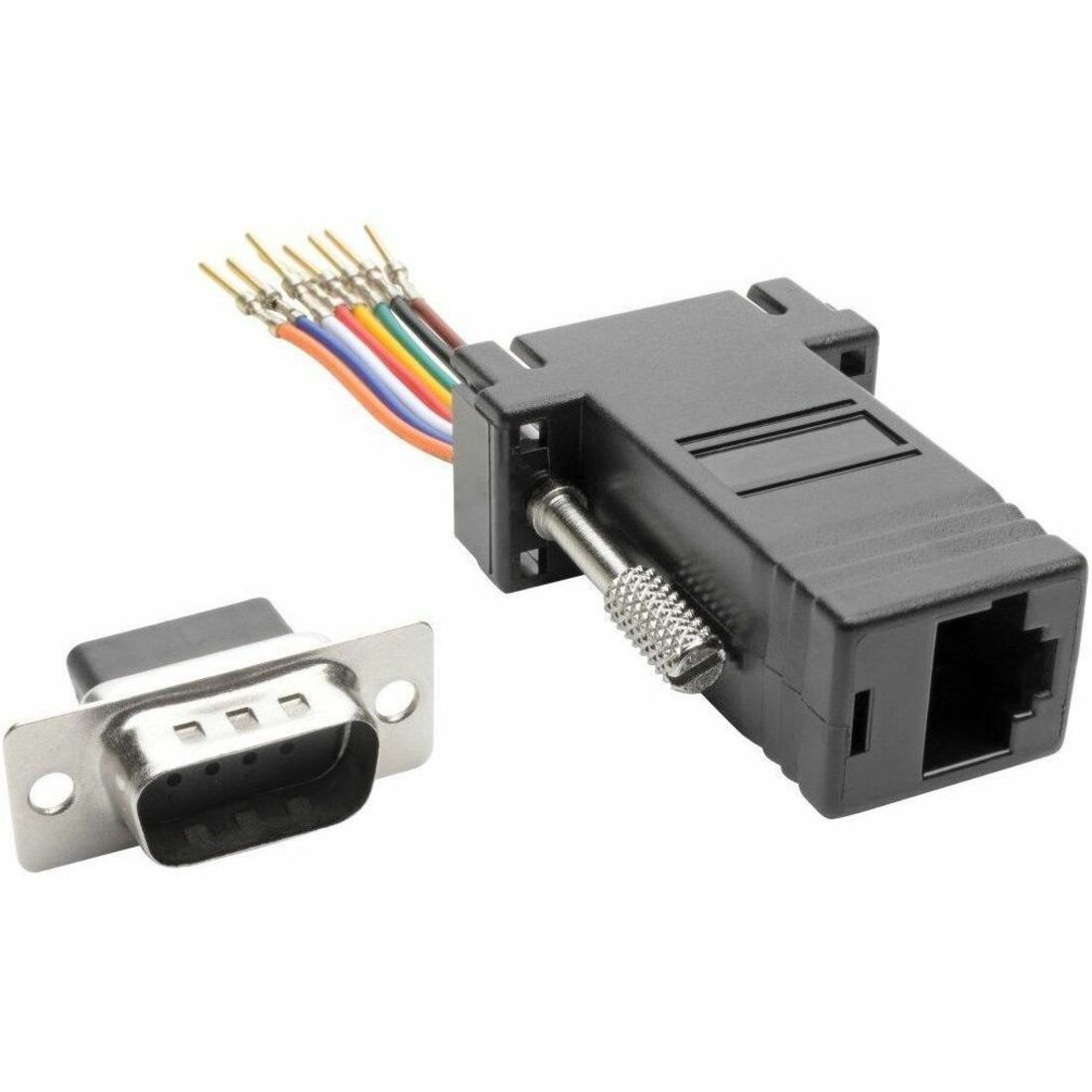

The adapter features a male DB9 serial connector with color-coded twisted-pair wires on one side and an RJ45 female connector on the other, allowing you to create customized RS-232, RS-422 and RS-485 connections. You can connect dumb desktop terminals to a central patch or directly to an MUX. Slotted, knurled thumbscrews provide a quick, secure attachment to your device. Color-coded wiring simplifies troubleshooting.

Features

Create Customized Serial Cable Configurations

• DB9 to RJ45 adapter allows serial signal to be transmitted over twisted-pair cable
• Connects terminals, serial printers, modems, POS and other serial devices to Cat5e/6 cabling
• Converts DB9
  Product Type: Data Transfer Adapter


  Technical Information

  Adapter Type: RJ-45/Serial

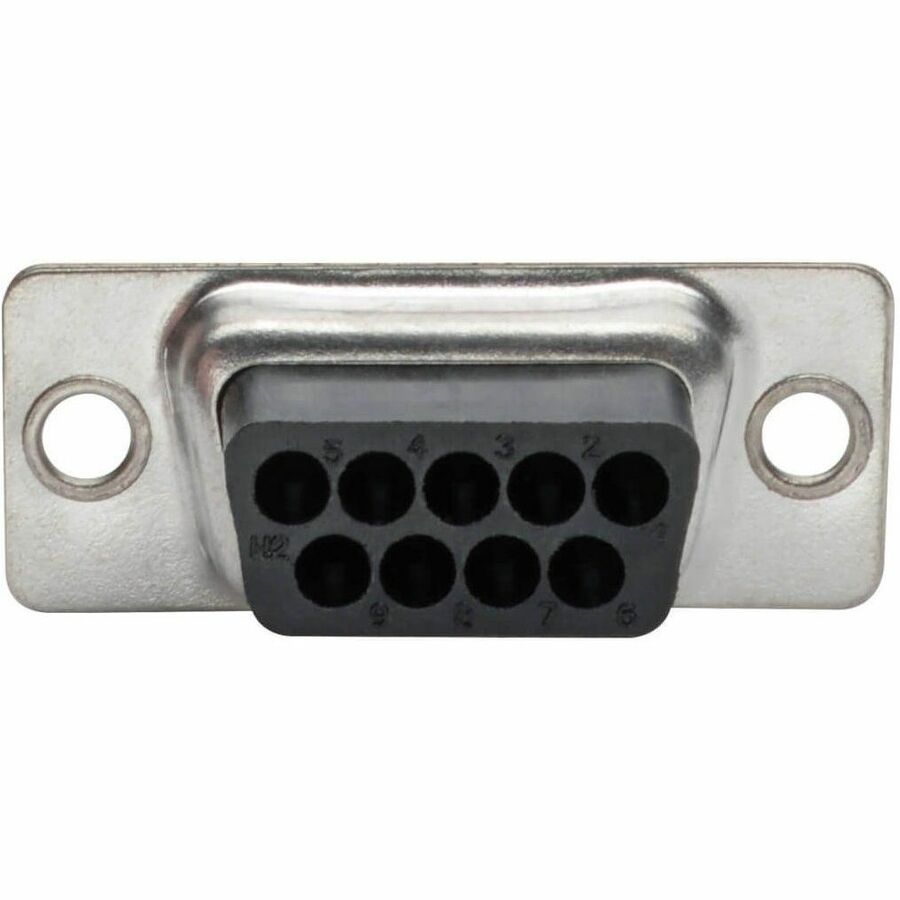

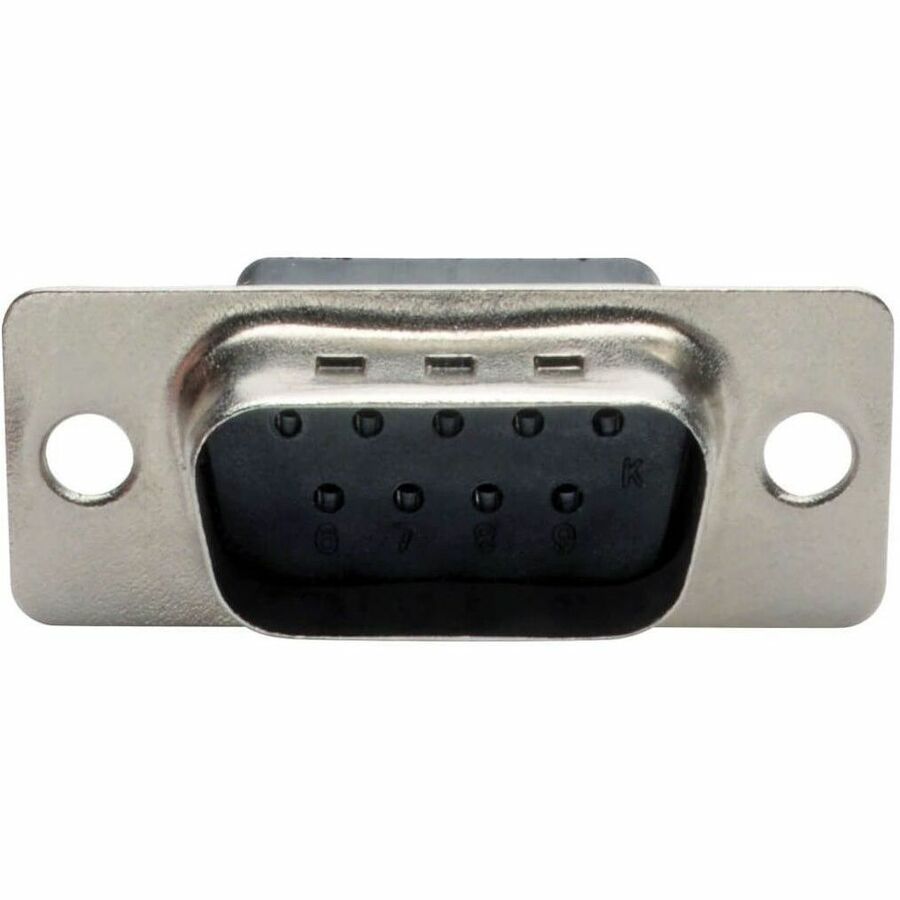

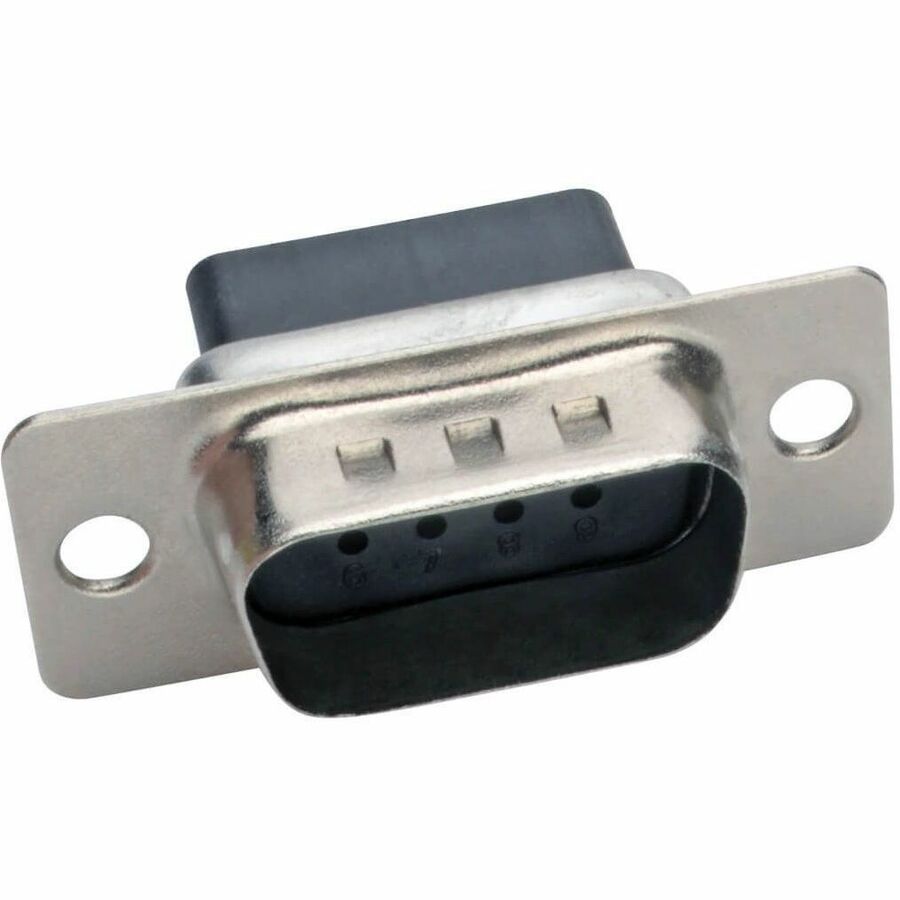

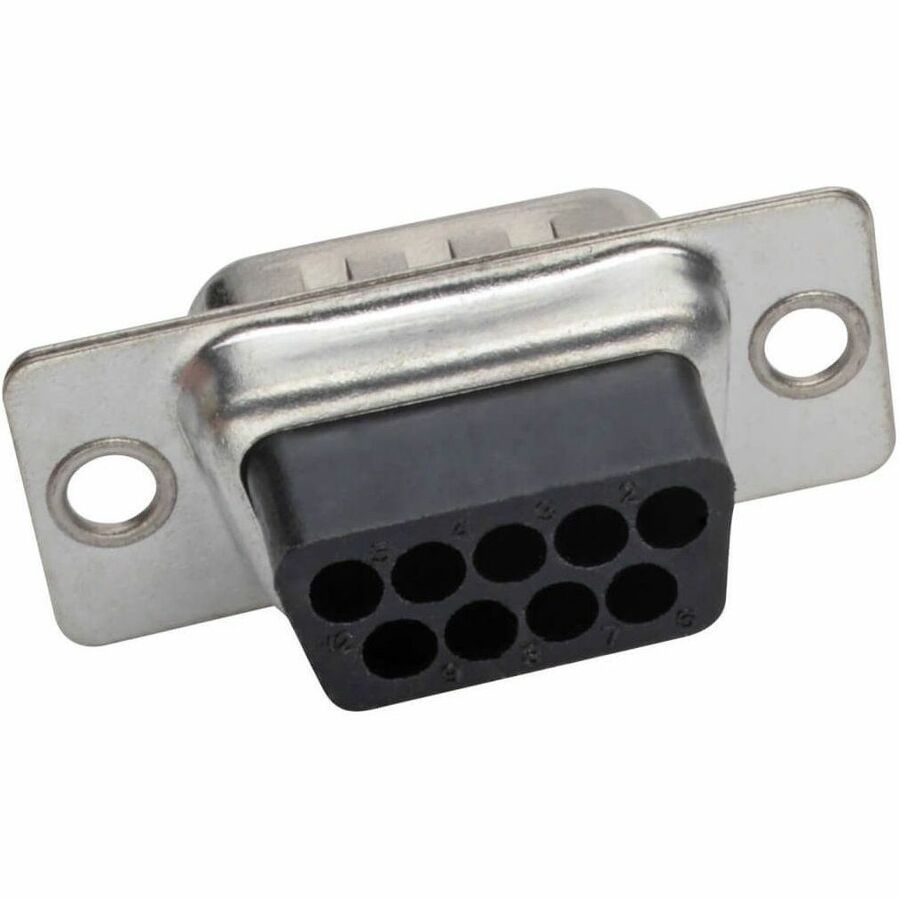

  Connector Type on First End: DB-9 Serial - Male
  Connector on First End Details: 1 x 9-pin DB-9 Serial Male

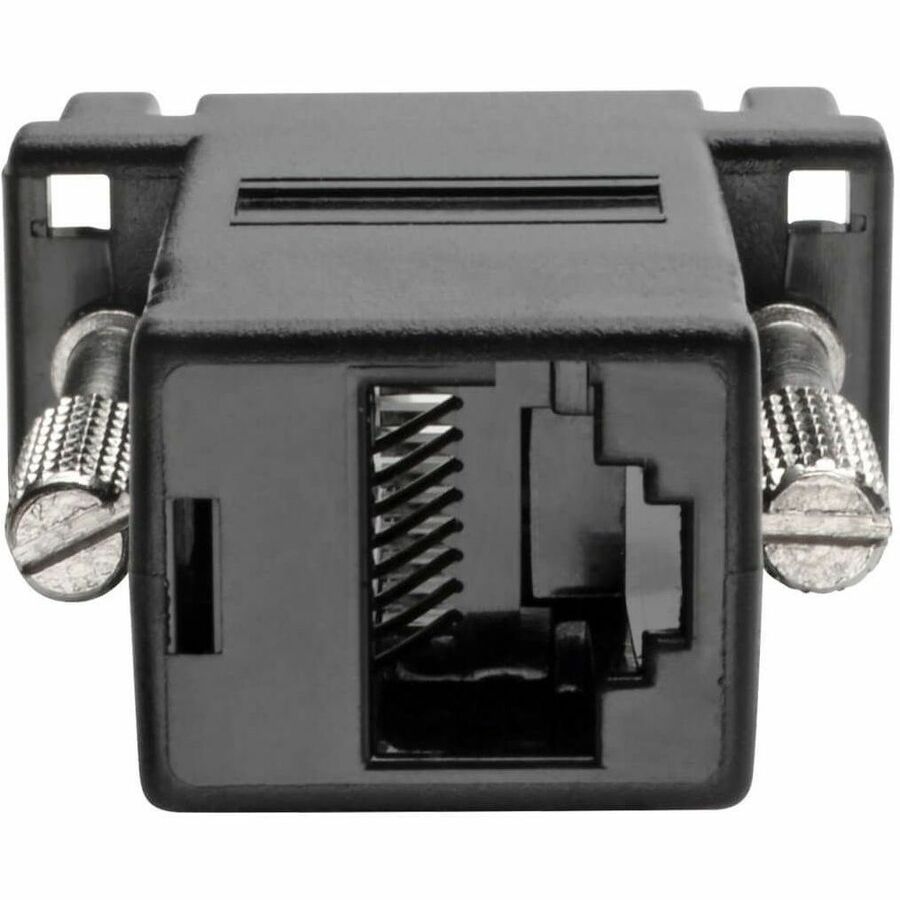

  Connector Type on Second End: RJ-45 Network - Female
  Connector on Second End Details: 1 x RJ-45 Network Female


  Physical Characteristics

  Color Family: Black
  Product Color: Black


  Miscellaneous

  Country of Origin: China
  Environmentally Friendly: Yes
  Environmental Compliance: Restriction of Hazardous Substances (RoHS)


  Warranty

  Limited Warranty: Lifetime
