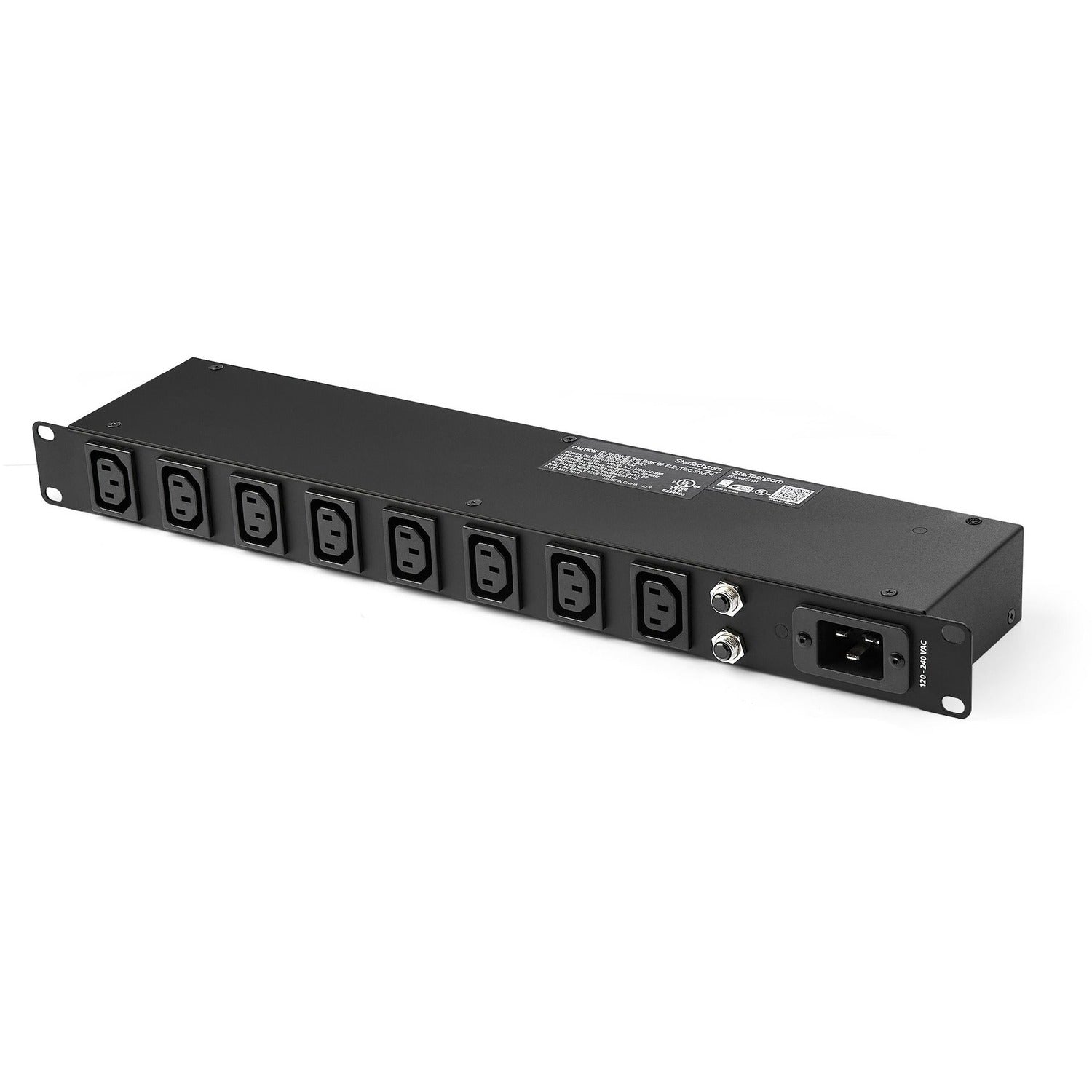

StarTech.com 1U 19" 8 Port Rack Mount PDU, IEC C13 Socket Rackmount Power Supply/ Strip, Horizontal Server Rack Surge Protector 16A 240V

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: PDU08C13H
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 8-Outlet PDU
Marketing Information:

This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment. The PDU provides 16 amps of power to be shared across the eight outlets.

Sleek, professional installation

Unlike some rack power solutions that mount awkwardly, if at all, this rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle.

Flexible power solution

For maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack.

Protects your equipment

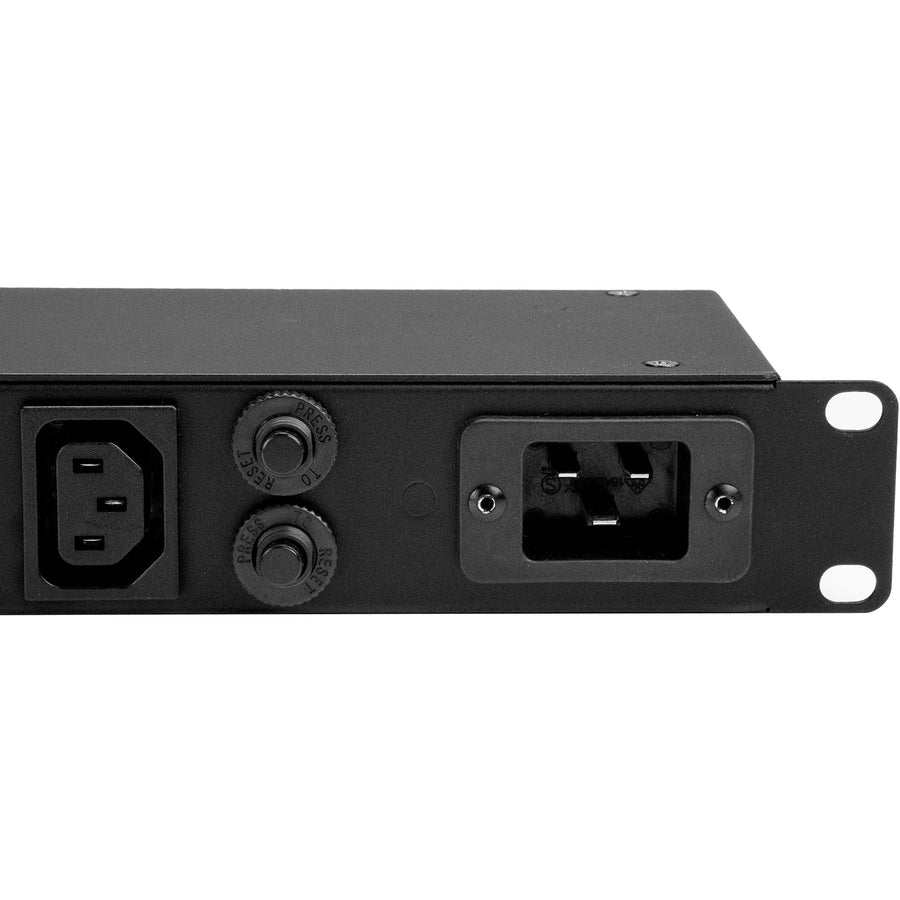

In the event of random energy surges that can occur during power outages or other anomalies, this PDU prevents costly damages to your equipment with a built-in dual circuit breaker, ensuring your equipment is protected.

The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment.

The PDU08C13H is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: PDU

Technical Information

Phase: Single Phase
Plug/Connector Type: IEC 60320 C20
Plug/Connector Detail: 1 x IEC 60320 C20
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Protection Type: Circuit Protection,Surge Protection

Power Description

Input Voltage: 120 V AC,230 V AC
Input Voltage Range: 110 V AC - 240 V AC
Output Voltage: 240 V AC
Output Voltage Range: 110 V AC - 240 V AC
Power Rating (VA): 1.92 kVA
Input Current: 20 A

Physical Characteristics

Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 18.90" (480.06 mm)
Length: 3.90" (99.06 mm)
Weight (Approximate): 4.90 lb (2222.60 g)

Miscellaneous

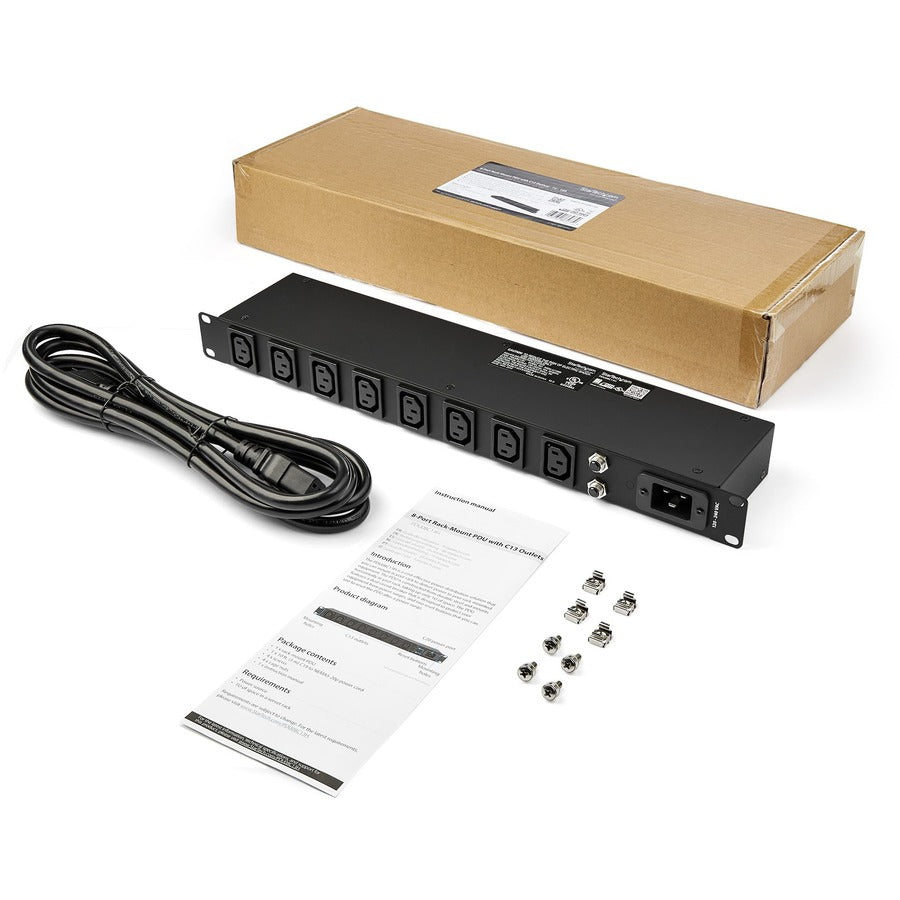

Package Contents:

• 8-Outlet PDU
• 1 x 10 ft [3 m] C19 to NEMA5x20p Power Cord
• 4 x M5 Screws
• 4 x M5 Cage Muts
• 1 x Instruction Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
