Description
General Information
Manufacturer: StarTech.comManufacturer Part Number: PEX1P2
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 1-Port Parallel PCIe Card
Marketing Information:
This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer

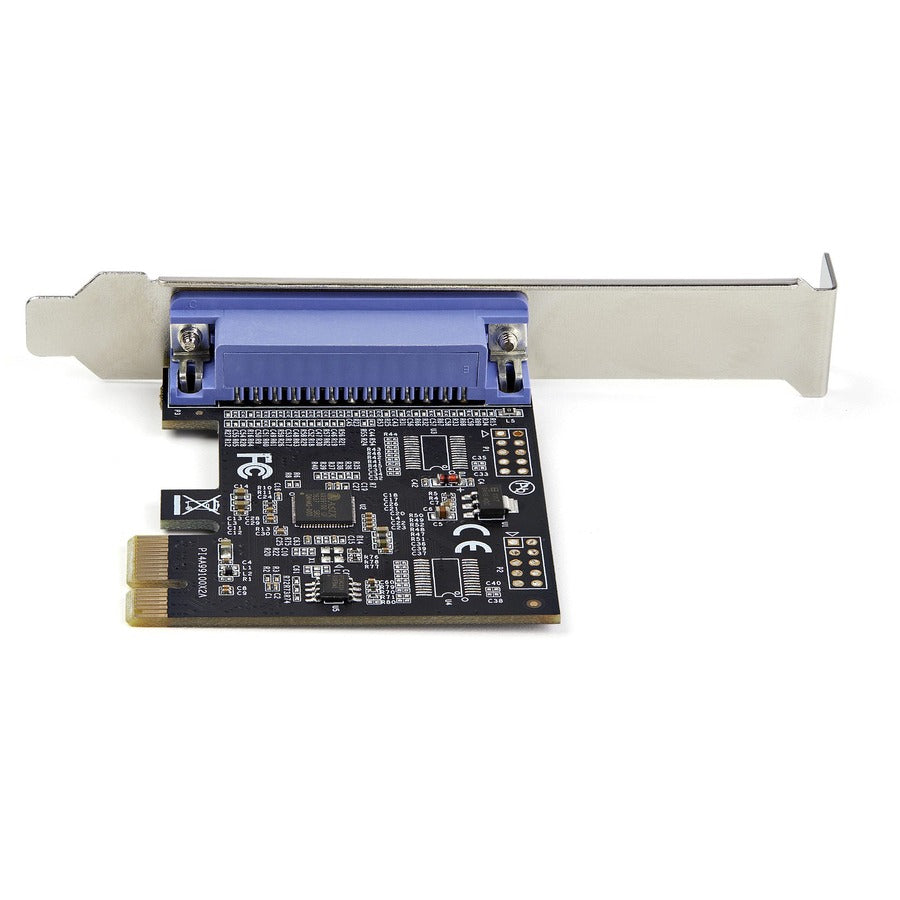

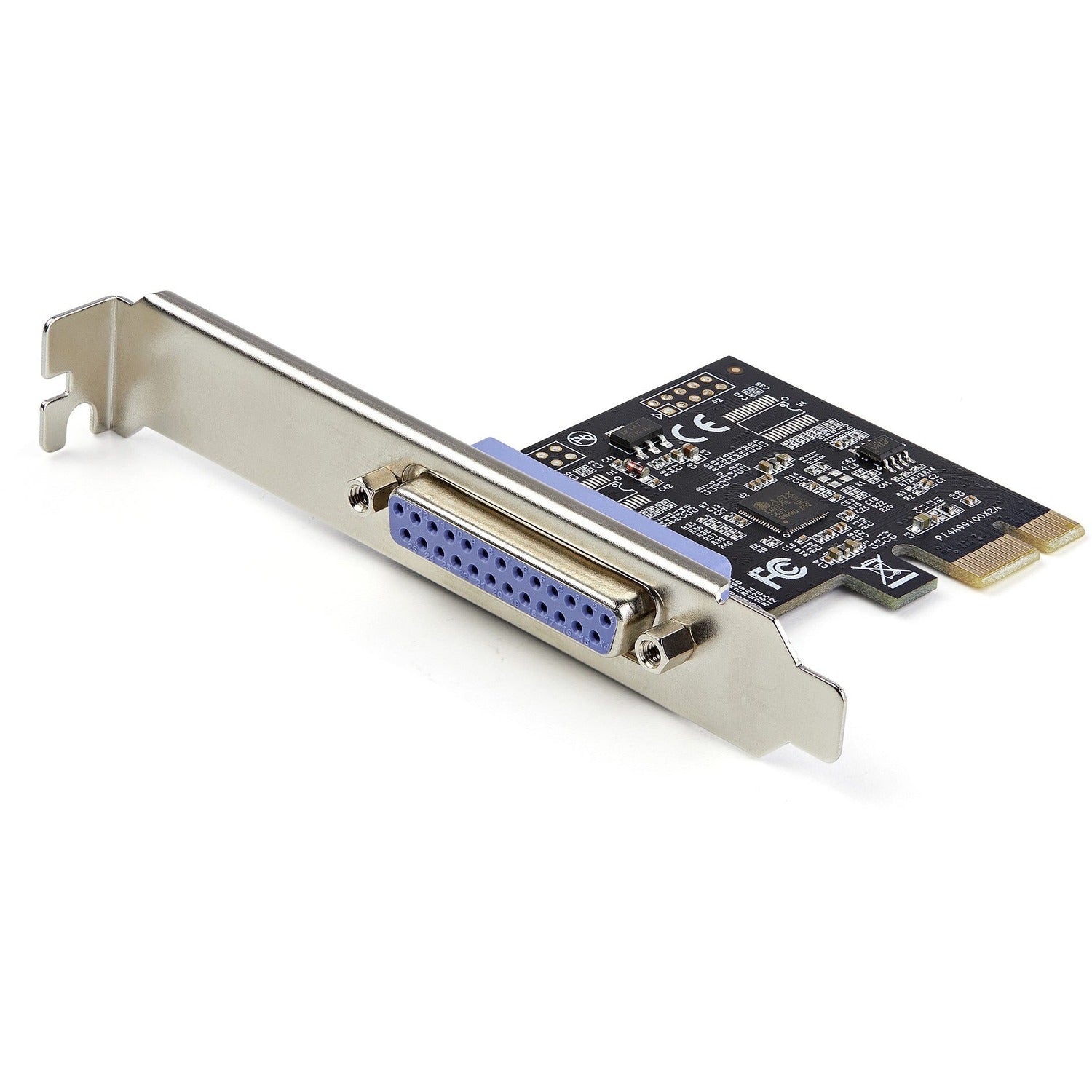

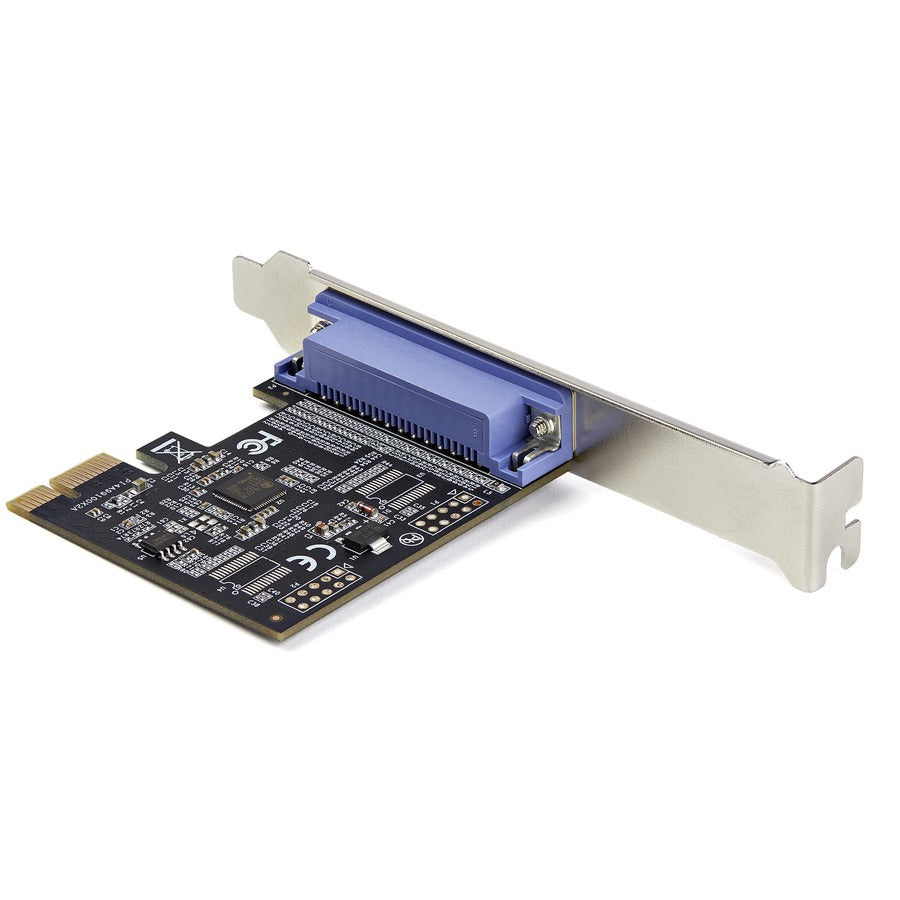

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe
Packaged Quantity: 1
Product Type: Parallel Adapter
Technical Information
Host Interface: PCI Express 2.0 x1Platform Supported: PC,Linux
Interfaces/Ports
Number of Parallel Ports (External): 1Physical Characteristics
Form Factor: Plug-in CardCard Height: Half-height/Low-profile
Height: 0.70" (17.78 mm)
Width: 2.90" (73.66 mm)
Weight (Approximate): 1.59 oz (45 g)
Miscellaneous

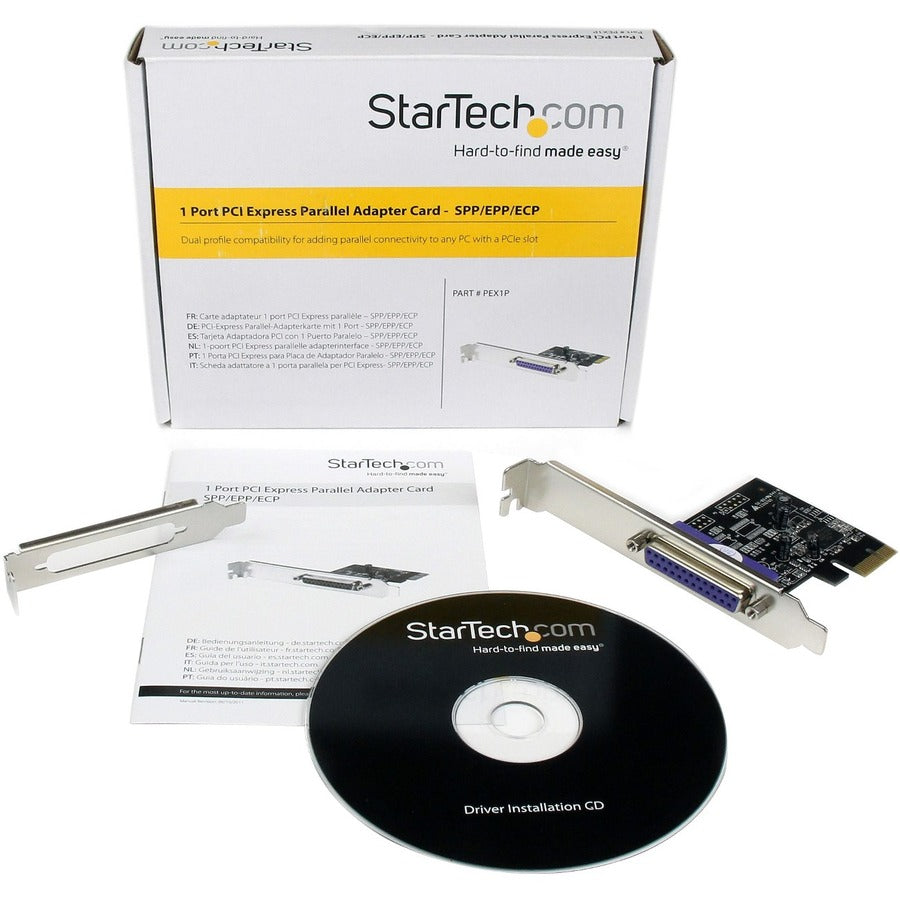

Package Contents:- 1-Port Parallel PCIe Card
- Full Profile Bracket
- Low Profile Bracket
- Quick Start Guidel
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Warranty
Limited Warranty: 2 Year
