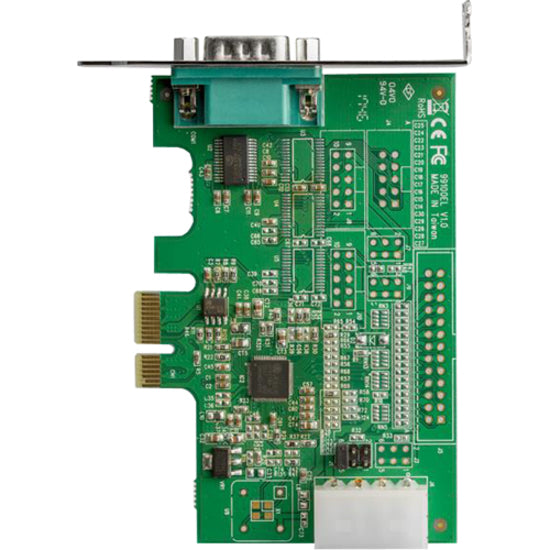

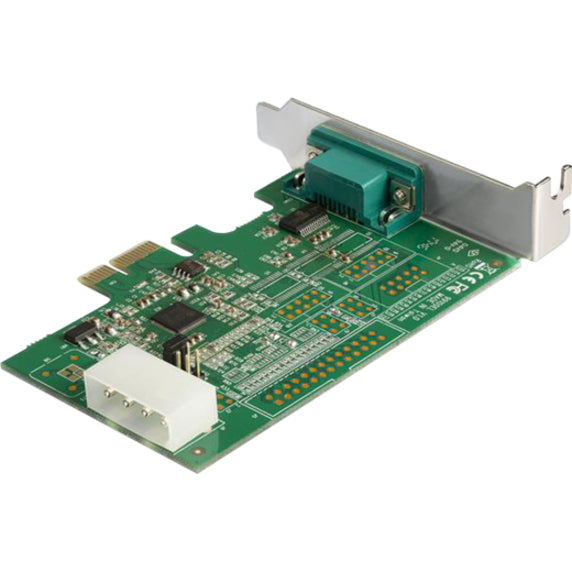

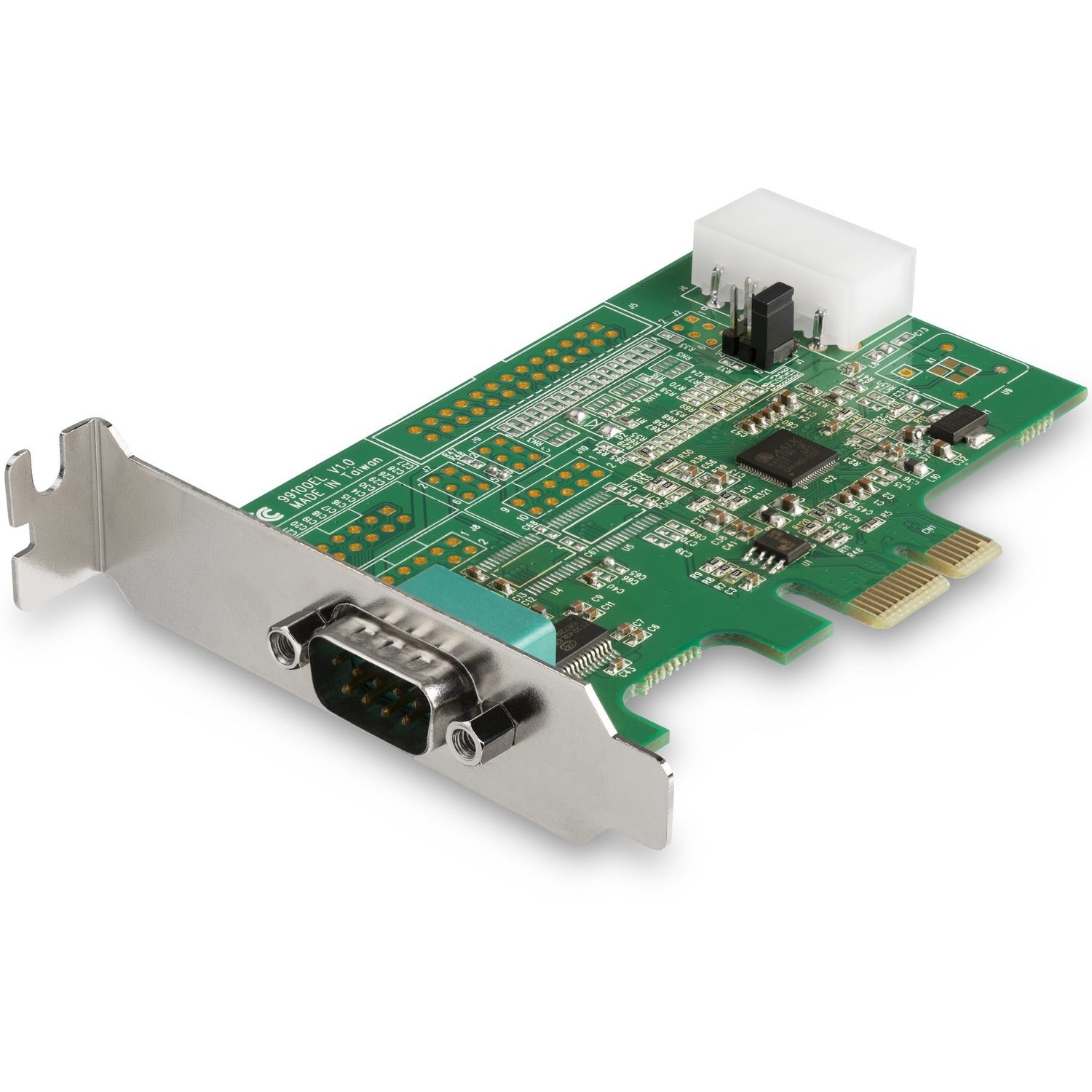

PEX1S953LP StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux

General Information

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

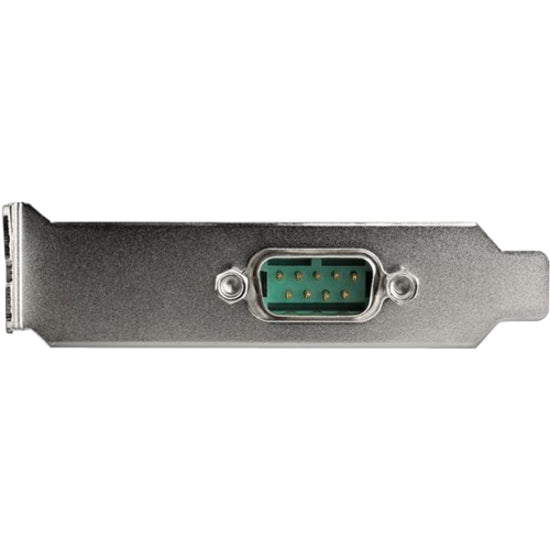

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset

Packaged Quantity: 1
Product Type: Serial Adapter


Technical Information

Host Interface: PCI Express x1
Platform Supported: PC,Linux
UART Type: 16950


Interfaces/Ports

Number of Serial Ports (External): 1


Physical Characteristics

Form Factor: Plug-in Card
Card Height: Low-profile
Height: 5.90" (149.86 mm)
Width: 2.60" (66.04 mm)
Weight (Approximate): 1.60 oz (45.36 g)


Miscellaneous

Package Contents:
• 1-Port PCI Express Serial Card with 16950 UART - Low-Profile
• 1 x Full-Profile Bracket
• 1 x User Manual

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan


Warranty

Limited Warranty: Lifetime
