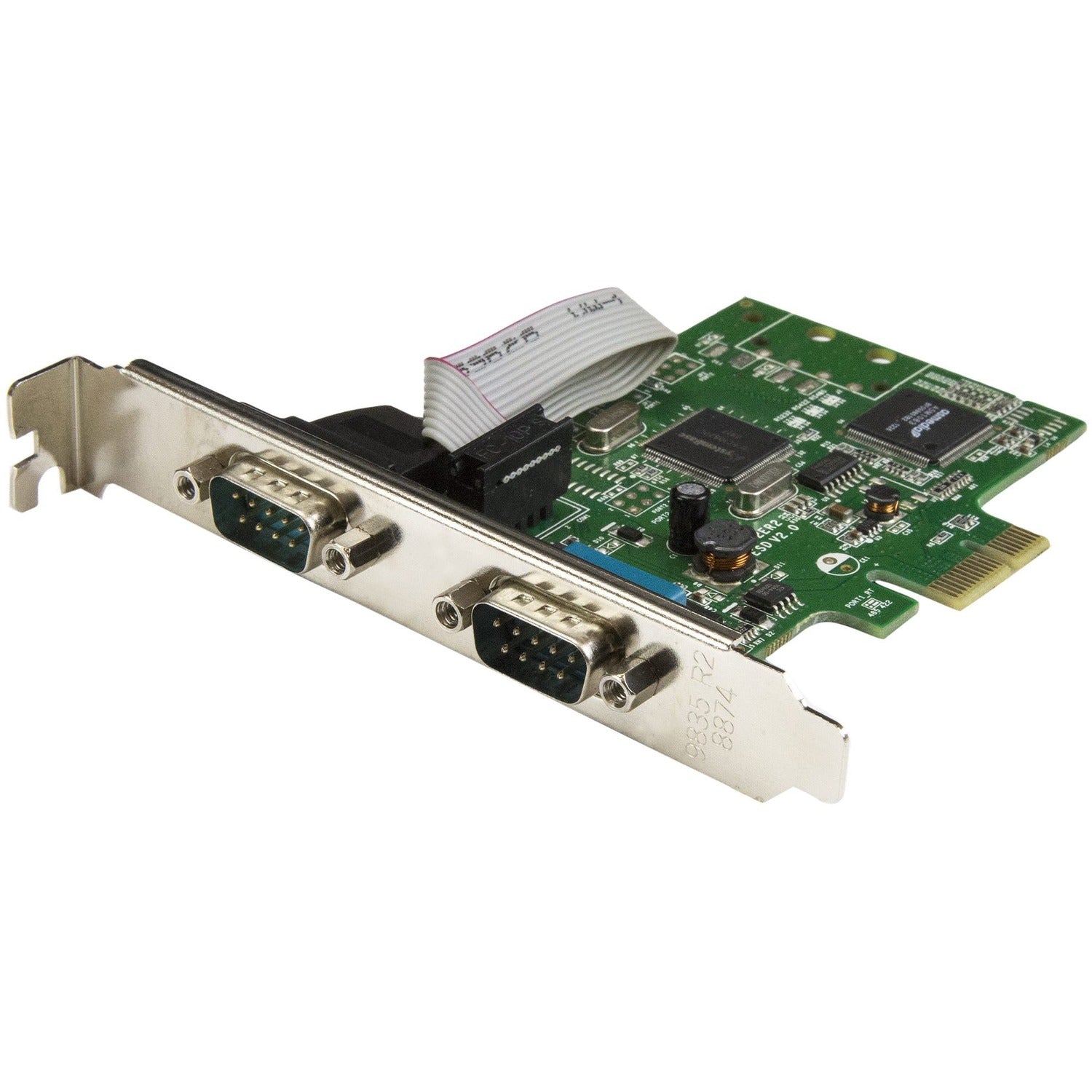

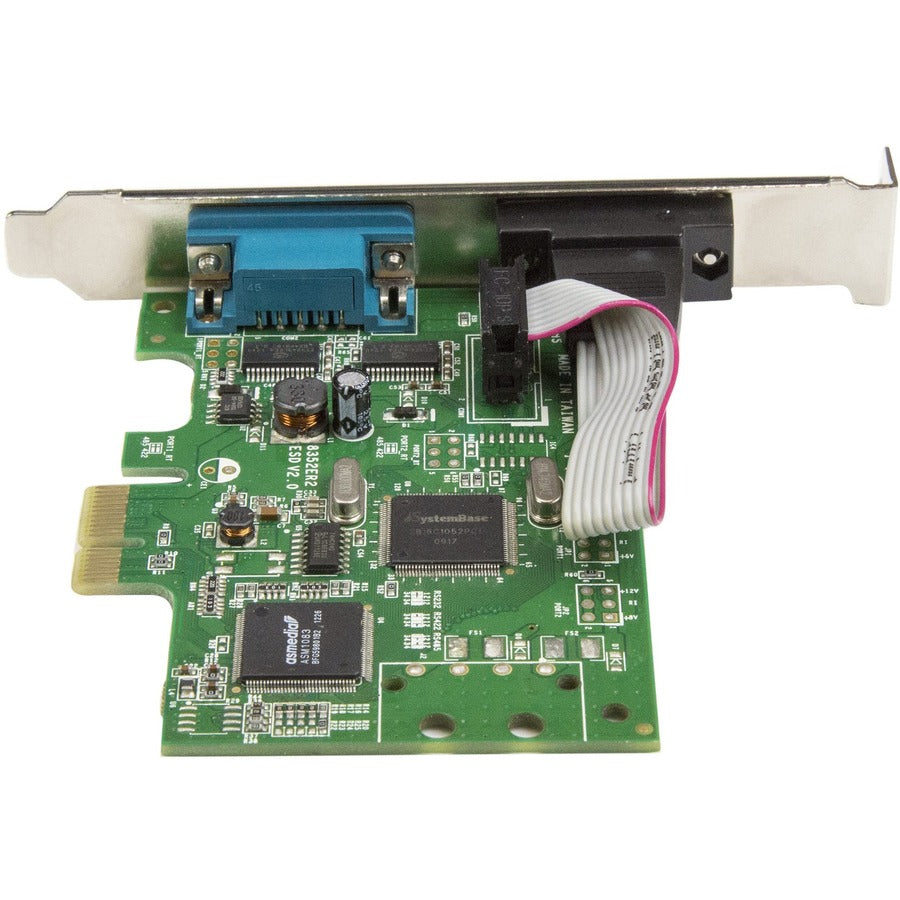

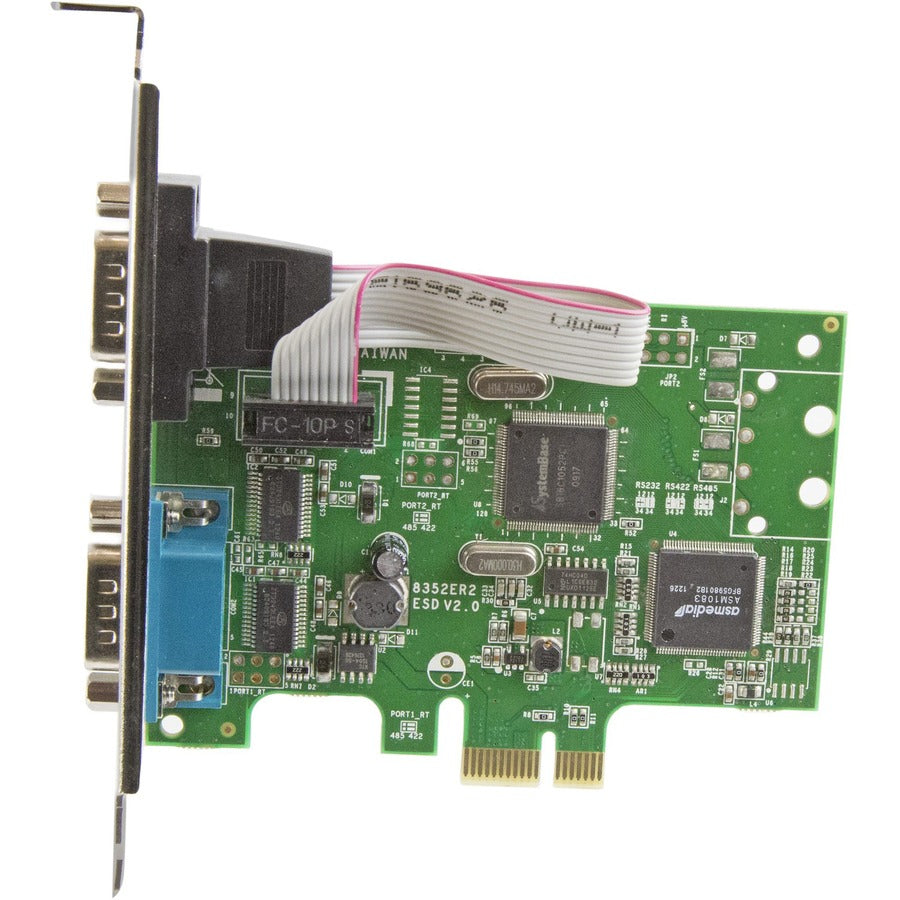

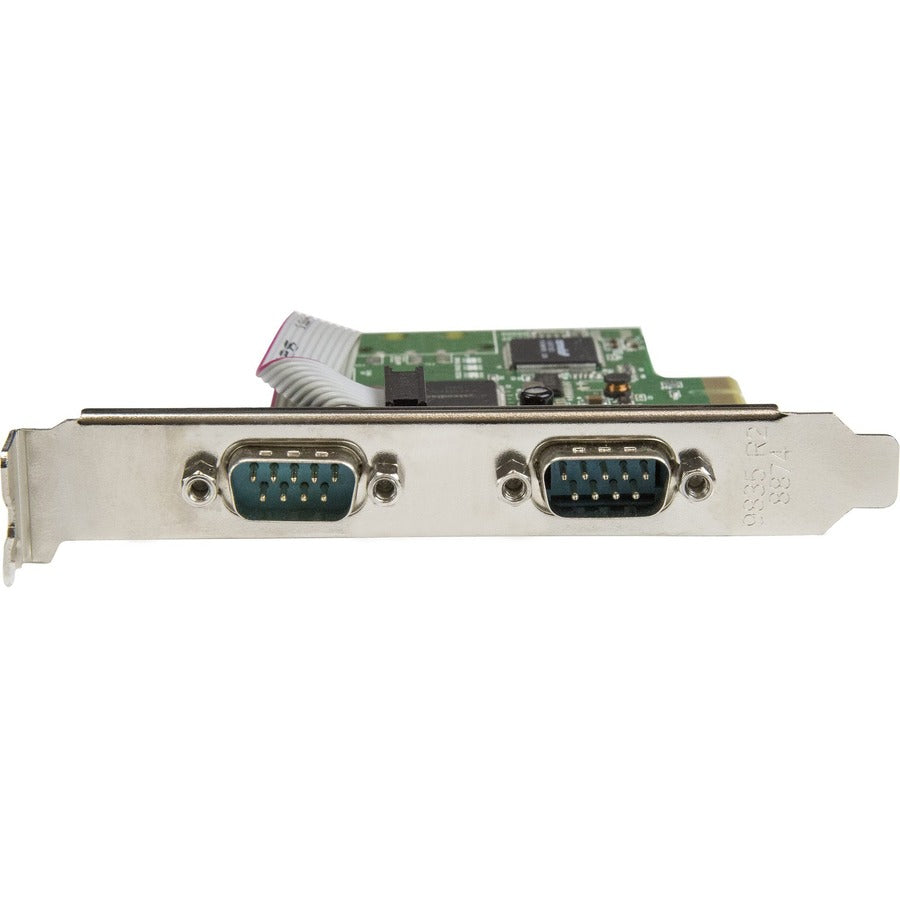

StarTech.com PCI Express Serial Card - 2 port - Dual Channel 16C1050 UART - Serial Port PCIe Card - Serial Expansion Card PEX2S1050

StarTech.comSKU: PEX2S1050
No reviews

Price:
Sale price$121.99

Description

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: PEX2S1050
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 2-Port PCI Express Serial Card with 16C1050 UART - RS232
Marketing Information:

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.

More from the Manufacturer


Packaged Quantity: 1
Product Type: Serial Adapter

Technical Information

Host Interface: PCI Express x1
Platform Supported: PC,Linux

Interfaces/Ports

Number of Serial Ports (External): 2

Physical Characteristics

Form Factor: Plug-in Card
Card Height: Low-profile
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Length: 4.10" (104.14 mm)
Weight (Approximate): 62.4 g

Miscellaneous

Package Contents:
  • 2-Port PCI Express Serial Card with 16C1050 UART - RS232
  • 2 x Low-Profile Brackets
  • 1 X Driver CD
  • 1 X Quick-Start Guide

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
