Description

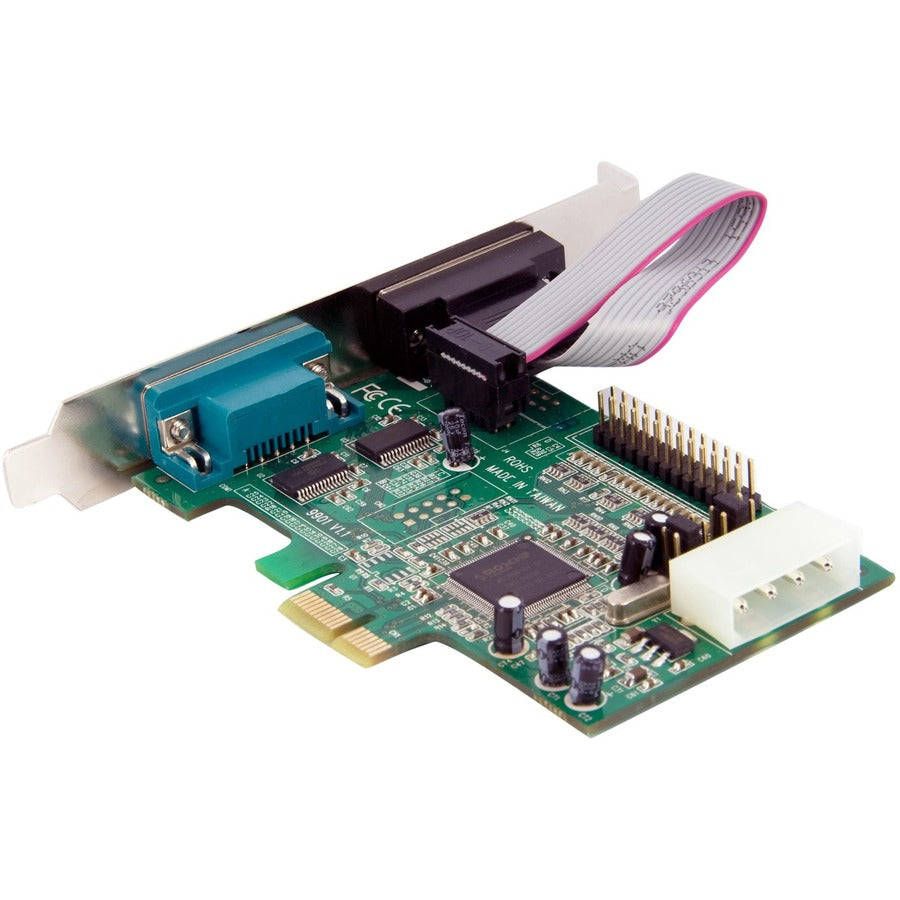

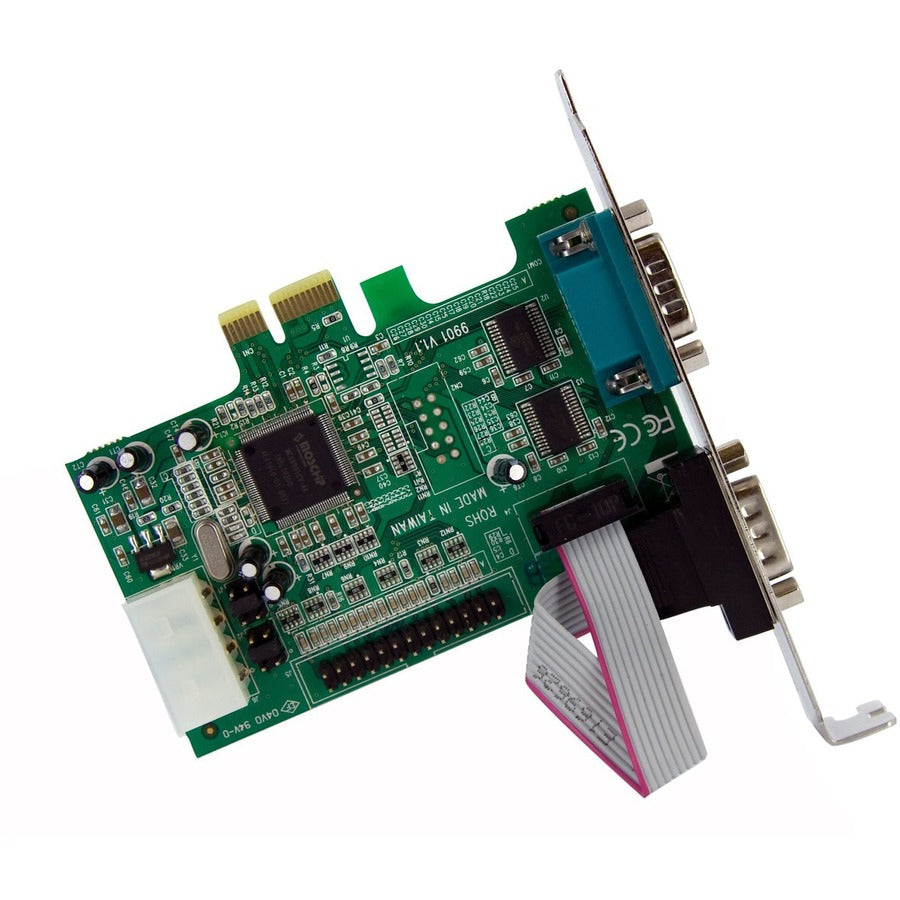

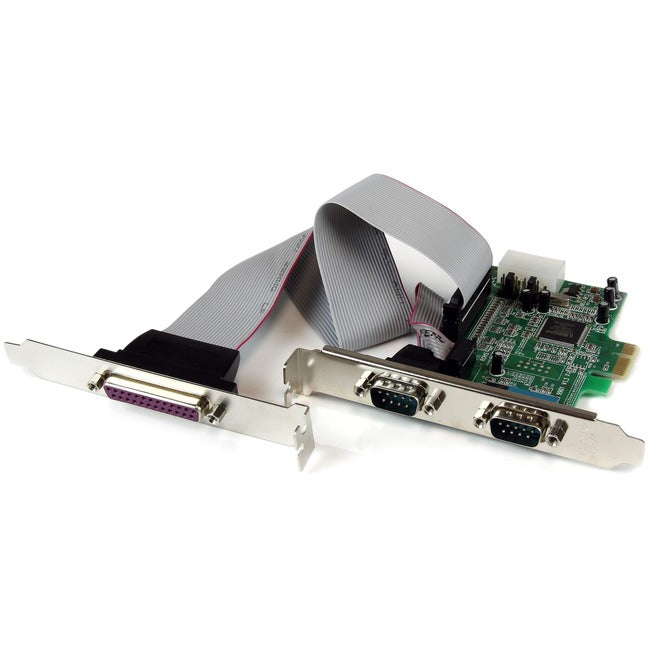

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Automated in-band flow control using programmable Xon/Xoff in both directions
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Native single-chip, single lane PCI Express
- Selectable power output on pin 9 for the serial port
- Configurable in 5V, 12V, and RI (non-powered) modes
- 128-byte deep FIFO per transmitter and receiver
- Compliant with PCI Express base specifications revision 1.0a
- One parallel port with data transfer rate up to 1.5 Mbps
- Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
- TAA Compliant : Yes
- Environmental Certification : WEEE
- Environmentally Friendly : Yes
- Platform Supported : Linux
- Limited Warranty : 2 Year
- Number of Serial Ports (External) : 2
- Packaged Quantity : 1
- Form Factor : Plug-in Card
- Package Contents :
- 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
- Parallel Port (with Ribbon Cable)

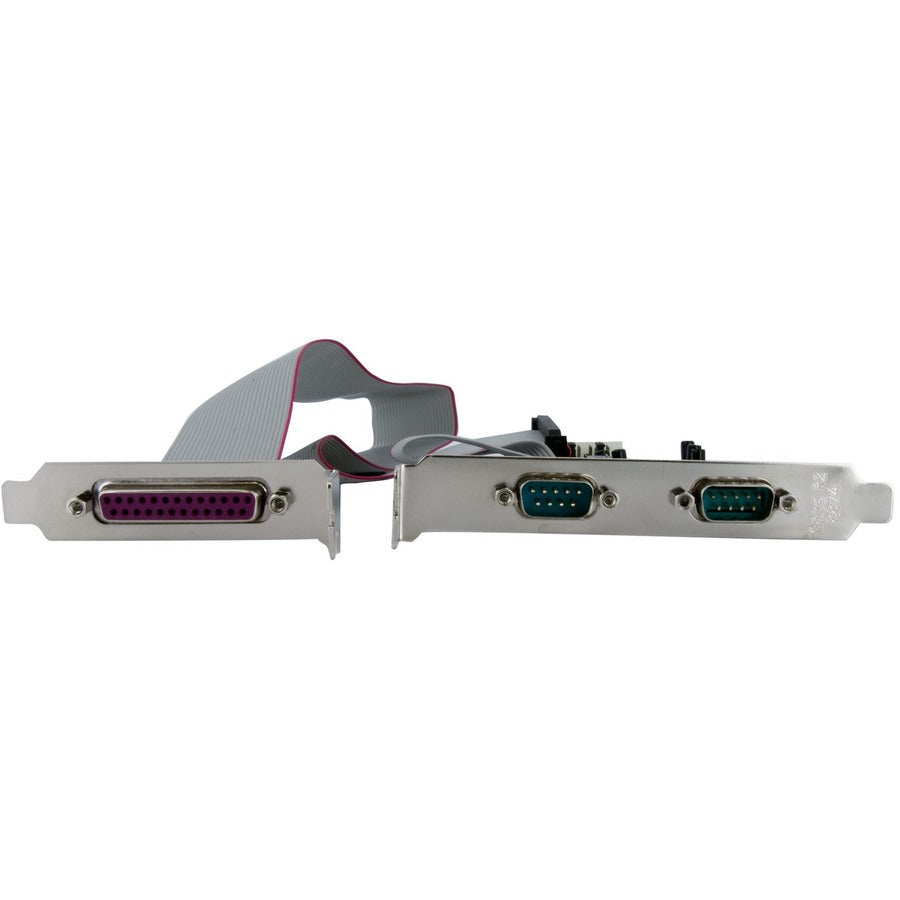

- Low Profile Brackets
- Driver CD
- Instruction Manual
- Manufacturer Website Address : http://www.startech.com
- Host Interface : PCI Express x1
- Card Height : Dual-profile
- Product Type : Serial/Parallel Combo Adapter
- Manufacturer : StarTech.com
- Product Model : PEX2S5531P
- Number of Parallel Ports (External) : 1
- Country of Origin : Taiwan
