M.2 Adapter - x4 PCIe 3.0 NVMe - Low Profile and Full Profile - SSD PCIE M.2 Adapter - M2 SSD - PCI Express SSD PEX4M2E1

StarTech.comSKU: PEX4M2E1
No reviews

Sale price$53.99


General Information

Manufacturer Part Number: PEX4M2E1
Manufacturer Website Address:
Brand Name:

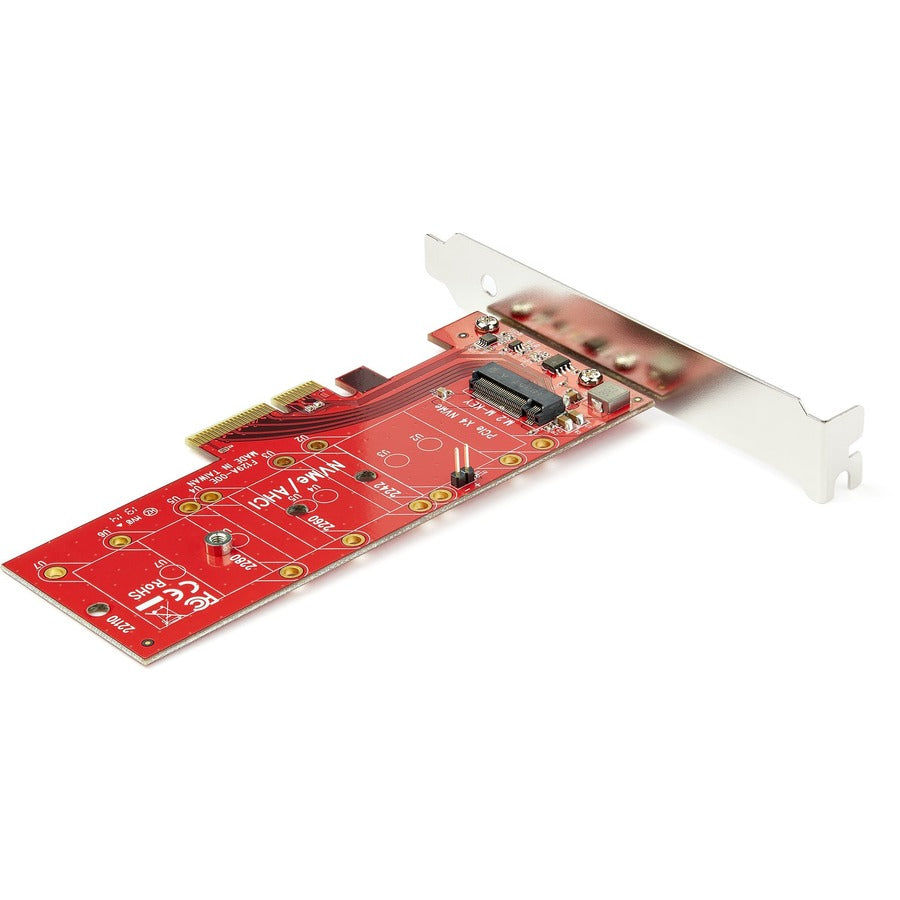

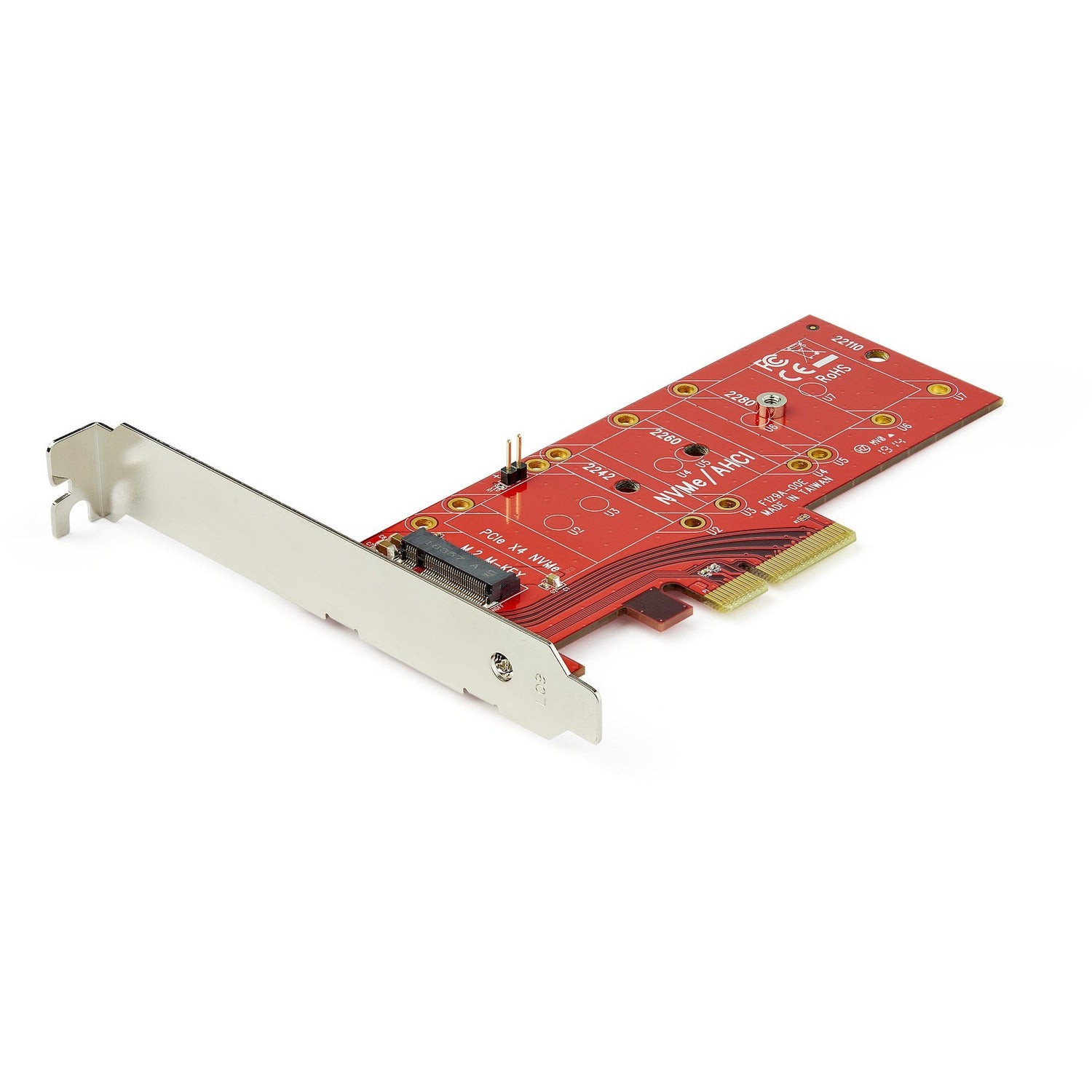

Product Name: x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter
Marketing Information:

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe M.2 SSDs

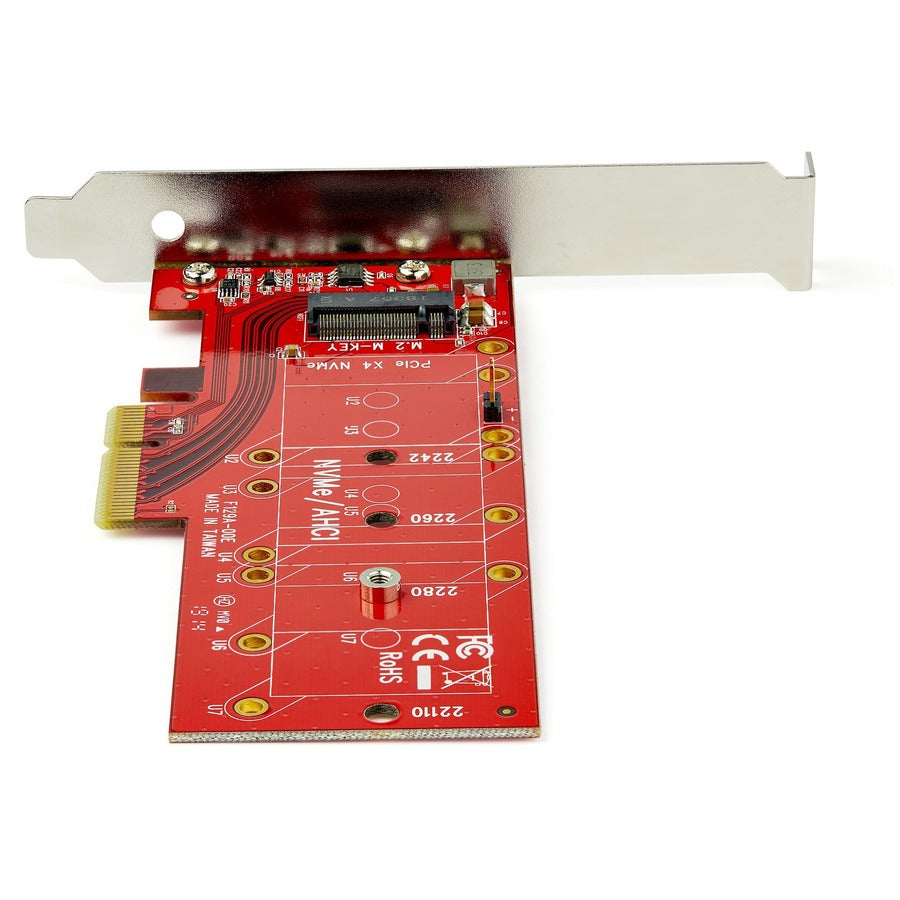

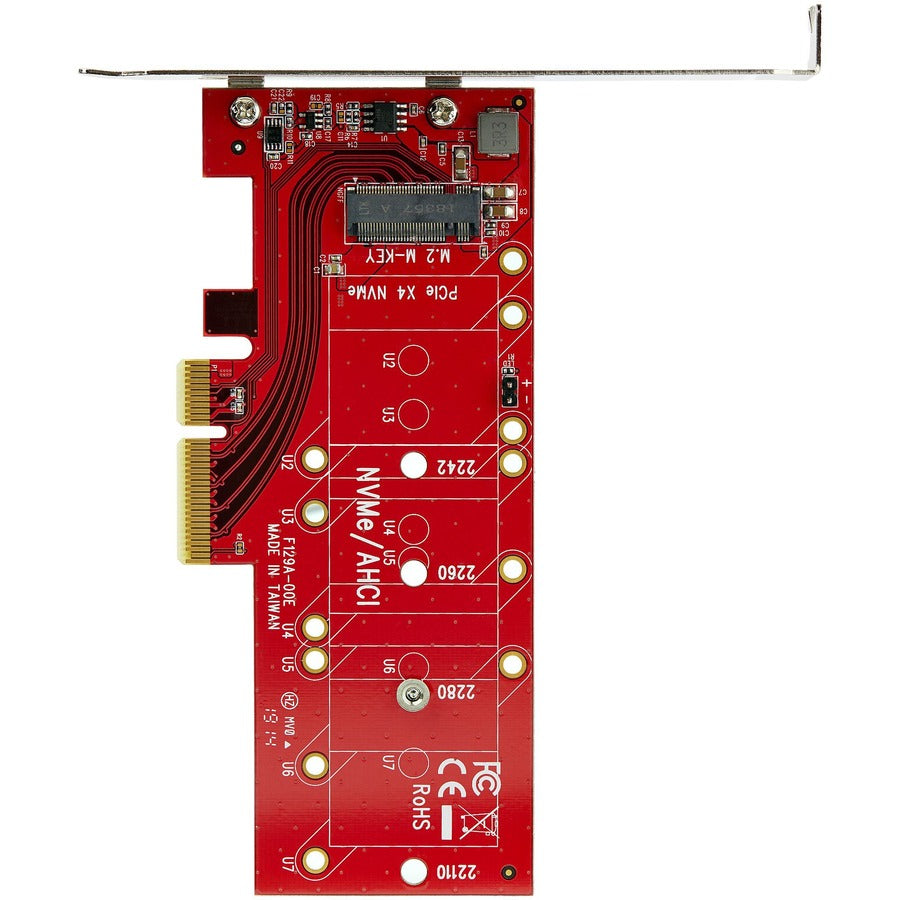

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

Easy to install

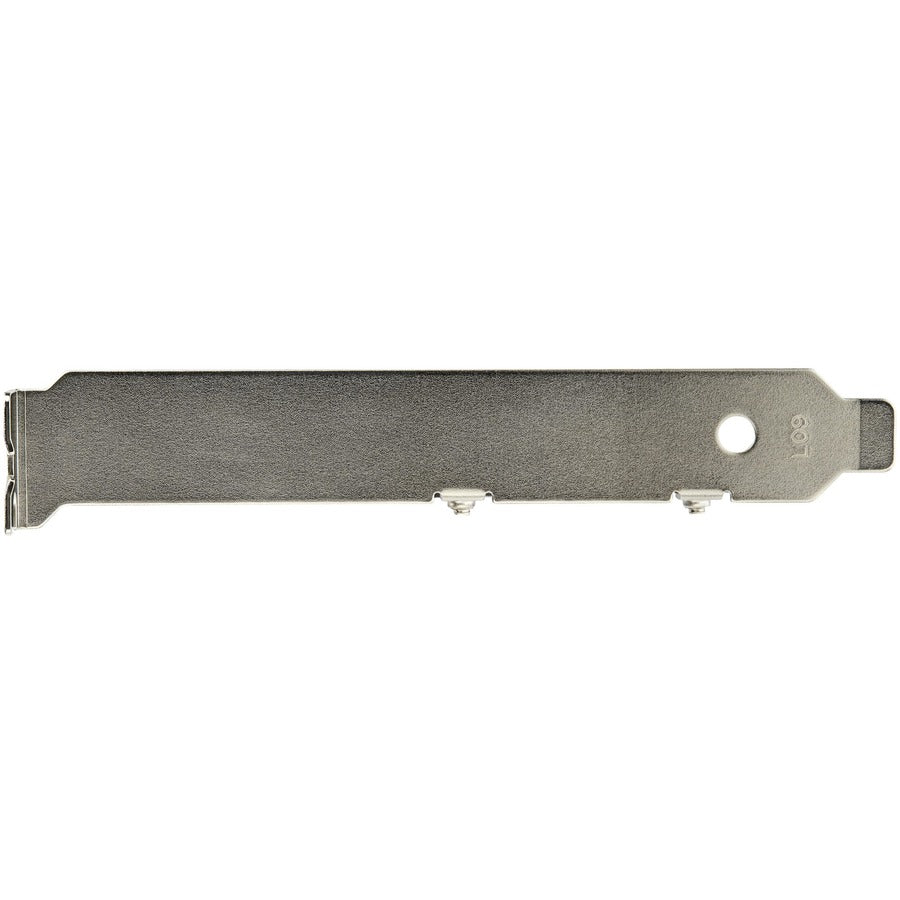

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

The PEX4M2E1 is backed by a 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity: 1
Product Type: M.2 NVMe to PCIe Adapter

Physical Characteristics

Product Color: Red
Product Material: Steel
Height: 0.20" (5.08 mm)
Width: 3.10" (78.74 mm)
Length: 5.30" (134.62 mm)
Weight (Approximate): 48.2 g

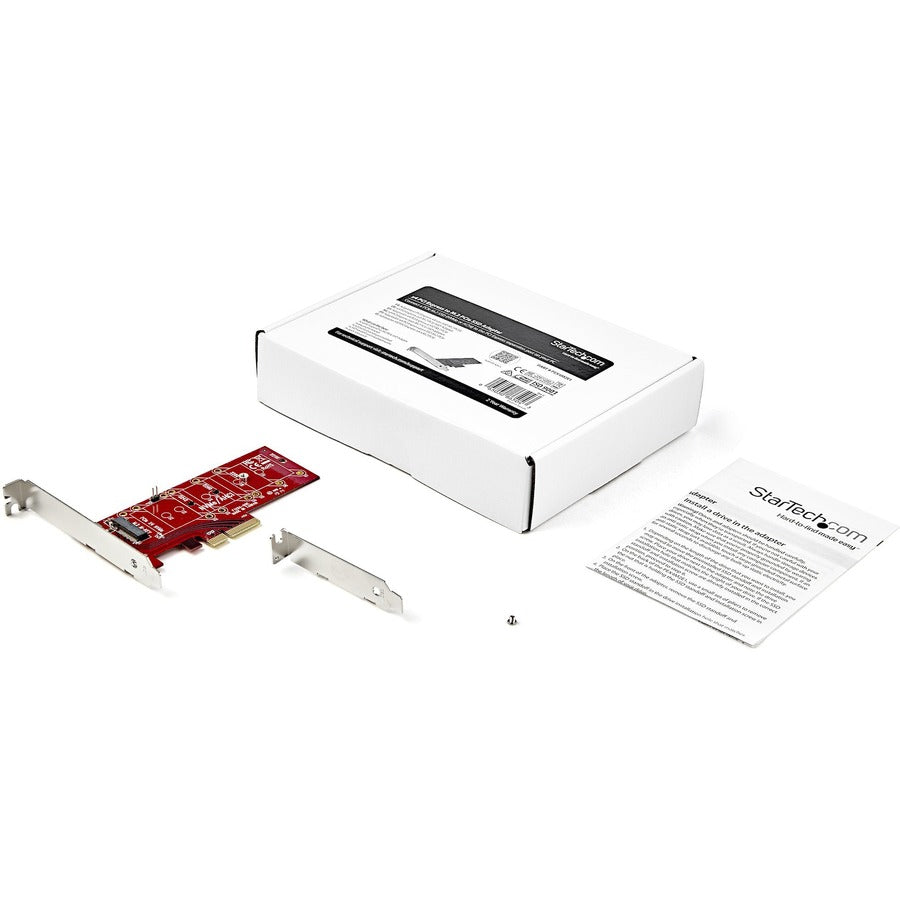

Package Contents:
  • x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter
  • 1 x Low-profile Bracket
  • 1 x Full-profile Bracket (Pre-installed)
  • 1 x SSD Standoff and Installation Screw
  • 1 x Quick Start Guide

Additional Information: Hardware
  • Bus Type PCI Express
  • Compatible Drive Types (Type and Rate) M.2 (NGFF; M-Key; PCIe x4)
  • Drive Installation Fixed
  • Drive Size 22m - M.2 NGFF
  • Interface PCI Express
  • Number of Drives 1
  • Supported Drive Height(s): 2242 2260 2280 22110
  • Hot Swap Capability No
  • Drive Connectors 1 - M.2 (NGFF; M-Key; PCIe x4)
  • Host Connectors 1 - PCI Express x4 Male
  • OS Compatibility OS independent; No software or drivers required
  • LED Indicators 1 - Pin header on board for drive LED connection
  • Humidity 15% ~ 90% RH
  • Operating Temperature 5°C to 50°C (41°F to 122°F)
  • Storage Temperature -25°C to 70°C (-13°F to 158°F)

Certifications & Standards:
  • FCC
  • CE

Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)


Limited Warranty: 2 Year
