Manufacturer Part Number: PEX4S953
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 4 Port Full Profile Serial Card

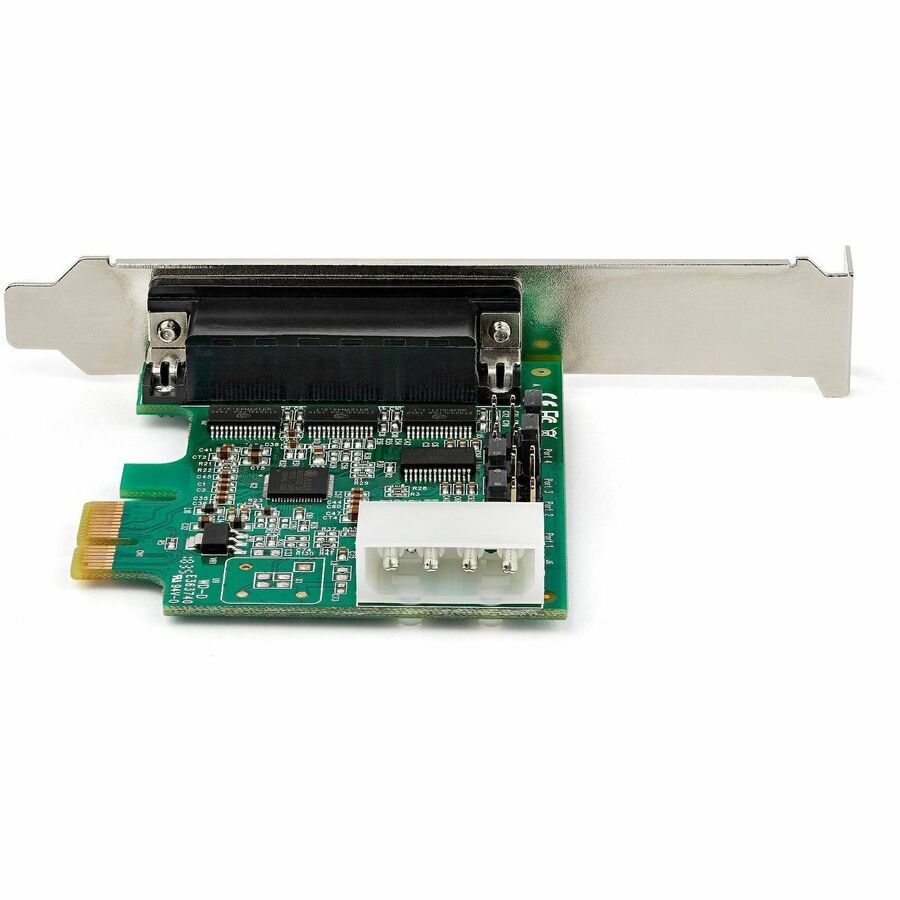

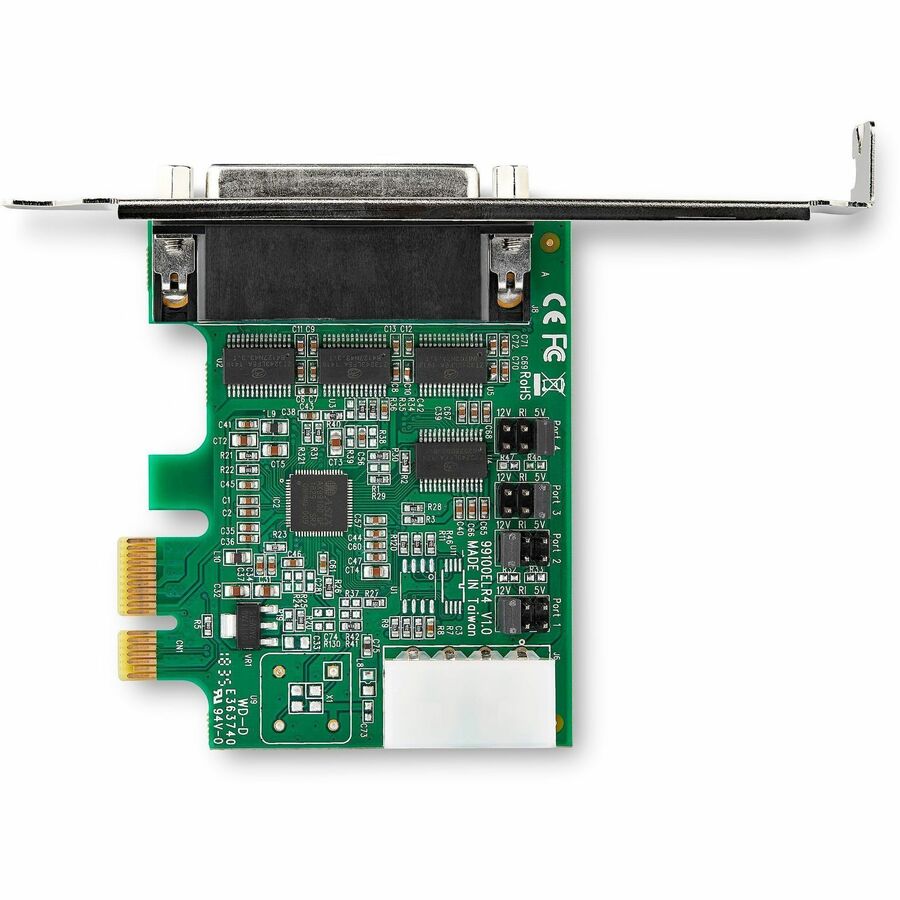

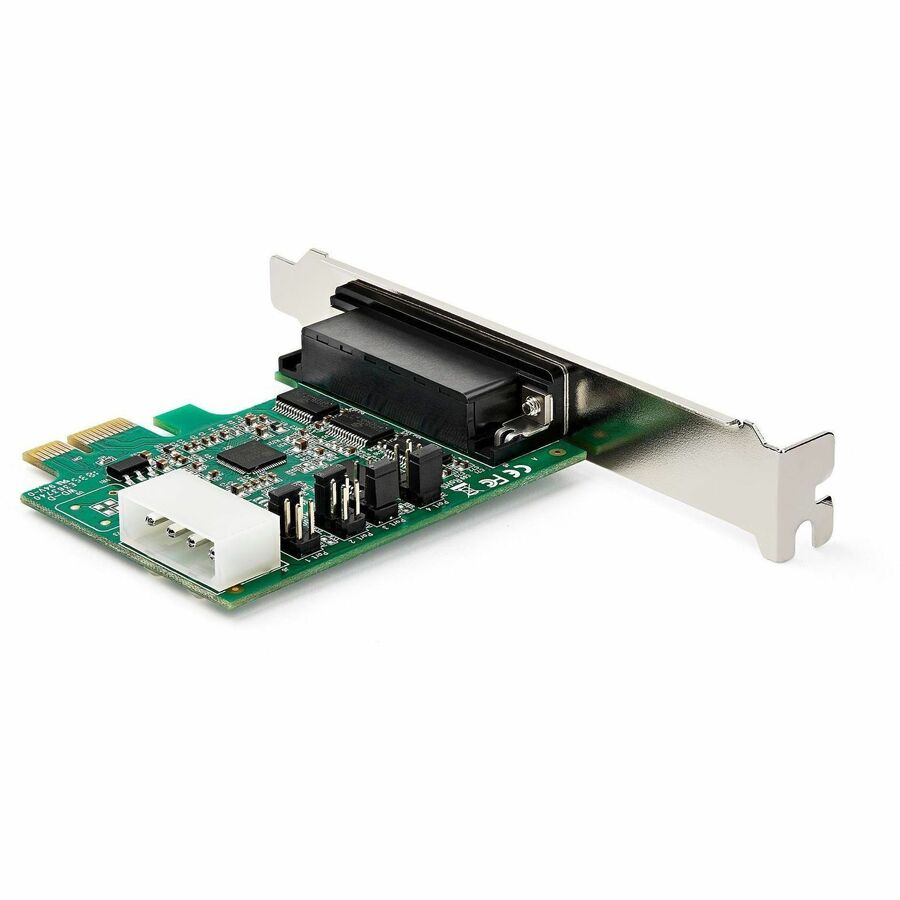

Marketing Information: This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: PEX4S953
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 4 Port Full Profile Serial Card
Marketing Information: This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility
With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.
Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:
- Industry standard 16950 UART compatible
- Supports max baud rate of up-to 921.6Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 256-by
Packaged Quantity: 1 Each
Product Type: Multiport Serial AdapterTechnical Information
Host Interface: PCI Express 1.1
Maximum Data Transfer Rate: 921.60 kbit/sInterfaces/Ports
Ports Expandability: 4 x DB-9 RS-232 - Serial, Via CablePhysical Characteristics
Form Factor: Plug-in CardMiscellaneous

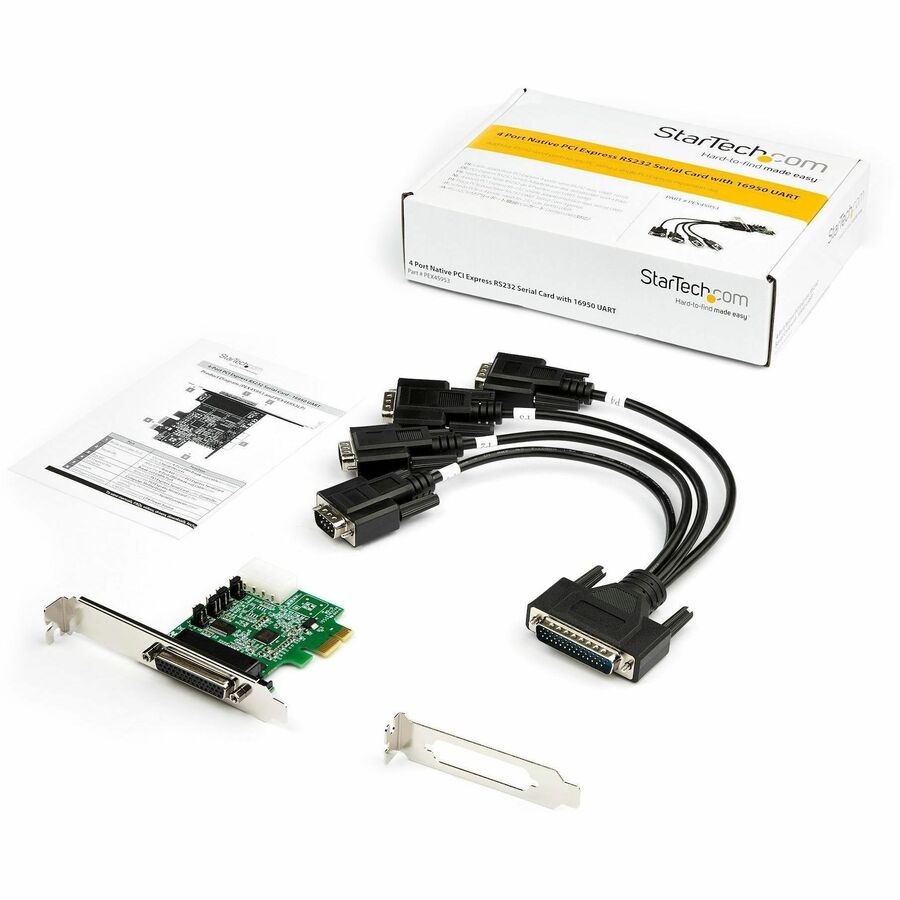

Package Contents:- 4 Port Full Profile Serial Card
- 1 x Low Profile Bracket

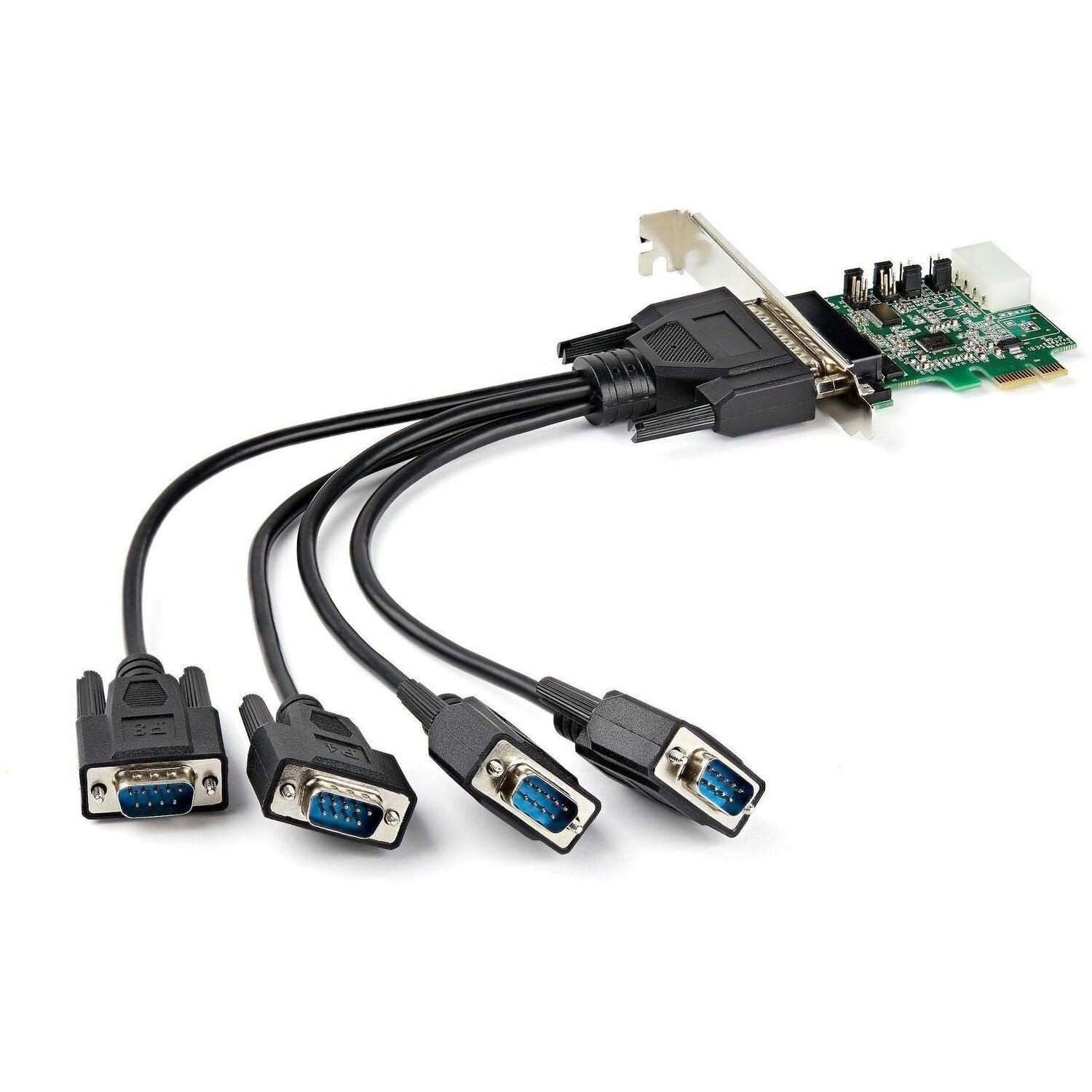

- 1 x Break-out Cable
- 1 x Quick Start Guide
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Warranty
Limited Warranty: Lifetime
