Description
General Information
Manufacturer: StarTech.comManufacturer Part Number: PEXSAT34RH
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

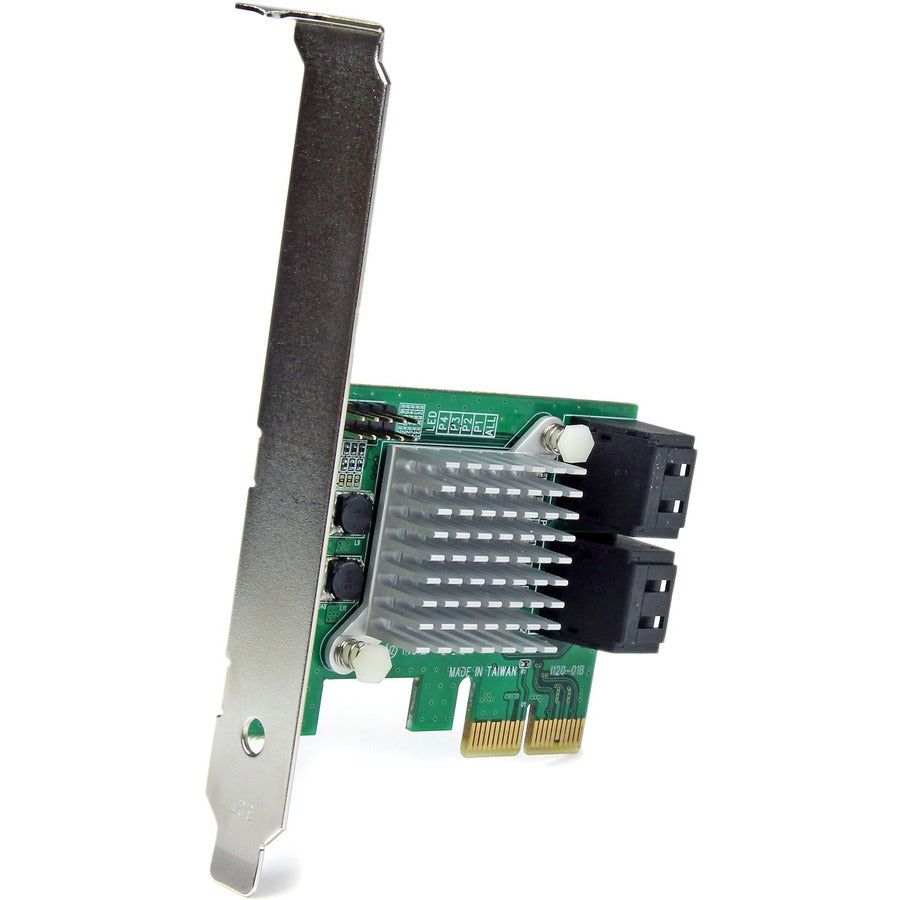

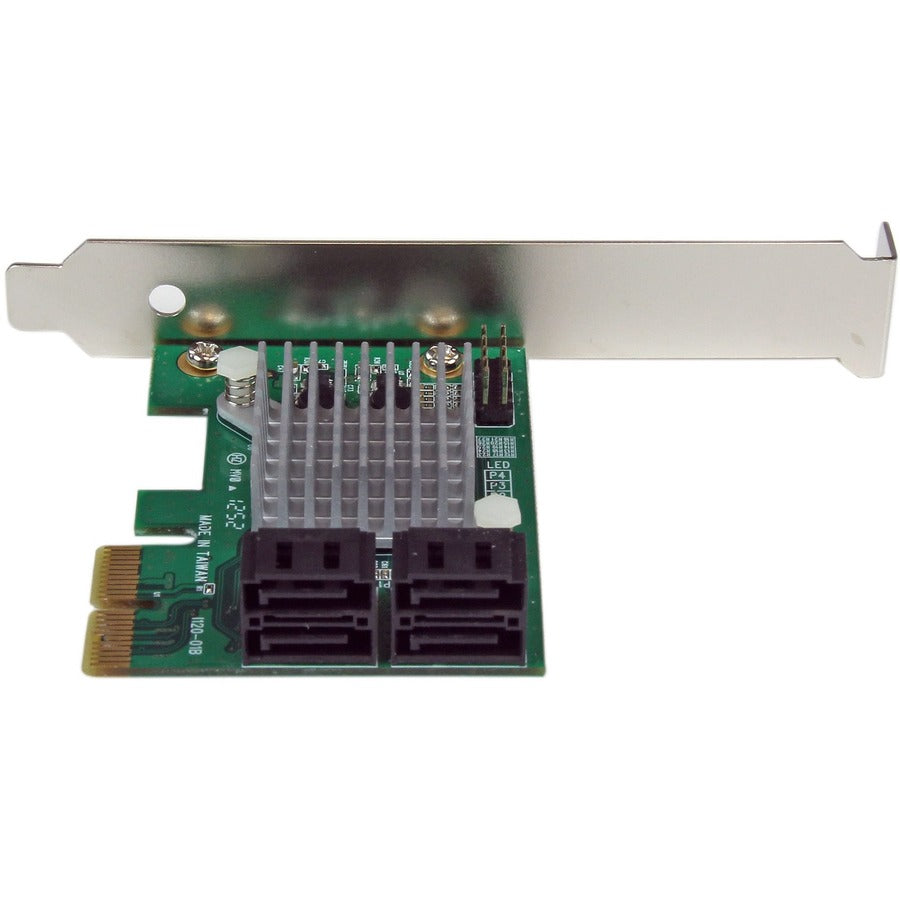

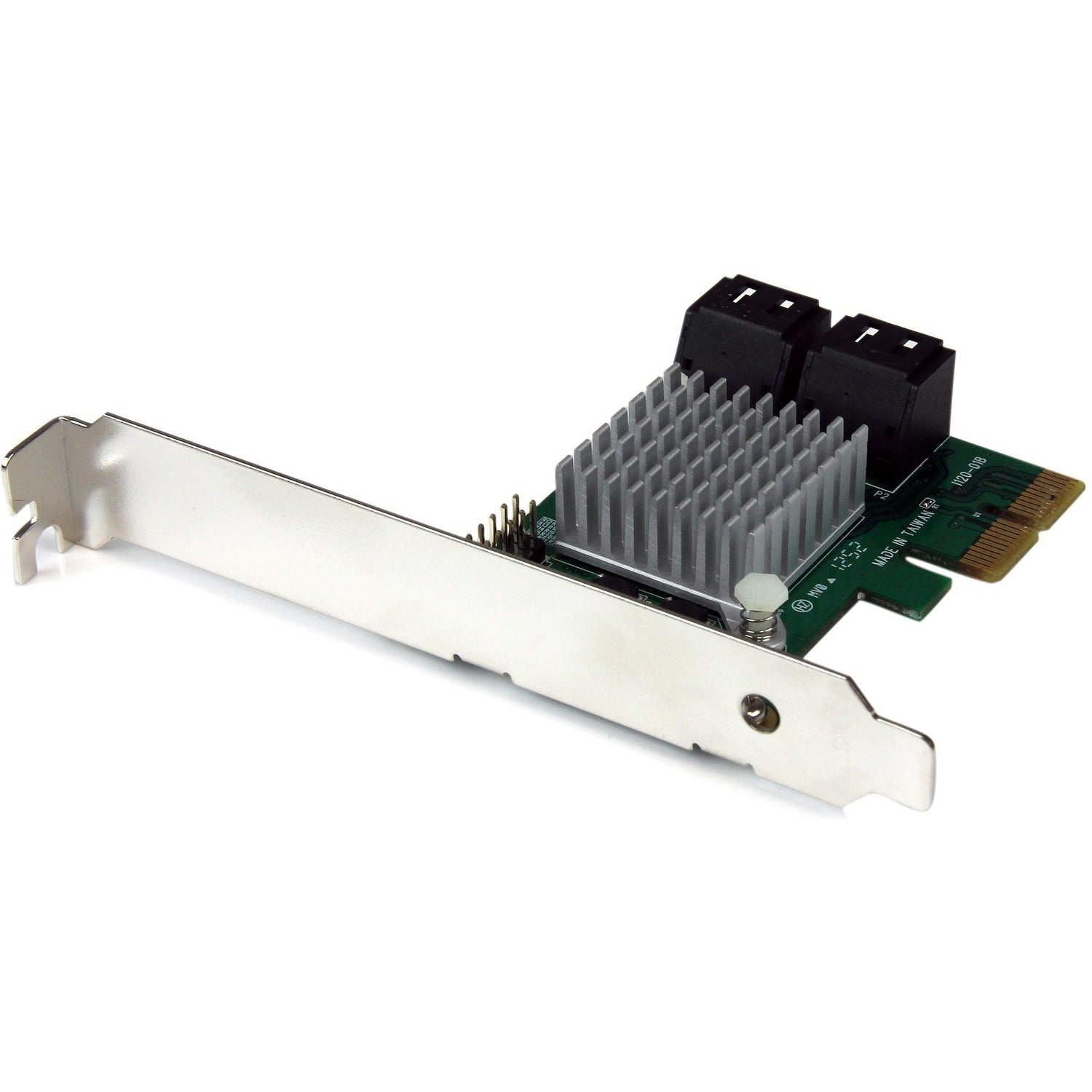

Product Name: 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
Marketing Information:
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on
Packaged Quantity: 1 Each
Product Type: SATA Controller
Technical Information
Host Interface: PCI Express 2.0 x2Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: JBOD,1,0,1+0
Interfaces/Ports
Total Number of SATA Ports: 4Number of SATA Ports (Internal): 4
Physical Characteristics
Form Factor: Plug-in CardCard Height: Low-profile
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Length: 2.80" (71.12 mm)
Weight (Approximate): 1.70 oz (48.19 g)
Miscellaneous
Package Contents:- 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink

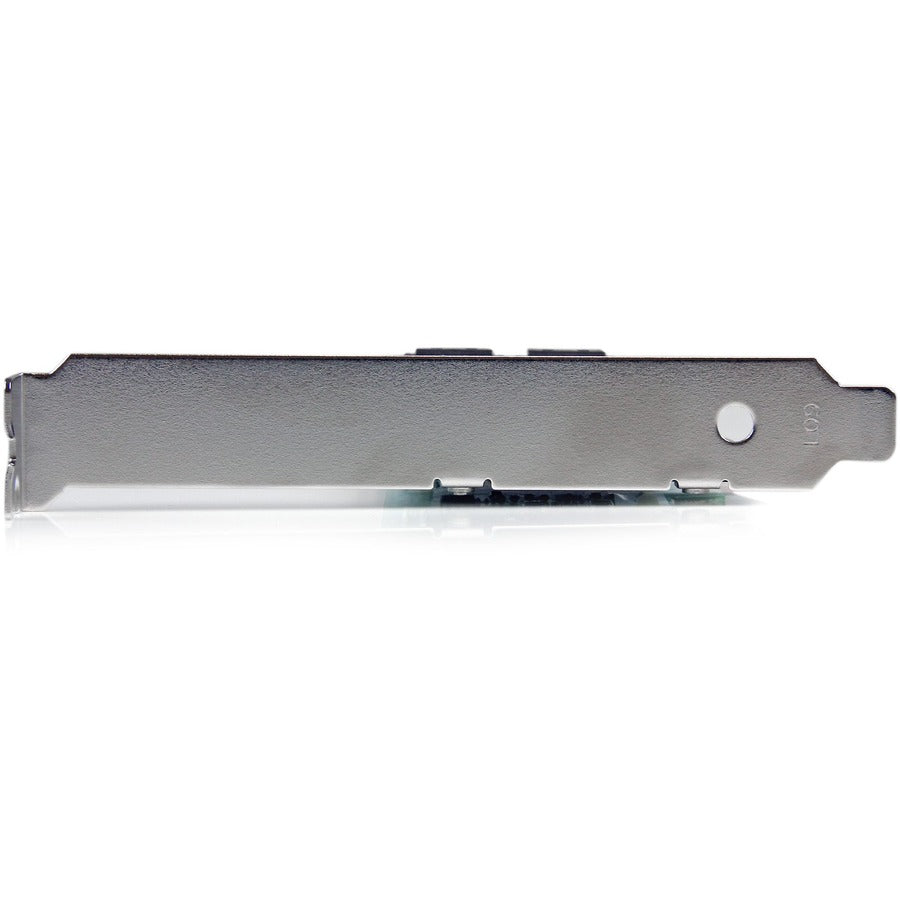

- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Platform Supported: PC,Mac,Linux
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
