Description
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: PEXUSB312A3
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: USB Adapter
Marketing Information:

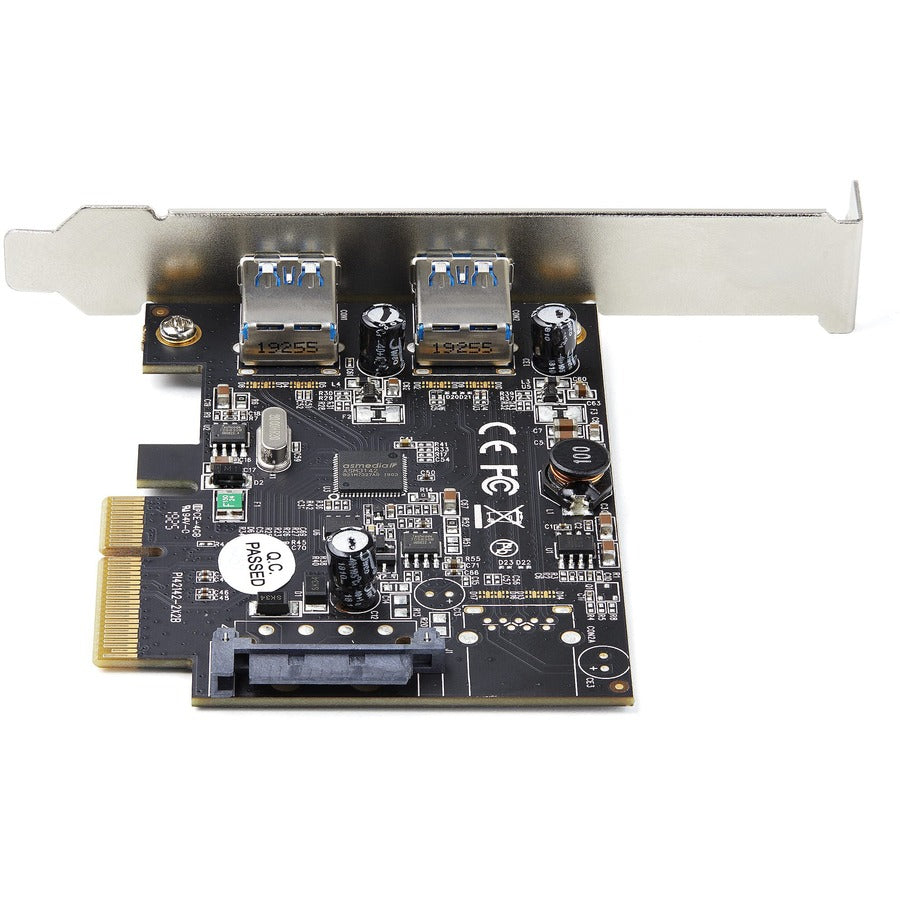

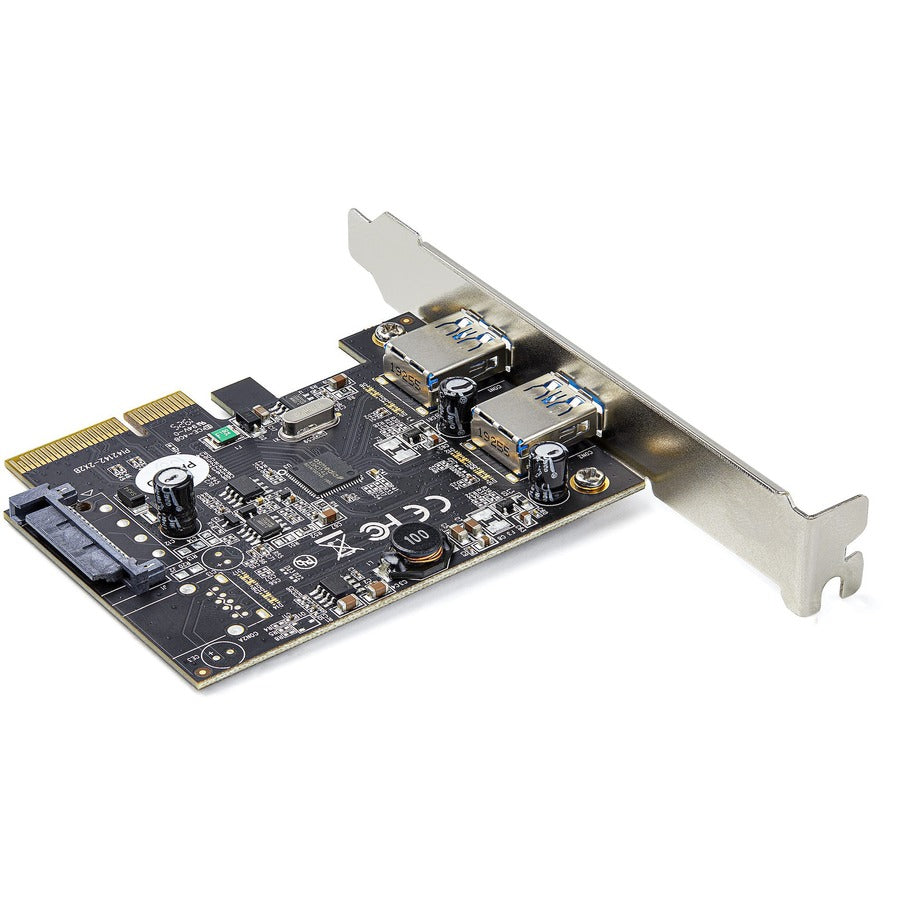

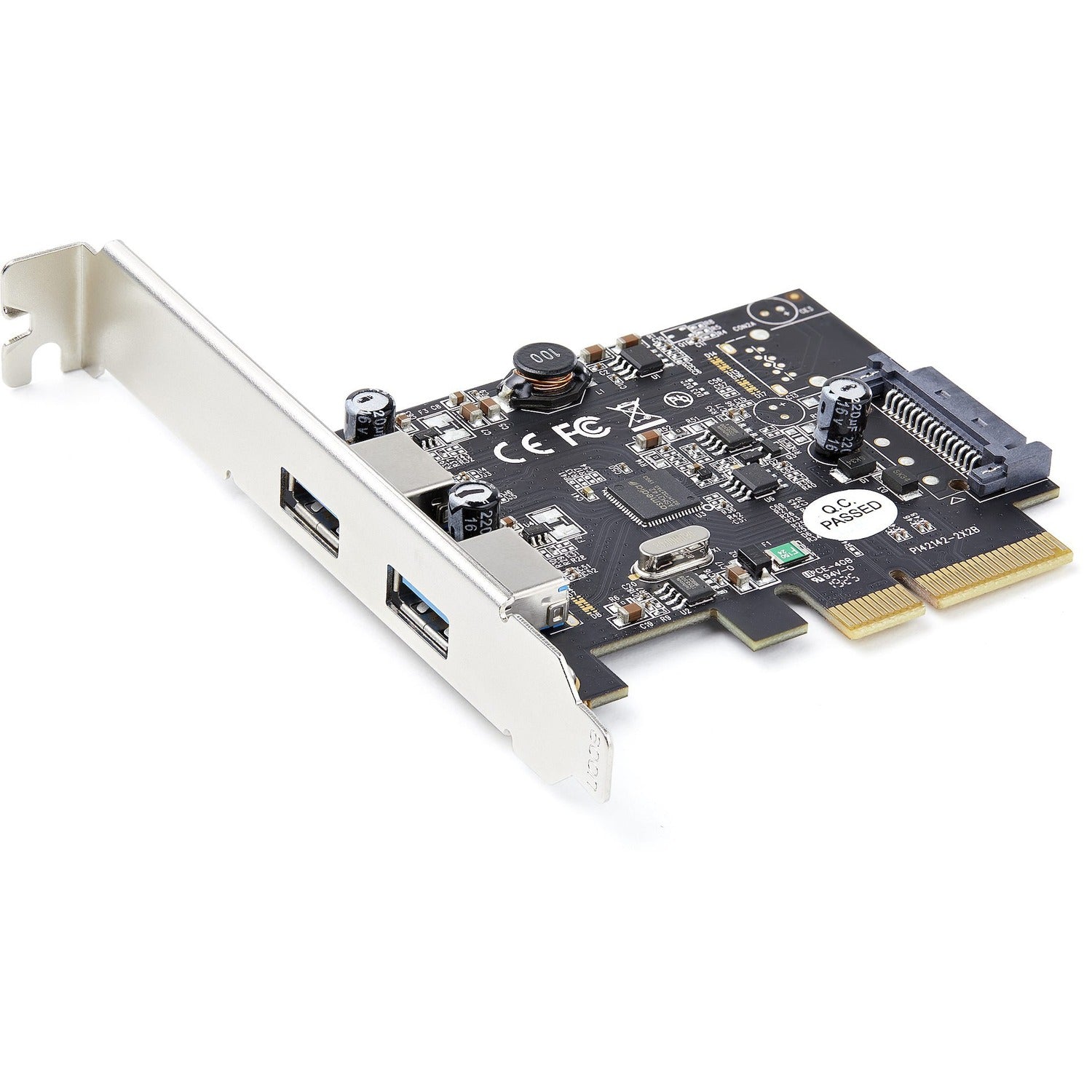

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding two SuperSpeed USB-A (10Gbps) ports.
The controller card enables you to connect two USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.2 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.2 Gen 1 and USB 3.2 (5 Gbps).
The USB 3.2 Gen 2 card features an ASMedia ASM3142 host controller that utilizes x2 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 10Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and
Packaged Quantity: 1 Each
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x4Media & Performance
UASP Support: YesInterfaces/Ports
Total Number of USB Ports: 2Number of USB 3.2 Ports: 2
Number of SATA Ports: 1
Software
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5Physical Characteristics
Color Family: BlackProduct Color: Black
Form Factor: Plug-in Card
Height: 0.70" (17.78 mm)
Width: 4.70" (119.38 mm)
Length: 4.30" (109.22 mm)
Weight (Approximate): 2.80 oz (79.38 g)
Miscellaneous
Package Contents:- USB Adapter
- 1x Low-Profile Bracket
- 1x Quick Start Guide
- 1x Full-Profile Bracket (Pre-Installed)
Platform Supported: PC,Linux,Mac
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: Lifetime
