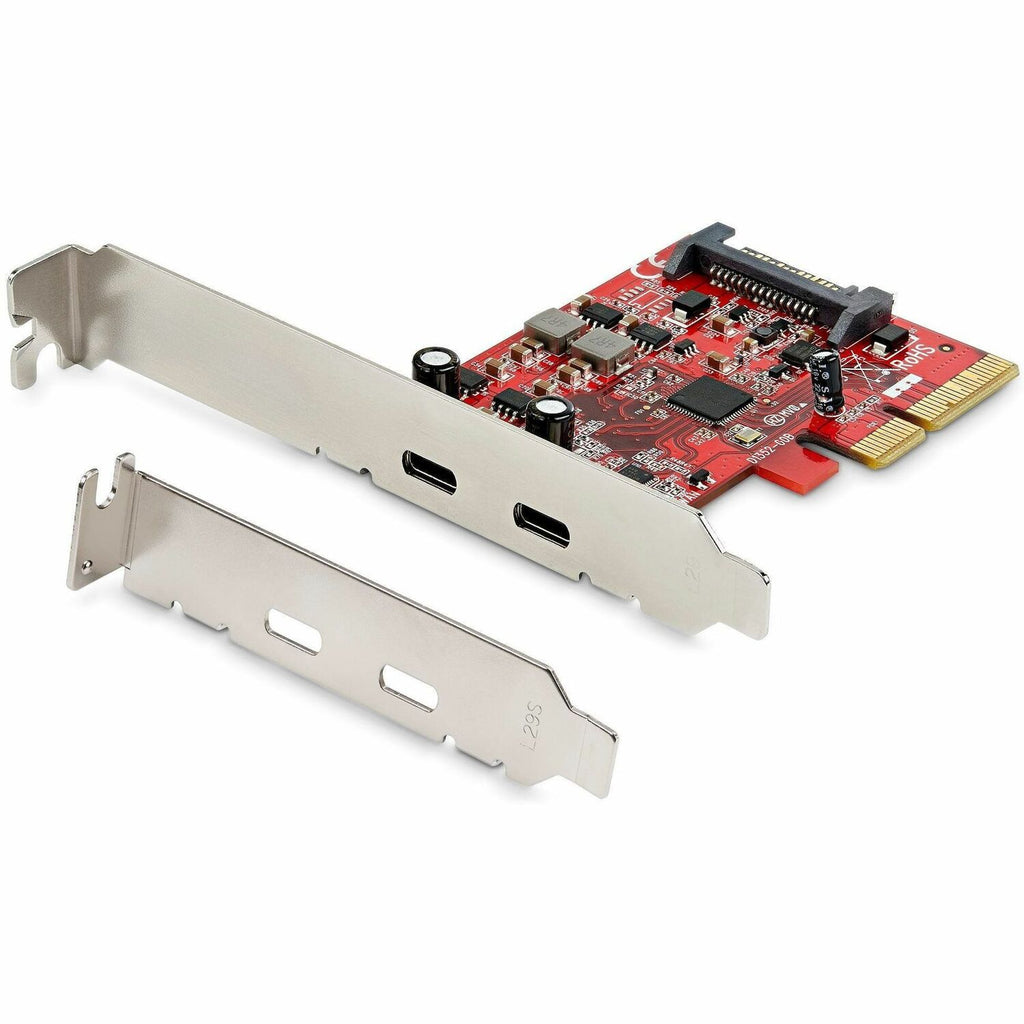

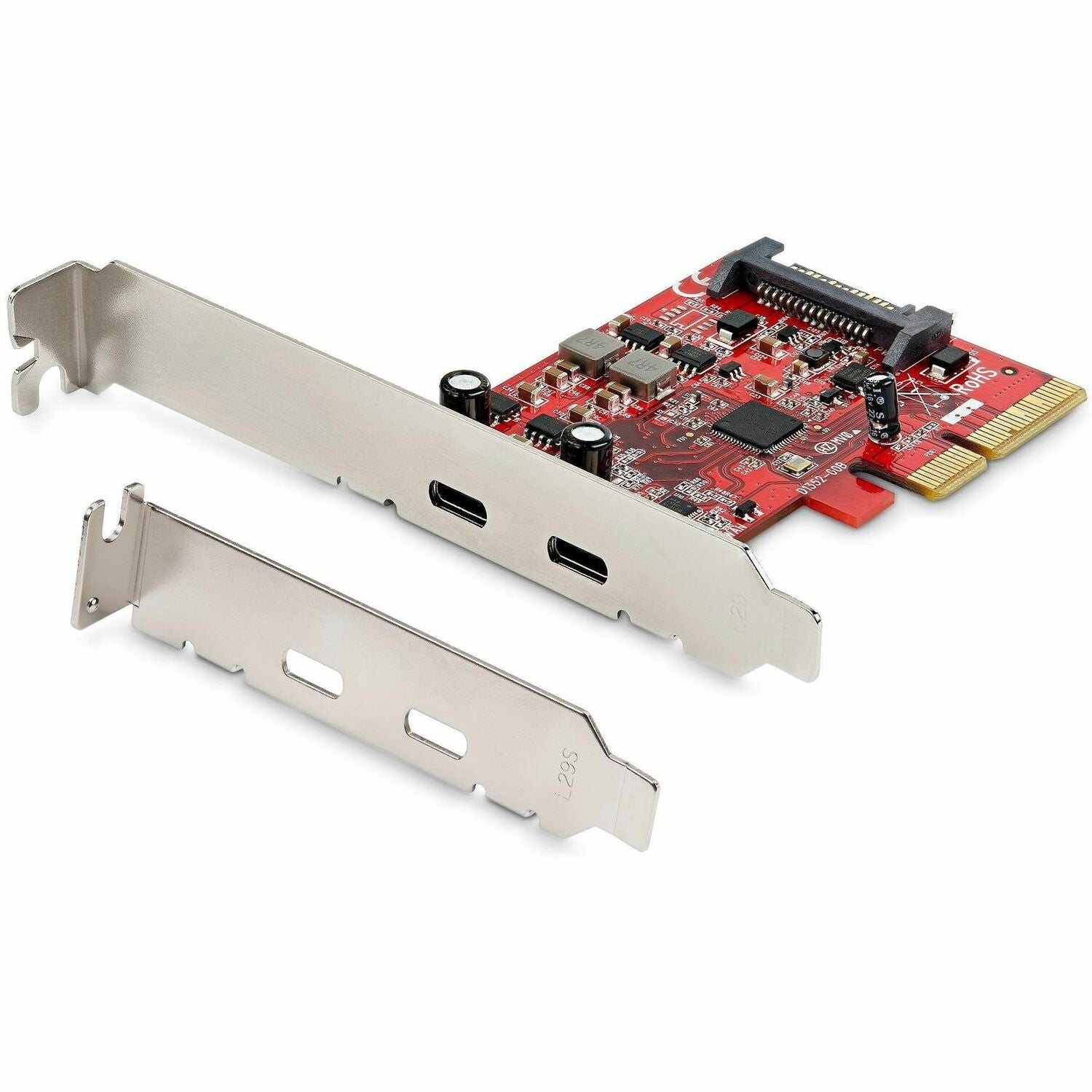

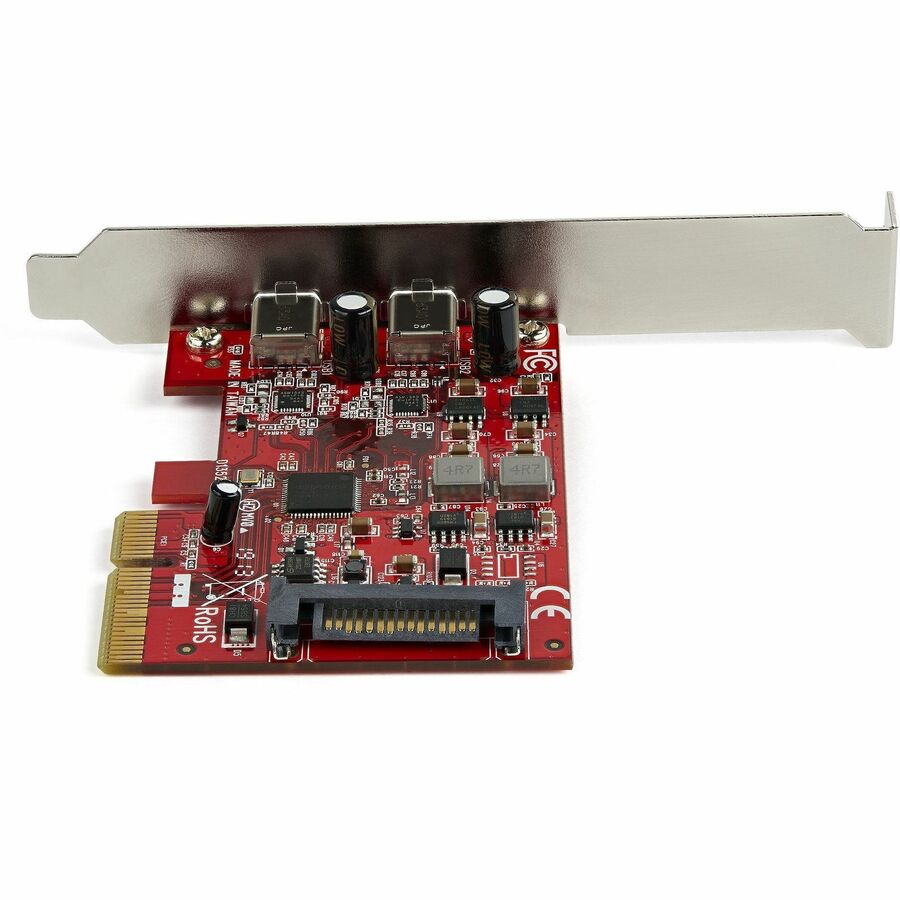

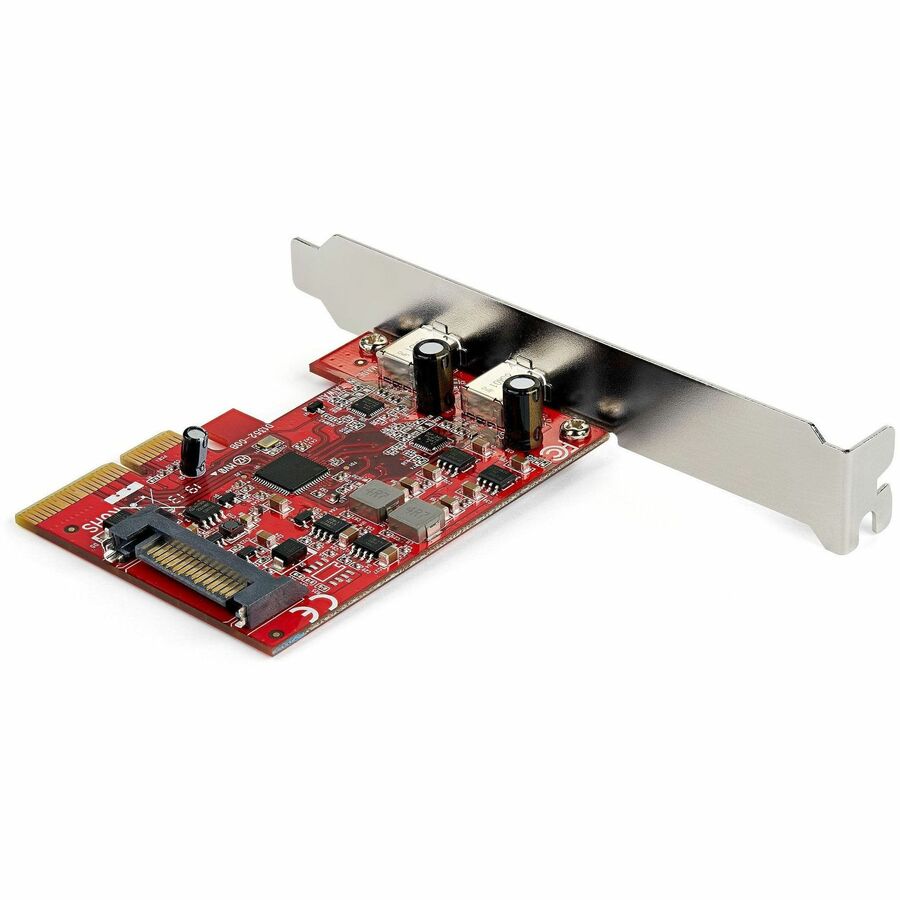

PEXUSB312C3 StarTech.com 2-Port USB 3.2 Gen 2 PCIe Card, USB-C 10Gbps PCI Express 3.0 x4 Controller, USB Type-C, Data Only, Windows/macOS/Linux, TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: PEXUSB312C3
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 2-Port PCIe USB 3.1 Card - 2x USB-C - USB 3.1 Gen 2 Up to 10Gbps
Marketing Information:

This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.

Faster USB Performance

Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.

Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.

The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.

Easy Installation

The USB 3.2 card is compatible with Wi
Packaged Quantity: 1 Each
Product Type: USB Adapter

Technical Information

Host Interface: PCI Express x4

Media & Performance

UASP Support: Yes

Interfaces/Ports

Total Number of USB Ports: 2
Number of USB 3.2 Ports: 2
Number of SATA Ports: 1

Software

Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5

Physical Characteristics

Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Height: 0.70" (17.78 mm)
Width: 3.10" (78.74 mm)
Length: 4.80" (121.92 mm)
Weight (Approximate): 1.60 oz (45.36 g)

Miscellaneous

Package Contents:

• 2-Port PCIe USB 3.1 Card - 2x USB-C - USB 3.1 Gen 2 Up to 10Gbps

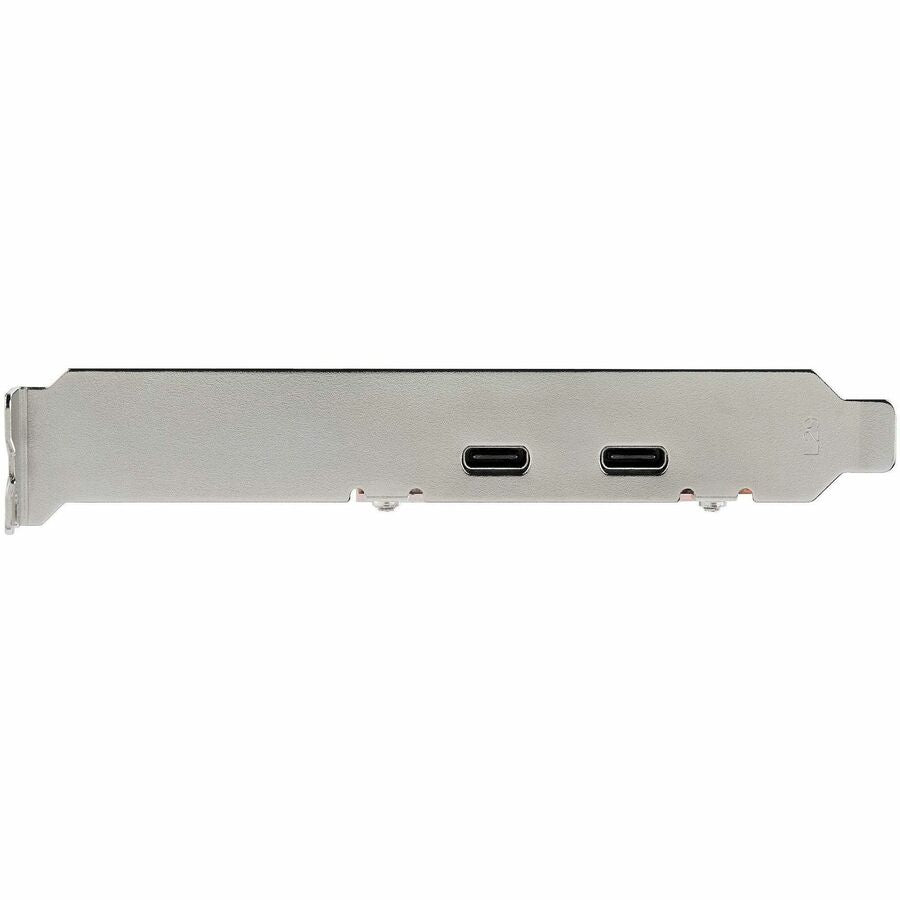

• 1 x Low Profile Bracket
• 1 x Quick Start Guide

Platform Supported: Linux,PC,Mac
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
