PEXUSB321C StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card, USB-C 20Gbps PCI Express 3.0 x4 Controller, USB Type-C, Data Only, Windows/macOS/Linux, TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: PEXUSB321C
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: PCI Express USB Card
Marketing Information:

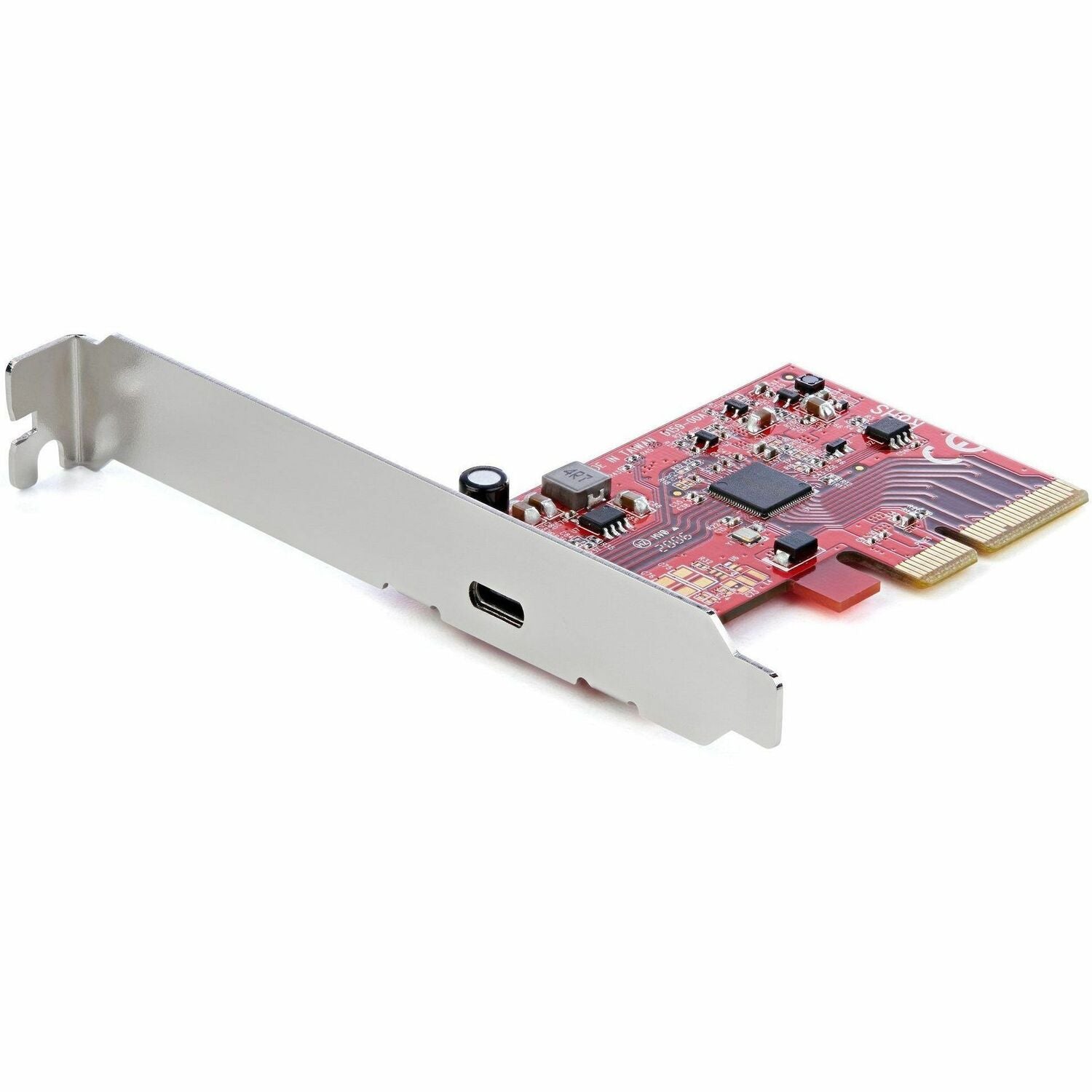

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C™ (20Gbps) port.

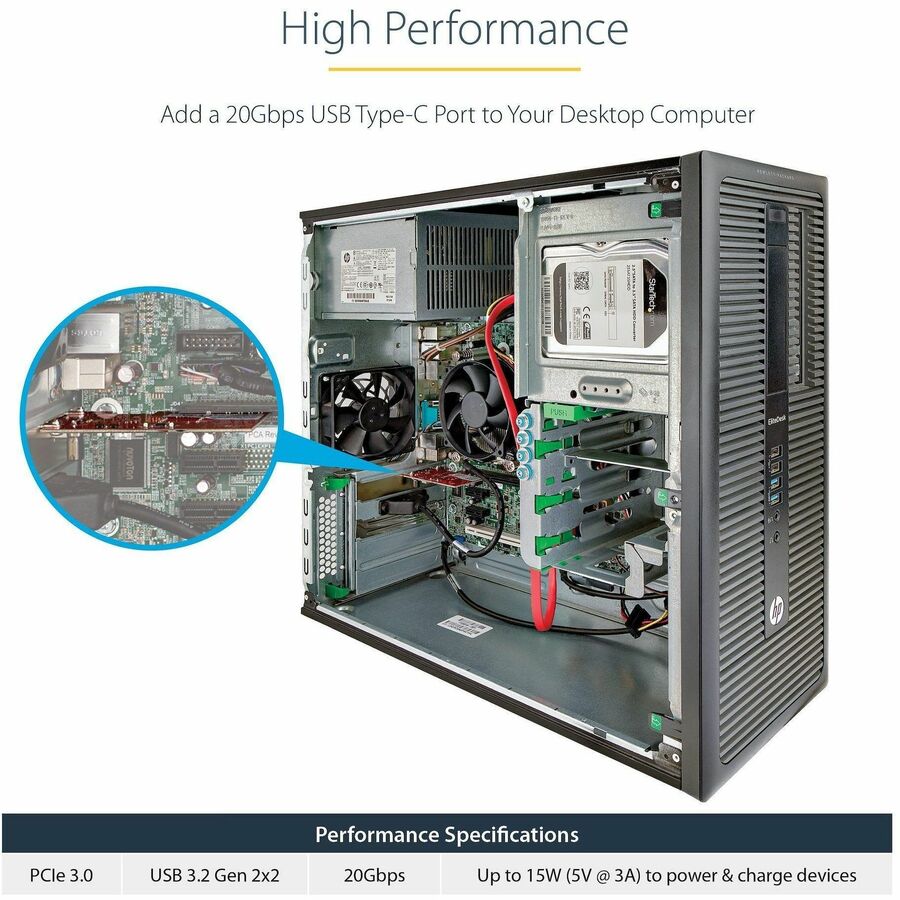

Add a 20 Gbps USB Type-C Port to Your Desktop Computer

The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).

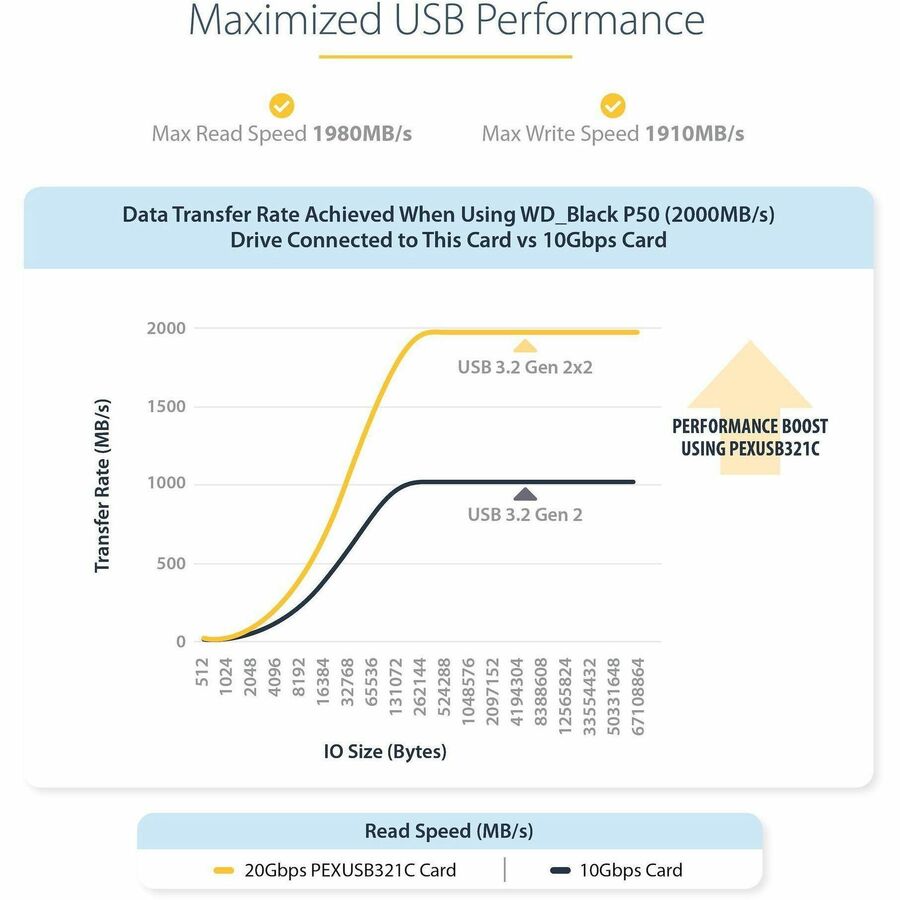

SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance

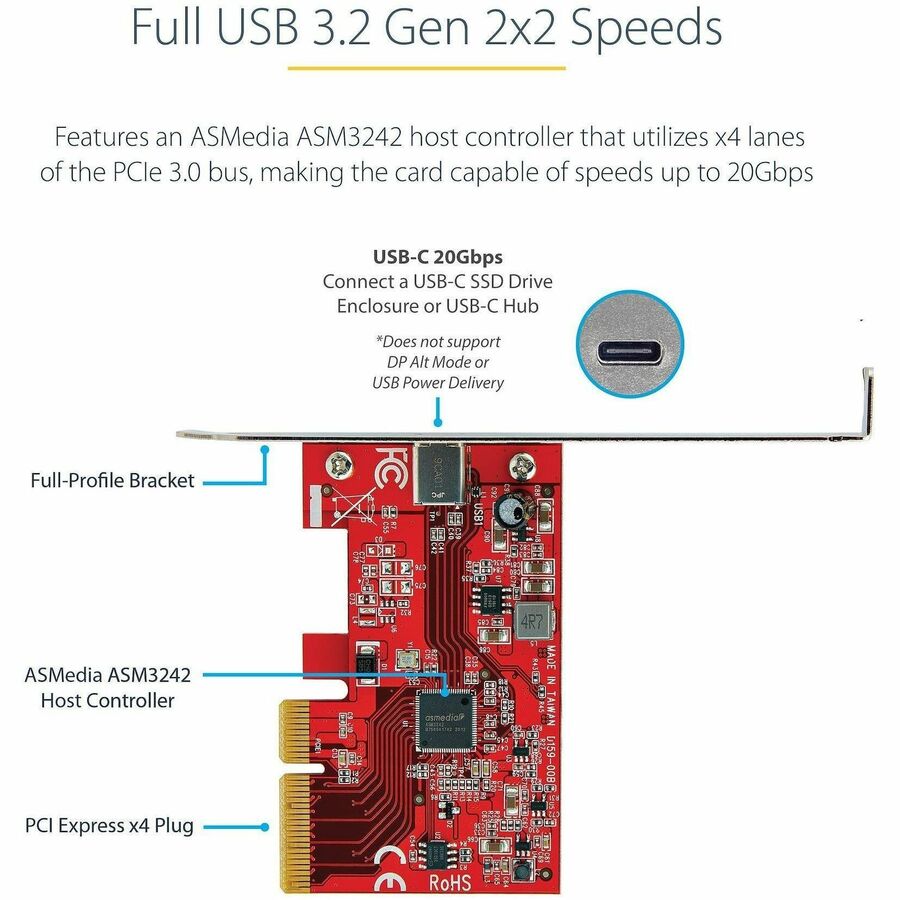

The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card c
Packaged Quantity: 1 Each
Product Type: USB Adapter

Technical Information

Host Interface: PCI Express x4

Media & Performance

UASP Support: Yes

Interfaces/Ports

Total Number of USB Ports: 1
Number of USB 3.2 Ports: 1

Software

Operating System Supported: Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5

Physical Characteristics

Color Family: Red
Product Color: Red
Form Factor: Plug-in Card

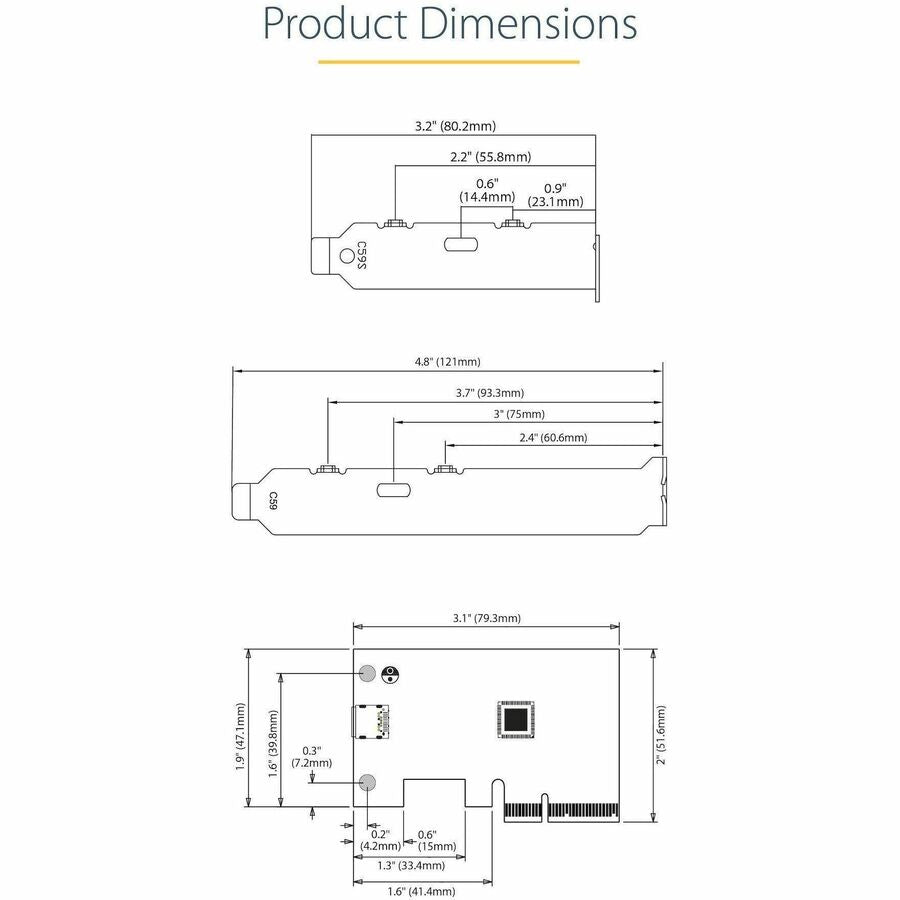

Height: 0.90" (22.86 mm)
Width: 3.10" (78.74 mm)
Length: 2" (50.80 mm)
Weight (Approximate): 1.30 oz (36.85 g)

Miscellaneous

Package Contents:

• PCI Express USB Card

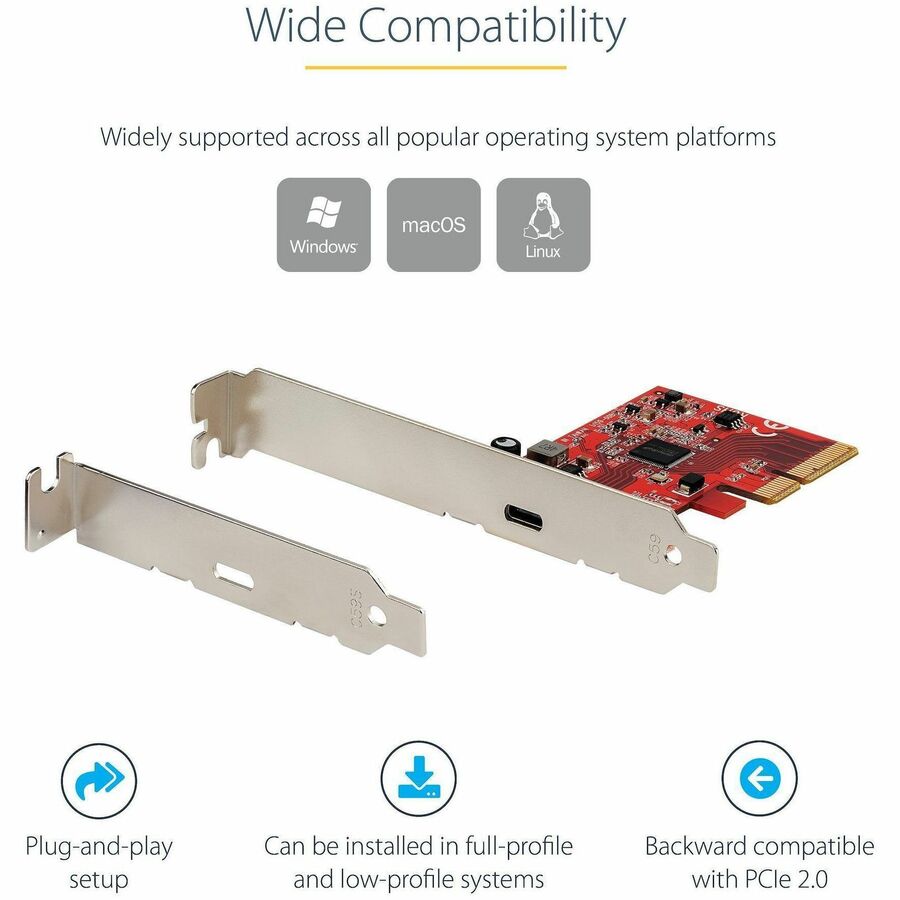

• 1x Full Profile Bracket (Installed)
• 1x Low Profile Bracket
• 1x Quick-Start Guide

Platform Supported: PC,Linux,Mac
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
