Description
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: PEXUSB3S11
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: PCI Express USB 3.0 card
Marketing Information:

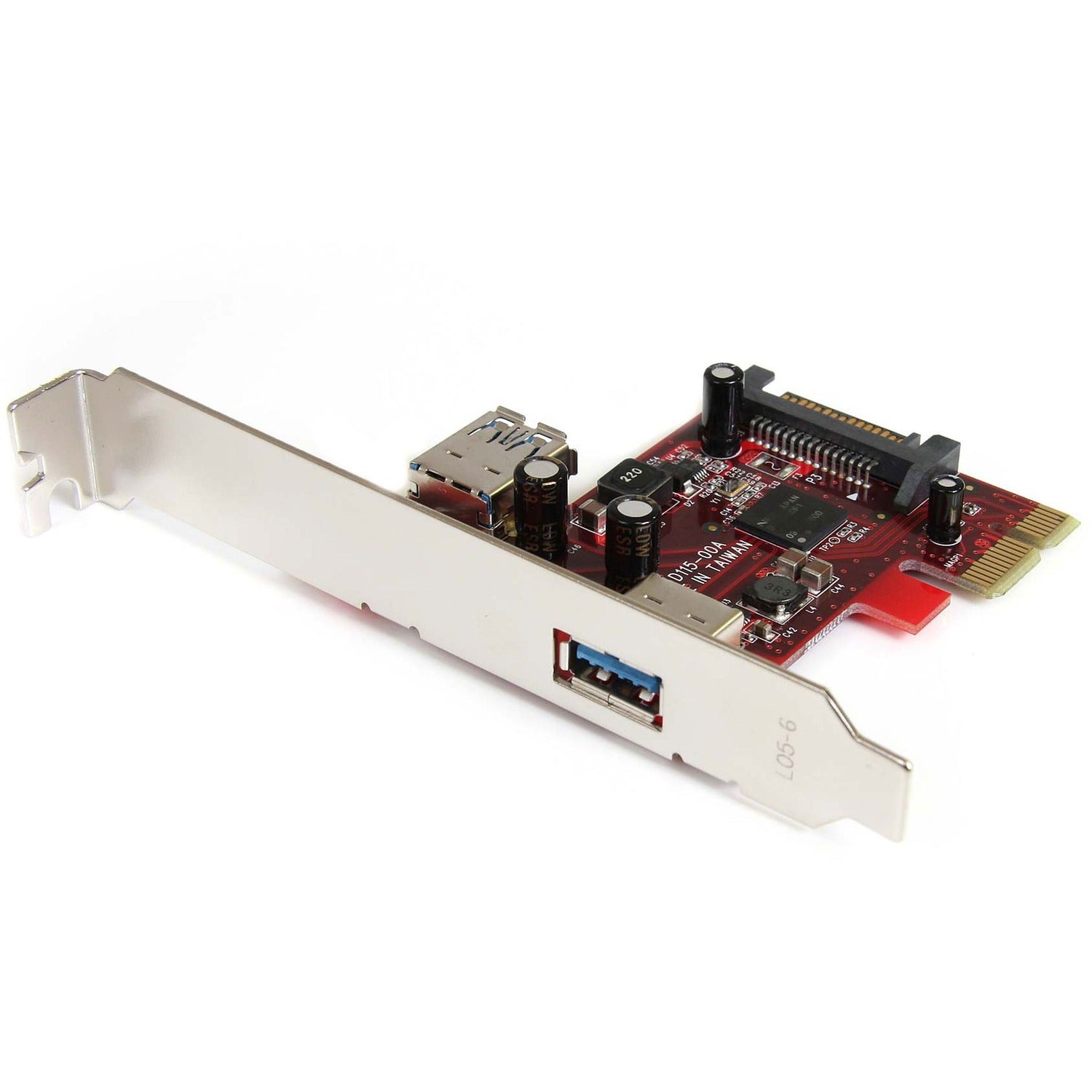

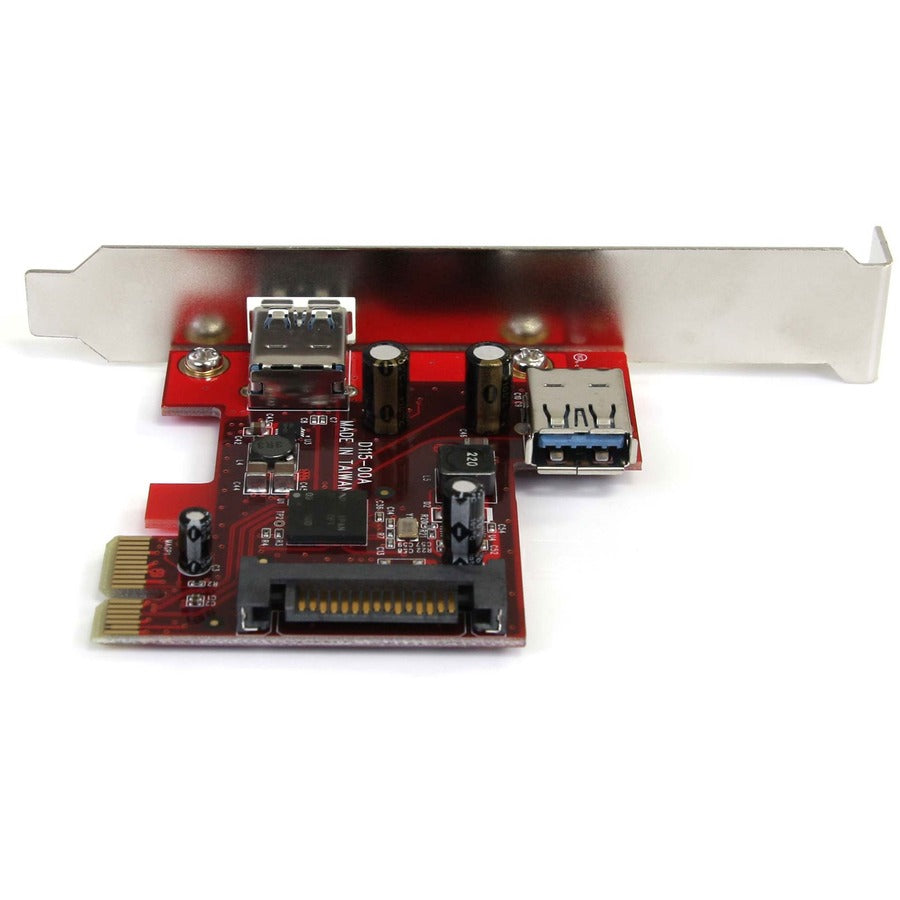

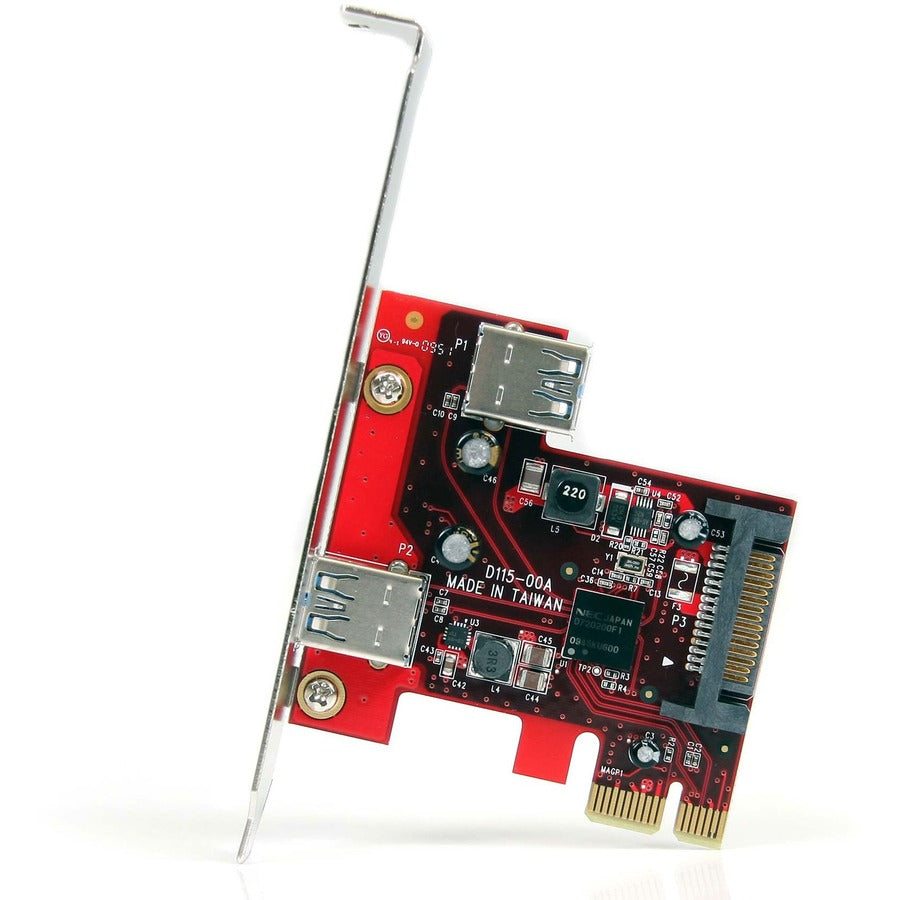

The PEXUSB3S11 PCI Express USB 3.2 Gen 1 Card lets you add one internal, and one external USB 3.2 Gen 1 port to your PC through a PCI Express slot.
Featuring a native NEC PCI Express host controller chipset, the new USB 3.2 Gen 1 standard supports transfer rates of up to 5Gbps, while still providing backward compatibility with older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices. The inclusion of an internal USB 3.2 Gen 1 connection provides the added benefit of compatibility with USB 3.2 Gen 1-based internal storage solutions or front-bay hubs.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on
Packaged Quantity: 1 Each
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x1Media & Performance
Data Transfer Rate: 4.80 GB/sUASP Support: Yes
Interfaces/Ports
Total Number of USB Ports: 2Number of USB 3.2 Ports: 2
Number of SATA Ports: 1
Software
Operating System Supported: Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2Physical Characteristics
Color Family: RedProduct Color: Red
Form Factor: Plug-in Card
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Length: 2.80" (71.12 mm)
Weight (Approximate): 1.31 oz (37 g)
Miscellaneous
Package Contents:- PCI Express USB 3.0 card
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Platform Supported: PC
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: Lifetime
