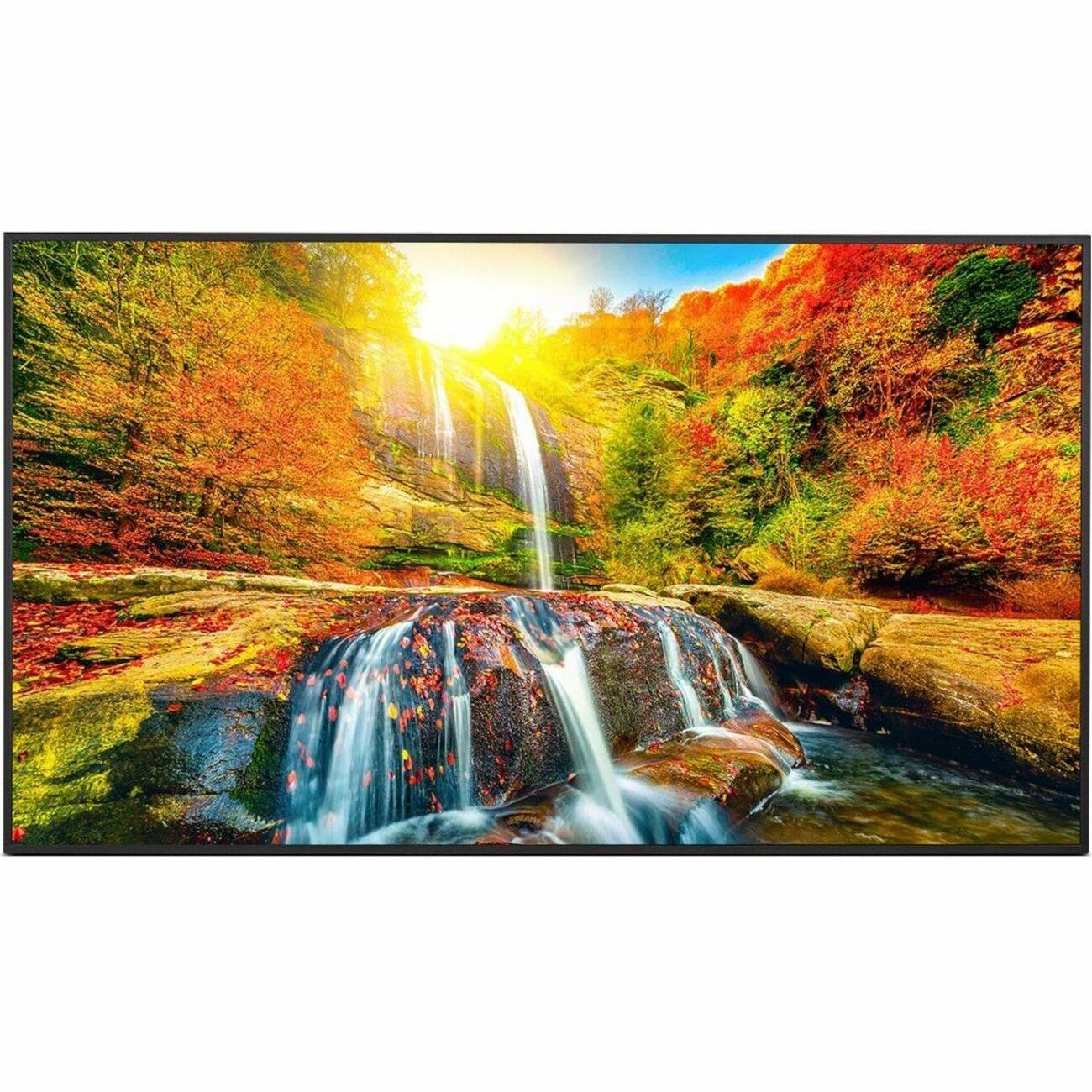

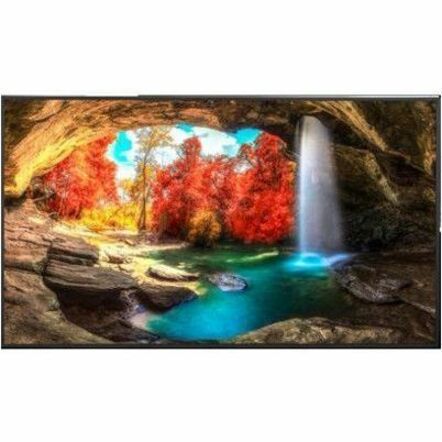

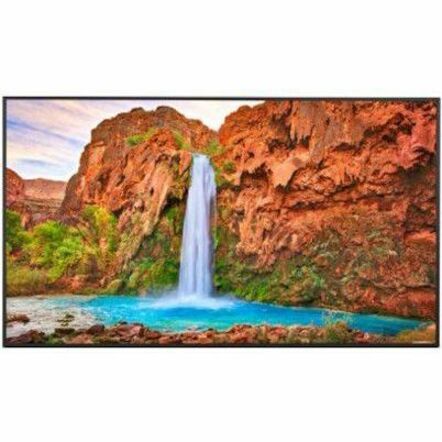

PN-ME552 Sharp PNME552 55" Ultra High-Definition Commercial Display

General Information

Manufacturer: Sharp Electronics
Manufacturer Part Number: PN-ME552
Manufacturer Website Address: http://sharp.ca/en/
Brand Name: Sharp
Product Line: MultiSync
Product Series: PNME
Product Model: PNME552
Product Name: PNME552 55" Ultra High-Definition Commercial Display
Marketing Information:

Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial SHARP PNME Series large format displays. The PNME series gives customers a reliable, high-haze, mainstream display to fit their digital signage needs. The flexible Android 13-powered system-on-chip platform allows for high-end media playback via USB or internal storage and the ability to install separate APKs if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.

Product Type: Digital Signage Display

Technical Information

Bezel Width (Top): 0.39" (9.90 mm)
Bezel Width (Bottom): 0.39" (9.90 mm)
Bezel Width (Left): 0.39" (9.90 mm)
Bezel Width (Right): 0.39" (9.90 mm)
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 18 Hours/7 Days

Processor & Chipset

Processor Type: Cortex A55
Processor Speed: 1.50 GHz
Processor Core: Quad-core (4 Core)

Memory

Standard Memory: 4 GB

Display & Graphics

Number of Screens: 1
Viewable Screen Size: 55" (1397 mm)
Display Screen Type: LCD
High Dynamic Range (HDR): Yes
High Dynamic Range (HDR) Type: PQ,HLG,HDR10
Response Time: 8 ms
Display Resolution: 3840 x 2160

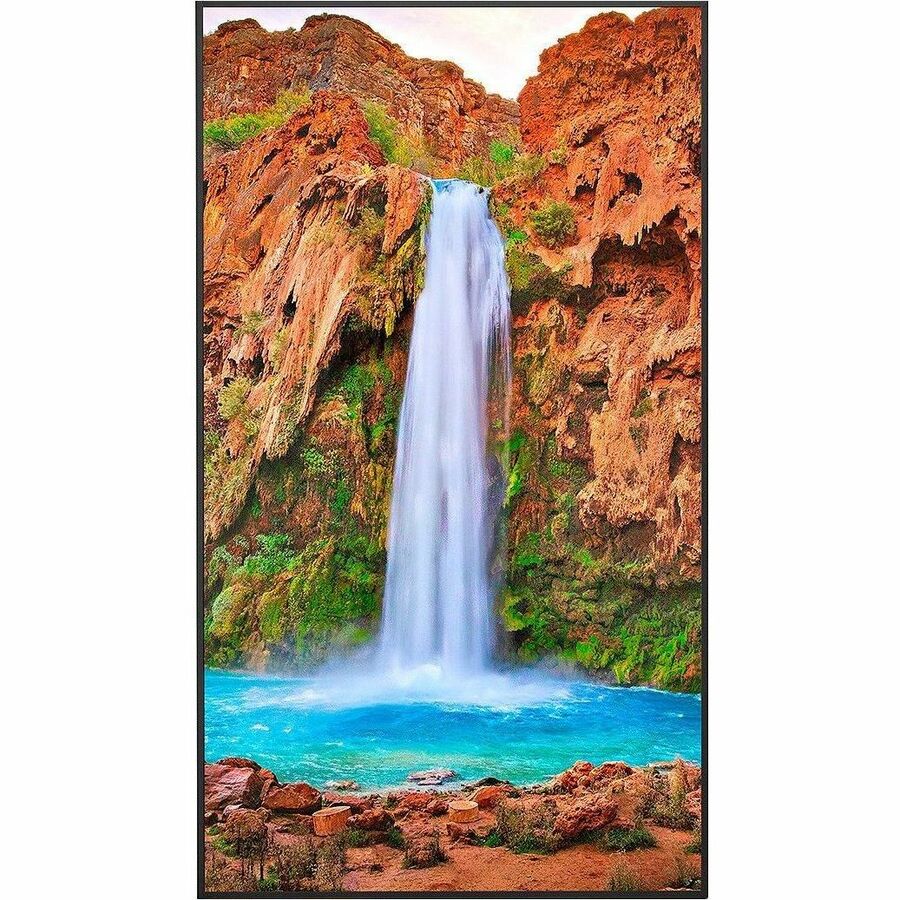

Orientation: Landscape/Portrait
Backlight Technology: Direct LED
Aspect Ratio: 16:9

Video

Scan Format: 2160p
Native Contrast Ratio: 1,200:1
Brightness: 450 cd/m²

Network & Communication

Ethernet: Yes
Wireless LAN: Yes

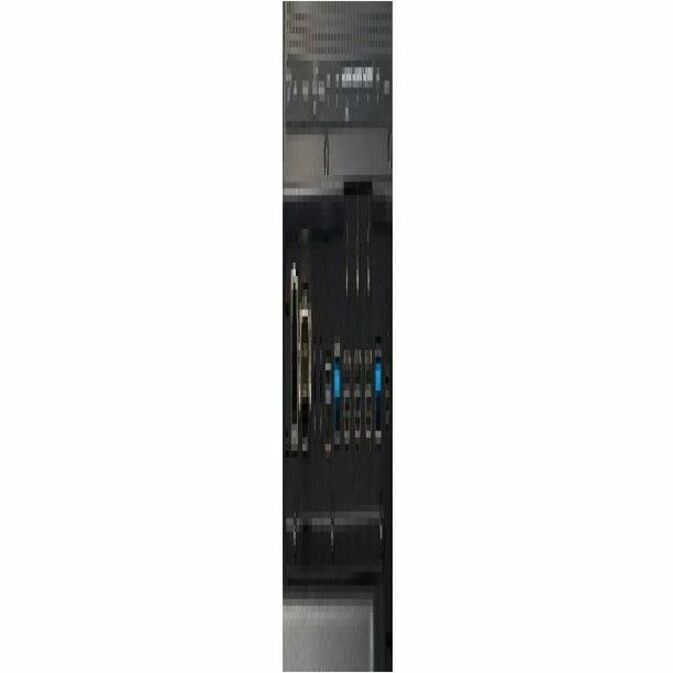

Interfaces/Ports

USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 1
Number of USB 3.0 Ports: 2
Number of HDMI Inputs: 3
Number of HDMI 2.0 Ports: 3

Software

Operating System: Android 13

Power Description

Input Voltage: 120 V AC,230 V AC

Physical Characteristics

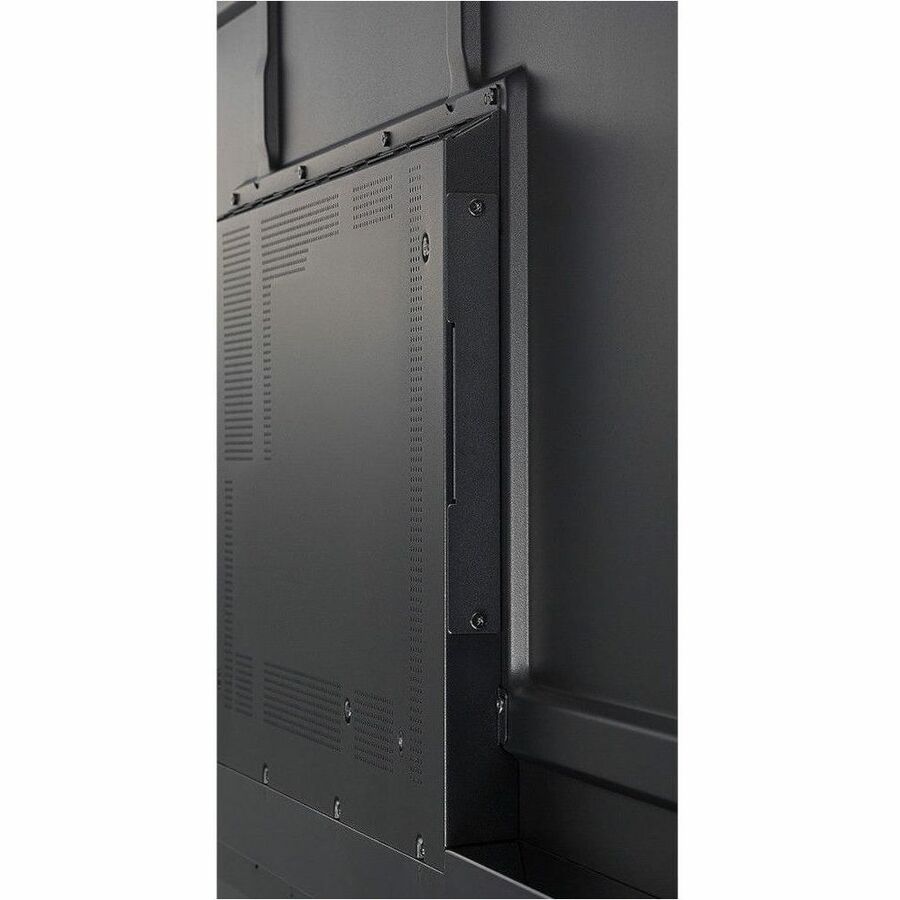

VESA Mount Standard: 400 x 400
Mount Type: Wall Mountable,Table Mount
Height: 27.70" (703.58 mm)
Width: 48.50" (1231.90 mm)
Depth: 2.40" (60.96 mm)
Weight (Approximate): 29.10 lb (13199.54 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%

Miscellaneous

Package Contents:

• PNME552 55" Ultra High-Definition Commercial Display
• 3m Power Cord
• 2.0m HDMI cable
• IR Remote Control
• Batteries
• AAA Batteries

Application/Usage: Commercial
Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 8.0

Warranty

Limited Warranty: 3 Year
