PR1500RT2UCN CyberPower PR1500RT2UCN Smart App Sinewave UPS Systems

General Information

Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PR1500RT2UCN
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Smart App Sinewave
Product Model: PR1500RT2UCN
Product Name: PR1500RT2UCN Smart App Sinewave UPS Systems
Marketing Information:

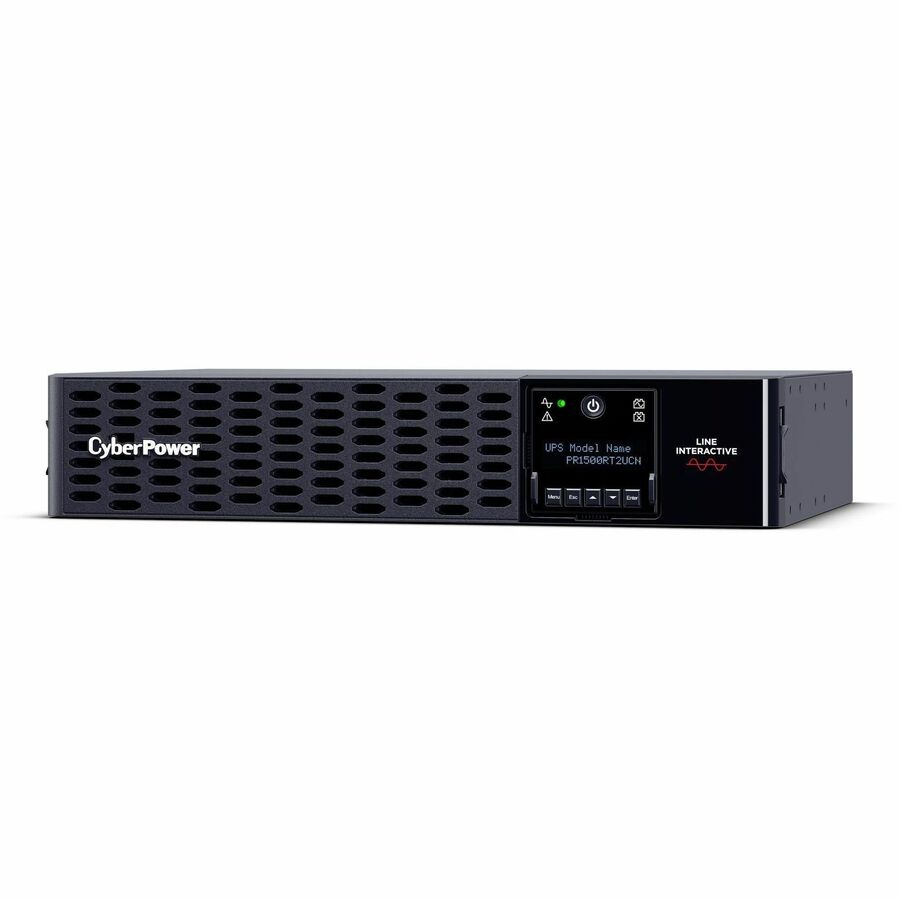

The PR1500RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

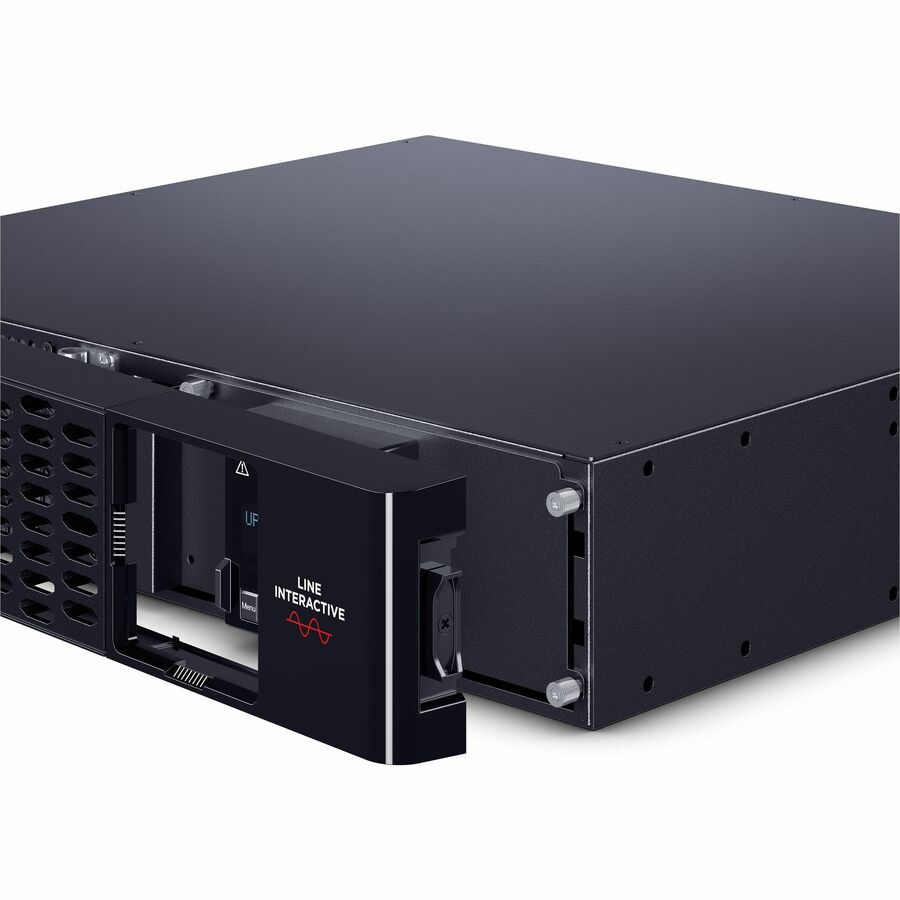

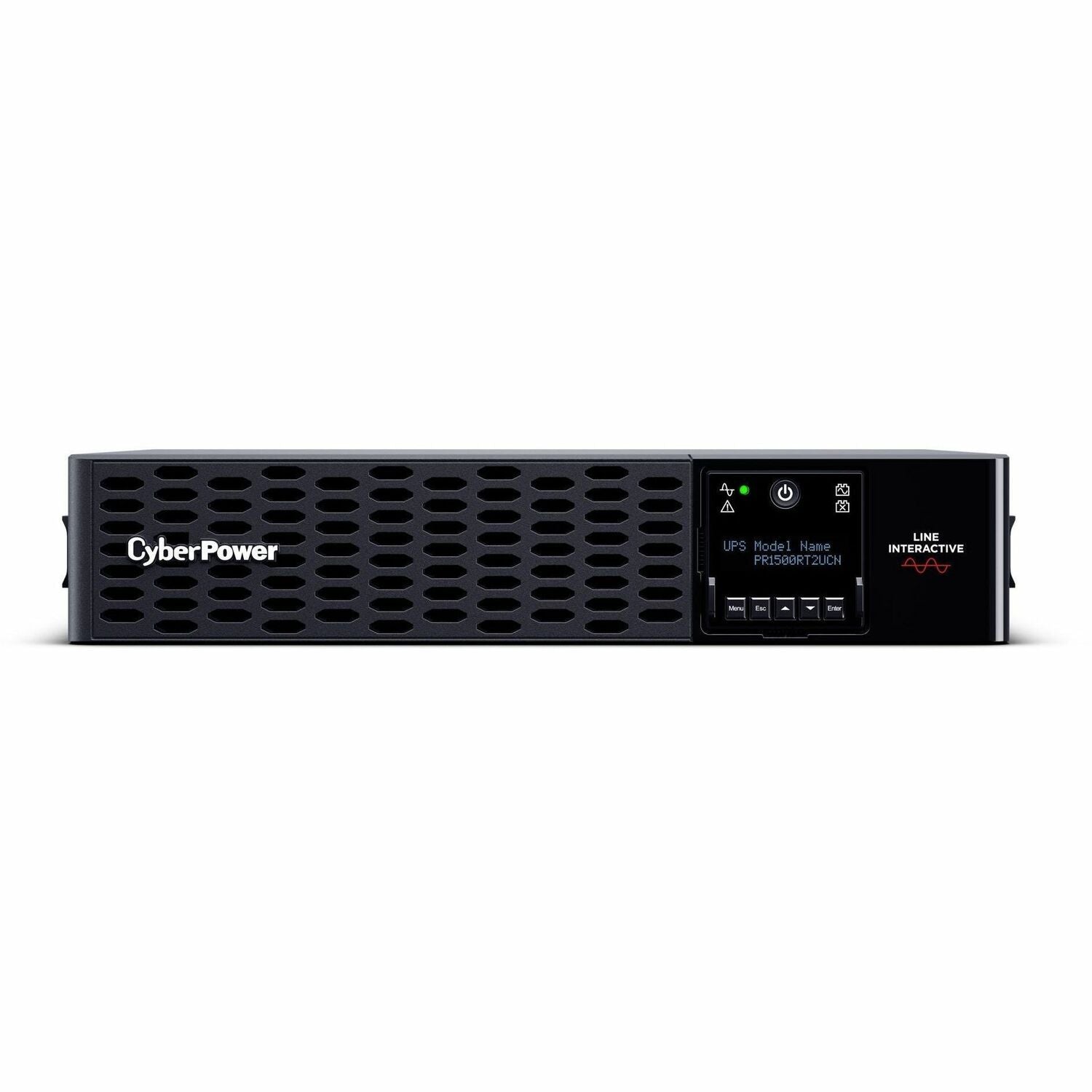

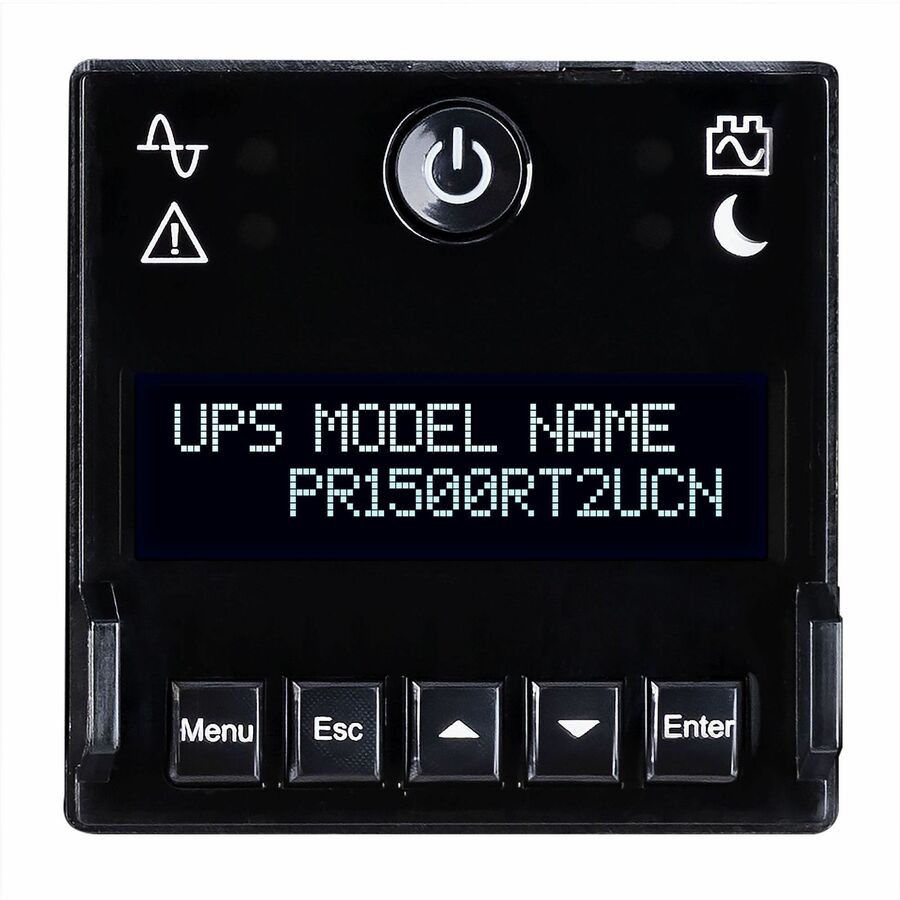

The Smart App Sinewave PR1500RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

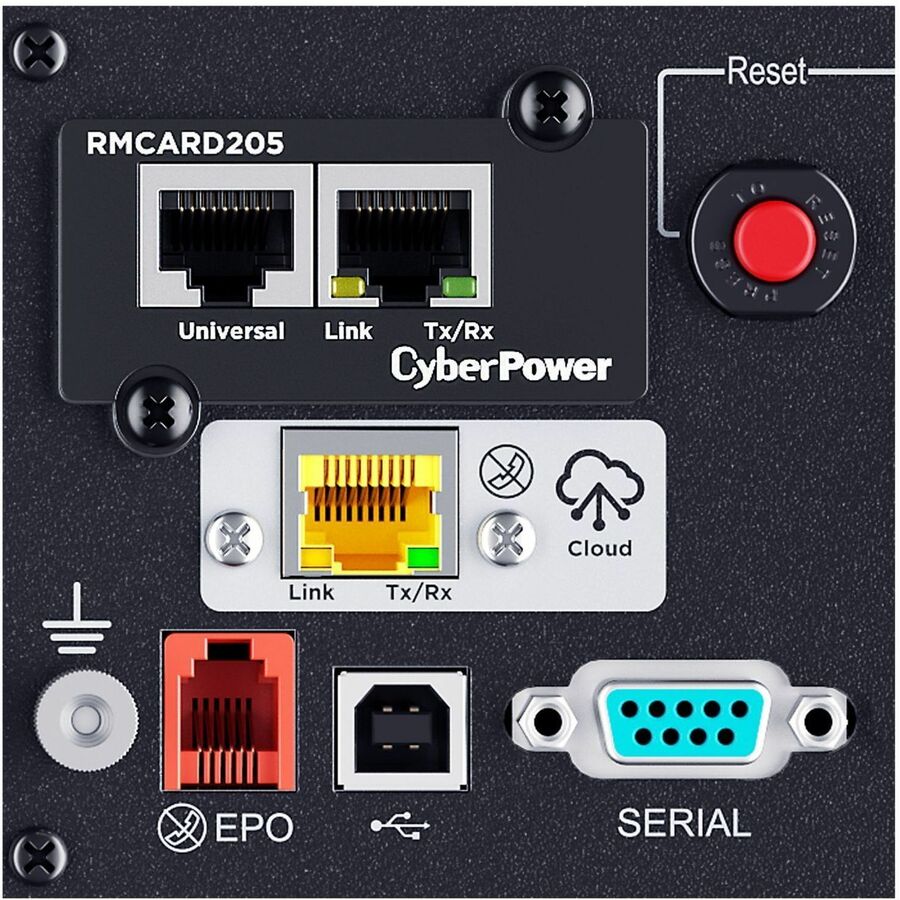

This model includes pre-installed remote management card RMCARD205
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

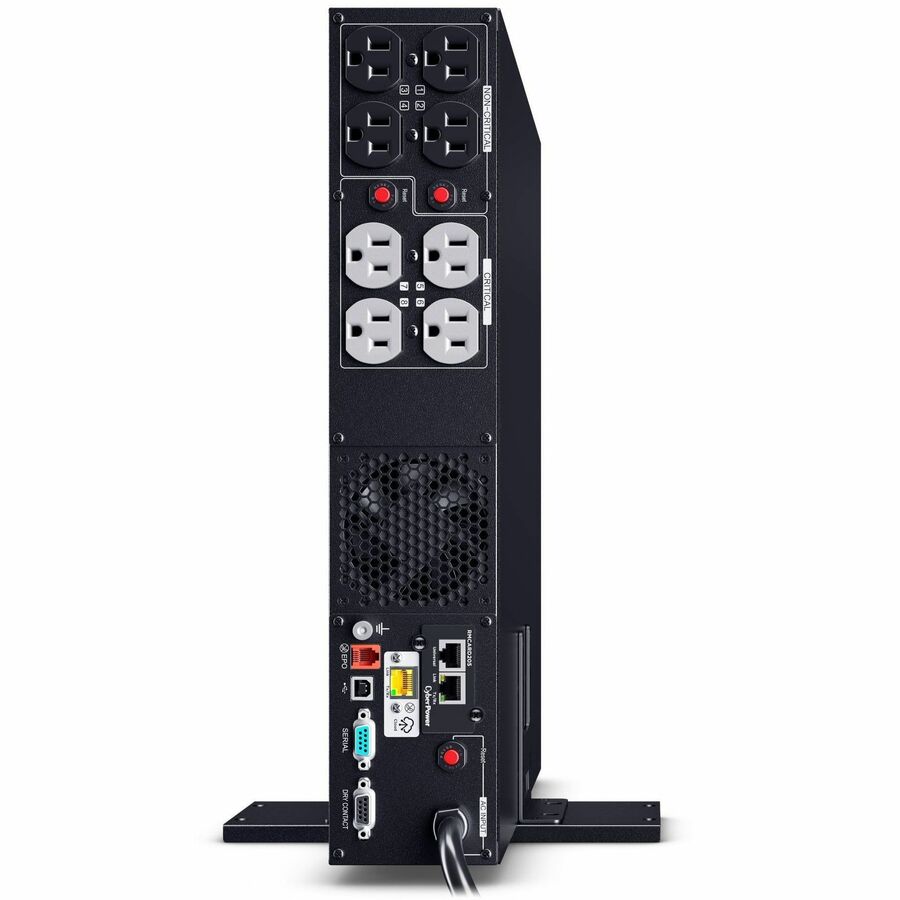

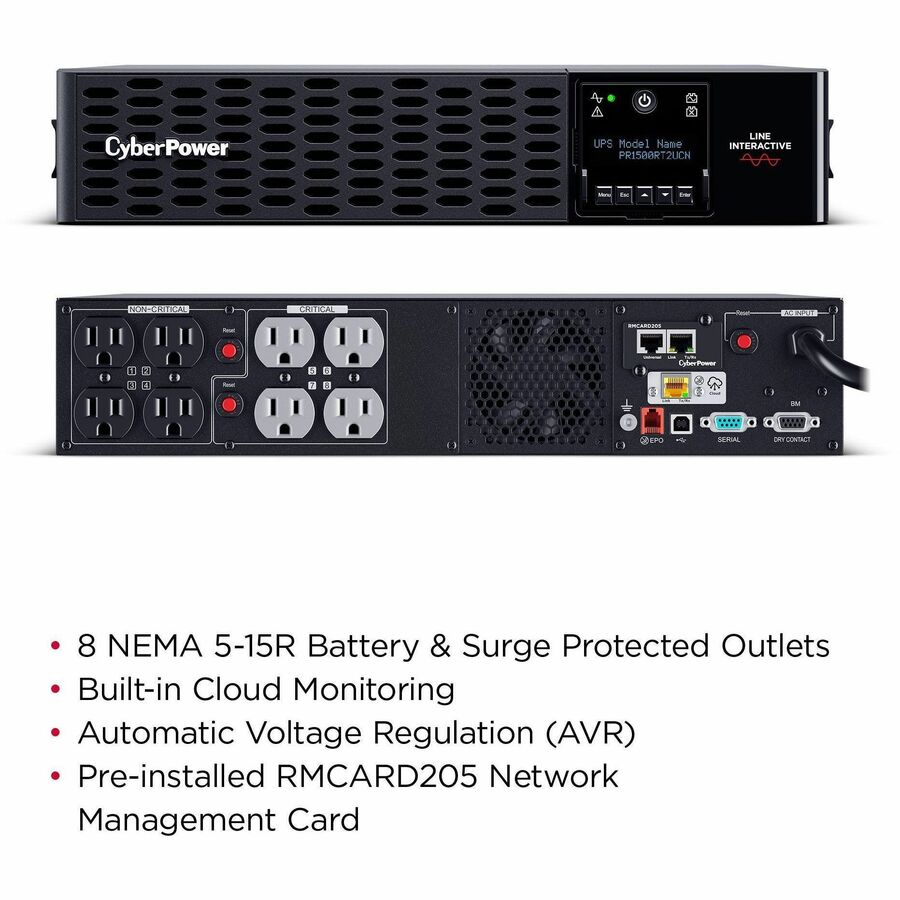

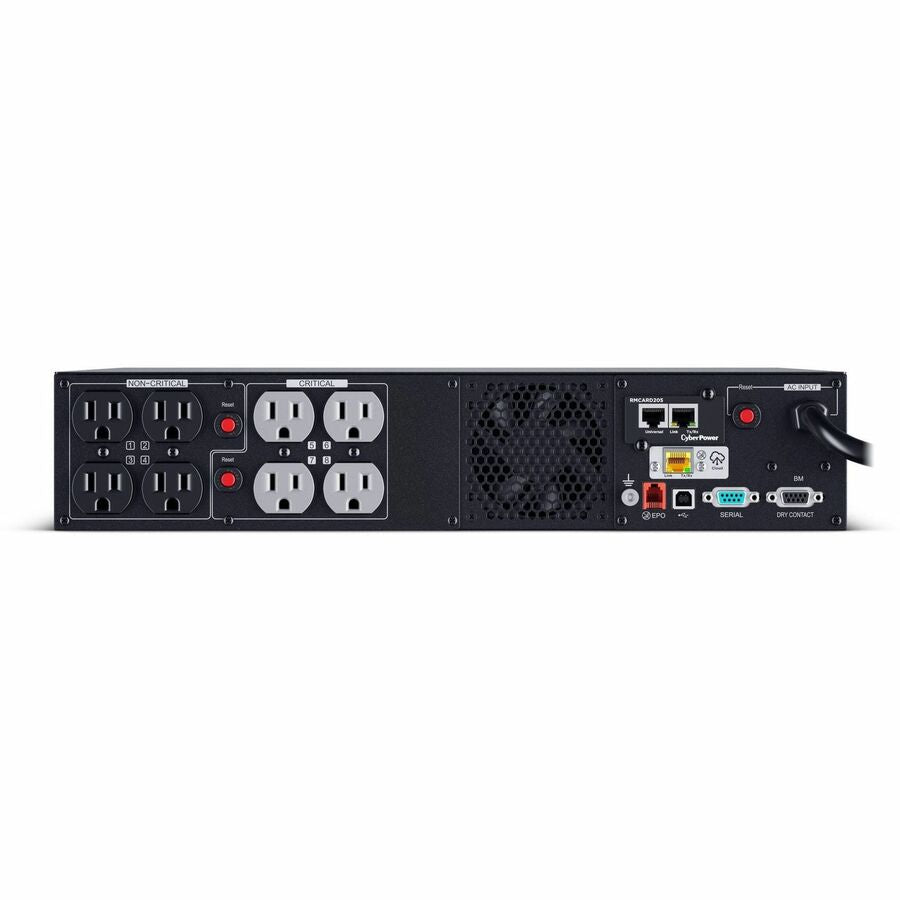

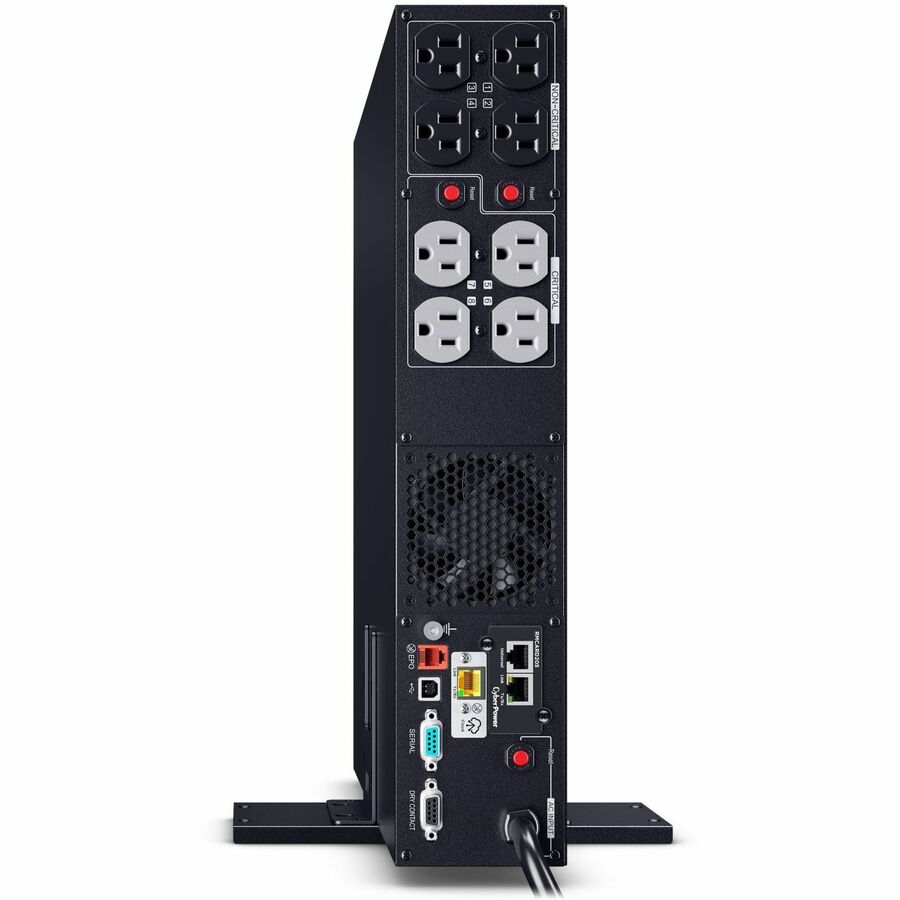

Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Number of Critical Load Outlets: 4
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Application/Usage: Corporate,Network,Server,Telecommunication,VoIP,Storage Device,Network Device

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.50 kW
Input Voltage: 120 V AC
Input Voltage Range: 70 V AC - 155 V AC
Output Voltage: 100 V AC,110 V AC,120 V AC,125 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 2430 J
Output Power Factor: 1

Display & Graphics

Display: LCD

Management

Network Management: SNMP/HTTP Remote Monitoring,Relay-MS Card,Dry Contact
Alarm: Battery Mode,Low Battery,Overload,Over-charge,Fault

Controls/Indicators

Status Indicators:

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• Fault

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

Number of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 6.50 Minute
Backup/Run Time (Half Load): 18.20 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 49209.32 ft (14999000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 95%
Storage Relative Humidity: 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 52.5 dB(A)
Thermal Dissipation: 93.30 BTU/h

Physical Characteristics

Product Color: Black
Height: 10.75" (273.05 mm)
Width: 20.75" (527.05 mm)
Depth: 16.20" (411.48 mm)
Length: 22" (558.80 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 64.40 lb (29211.35 g)

Miscellaneous

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

Connected Equipment Guarantee: Lifetime
