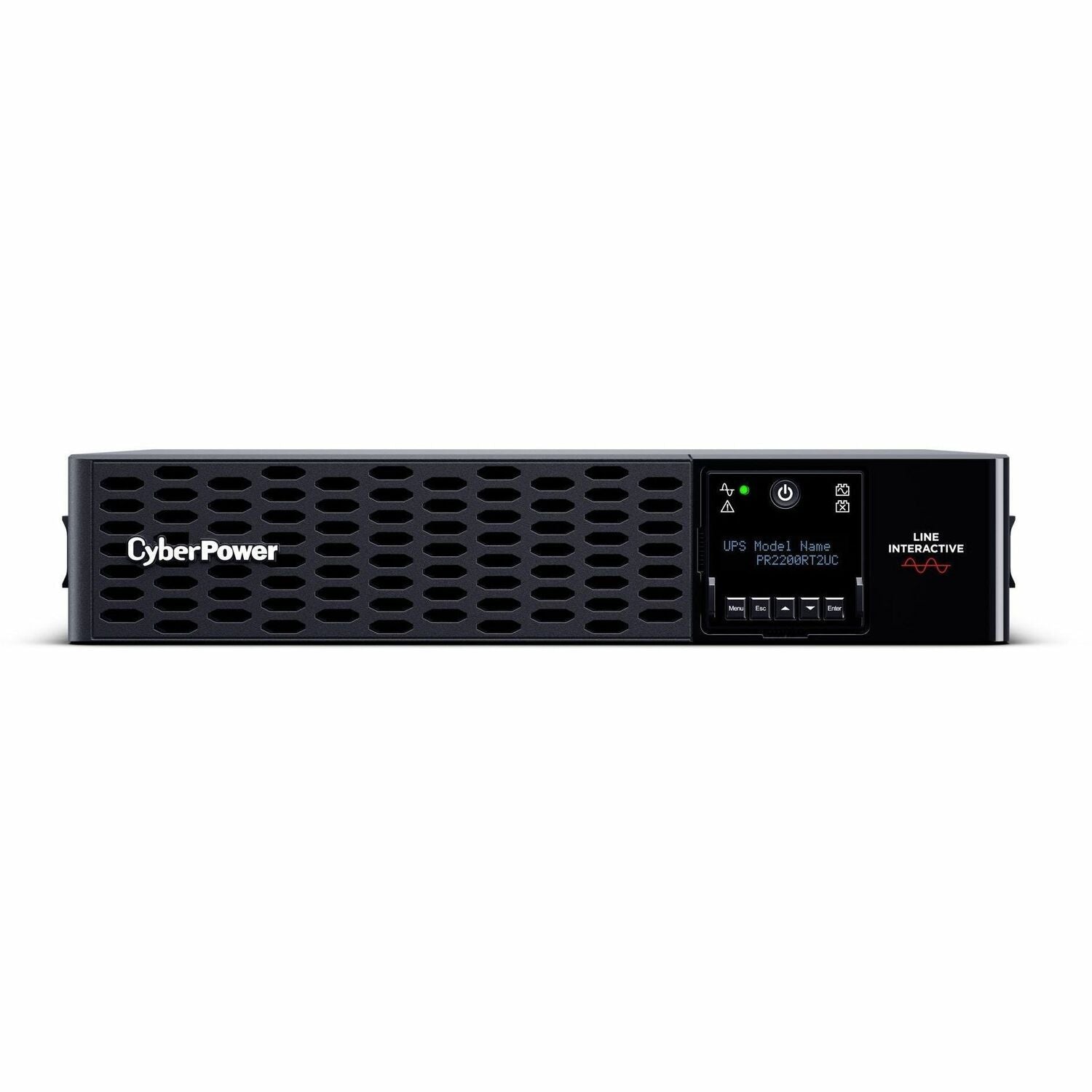

PR2200RT2UC CyberPower PR2200RT2UC Smart App Sinewave UPS Systems

General Information

Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PR2200RT2UC
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Smart App Sinewave
Product Model: PR2200RT2UC
Product Name: PR2200RT2UC Smart App Sinewave UPS Systems
Marketing Information:

The PR2200RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

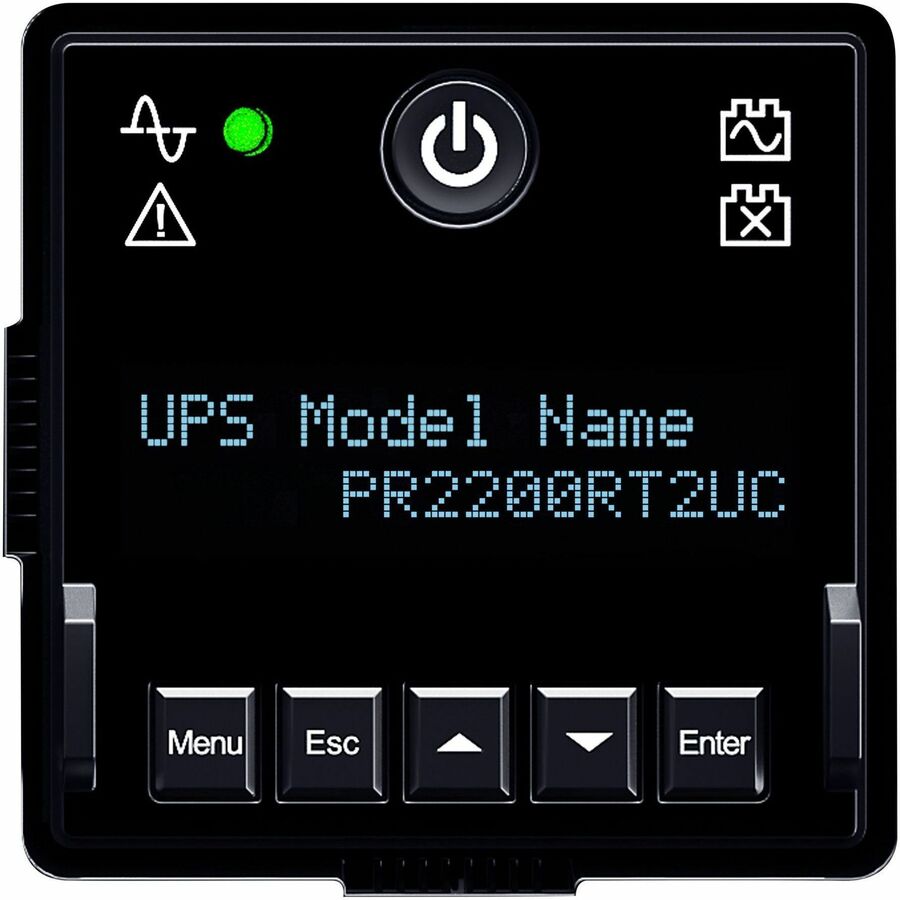

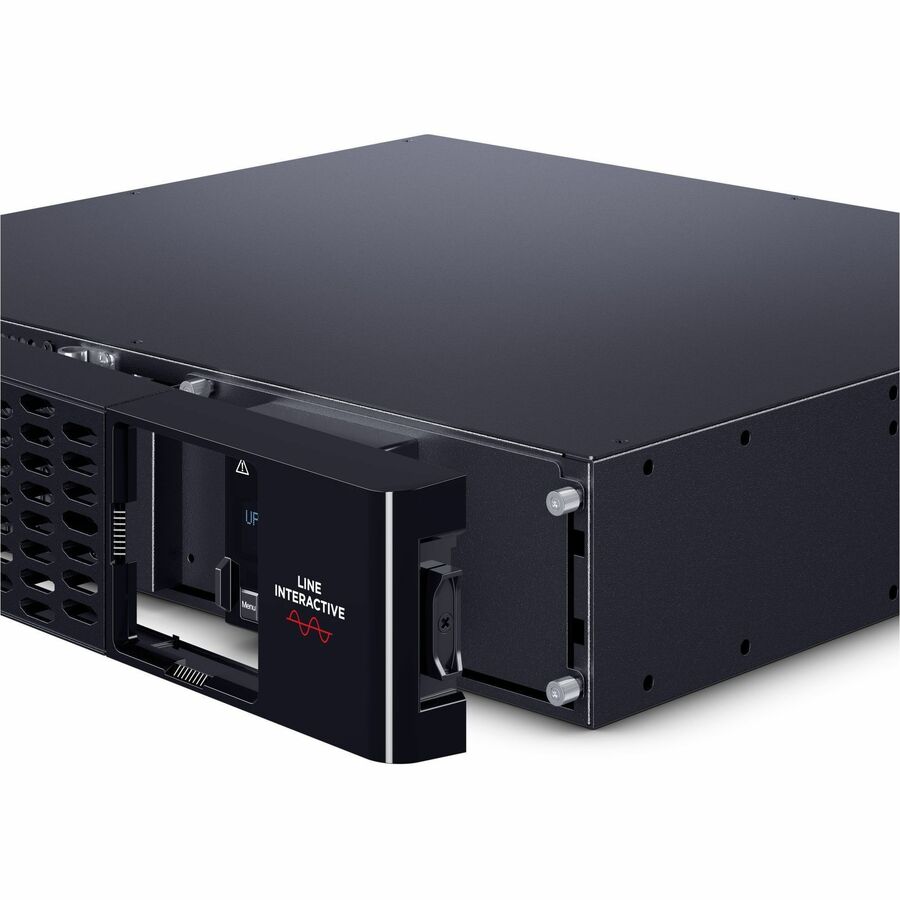

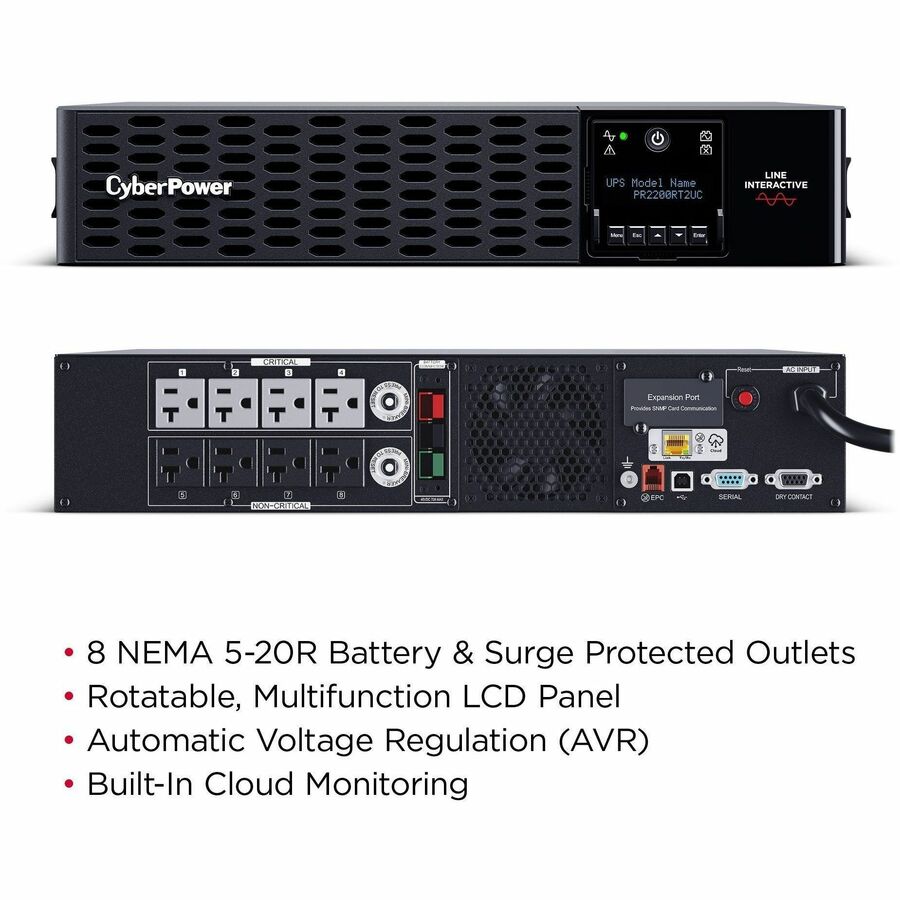

The Smart App Sinewave PR2200RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the RMCARD205 network management card for remote management
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-20R

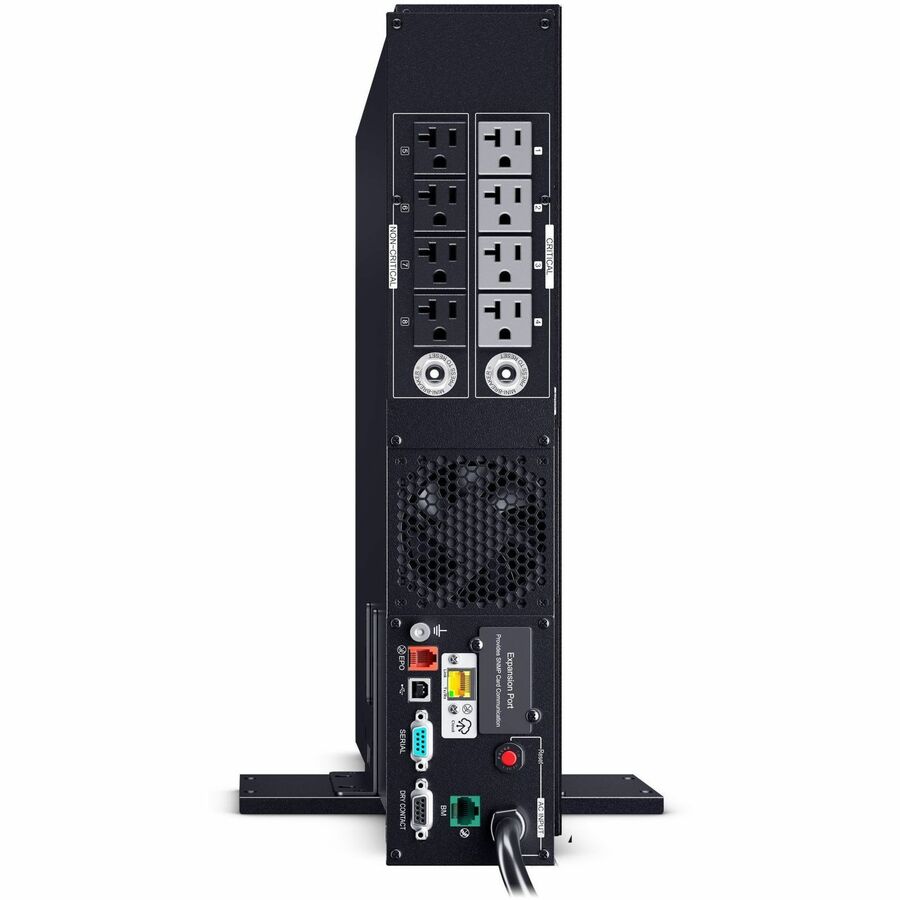

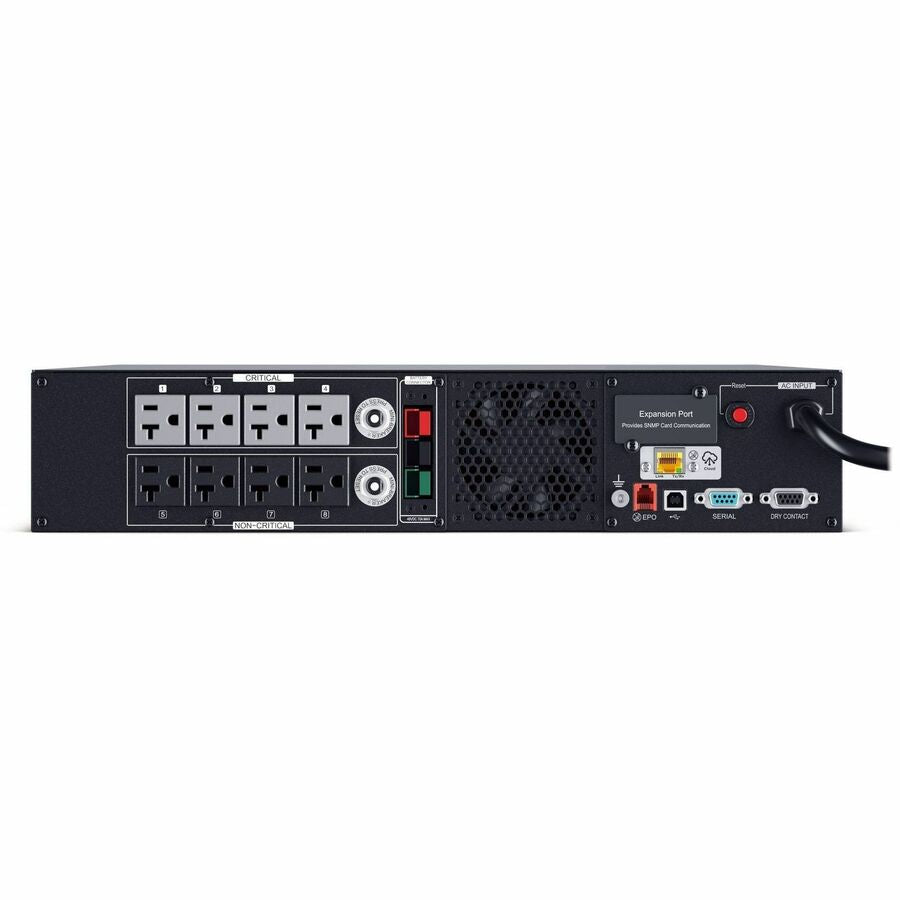

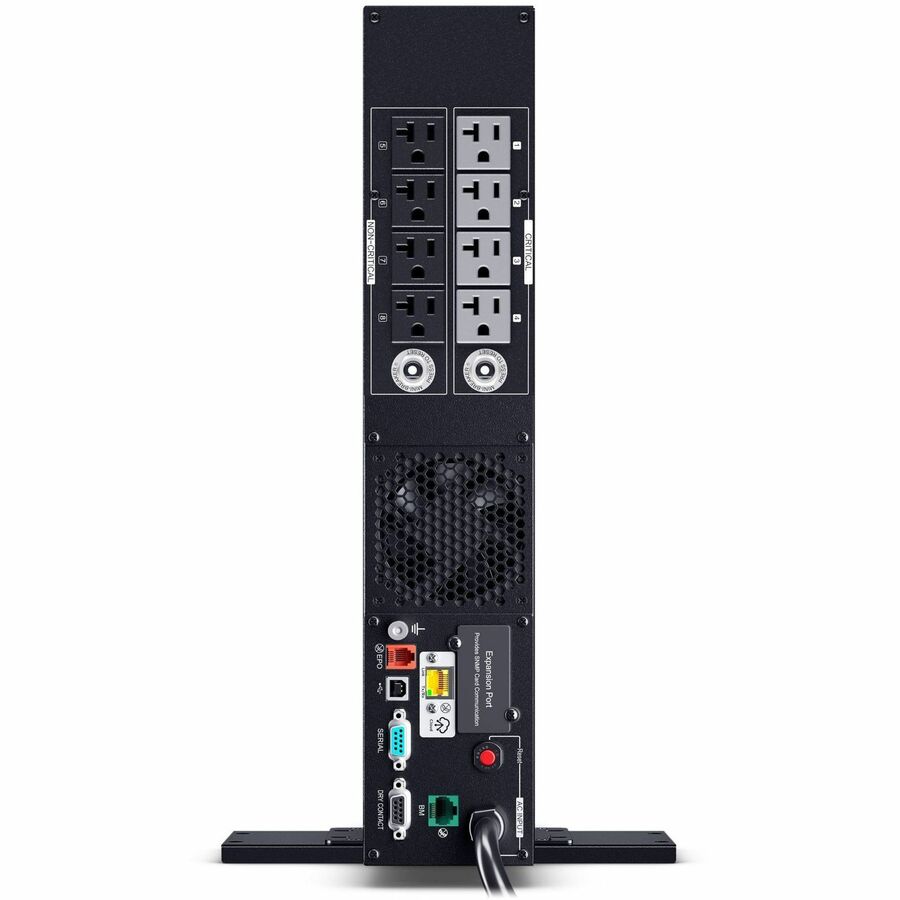

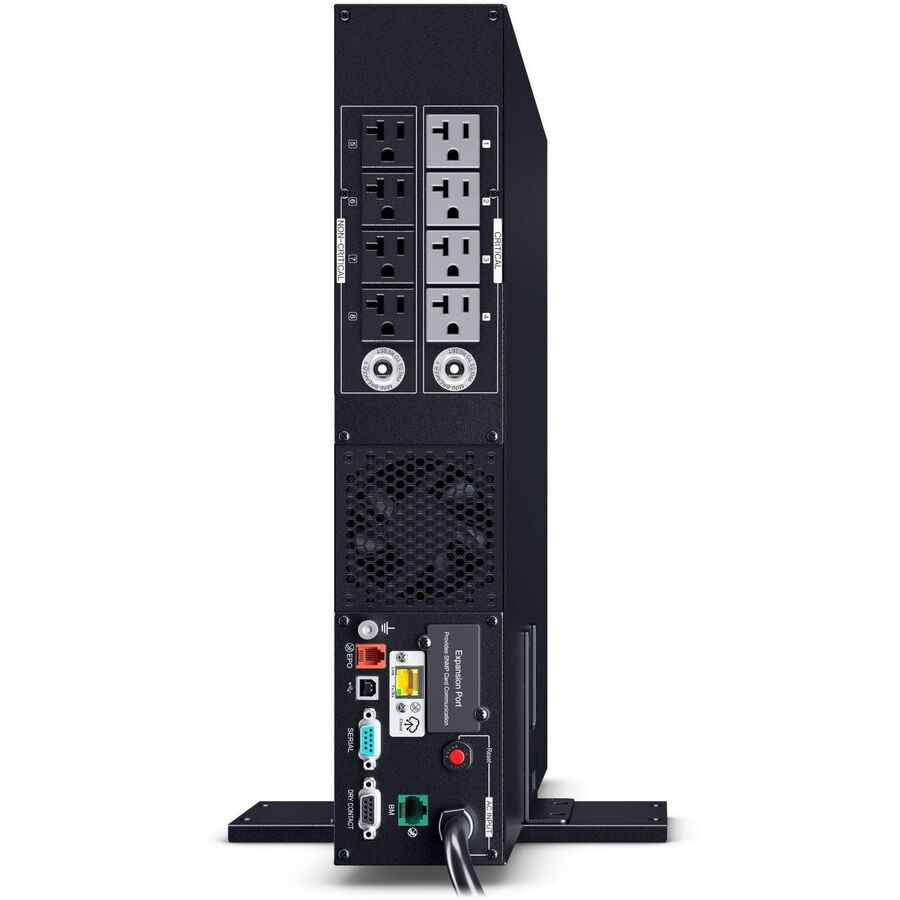

Receptacle Detail: 8 x NEMA 5-20R
Number of Battery & Surge Outlets: 8
Number of Critical Load Outlets: 4
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Application/Usage: Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment,Corporate

Power Description

Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 2.20 kW
Input Voltage: 120 V AC
Input Voltage Range: 69 V AC - 155 V AC
Output Voltage: 100 V AC,110 V AC,120 V AC,125 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 2430 J
Output Power Factor: 1

Display & Graphics

Display: LCD

Management

Network Management: Relay-MS Card,Dry Contact,SNMP/HTTP Remote Monitoring
Alarm: Battery Mode,Low Battery,Overload,Over-charge,Fault

Controls/Indicators

Status Indicators:

LED Indicators:

Power On

Line Mode

Battery Mode

Fault

UPS Fault

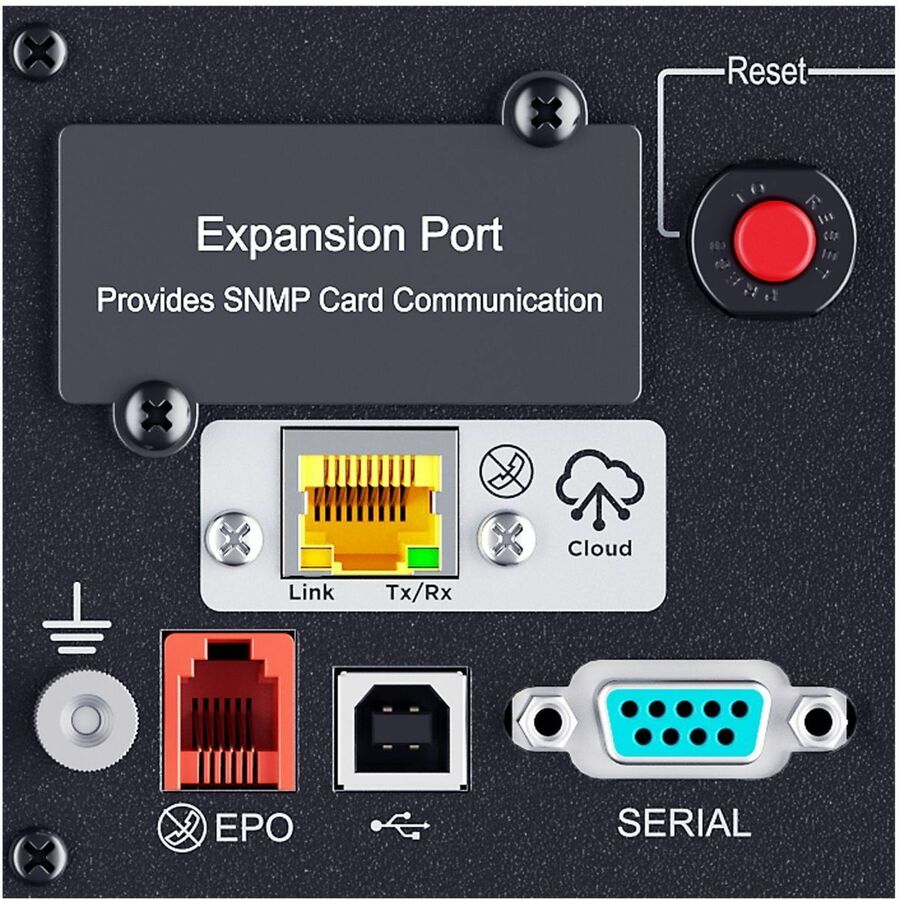

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

Number of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 3.20 Minute
Backup/Run Time (Half Load): 11.80 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 49209.32 ft (14999000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 95%
Storage Relative Humidity: 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 52.5 dB(A)
Thermal Dissipation: 135 BTU/h

Physical Characteristics

Product Color: Black
Height: 10.80" (274.32 mm)
Width: 22.10" (561.34 mm)
Depth: 16.20" (411.48 mm)
Length: 20.90" (530.86 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 67.70 lb (30708.20 g)

Miscellaneous

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

Connected Equipment Guarantee: Lifetime
