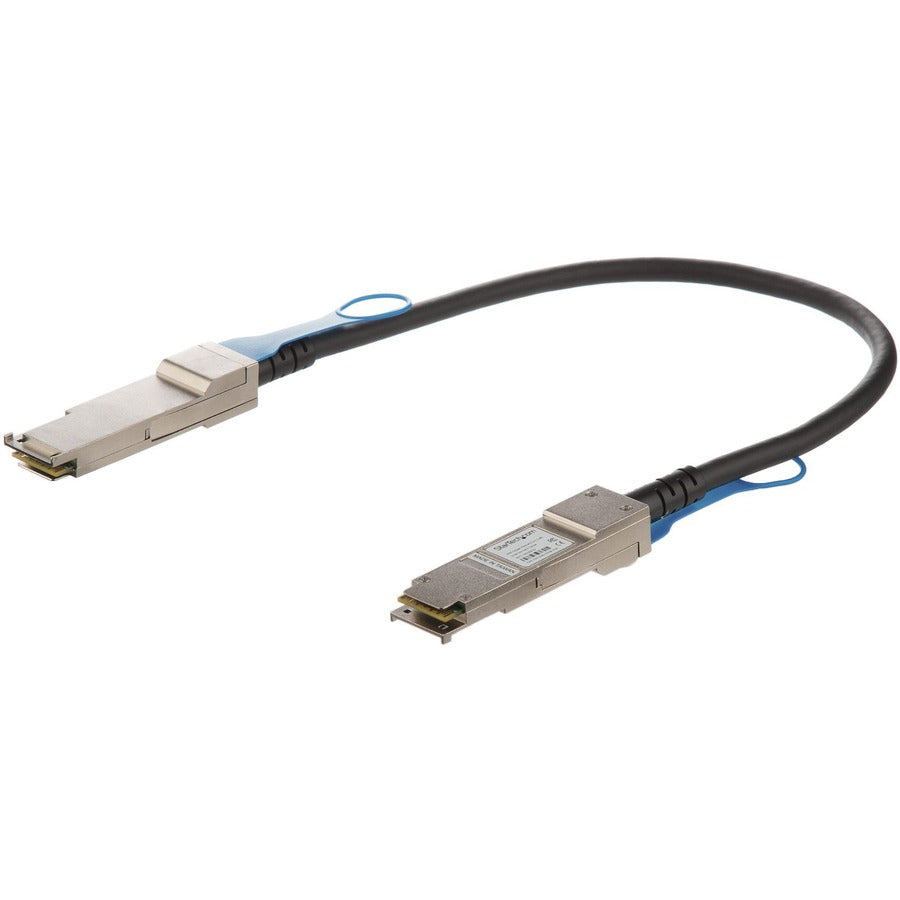

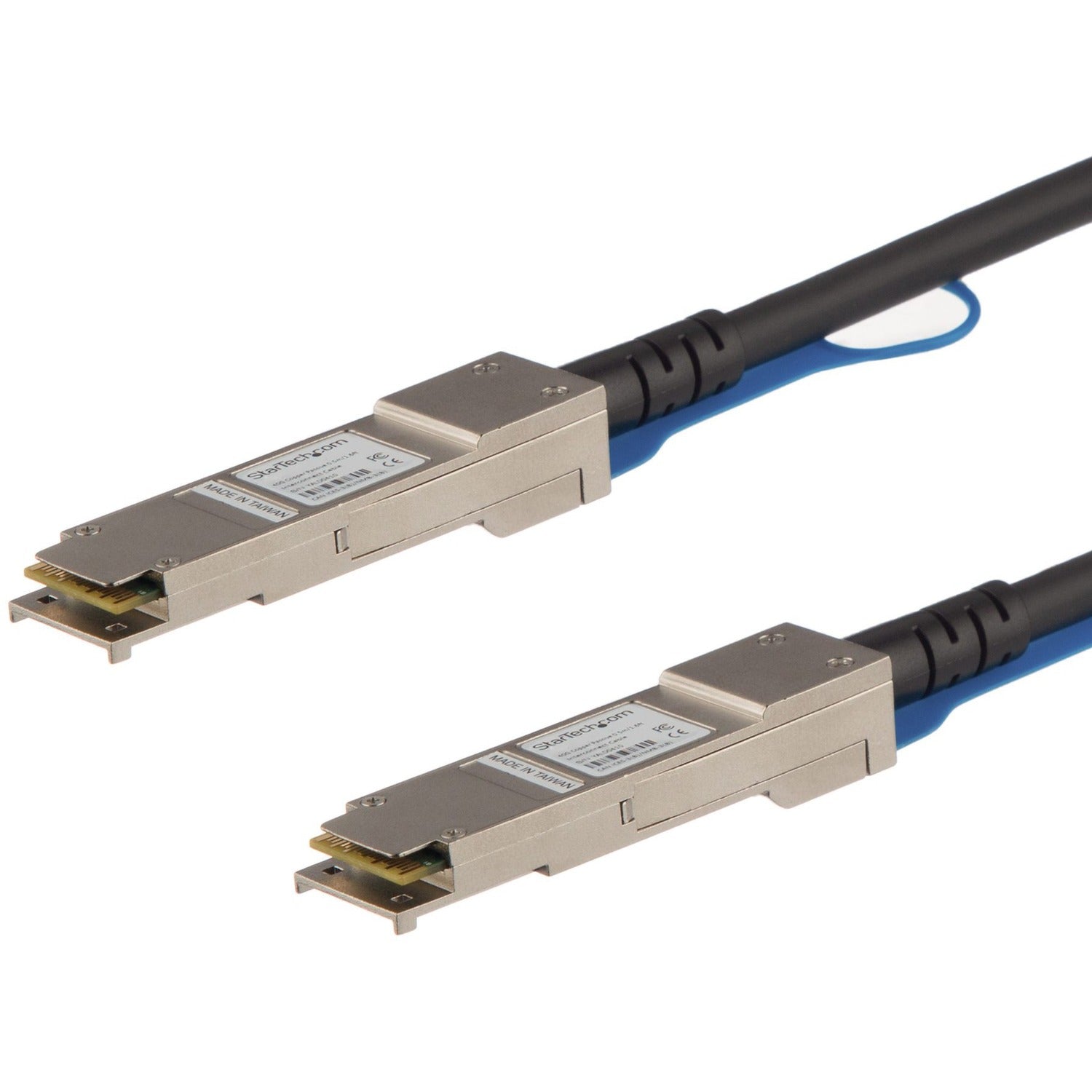

QSFPH40GCU05 StarTech.com 0.5m 40G QSFP+ to QSFP+ Direct Attach Cable for Cisco QSFP-H40G-CU0-5M - 40GbE Copper DAC 40Gbps Passive Twinax

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: QSFPH40GCU05
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: QSFP+ Direct Attach Cable - 0.5 m (1.6 ft.)
Marketing Information:

The QSFPH40GCU05 is a Cisco QSFP-H40G-CU0-5M compatible direct-attach copper QSFP+ cable that's designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensu
Packaged Quantity: 1 Each
Product Type: Network Cable

Technical Information

Cable Type: Twinaxial
Cable Length: 1.6 ft (0.50 m)
Connector Type on First End: QSFP+ Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x QSFP+ Network - Male
Connector Type on Second End: QSFP+ Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x QSFP+ Network - Male
Device Supported: Network Device,Server,Switch,Router
American Wire Gauge: 30 AWG
Data Transfer Rate: 40 Gbit/s
Features: Passive,Hot-swappable

Physical Characteristics

Color Family: Black
Product Color: Black
Product Material: Copper
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 3.49 oz (99 g)

Miscellaneous

Compatibility: Cisco Switches:

• C9300
• C9200
• C9400
• C9500
• C9600

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan

Warranty

Limited Warranty: Lifetime
