RKCONS1701 StarTech.com Rackmount KVM Console - 1U 17" LCD Monitor Single Port VGA KVM Server Rack Drawer includes Cables & Hardware - USB Support

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: RKCONS1701
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Single-Port Rackmount KVM Console with 17" Display
Marketing Information:

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

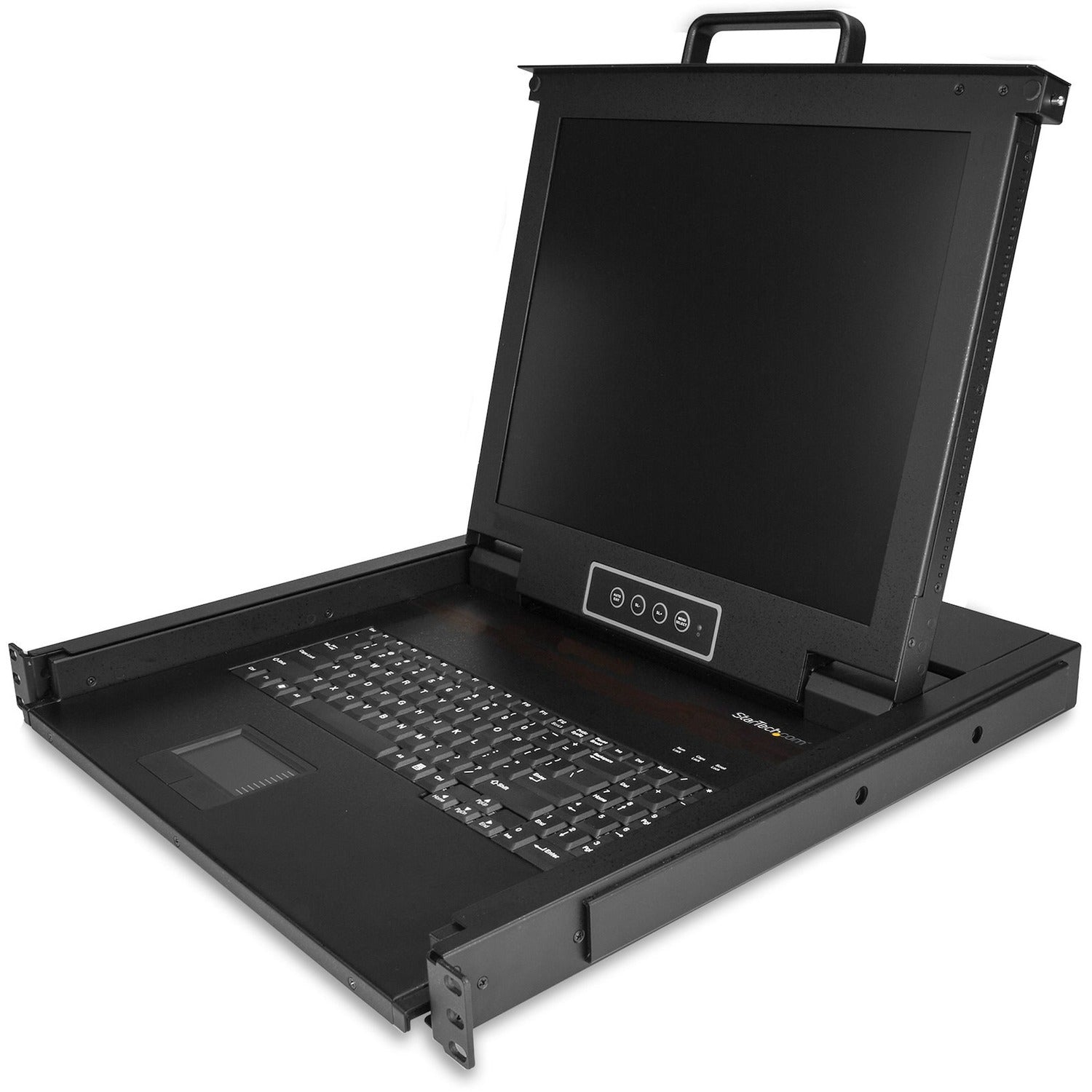

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack c
Packaged Quantity: 1 Each
Product Type: LCD Rack Console

Technical Information

KVM Switch: No
Number of Computers Supported: 1
Device Type: LCD Rack Console

Display & Graphics

Screen Size: 17"
Display Screen Type: LCD
Screen Mode: SXGA
Screen Resolution: 1280 x 1024

Input Devices

Keyboard: Yes
Pointing Device Type: TouchPad

Interfaces/Ports

USB: Yes
VGA: Yes
Number of VGA Ports: 1

Power Description

Input Voltage: 120 V AC,230 V AC
Input Voltage Range: 100V AC to 240V AC
Power Consumption: 13 W

Physical Characteristics

Color Family: Black
Product Color: Black
Product Material: Steel
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.60" (447.04 mm)
Depth: 18.50" (469.90 mm)
Weight (Approximate): 25.90 lb (11748.04 g)

Miscellaneous

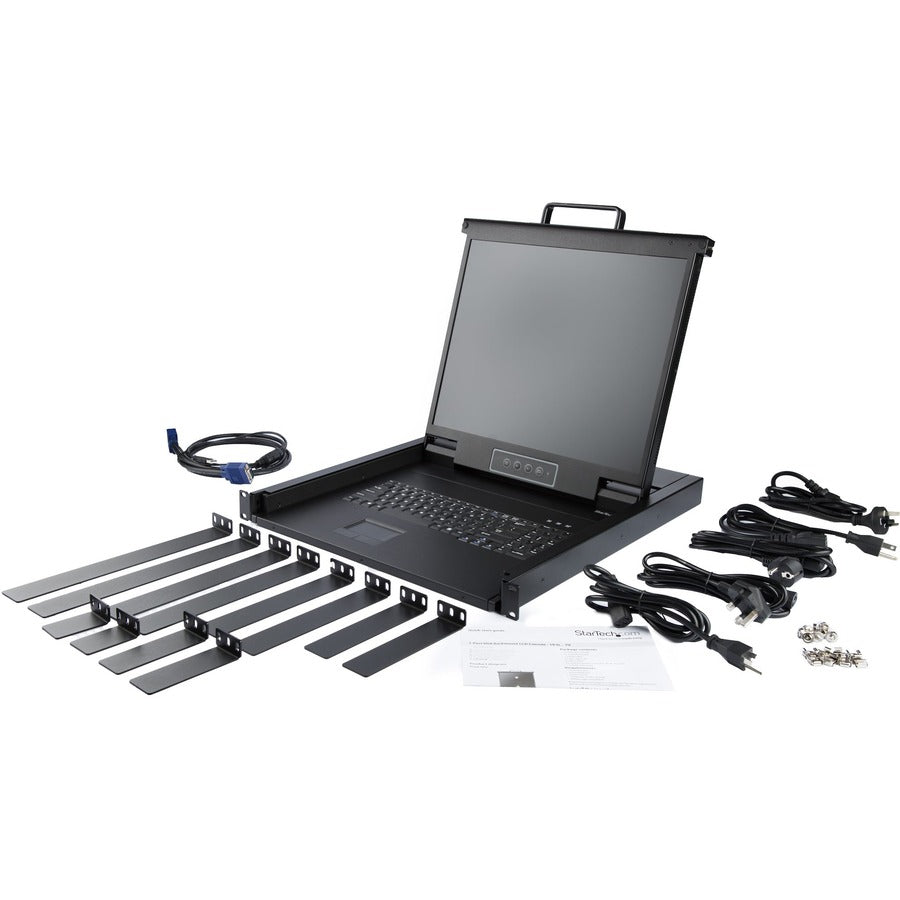

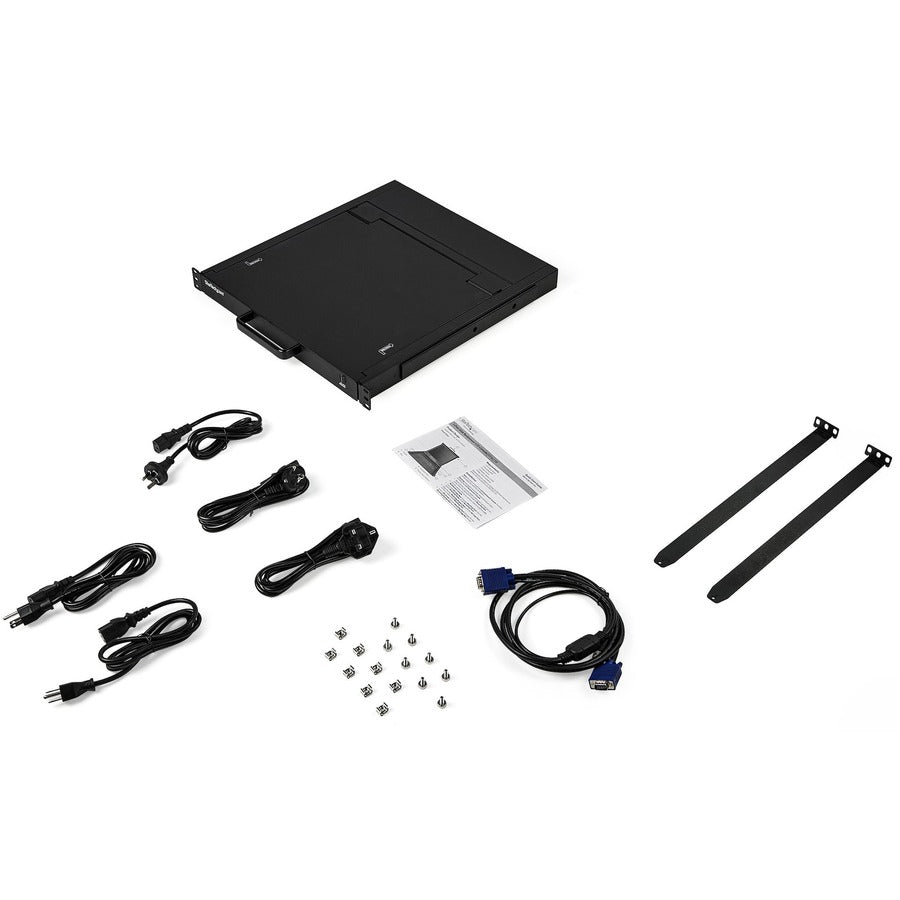

Package Contents:

• Single-Port Rackmount KVM Console with 17" Display
• 1 x KVM Cable
• 8 x M5 Cage Nuts
• 8 x M5 Screws
• 5 x Regional Power Cords (NA, JP, UK, EU, ANZ)
• 2 x Mounting Rails
• 1 x Quick-start Guide

Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China

Warranty

Limited Warranty: 2 Year
