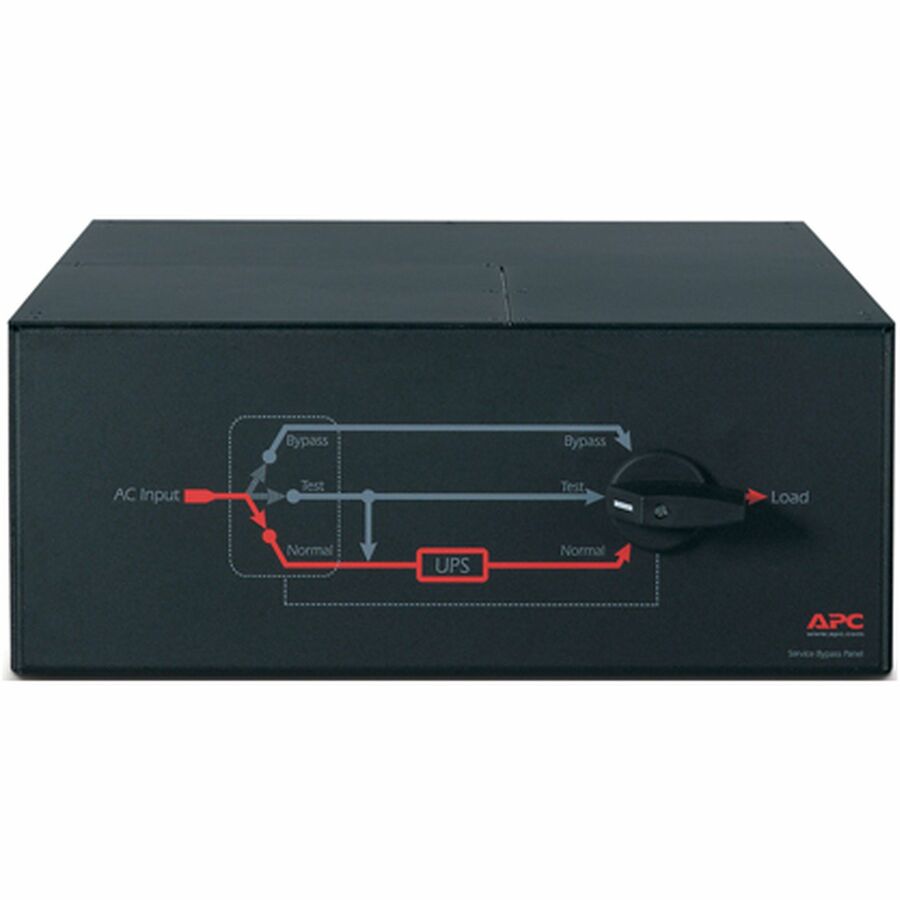

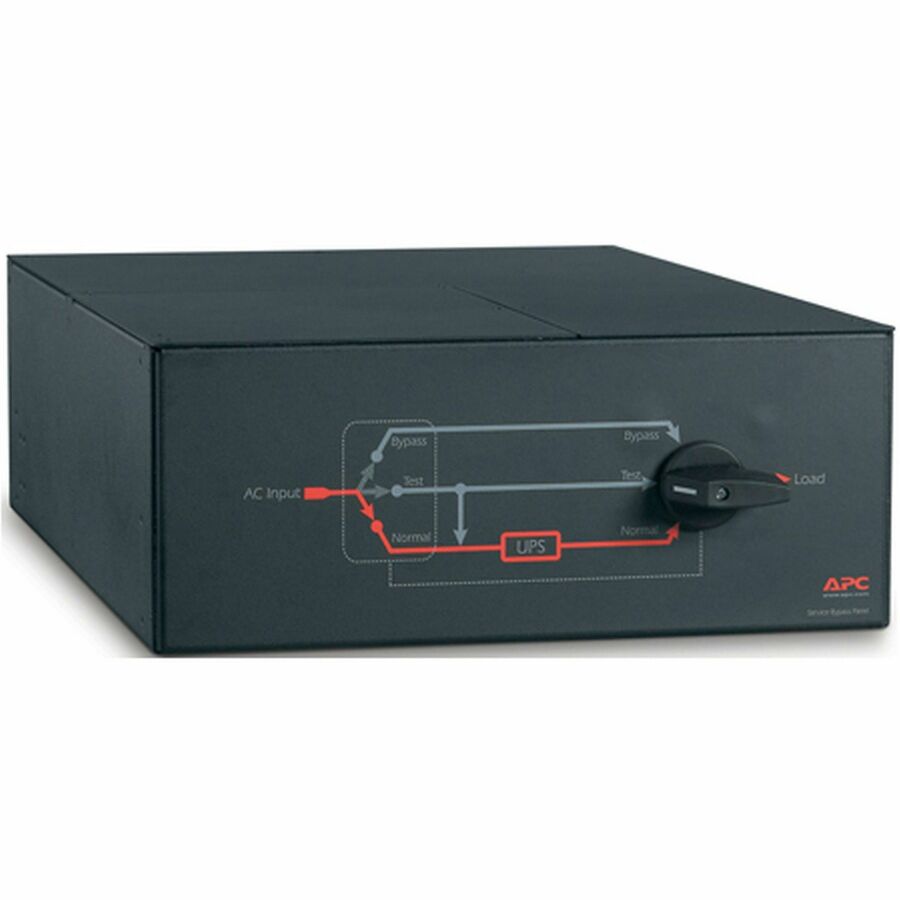

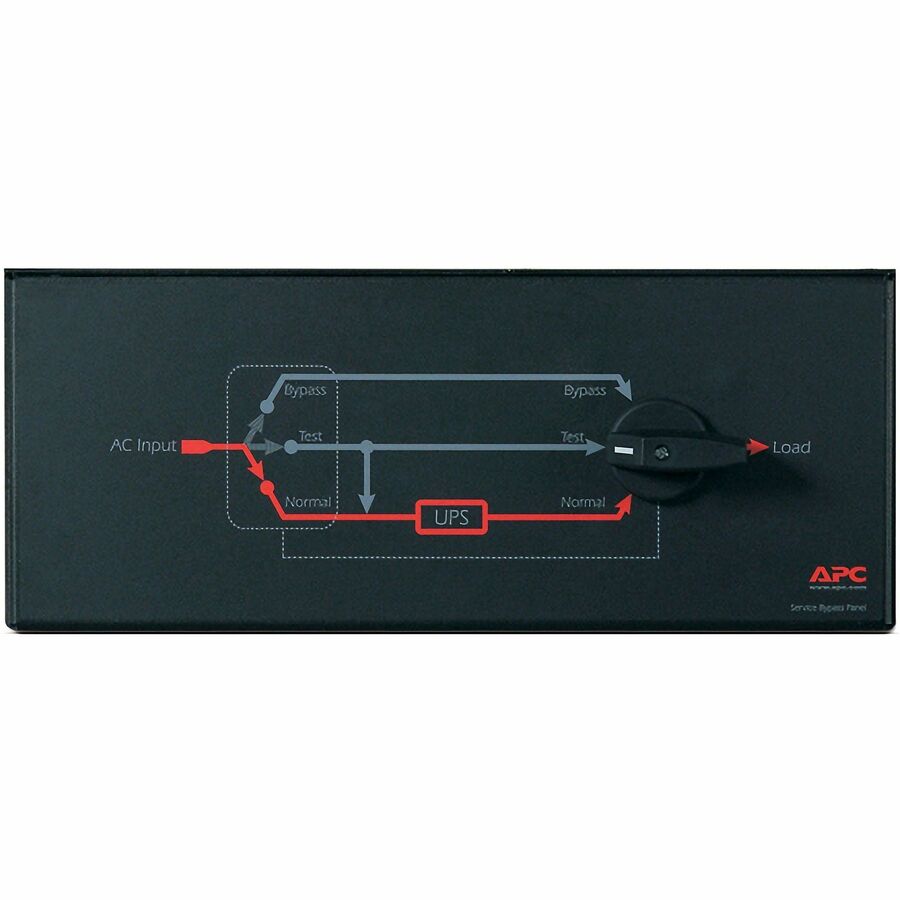

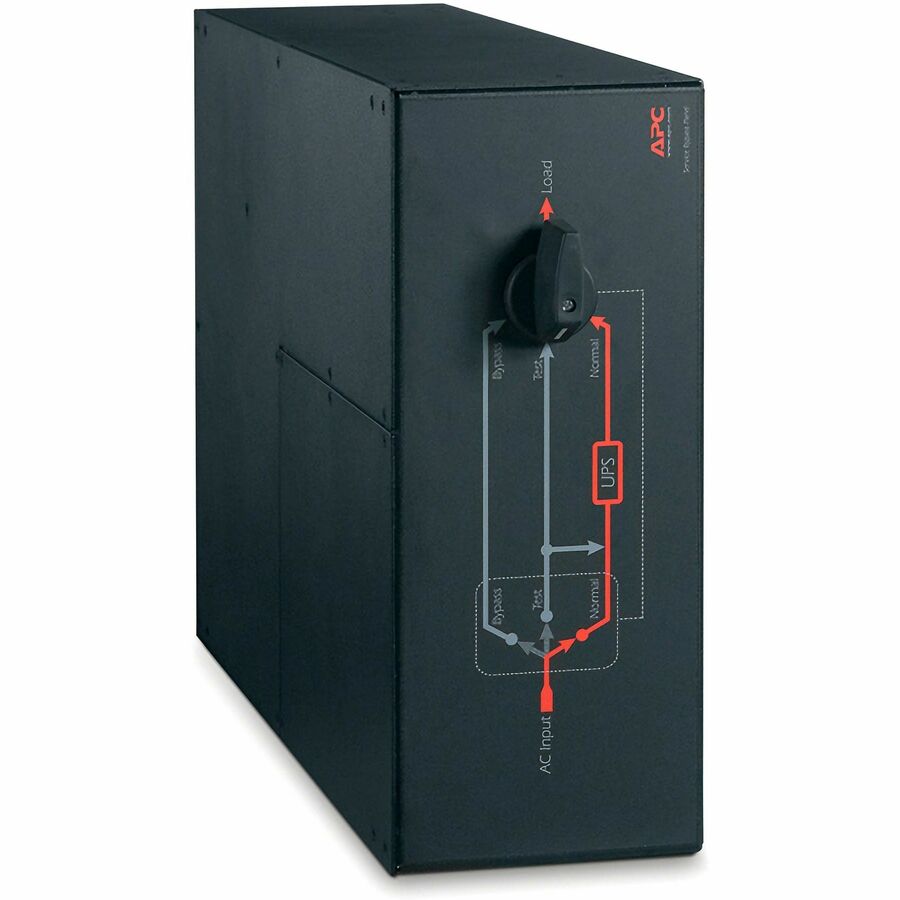

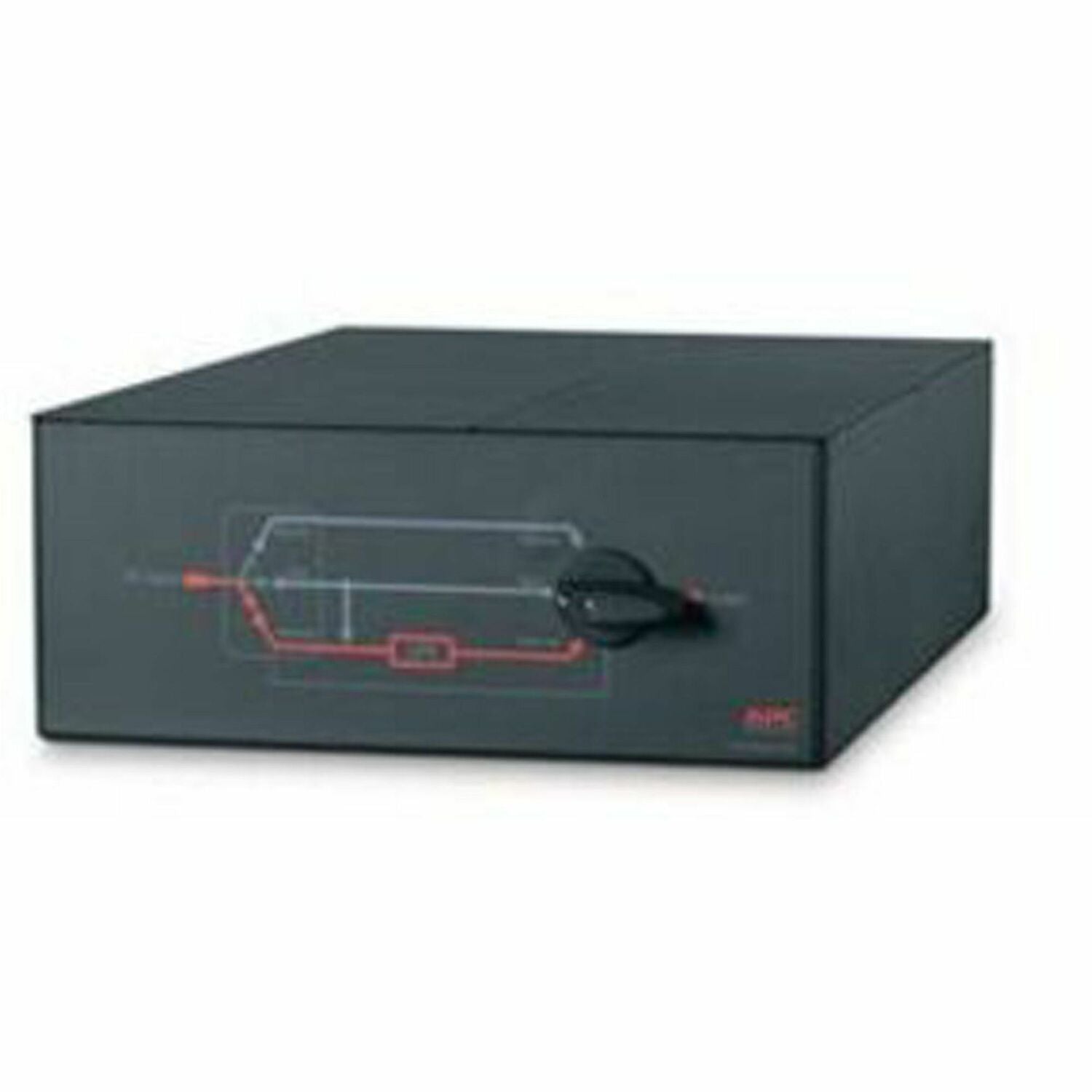

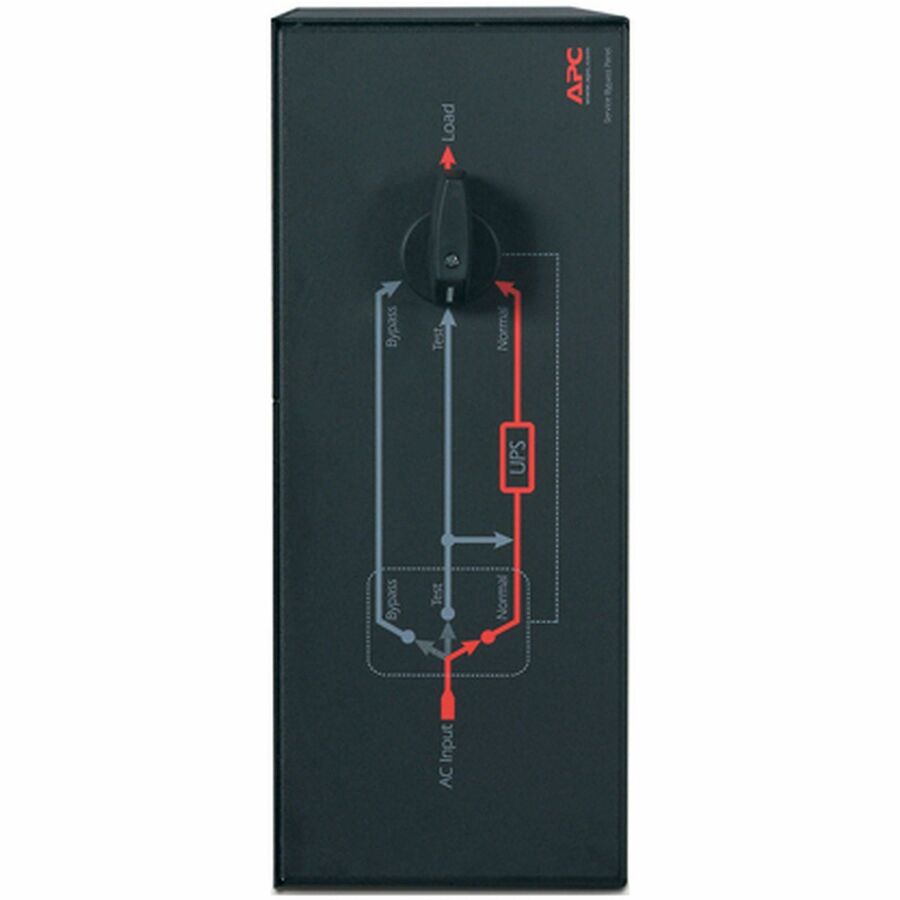

SBP16KRMP4U APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input; (6) L14-30R output

Save $142.01
Schneider Electric SASKU: SBP16KRMP4U
No reviews
Price:
$2,407.99 $2,550.00

Description

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SBP16KRMP4U
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: 19" Rack Mountable 100A Maintenance Bypass Panel
Marketing Information:

The APC Service Bypass Panel supports output voltage of 200V and 208V. It includes 6 NEMA L14-30R outlets. It features a 4U rack-mount design and is rack mountable.


Packaged Quantity: 1 Each
Product Type: Bypass Panel

Technical Information

Plug/Connector Type: Hard Wire 3-wire,Hard Wire 4-wire

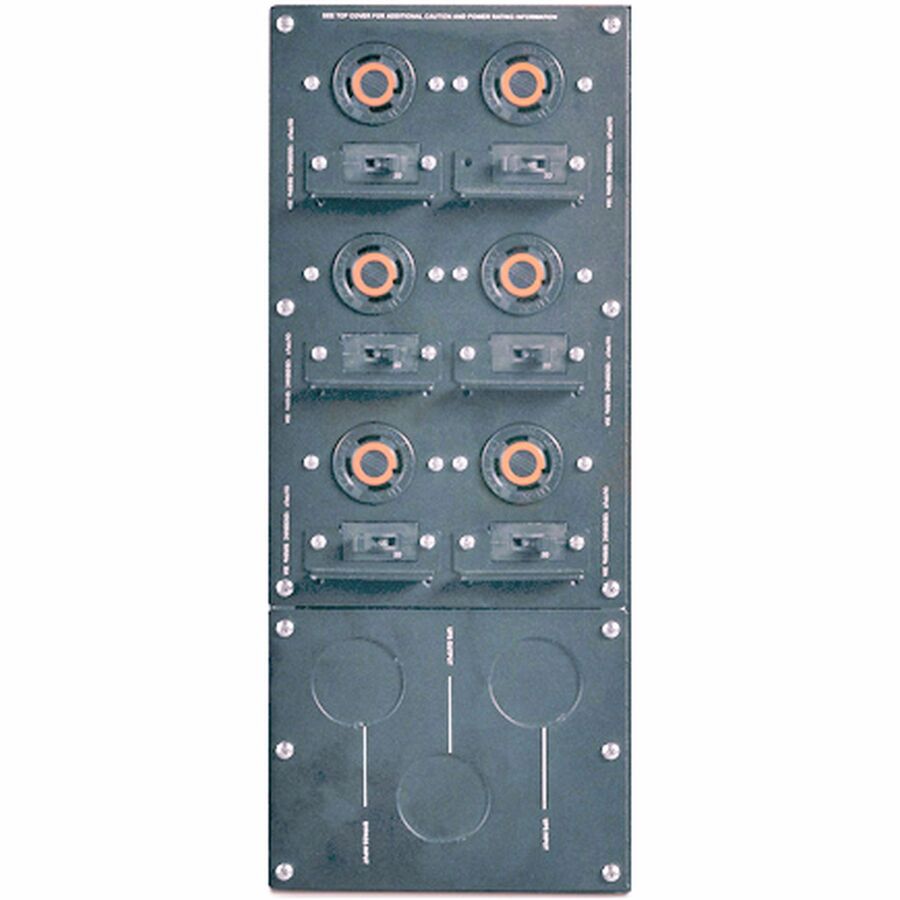

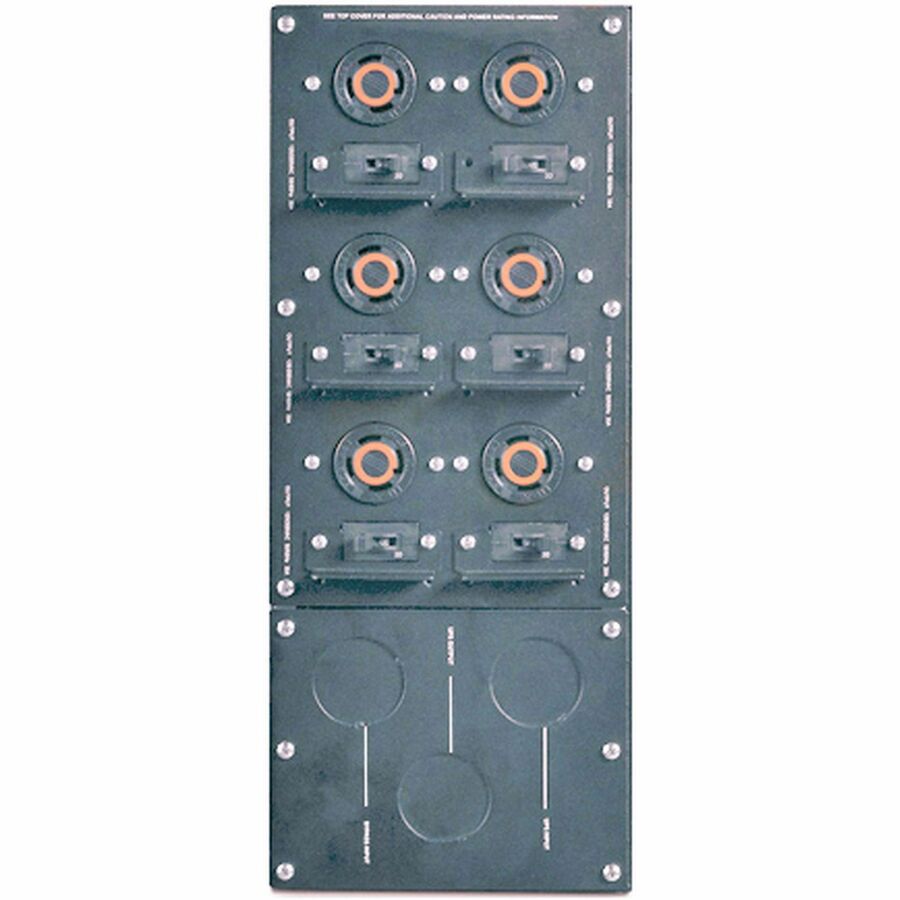

Receptacles: 6 x NEMA L14-30R
Protection Type: Overload

Power Description

Load Capacity (VA): 20 kW
Input Voltage: 208 V AC
Output Voltage: 200 V AC,208 V AC
Current: 100 A

Physical Characteristics

Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 7.01" (178 mm)
Width: 17.01" (432 mm)
Depth: 26.50" (673 mm)
Weight (Approximate): 51.10 lb (23178.57 g)

Miscellaneous

Package Contents:
  • 19" Rack Mountable 100A Maintenance Bypass Panel
  • Installation guide
  • Rack mounting brackets
  • User manual

    • Country of Origin: China
    Environmentally Friendly: Yes
    Environmental Compliance: Restriction of Hazardous Substances (RoHS)

    Warranty

    Limited Warranty: 2 Year
