Description
General Information
Manufacturer: Schneider Electric SAManufacturer Part Number: SBP3000RM2U
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: 19" Rack Mountable 30A Maintenance Bypass Panel
Marketing Information:

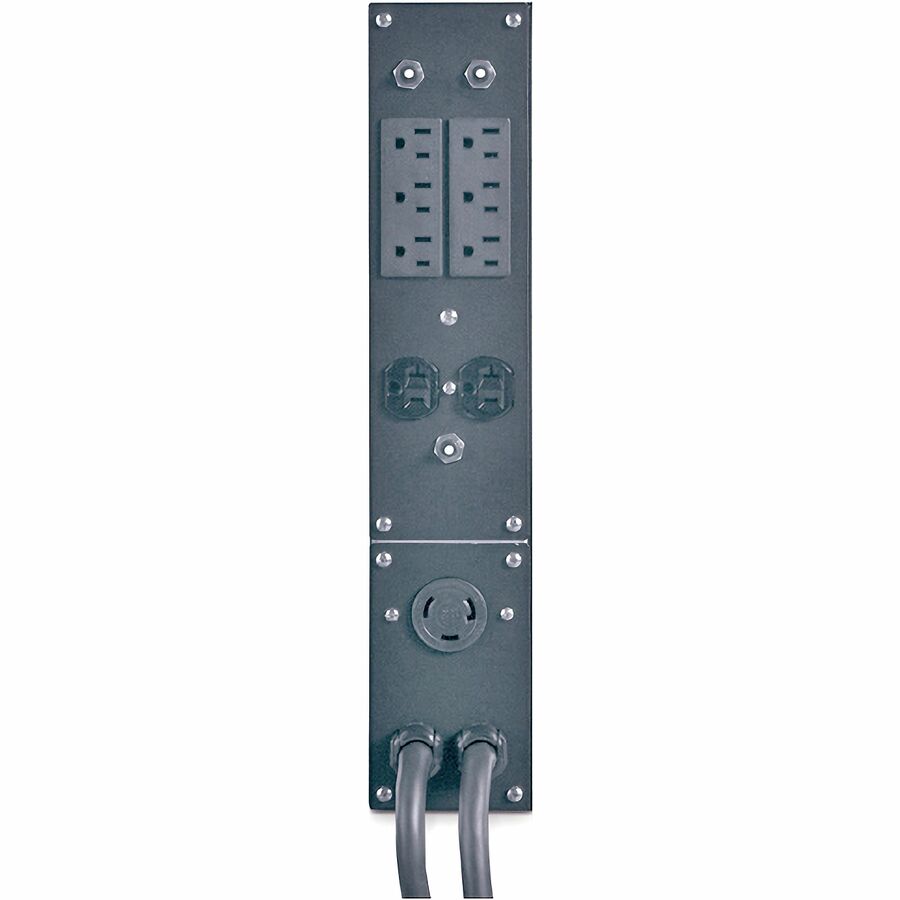

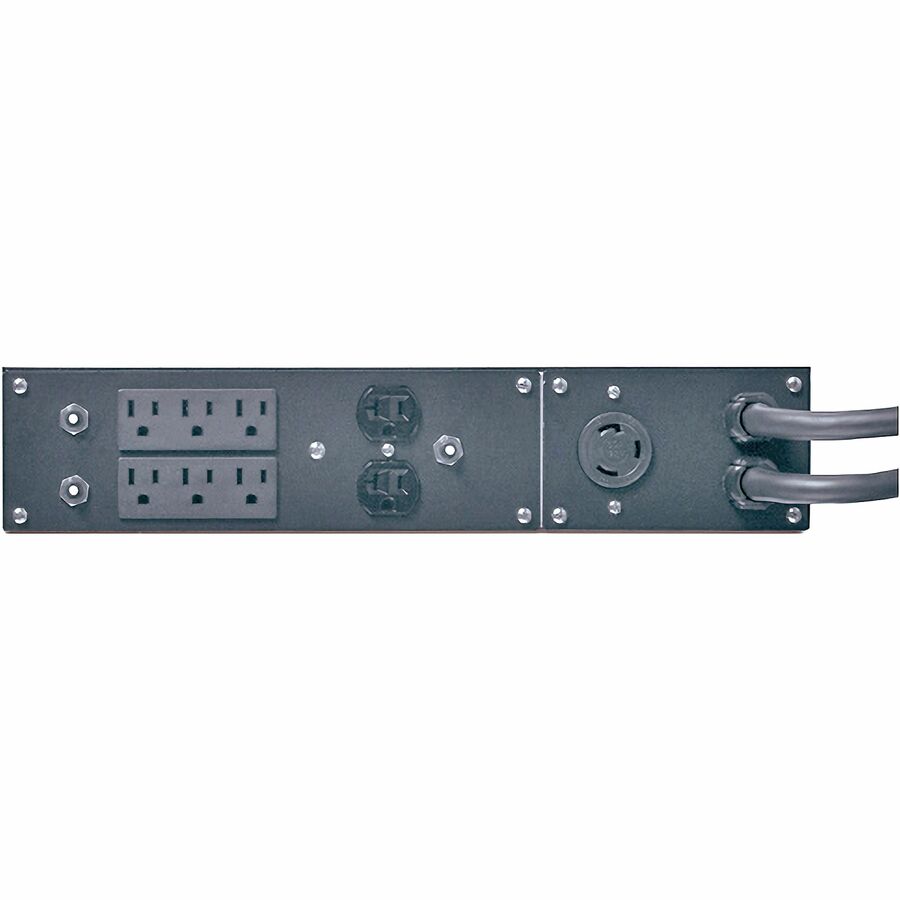

The APC Service Bypass Panel includes 2 NEMA 5-20R, and 6 NEMA 5-15R outlets. It supports a nominal input and output voltage of 100-120V. The unit is rack-mounted, occupying 2U of rack space, and includes a circuit breaker for protection.
Packaged Quantity: 1 Each
Product Type: Bypass Panel
Technical Information
Plug/Connector Type: NEMA L5-30PReceptacles: 6 x NEMA 5-15R,2 x NEMA 5-20R
Protection Type: Overload
Power Description
Load Capacity (VA): 3 kWInput Voltage: 100 V AC,120 V AC
Output Voltage: 100 V AC,120 V AC
Current: 24 A,30 A
Physical Characteristics
Color Family: BlackProduct Color: Black
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.50" (89 mm)
Width: 17.01" (432 mm)
Depth: 25.51" (648 mm)
Weight (Approximate): 30.07 lb (13639.52 g)
Miscellaneous
Package Contents:Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
