Description
General Information
Manufacturer: Schneider Electric SAManufacturer Part Number: SBP5000RMT2U
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric

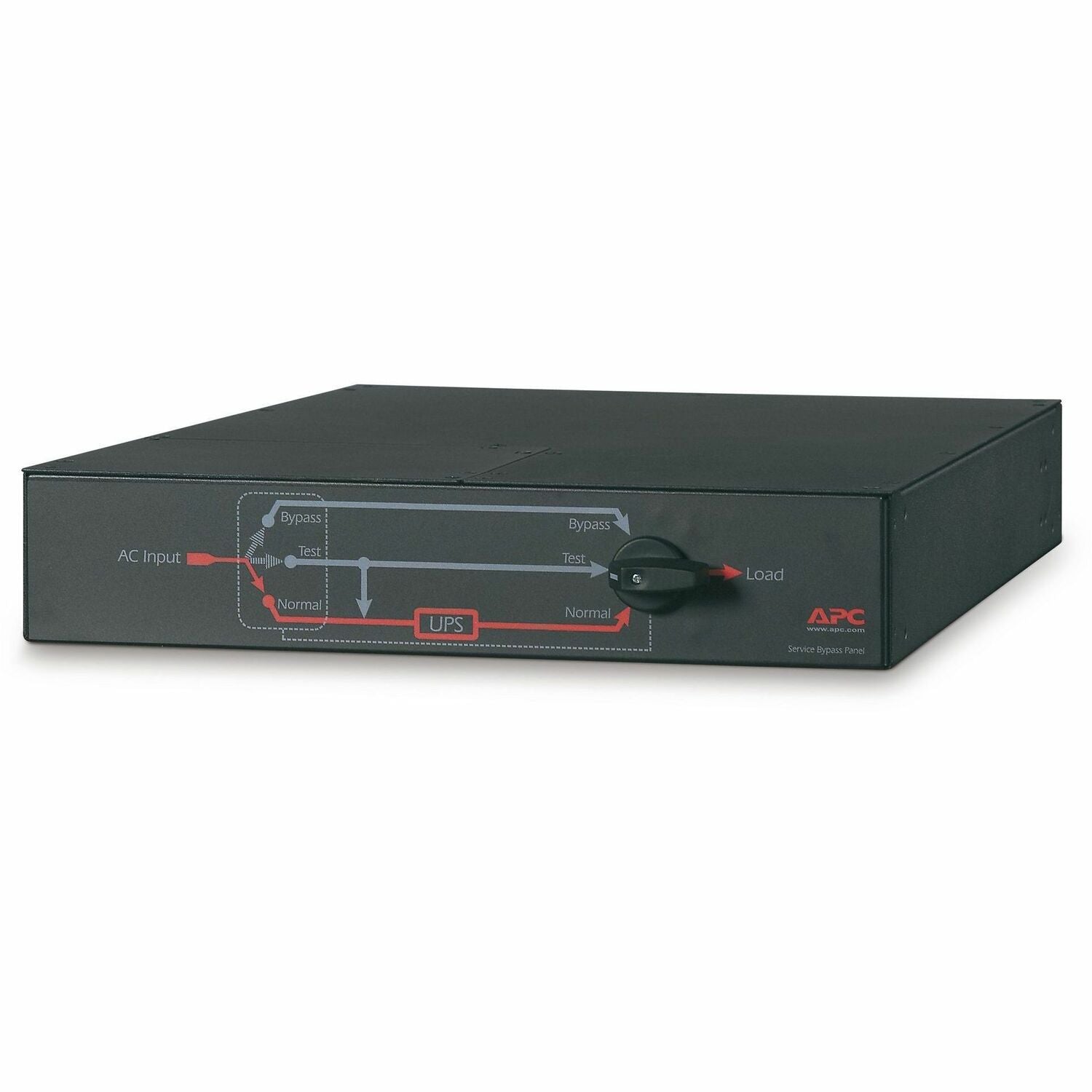

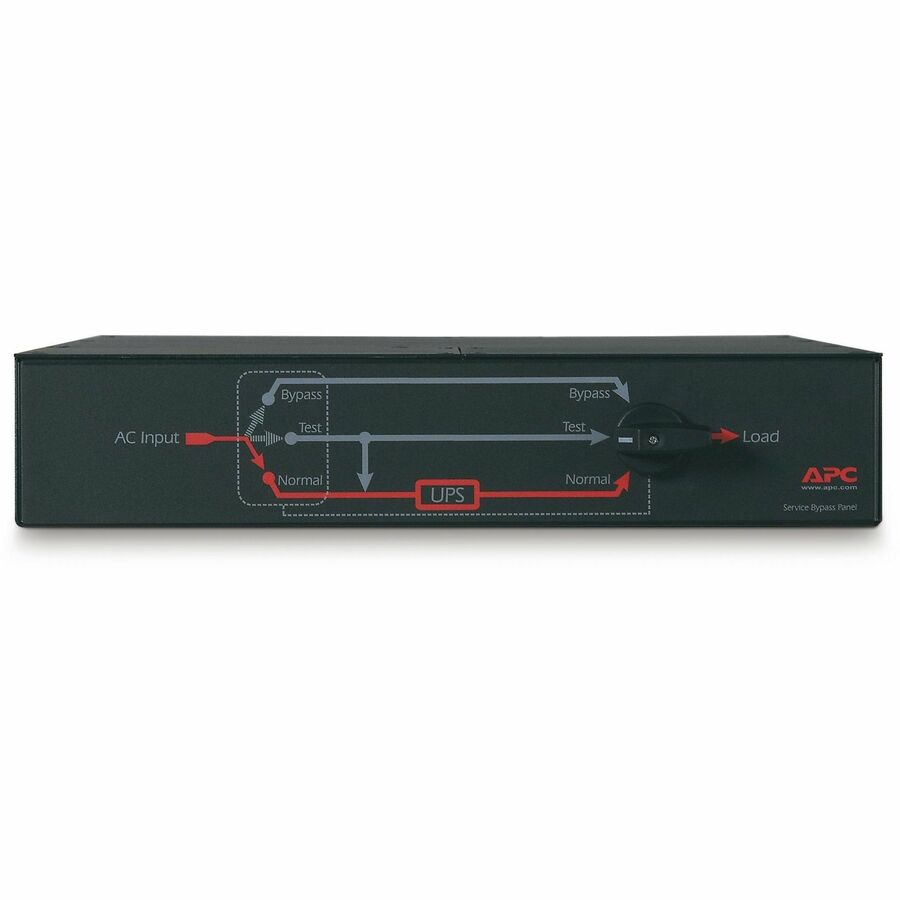

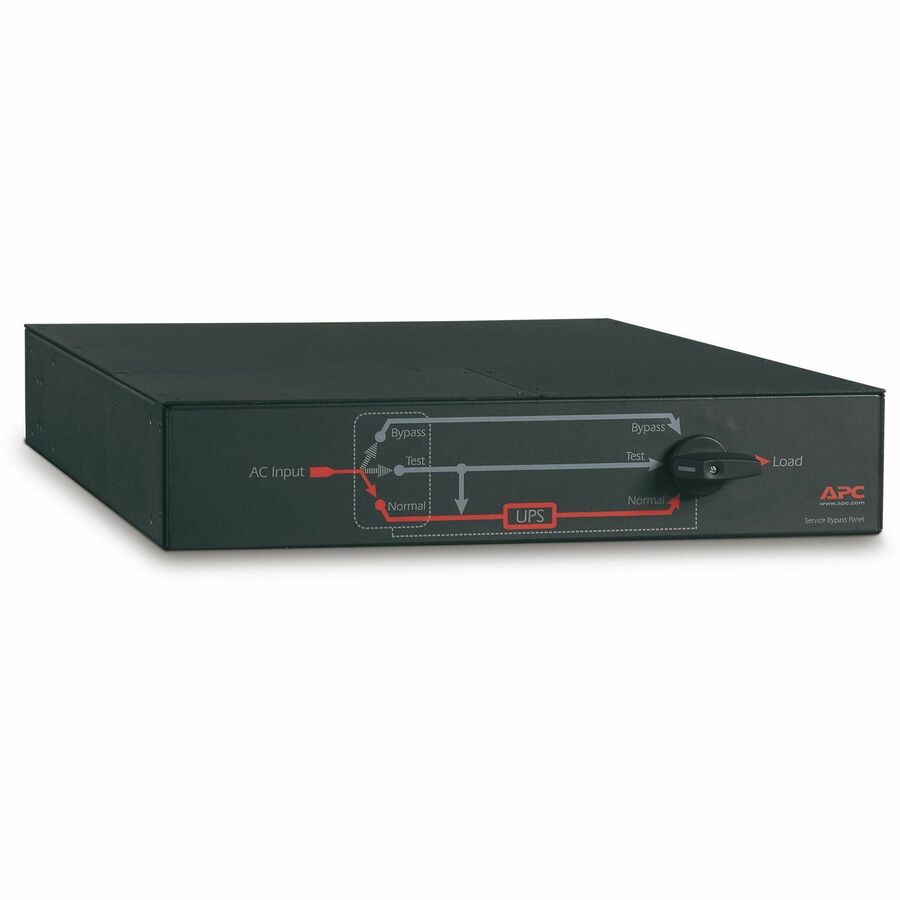

Product Name: 19" Rack Mountable 24A Maintenance Bypass Panel
Marketing Information:
The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.
Packaged Quantity: 1 Each
Product Type: Bypass Panel
Technical Information

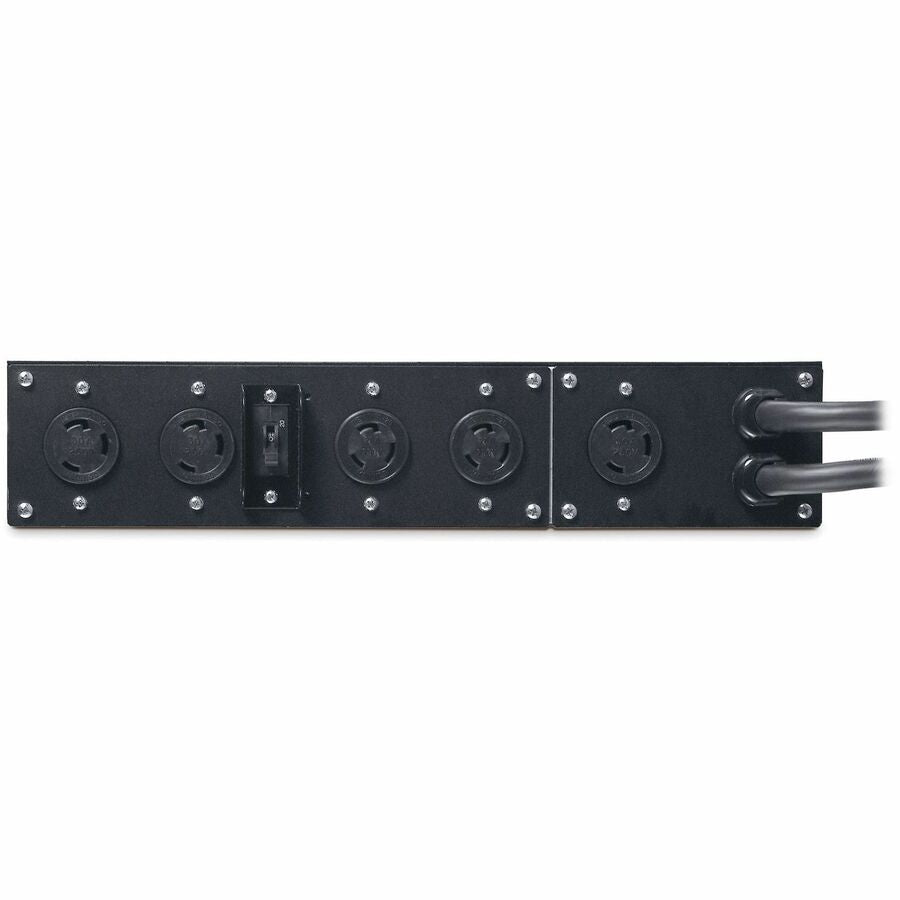

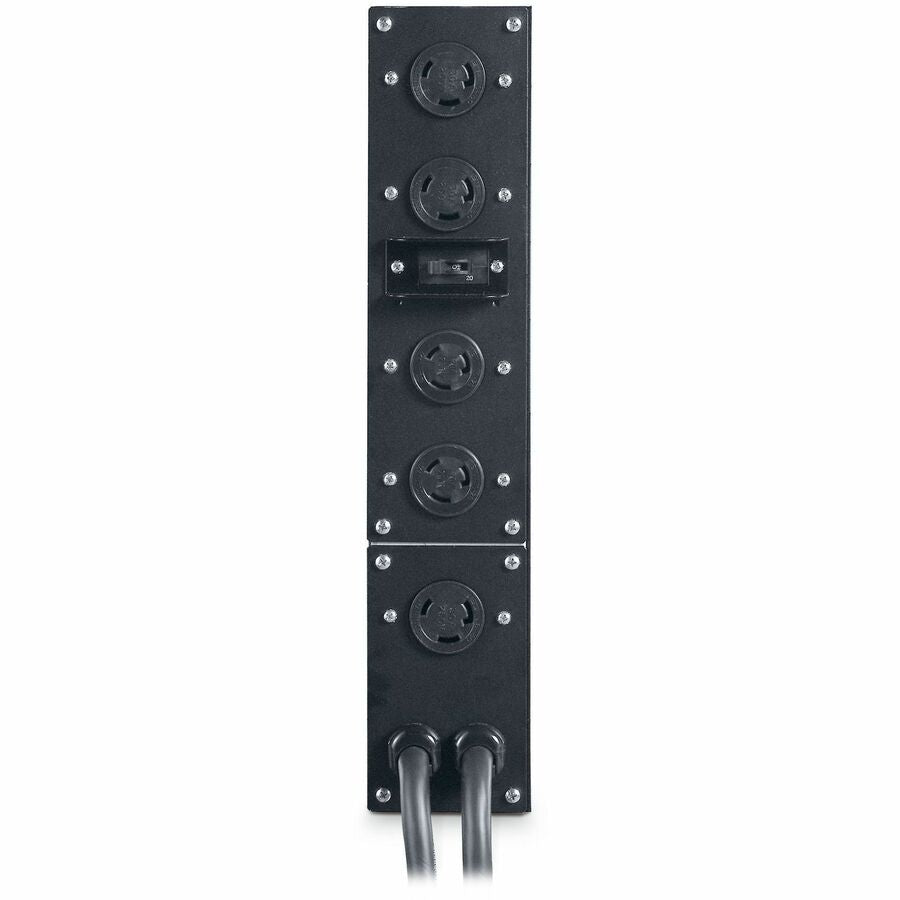

Plug/Connector Type: NEMA L6-30PReceptacles: 2 x NEMA L6-20R,2 x NEMA L6-30R
Protection Type: Overload
Power Description
Load Capacity (VA): 5 kWInput Voltage: 200 V AC,208 V AC
Output Voltage: 200 V AC,208 V AC
Current: 24 A
Physical Characteristics
Color Family: BlackProduct Color: Black
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.50" (89 mm)
Width: 17.01" (432 mm)
Depth: 25.98" (660 mm)
Weight (Approximate): 30.07 lb (13639.52 g)
Miscellaneous
Package Contents:Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
