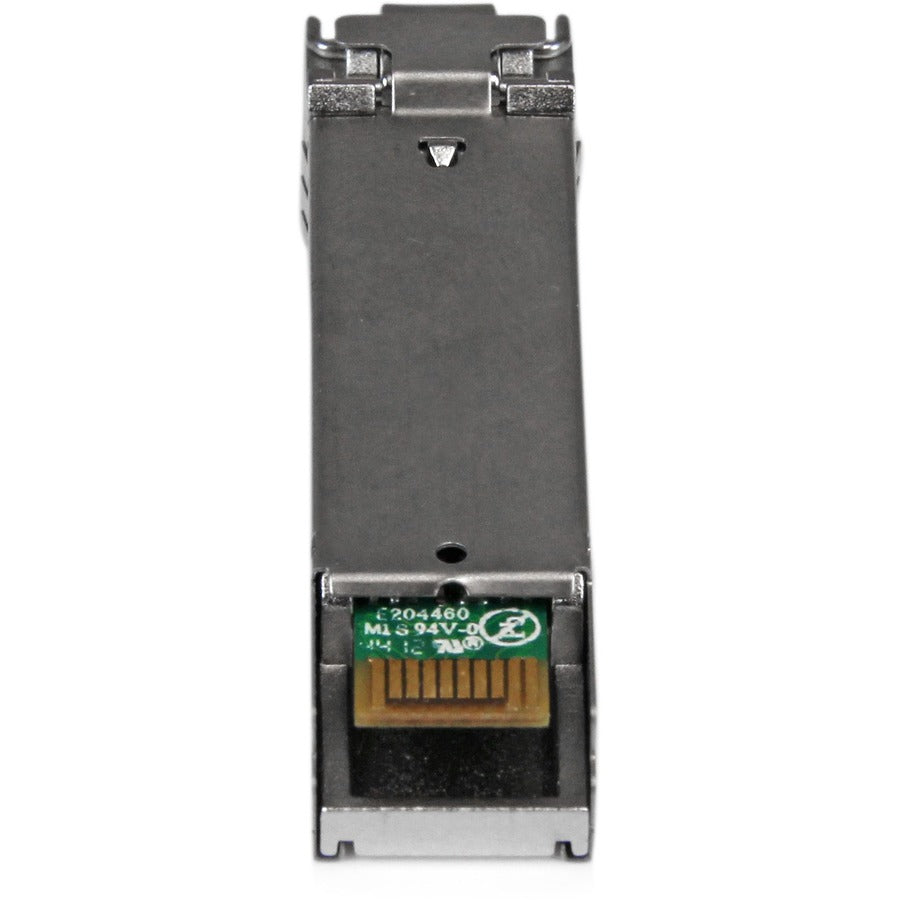

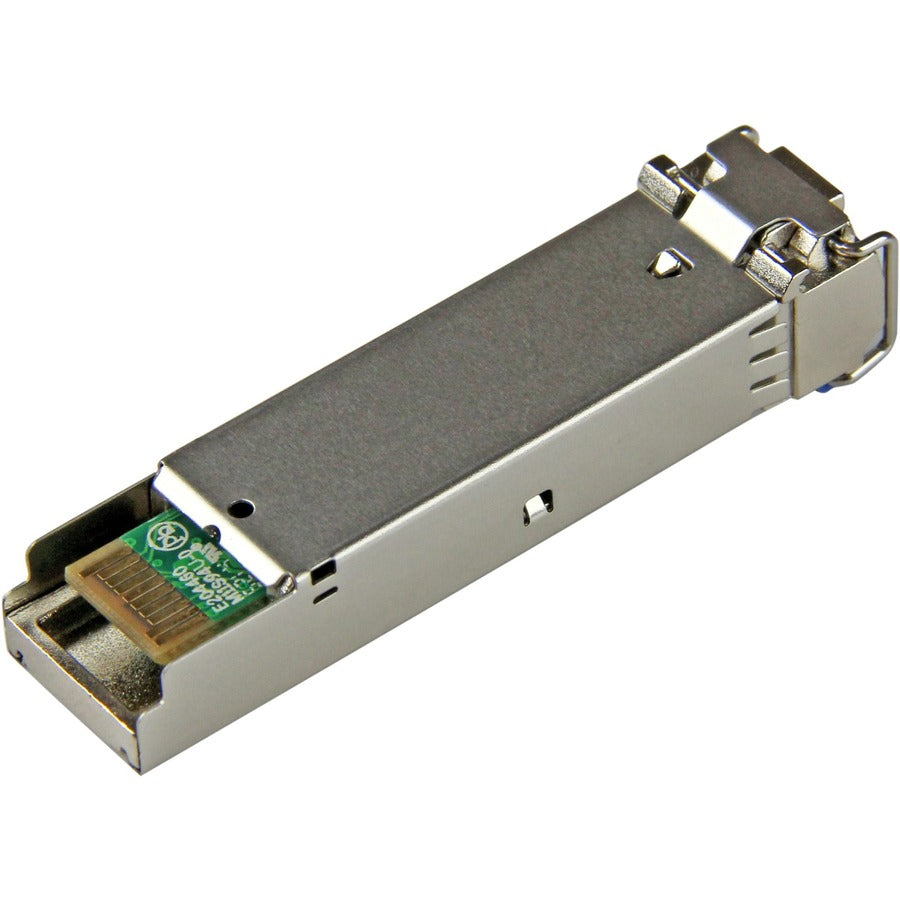

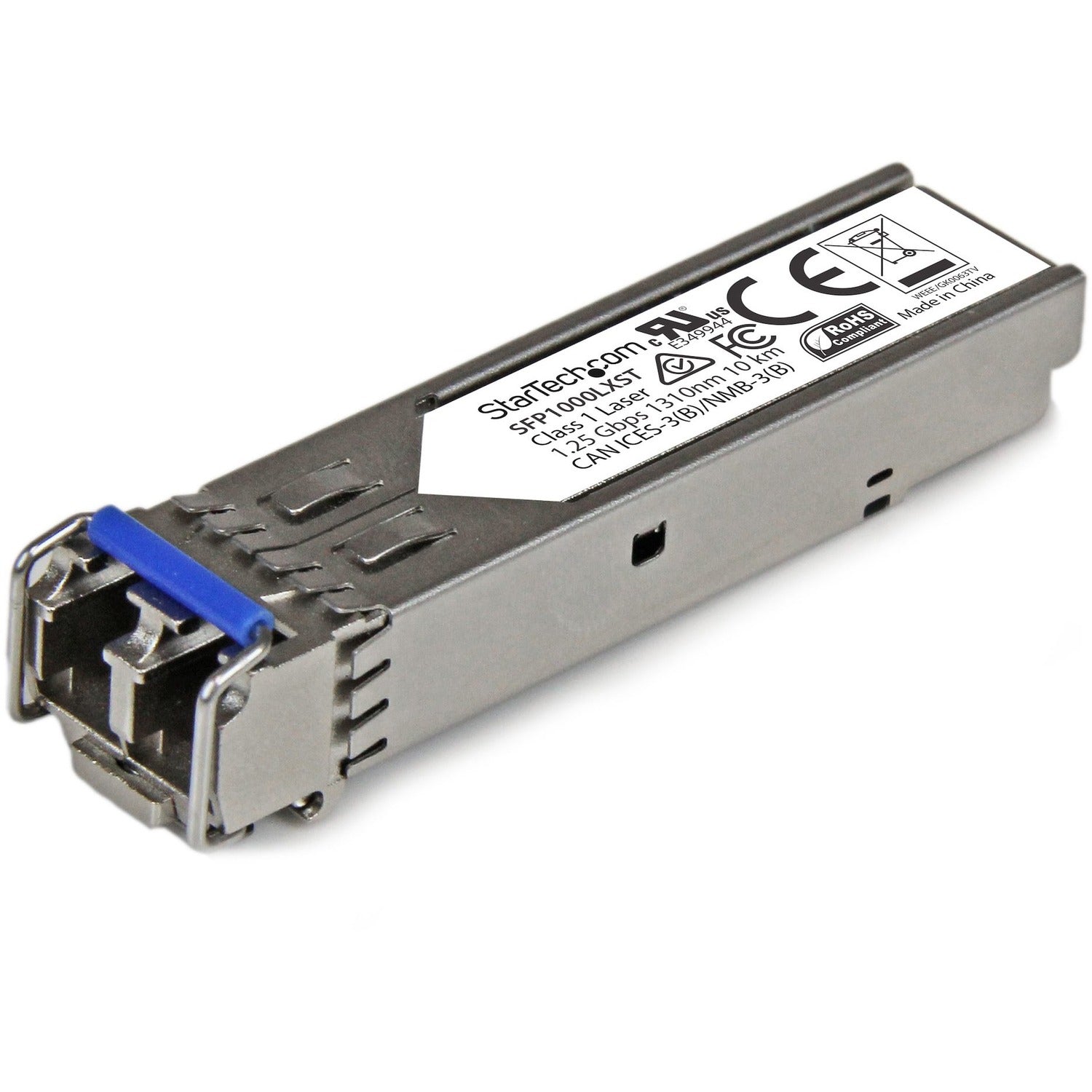

SFP1000LXST StarTech.com MSA Uncoded SFP Module - 1000BASE-LX - 1GE Gigabit Ethernet SFP 1GbE Single Mode Fiber (SMF) Optic Transceiver - 10km DDM

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: SFP1000LXST
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: SFP (mini-GBIC) Module
Marketing Information:

The SFP1000LXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber

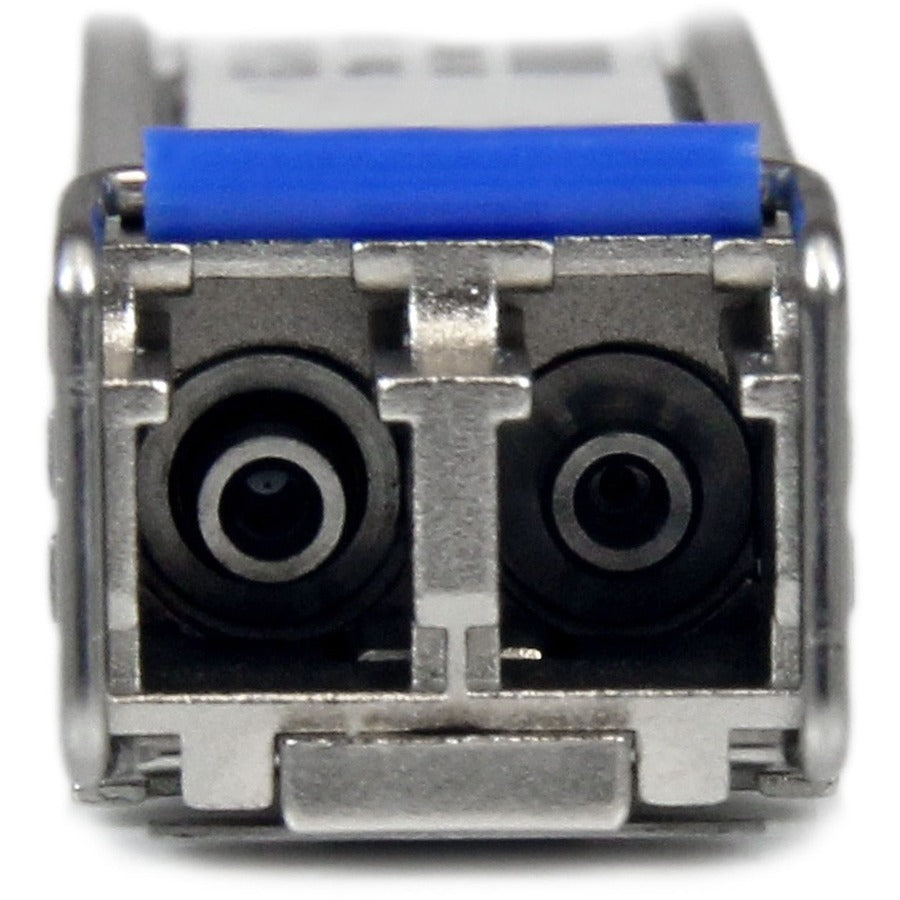

• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability
Product Type: SFP (mini-GBIC)
Packaged Quantity: 1 Each

Technical Information

Application/Usage: Optical Network,Data Networking

Interfaces/Ports

Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-LX Network

Media & Performance

Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-LX

Physical Characteristics

Form Factor: Hot-swappable
Height: 0.50" (12.70 mm)
Width: 0.60" (15.24 mm)
Depth: 2.30" (58.42 mm)
Weight (Approximate): 0.60 oz (17.01 g)

Miscellaneous

Compatibility: MSA Compliant
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty: Lifetime
