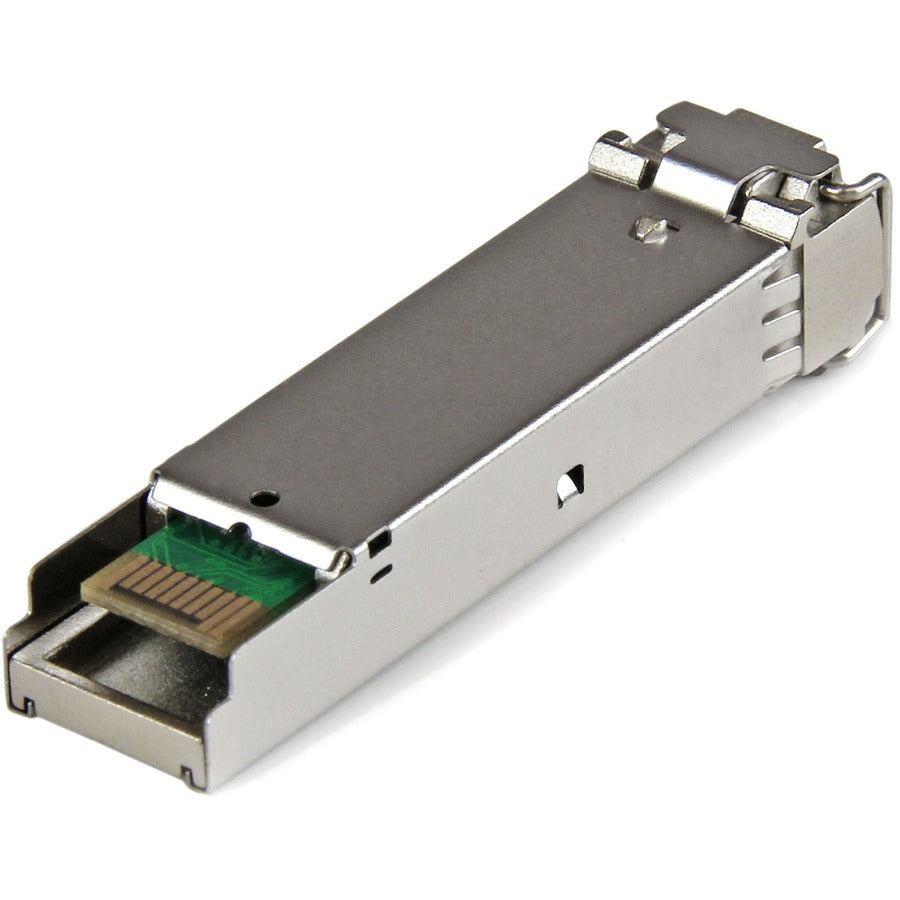

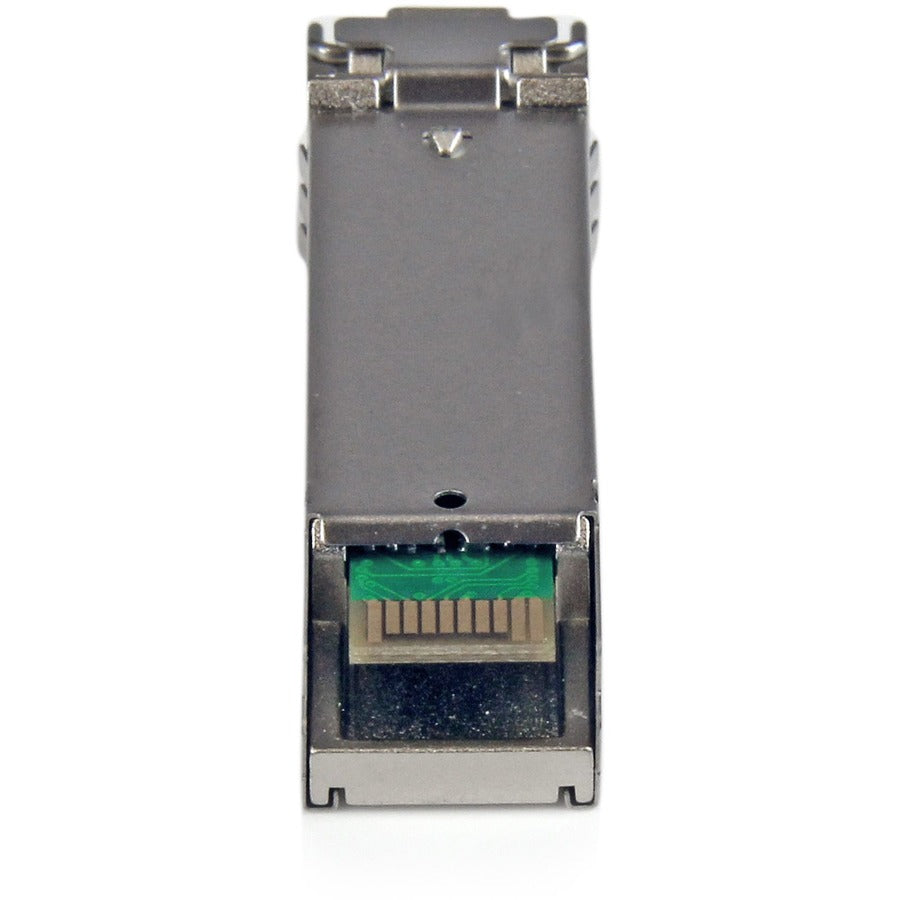

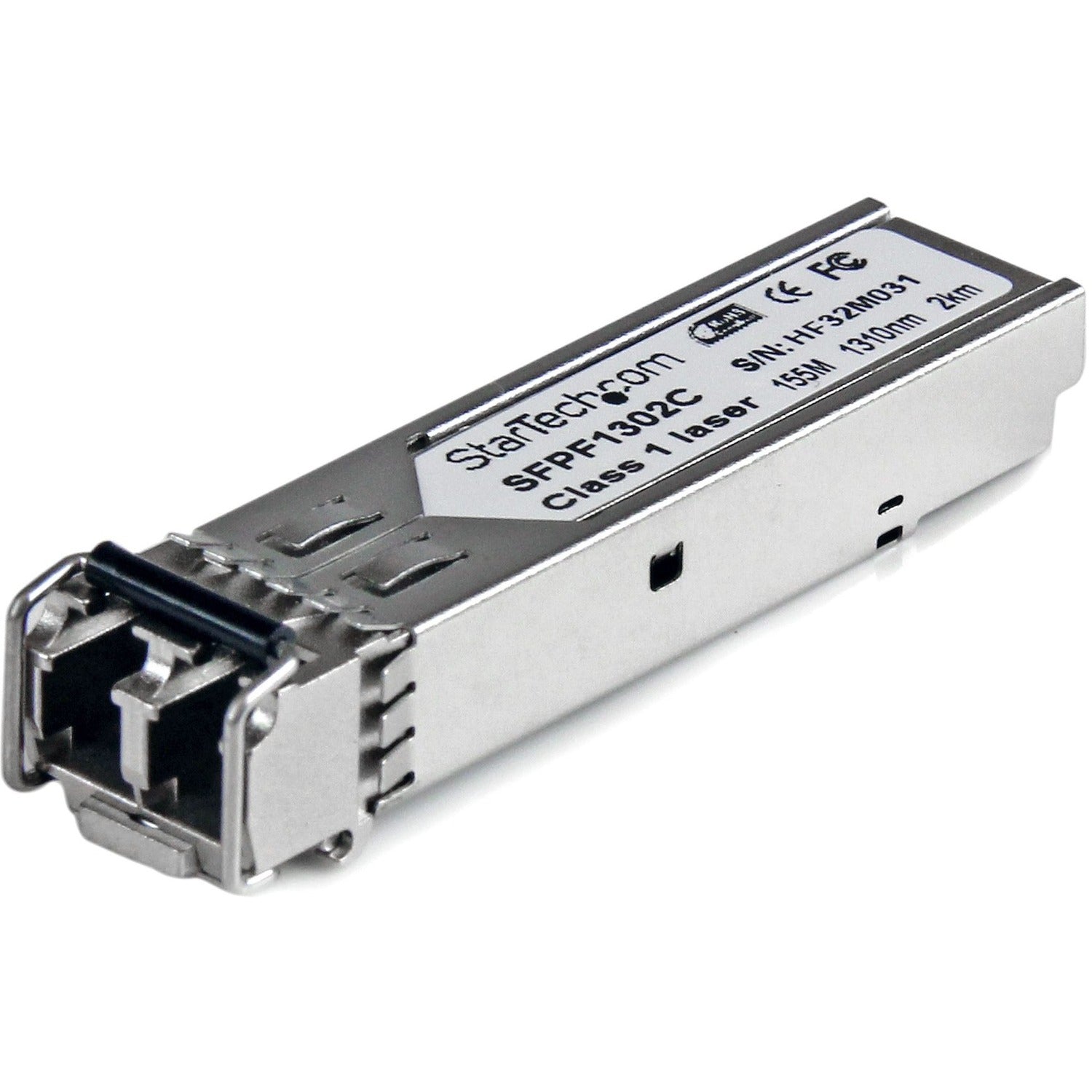

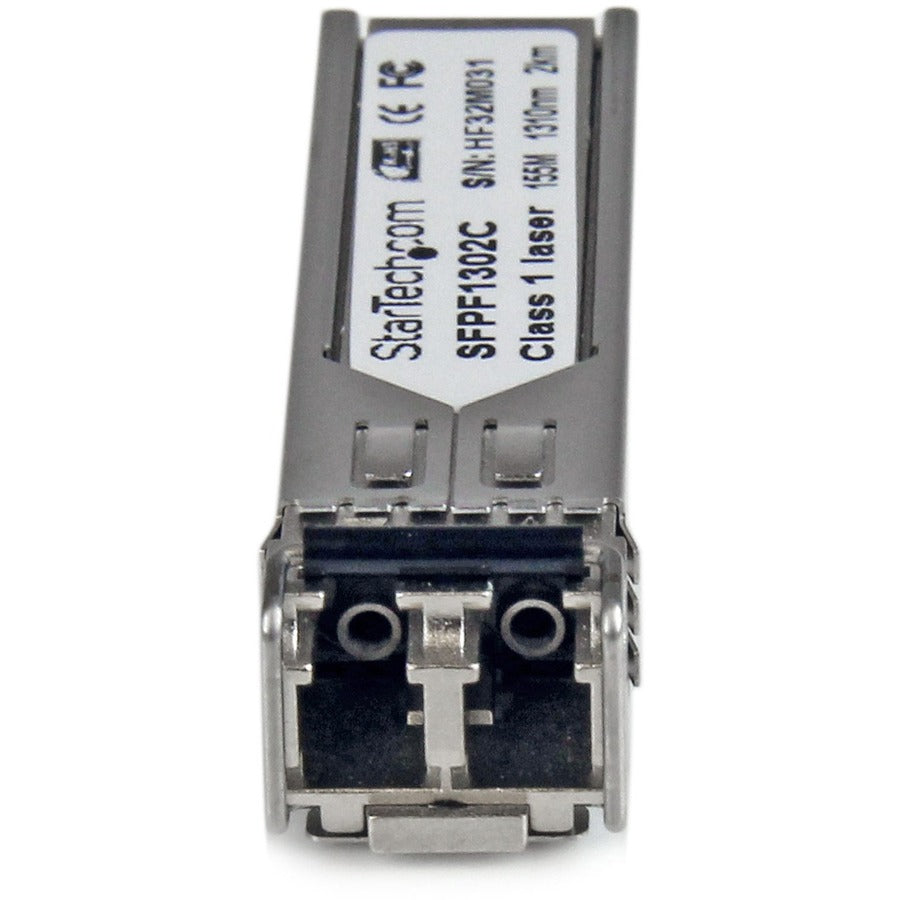

SFPF1302C StarTech.com Cisco GLC-FE-100FX Compatible SFP Module - 100BASE-FX - 100 Mbps 100Mbps Multimode Fiber MMF Optic Transceiver - 2km

StarTech.comSKU: SFPF1302C
No reviews
Price:
$109.99

Description

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: SFPF1302C
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 155 Mbps 1310nm Multi Mode LC SFP Fiber Optic Transceiver w/ DDM - 2km
Marketing Information: The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

  • Wavelength: 1310nm
  • Maximum Data Transfer Rate: 155 Mbps
  • Type: Multimode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 2 km (1.2 mi)
  • MTBF: 1,472,572 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual tech
Product Type: SFP (mini-GBIC)
Packaged Quantity: 1 Each

Technical Information

Application/Usage: Data Networking,Optical Network

Interfaces/Ports

Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 100Base-FX Network

Media & Performance

Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: Fast Ethernet
Network Technology: 100Base-FX
Maximum Data Transfer Rate: 155 Mbit/s

Physical Characteristics

Form Factor: Hot-pluggable,Hot-swappable
Height: 0.60" (15.24 mm)
Width: 0.40" (10.16 mm)
Depth: 2.60" (66.04 mm)
Weight (Approximate): 0.90 oz (25.51 g)

Miscellaneous

Compatibility:
  • MSA Compliant

Cisco Switches:

  • ASR920
  • IE2000
  • IE4000
  • IR1101


Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: Lifetime
