Description
General Information
Manufacturer: StarTech.comManufacturer Part Number: SFPSXMM
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

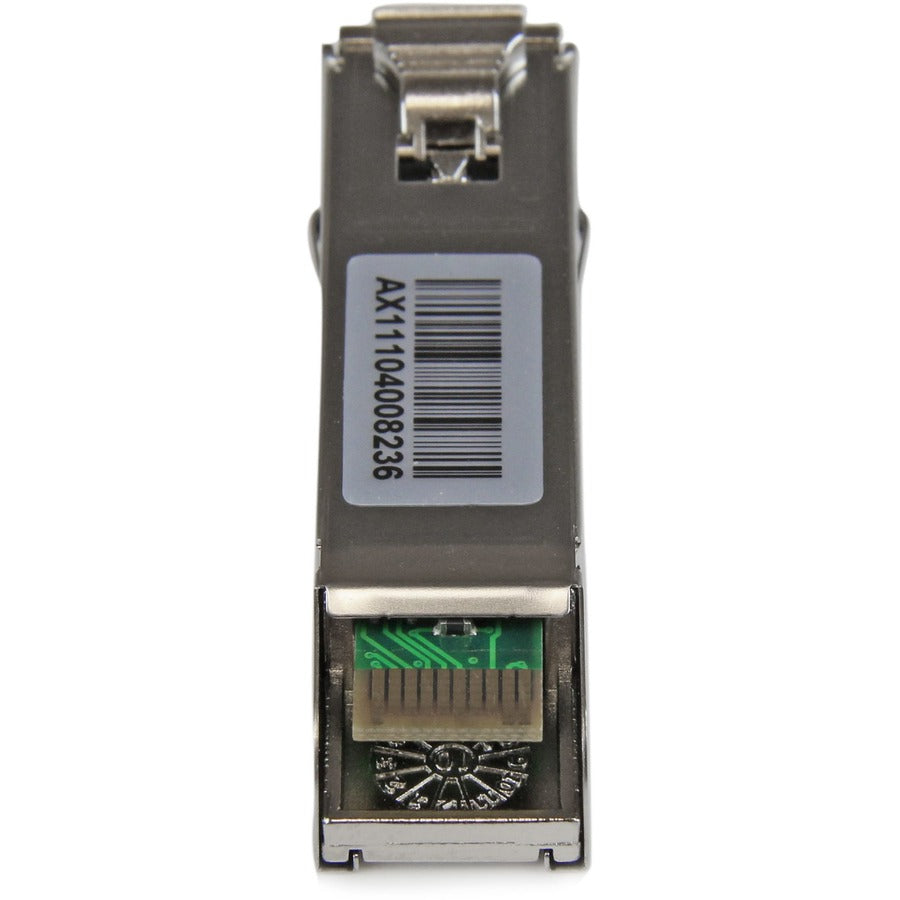

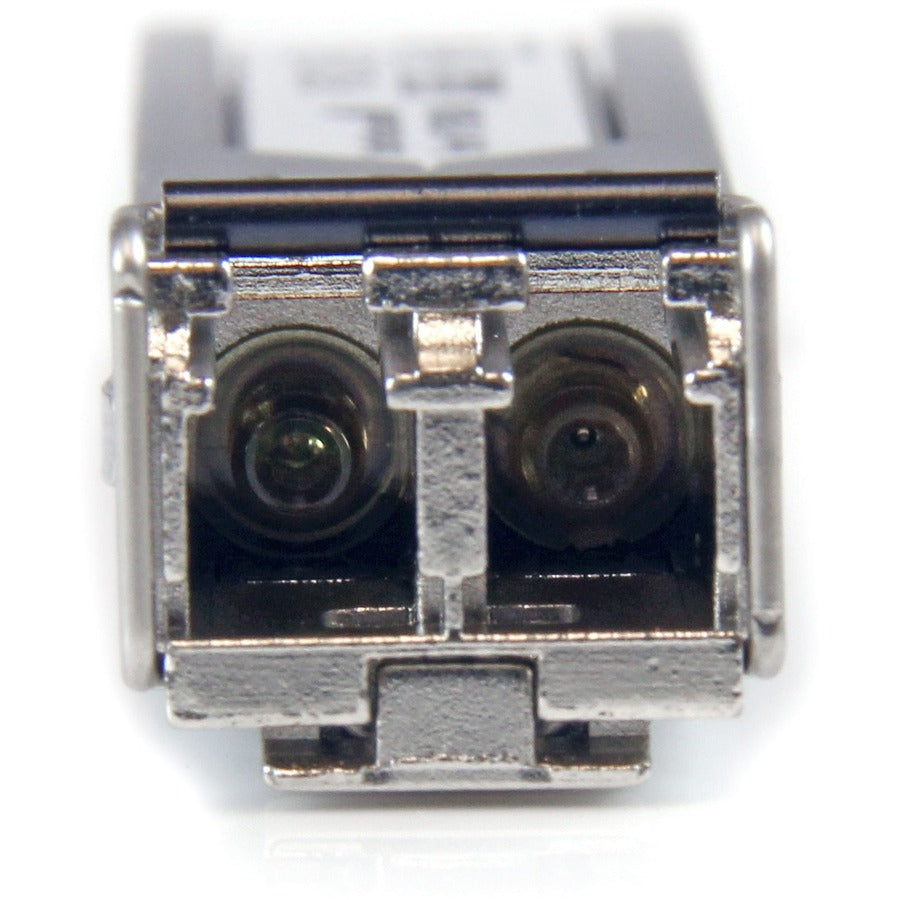

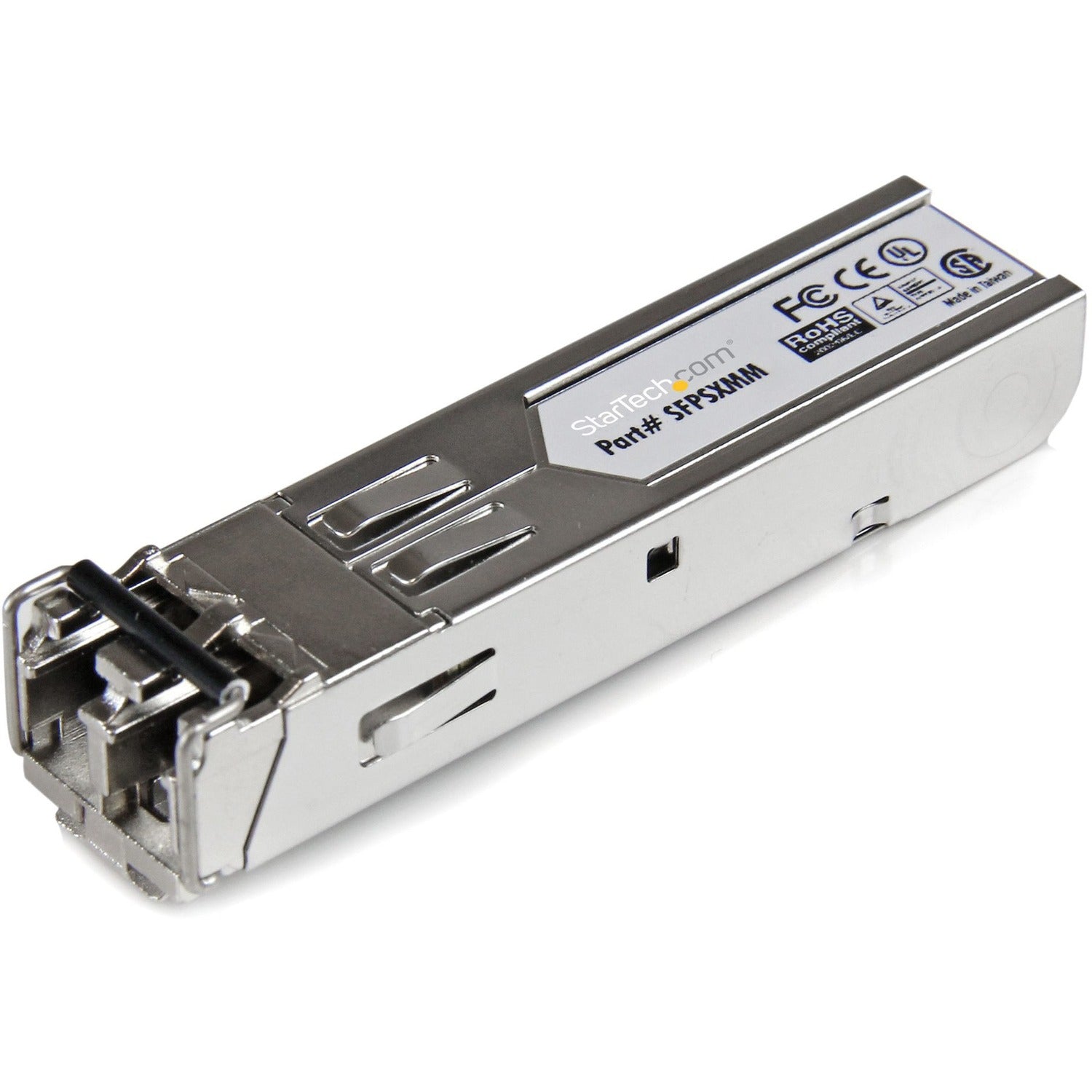

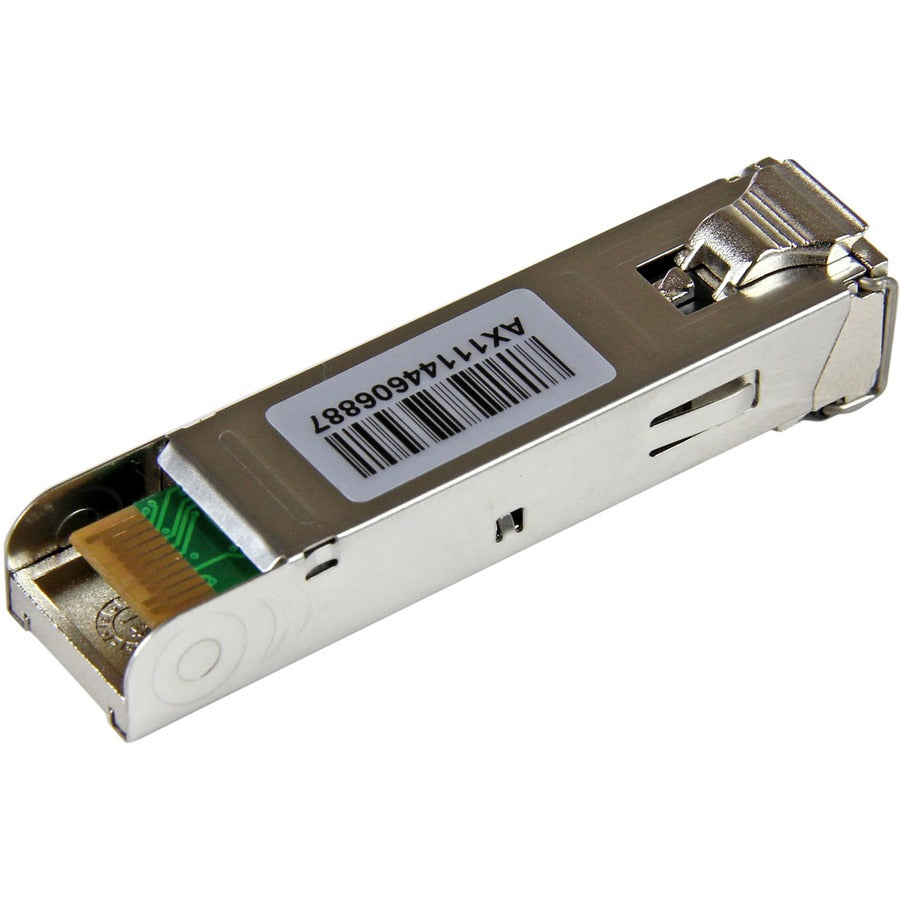

Product Name: MSA Compliant SFP Transceiver Module - 1000BASE-SX
Marketing Information:
The SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 78,286 hours
- Power Consumption: Less than 1 Watt
- DDM: No
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, p
Product Type: SFP (mini-GBIC)
Packaged Quantity: 1 Each
Technical Information
Application/Usage: Data Networking,Optical NetworkInterfaces/Ports
Total Number of Ports: 1Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX x Network
Media & Performance
Media Type Supported: Optical FiberFiber Mode Supported: Multi-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-SX
Physical Characteristics
Form Factor: Hot-swappableHeight: 0.40" (10.16 mm)
Width: 0.50" (12.70 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 0.60 oz (17.01 g)
Miscellaneous
Package Contents:- MSA Compliant SFP Transceiver Module - 1000BASE-SX
- 1 x Installation Guide
Compatibility:
MSA compliant
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Warranty
Limited Warranty: 2 Year
