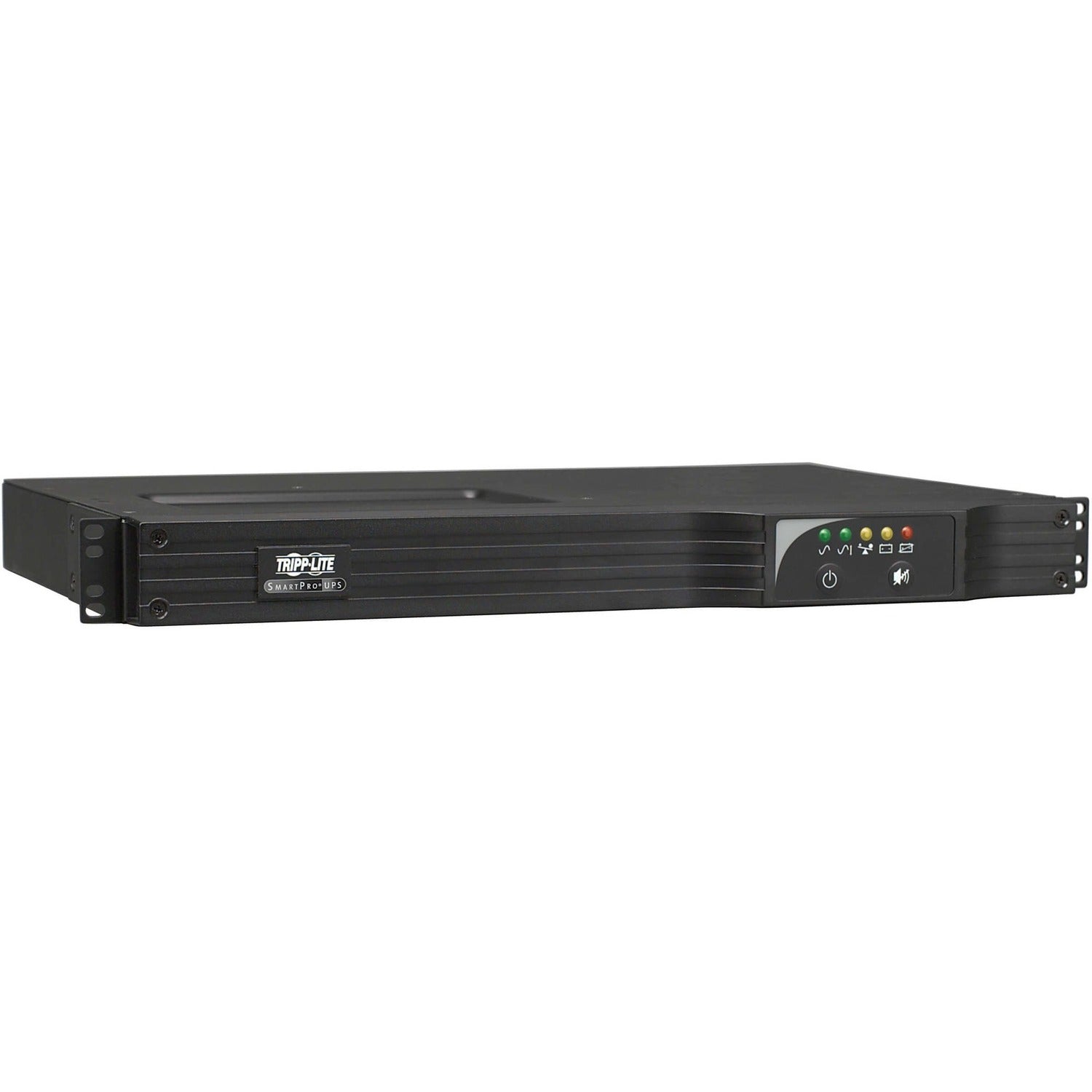

SM1000RM1UTAA Tripp Lite series SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SM1000RM1UTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SM1000RM1UTAA
Product Name: SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS
Marketing Information: Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload and low battery
• 6 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

Switchable Outlets

• 2 load banks, each with one outlet controllable remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performanc

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 10 ft (3.05 m)

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 800 W
Input Voltage: 120 V AC
Input Current: 9 A
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 450 J

Management

Alarm: Low Battery,Overload,Power Failure

Controls/Indicators

Status Indicators:

• Line power status
• Battery power status
• Overload status
• Voltage regulation status
• Battery low/replace status

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 1.70" (43.18 mm)
Width: 17.50" (444.50 mm)
Depth: 16.80" (426.72 mm)
Rack Height: 1U
Form Factor: Rack/Tower
Weight (Approximate): 32 lb (14514.96 g)

Miscellaneous

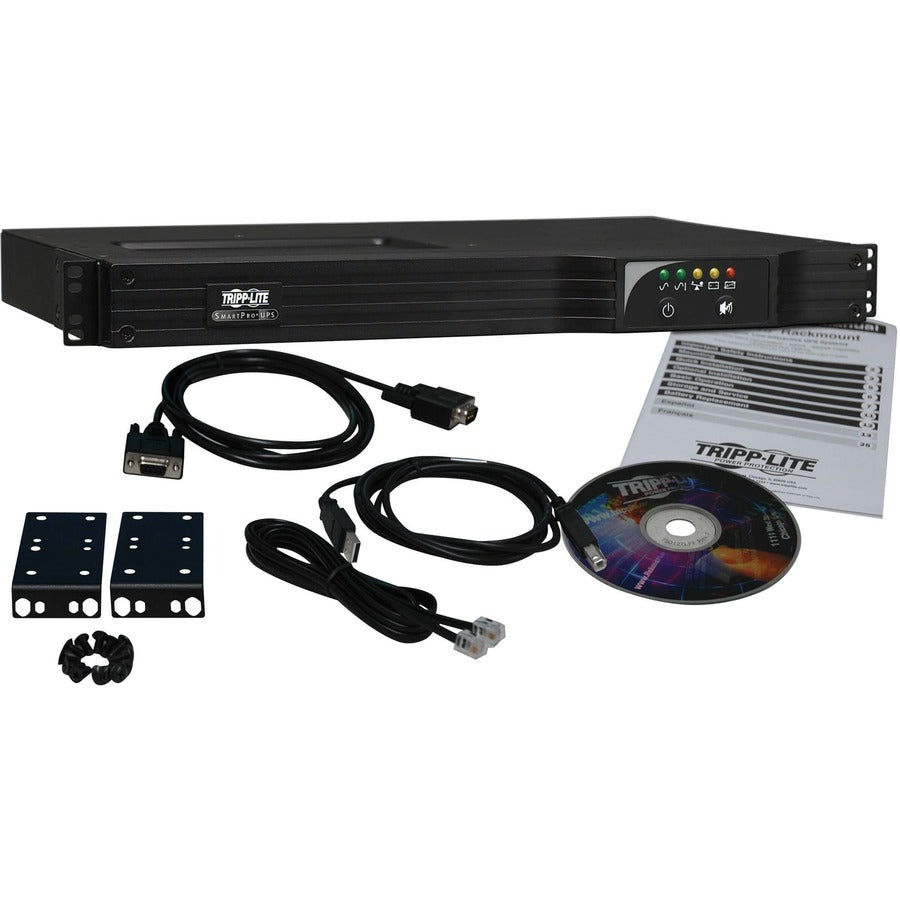

Package Contents:

• SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS
• Mounting hardware
• Cabling for USB & DB9 Monitoring and EPO Switching
• Instruction Manual

Software Included: PowerAlert Monitoring
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
