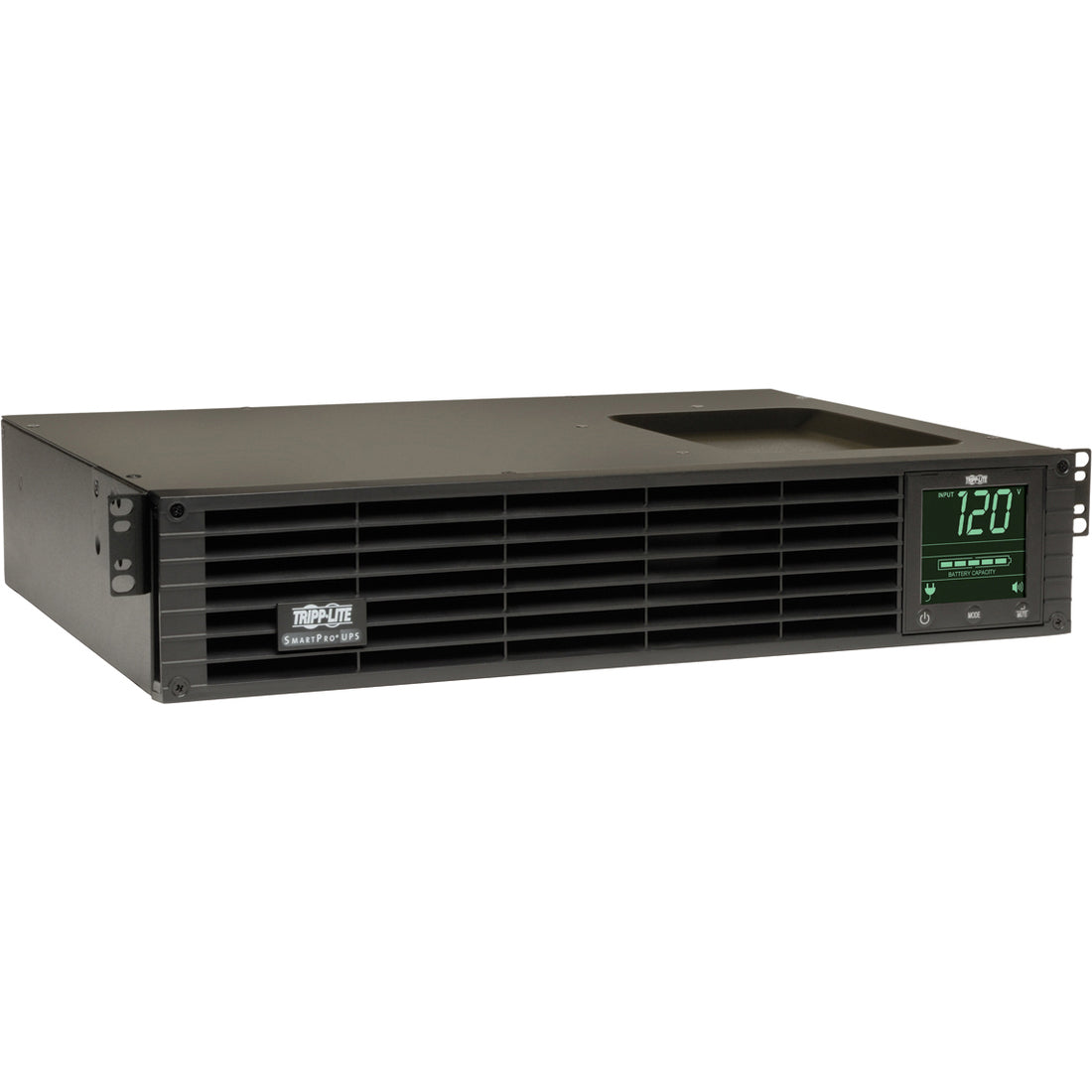

SM1000RM2UTAA Tripp Lite SM1000RM2UTAA 1000 VA Tower/Rack Line Interactive UPS TAA Compliant

General Information

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload, low battery and fault conditions
• 6 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 570-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 15 min. and full load up to 5.3 min.
• Internal batteries designed for hot-swap field replacement
• 95% line-power efficiency rating saves money in energy costs

Switchable Outlets

• 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

Product Type: Line-interactive UPS


Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R


Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 700 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC


Management

Network Management: SNMP Manageable


Interfaces/Ports

Serial Port: Yes
USB: Yes


Battery Information

Backup/Run Time (Full Load): 7 Minute
Backup/Run Time (Half Load): 17 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour


Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 13.50" (342.90 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 35 lb (15875.73 g)


Miscellaneous

Package Contents:
• SmartPro SM1000RM2UTAA 1000 VA Tower/Rack Mountable UPS
• Mounting Hardware for 4 Post Rackmount Installation
• USB Cable
• Serial Cable
• EPO Cable
• PowerAlert unattended shutdown and UPS/Power Monitoring Software
• Instructional Manual with Warranty Information

Software Included: PowerAlert Software
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)


Warranty

Limited Warranty: 2 Year
