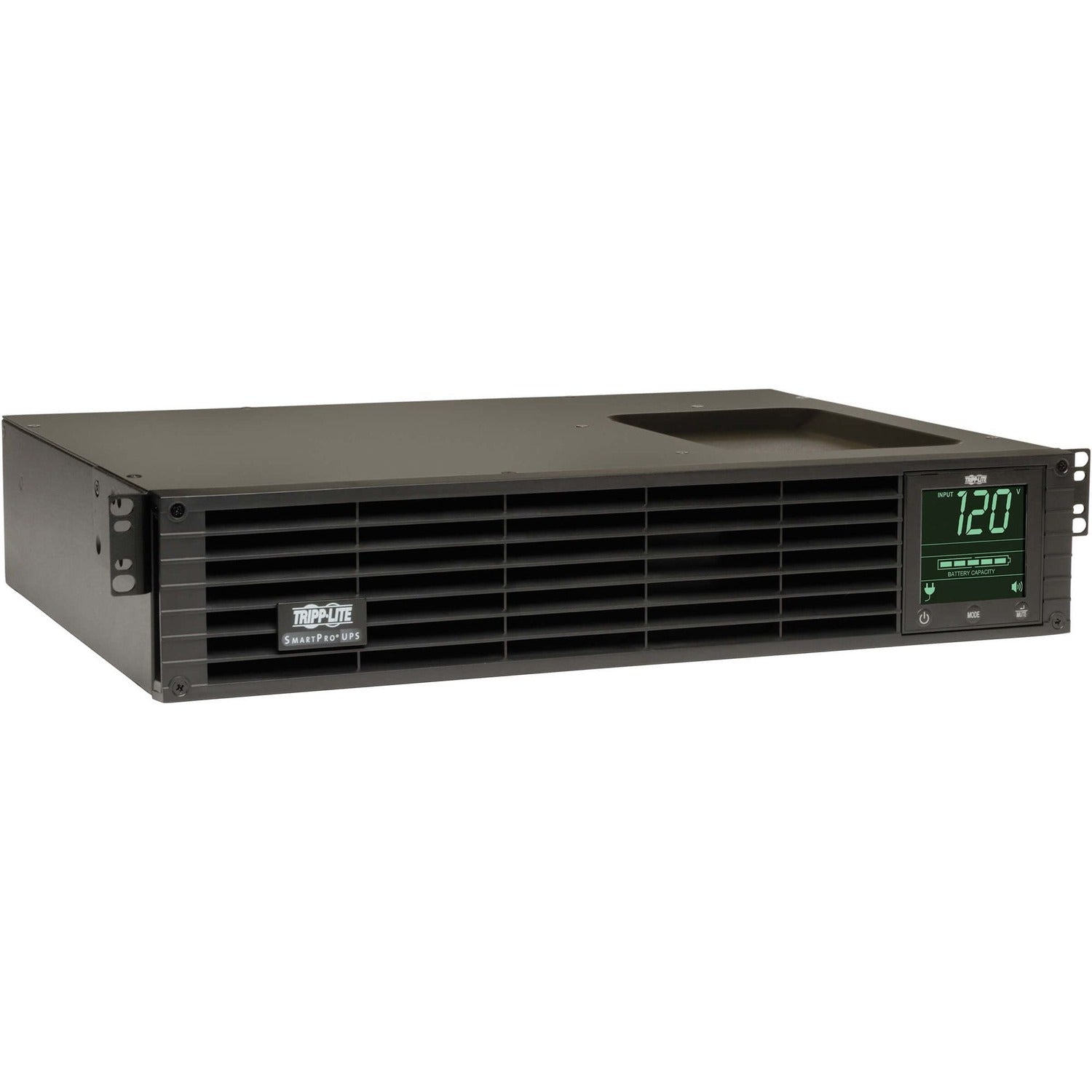

SM1500RMXL2UTAA Tripp Lite SM1500RMXL2UTAA 1500 VA Tower/Rack Line Interactive UPS TAA Compliant

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SM1500RMXL2UTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SM1500RMXL2UTAA
Product Name: SM1500RMXL2UTAA 1500 VA Tower/Rack Line Interactive UPS TAA Compliant
Marketing Information:

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload, low battery and more
• 8 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 570-joule surge suppression rating

Reliable Battery Backup with Expandable Runtime

• Supports half load up to 14 min. and full load up to 4.9 min.
• Internal batteries designed for hot-swap field replacement
• Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U
• 95% line-power efficiency rating saves money in energy costs

Switchable Outlets

• 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 110 V AC
Input Current: 10.10 A
Output Voltage: 120 V AC

Management

Network Management: SNMP Manageable

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 4.90 Minute
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 13.50" (342.90 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 43.50 lb (19731.27 g)

Miscellaneous

Package Contents:

• SmartPro SM1500RMXL2UTAA 1500 VA Tower/Rack Mountable UPS
• PowerAlert Software
• USB Cable
• Serial Cable
• Mounting Hardware for 4 Post Rackmount Installation
• Cable for Emergency Power Off Interface
• Instructional Manual with Warranty Information

Software Included: PowerAlert Software
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
