Manufacturer Part Number: SM2200RMXL2UTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SM2200RMXL2UTAA

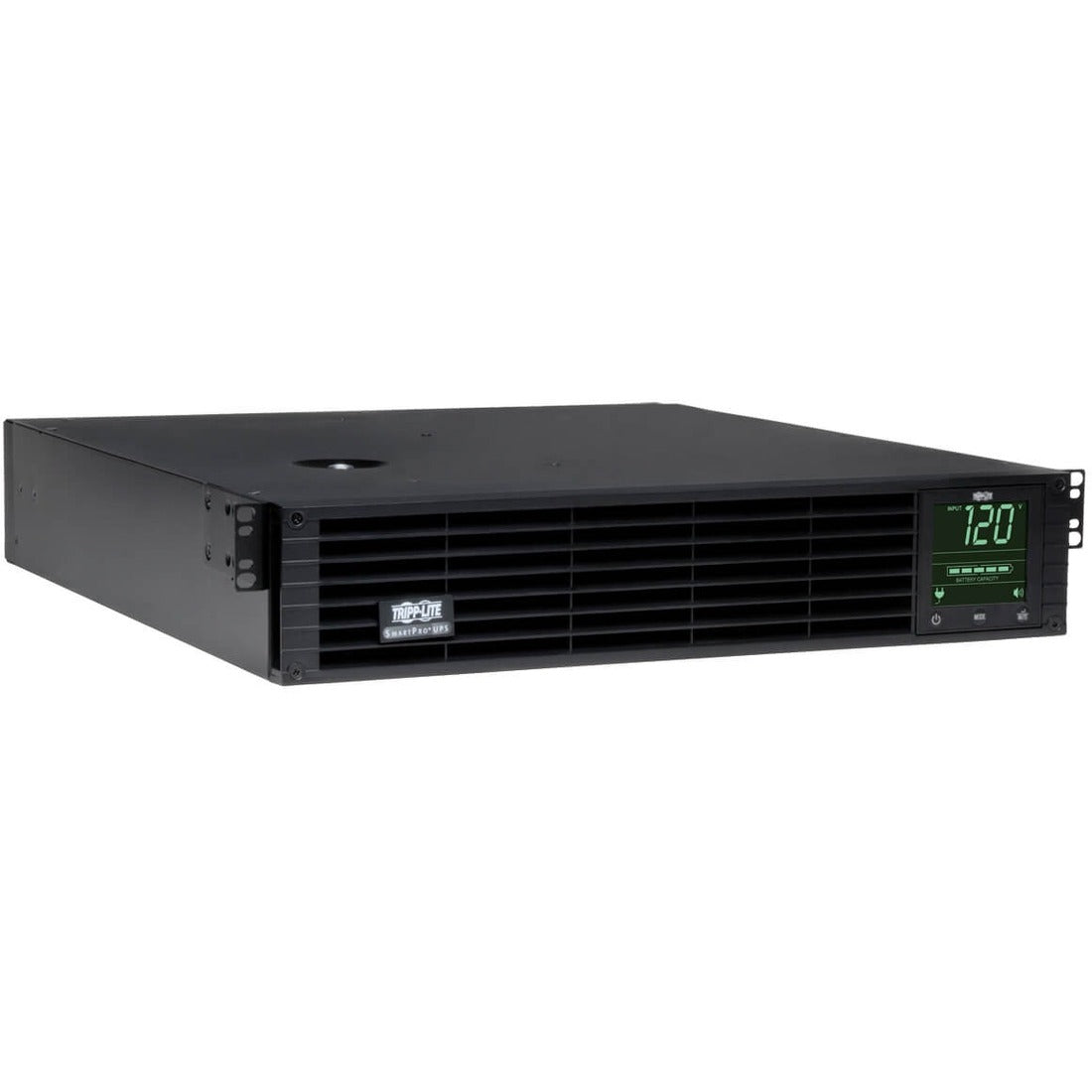

Product Name: SM2200RMXL2UTAA 2200 VA Tower/Rack Line Interactive UPS TAA Compliant
Marketing Information: The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficienc
Product Type: Line-interactive UPS
Receptacle Type: NEMA 5-15/20R,NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15/20R,4 x NEMA 5-15R
Load Capacity (Watt): 1.60 kW
Input Voltage: 110 V AC
Input Current: 16 A
Output Voltage: 120 V AC,110 V AC
USB: Yes
Backup/Run Time (Half Load): 16 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Width: 17.50" (444.50 mm)
Depth: 19" (482.60 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 64 lb (29029.91 g)
Software Included: PowerAlert Software
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SM2200RMXL2UTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SM2200RMXL2UTAA
Product Name: SM2200RMXL2UTAA 2200 VA Tower/Rack Line Interactive UPS TAA Compliant
Marketing Information: The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficienc
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: NEMA 5-20PReceptacle Type: NEMA 5-15/20R,NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15/20R,4 x NEMA 5-15R
Power Description
Load Capacity (VA): 2.20 kVALoad Capacity (Watt): 1.60 kW
Input Voltage: 110 V AC
Input Current: 16 A
Output Voltage: 120 V AC,110 V AC
Management
Network Management: SNMP ManageableInterfaces/Ports
Serial Port: YesUSB: Yes
Battery Information
Backup/Run Time (Full Load): 6 MinuteBackup/Run Time (Half Load): 16 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Physical Characteristics
Height: 3.50" (88.90 mm)Width: 17.50" (444.50 mm)
Depth: 19" (482.60 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 64 lb (29029.91 g)
Miscellaneous
Package Contents:- SmartPro SM2200RMXL2UTAA 2200 VA Tower/Rack Mountable UPS
- PowerAlert Software CD-ROM
- USB Cable
- Serial Cable
- EPO Cable
- Owner's Manual with Warranty Information
- Adjustable Mounting Rail Kit
Software Included: PowerAlert Software
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
