SMART1000LCDTNC Tripp Lite series SMART1000LCDTNC 1000VA Compact tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1000LCDTNC
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: SMART1000LCDTNC
Product Name: SMART1000LCDTNC 1000VA Compact tower UPS
Marketing Information:

1kVA/600W/120V Battery Backup for Network and Retail Point-of-Sale Applications

The SMART1000LCDTNC Line-Interactive cloud-connected UPS system regulates incoming voltage and provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and Line noise. Its compact tower form factor is suitable for desktop, floor placement, under workstations and other locations where a taller "Rack/Tower" unit may not fit. It's recommended for Home/office, Point-of-sale workstations, digital signage equipment, and gaming equipment.

Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer

Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UP
Product Type: Line-interactive UPS

Technical Information

AVR: Yes

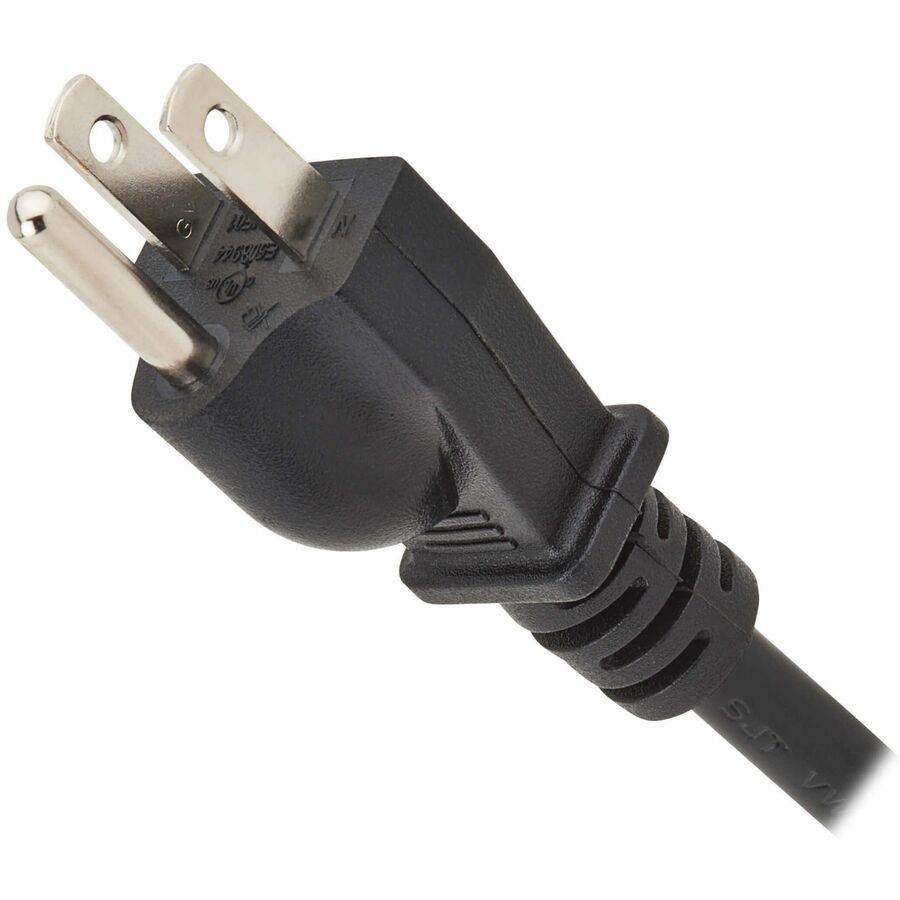

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

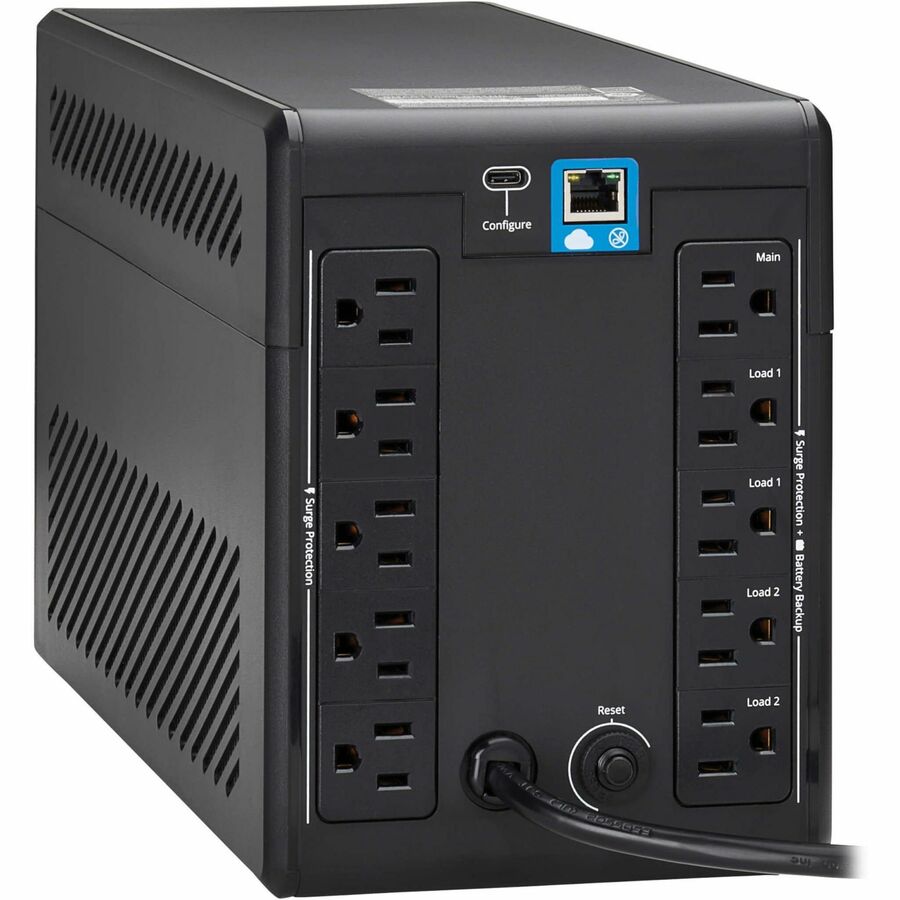

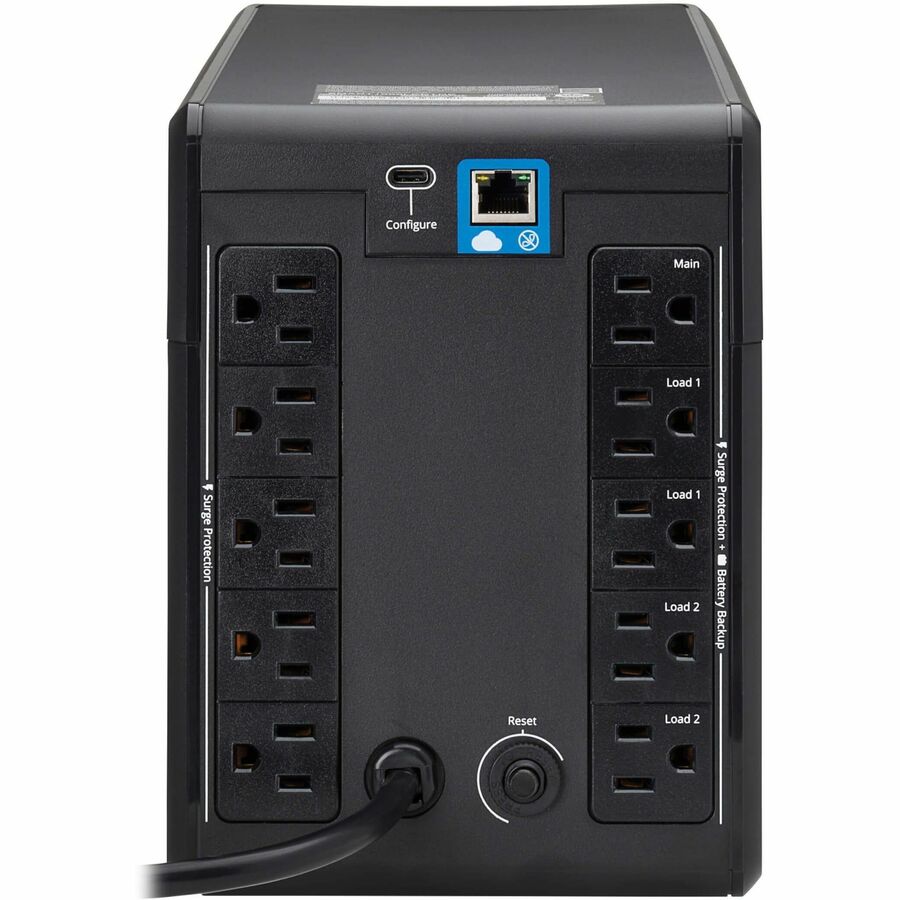

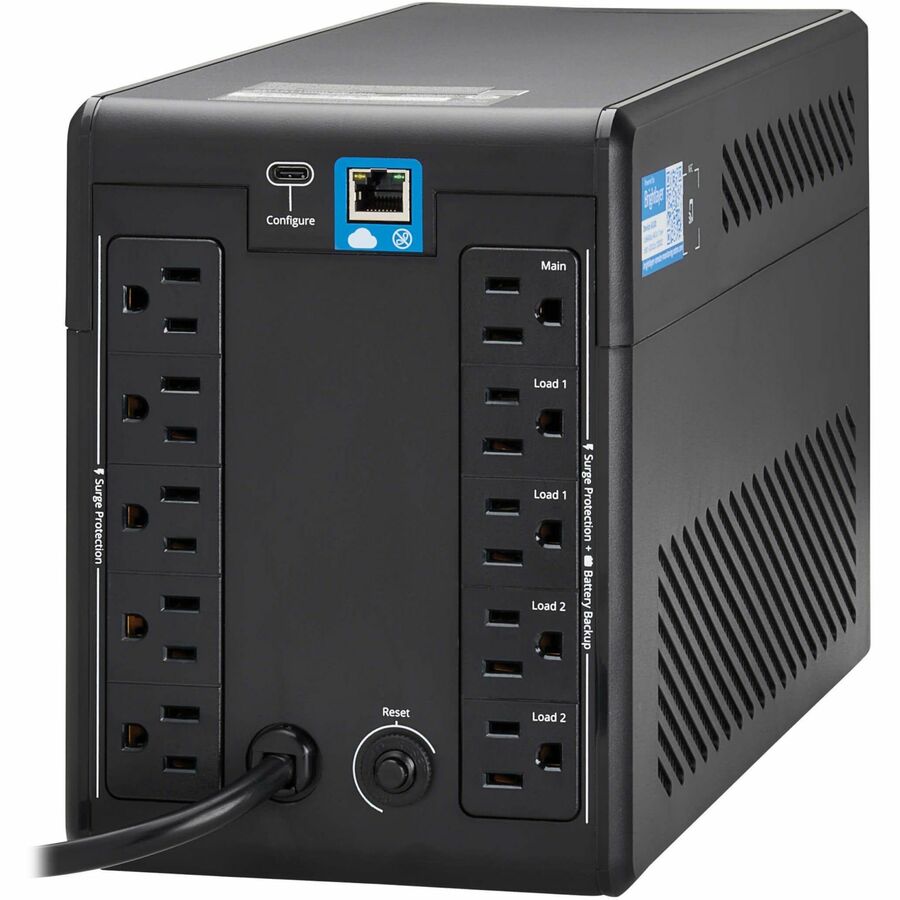

Receptacle Detail: 10 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Number of Surge-only Outlets: 5
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS
Application/Usage: Network,Retail,POS,Home,Office,Workstation,Digital Signage,Equipment,Computer,Monitor,Security,Camera,Desk Lamp,Speaker,Desktop,Audio/Video Equipment,Hospital
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function,Auto Restart,Self Test

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Input Voltage Range: 92 V AC - 145 V AC
Input Current: 10 A
Output Voltage: 120 V AC
Input Frequency: 50 Hz,60 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 380 J
Circuit Breaker: Yes
Output Power Factor: 0.6

Display & Graphics

Display: LCD

Management

Alarm: Low Battery,Fault

Controls/Indicators

Status Indicators:

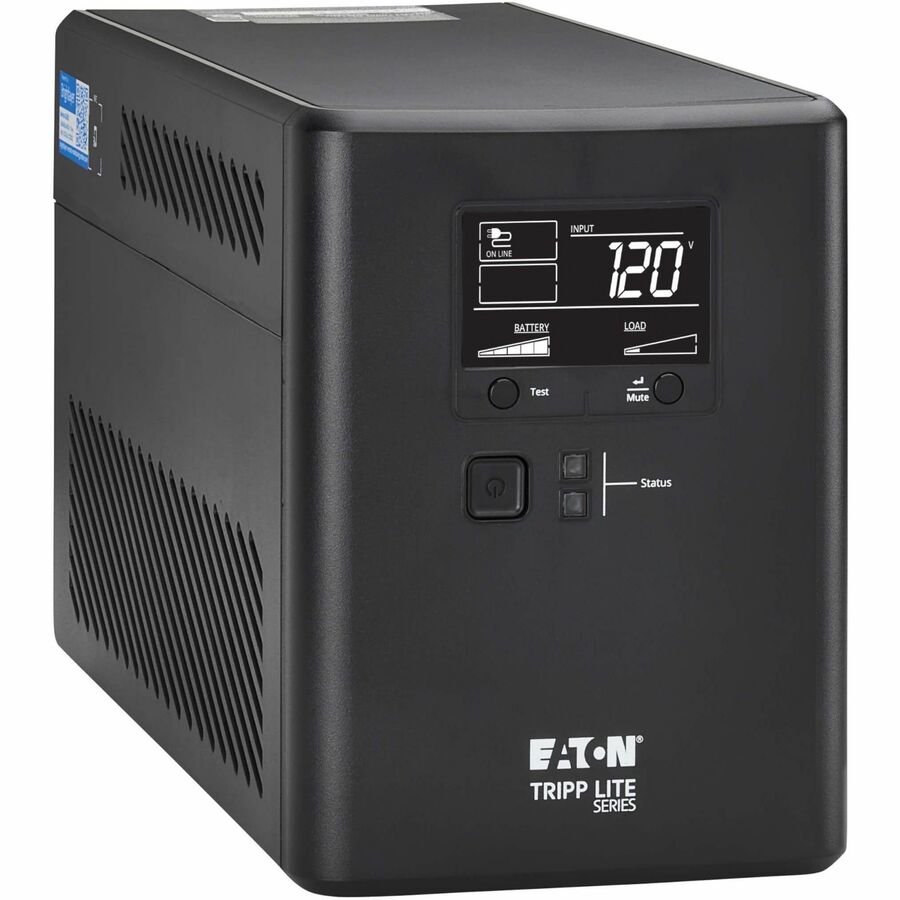

LCD Display:

• Input Voltage
• Output Voltage
• Frequency (Hz)
• AVR Boost / Cut Status
• Output Load in Watts
• Output Load Percentage
• Battery Voltage
• Estimated Runtime

LEDs Indictors:

• AC Power
• Battery Fully Charged
• Running on AC power
• Battery Charging
• Fault

Interfaces/Ports

USB: Yes
Network (RJ-45): Yes

Battery Information

DC System Voltage: 24 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 14.30 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 31.01 BTU/h

Physical Characteristics

Height: 7.87" (200 mm)
Width: 5.75" (146 mm)
Depth: 14.57" (370 mm)
Rack Height: 0U

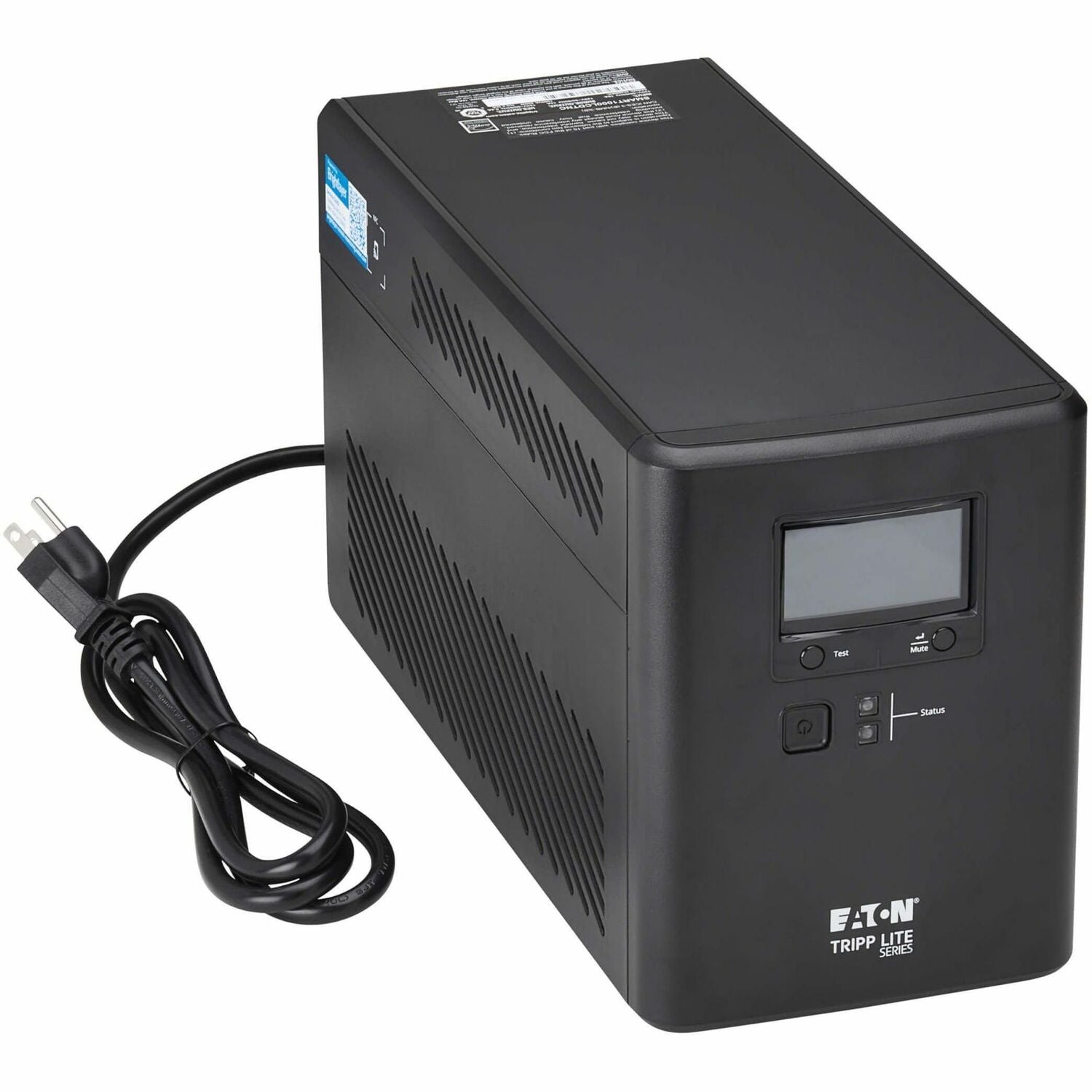

Form Factor: Compact Tower
Weight (Approximate): 22.92 lb (10396.34 g)

Miscellaneous

Package Contents:

• SMART1000LCDTNC 1000VA Compact tower UPS
• Quick Start Guide

Energy Star: Yes
Country of Origin: Vietnam
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
