SMART1000PSGLCD Tripp Lite series SMART1000PSGLCD 1000VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1000PSGLCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: SMART1000PSGLCD

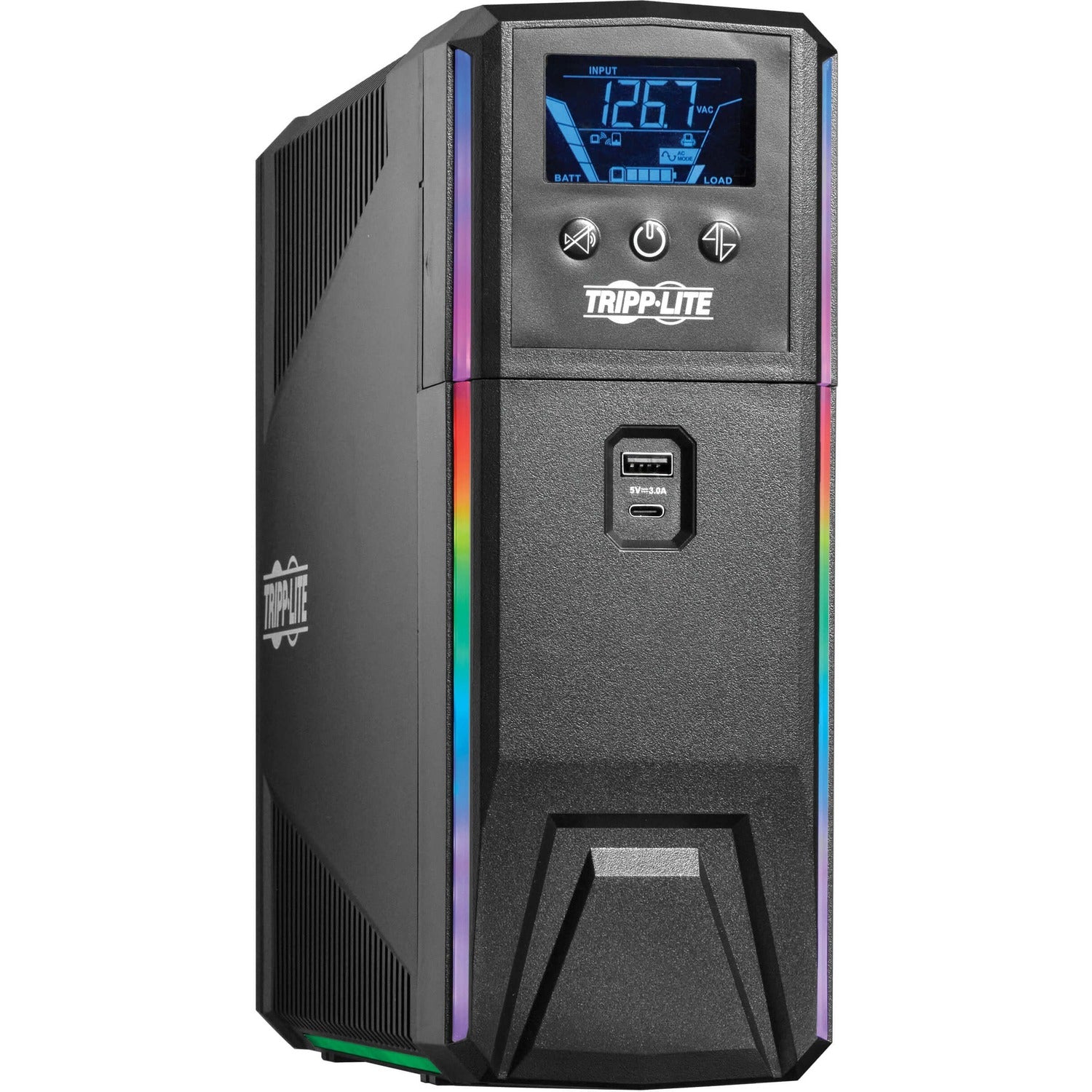

Product Name: SMART1000PSGLCD 1000VA Tower UPS
Marketing Information:

Not for sale in California until further notice.

Purpose-Built Gaming UPS Protects Your Equipment and Provides Pure Sine Wave Output

This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1000PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater.

Reliable Battery Backup Keeps You Playing Through Power Outages

The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 250W gaming system connected, the SMART1000PSGLCD provides 9 minutes of i
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Surge-only Outlets: 4
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
Application/Usage: Gaming Console,Router,Modem,Network Equipment,Computer Room,Home Theater,Gaming PC,Desk Lamp

Power Description

Load Capacity (VA): 1000 kVA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 316 J

Display & Graphics

Display: LCD

Management

Alarm: Battery Mode Full Charge,Battery Mode Low Charge,Replace Battery,Fault

Controls/Indicators

Status Indicators:

STATUS INFORMATION:

• Input Voltage
• Input Frequency
• Battery Voltage
• Battery Capacity
• Estimated Runtime
• Output Voltage
• Output Frequency
• Output Watts
• Output Load %
• Master Outlet Power Consumption (Watts)

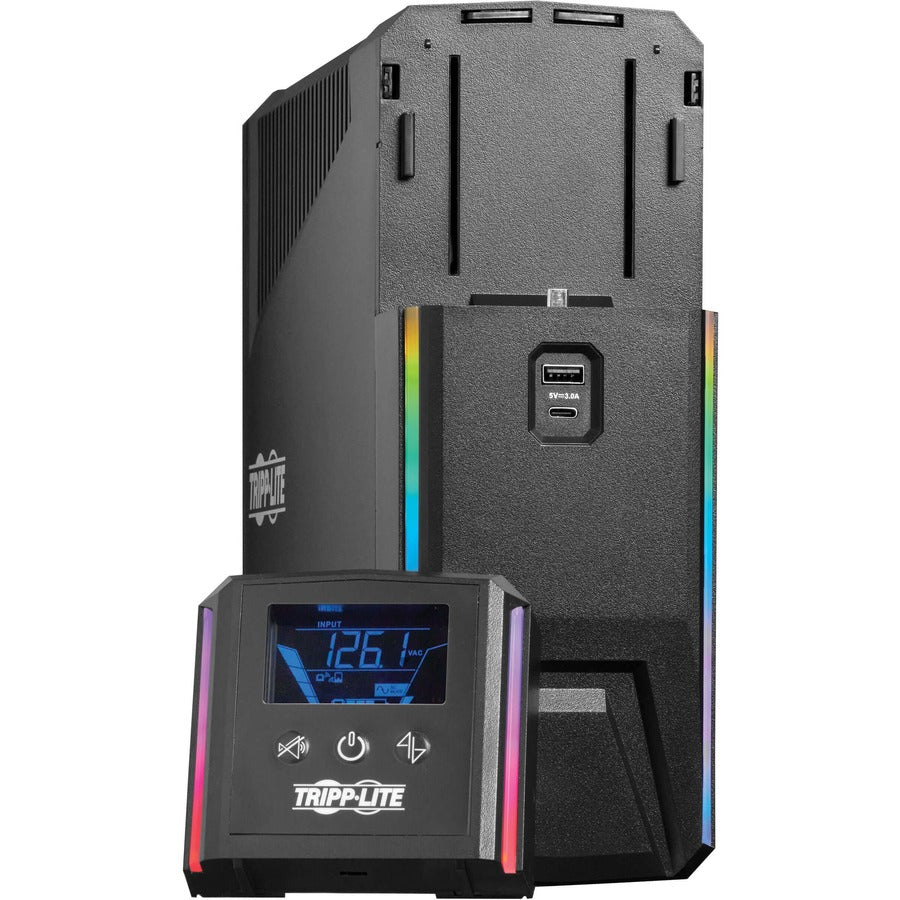

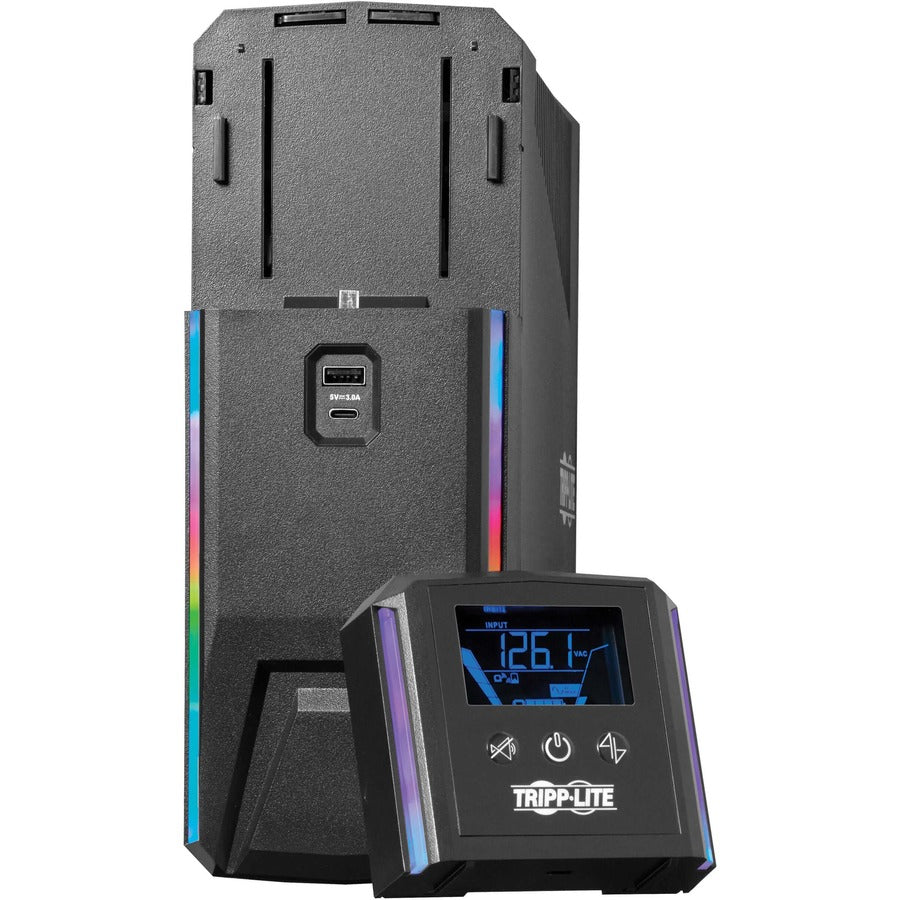

• Detachable LCD Module Battery Voltage
• Firmware Revision

CONFIGURATION OPTIONS:

• Eco-mode Off
• Eco-mode On
• Alarm Disable
• LED Lighting Configurations

ERROR MESSAGES:

• Replace Battery
• Overload
• Critical Fault

Interfaces/Ports

USB: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 24 V DC
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 7 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 7 Hour

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 98 BTU/h

Physical Characteristics

Product Color: Black
Height: 11.02" (280 mm)
Width: 3.90" (99 mm)
Depth: 12.13" (308 mm)
Form Factor: Tower
Weight (Approximate): 19.80 lb (8980 g)

Miscellaneous

Package Contents:

• SMART1000PSGLCD 1000VA Tower UPS
• USB Cable
• Owner's Manual

Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
