SMART1000RM1U Tripp Lite series SmartPro SMART1000RM1U 1000VA Rack-mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1000RM1U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART1000RM1U

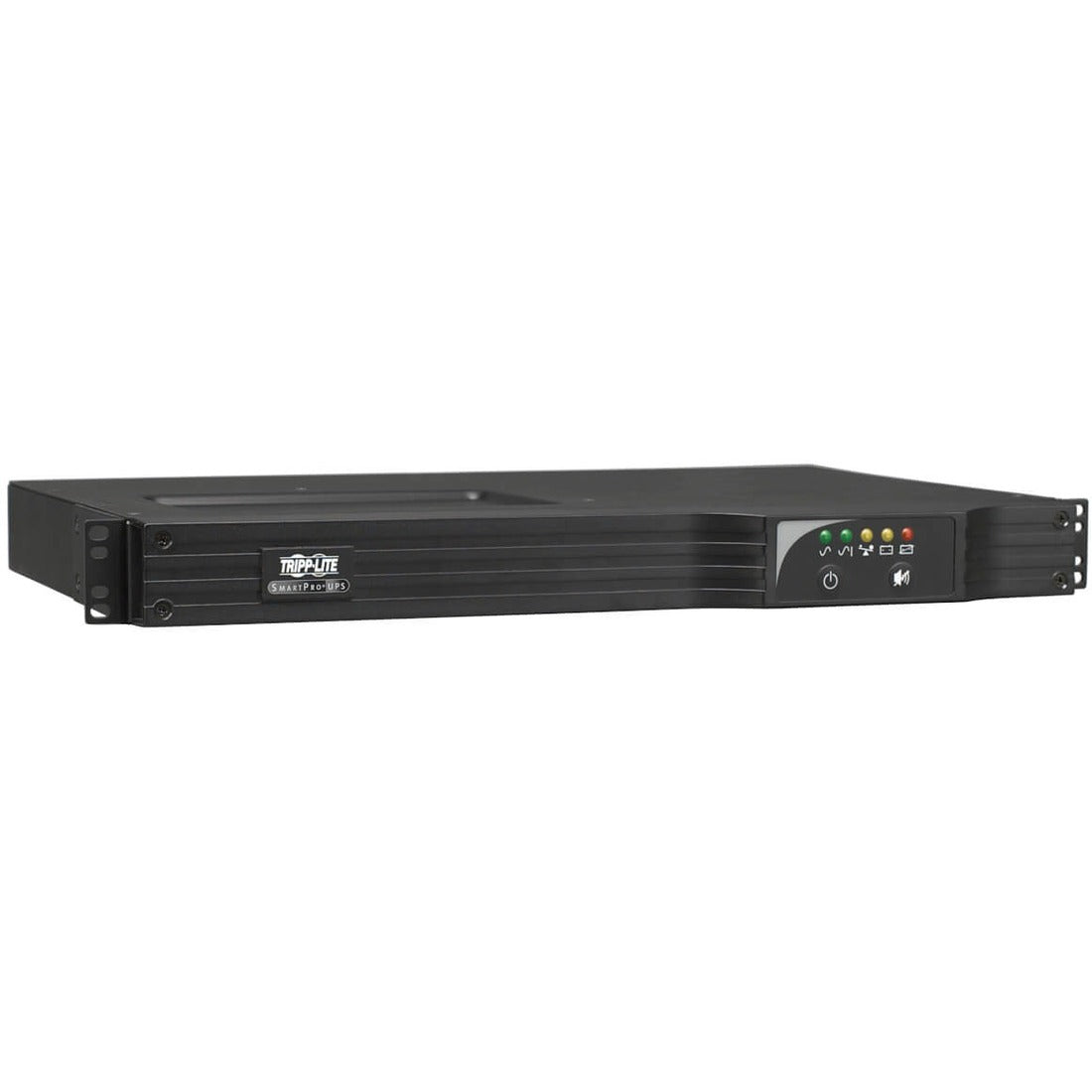

Product Name: SmartPro SMART1000RM1U 1000VA Rack-mountable UPS
Marketing Information: Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware

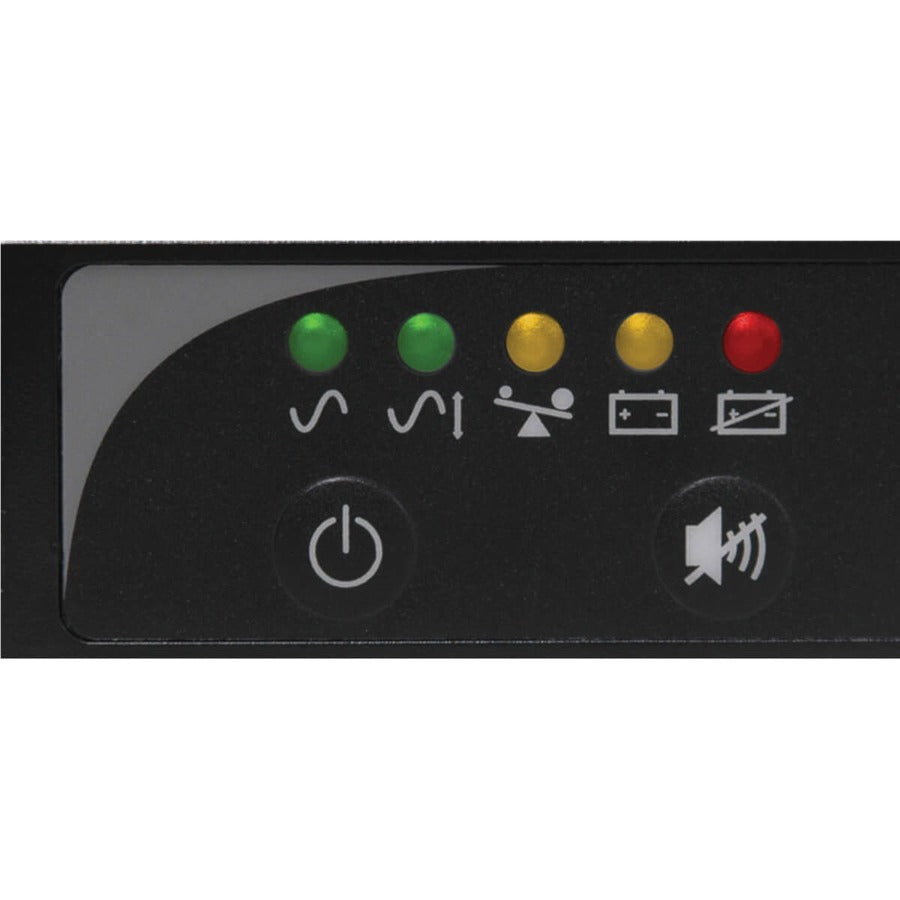

• Audible alarm signals loss of utility power, overload and low battery
• 6 NEMA 5-15R outlets
• 10 t. (3.1 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

Switchable Outlets

• 2 load banks, each with one outlet individually controllable via software interface to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or dama

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Transfer Time: 5 ms
Application/Usage: Data Center,VoIP Phone System,Computer

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 800 W
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Waveform Type: Pure Sinusoidal

Battery Information

Backup/Run Time (Full Load): 4 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour

Physical Characteristics

Height: 1.75" (44.40 mm)
Width: 17.50" (444.50 mm)
Depth: 16.75" (425.40 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 31.99 lb (14510 g)

Miscellaneous

Package Contents:

• SmartPro 1000RM1U UPS
• SMART 1000RM1U UPS System
• Mounting hardware
• Cabling for USB & DB9 monitoring and EPO switching
• PowerAlert unattended shutdown and UPS/Power monitoring software
• Warranty information and instruction manual

Country of Origin: Taiwan
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
