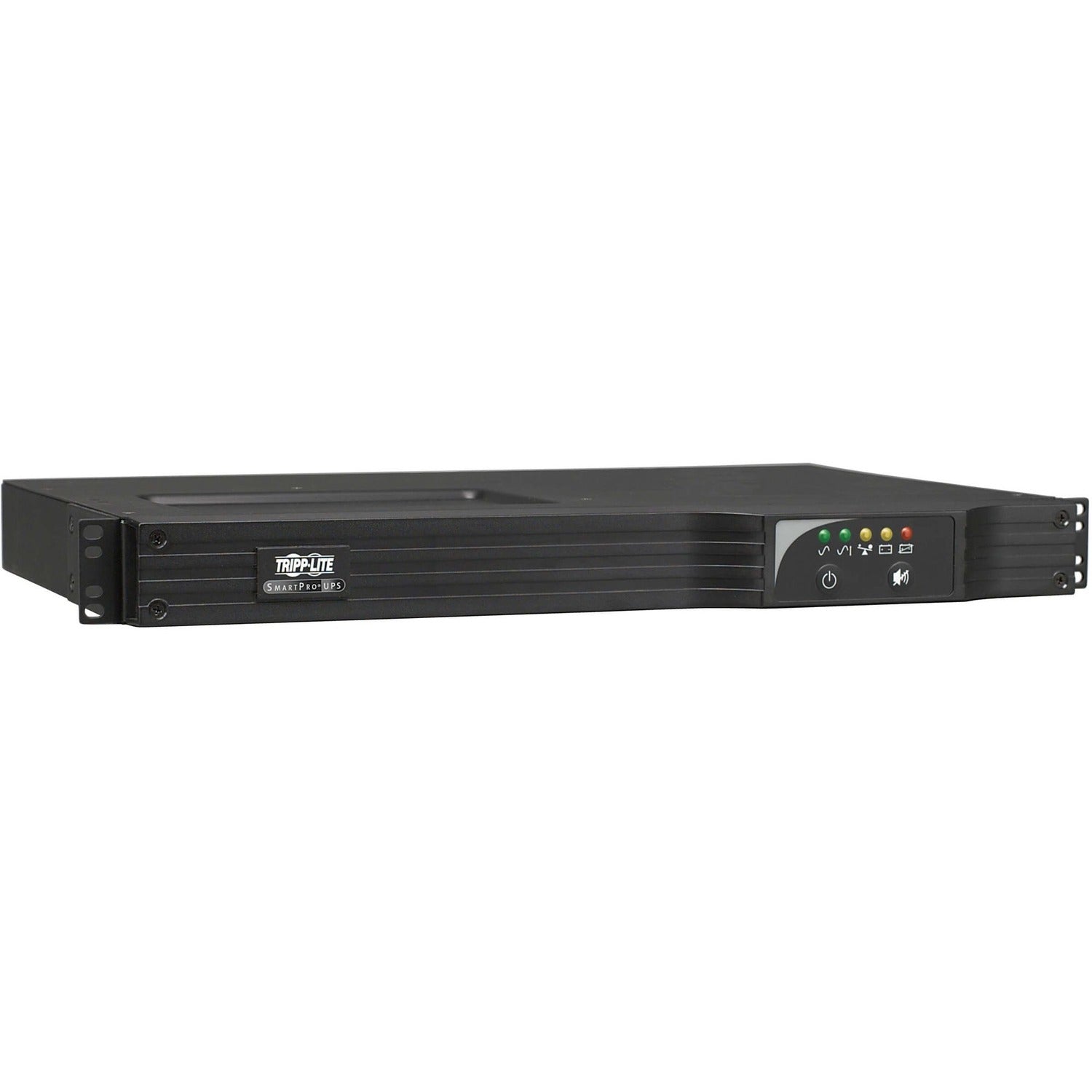

SMART1000RM1UN Tripp Lite series SmartPro SMART1000RM1UN 1kVA Rack-mountable

General Information

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware

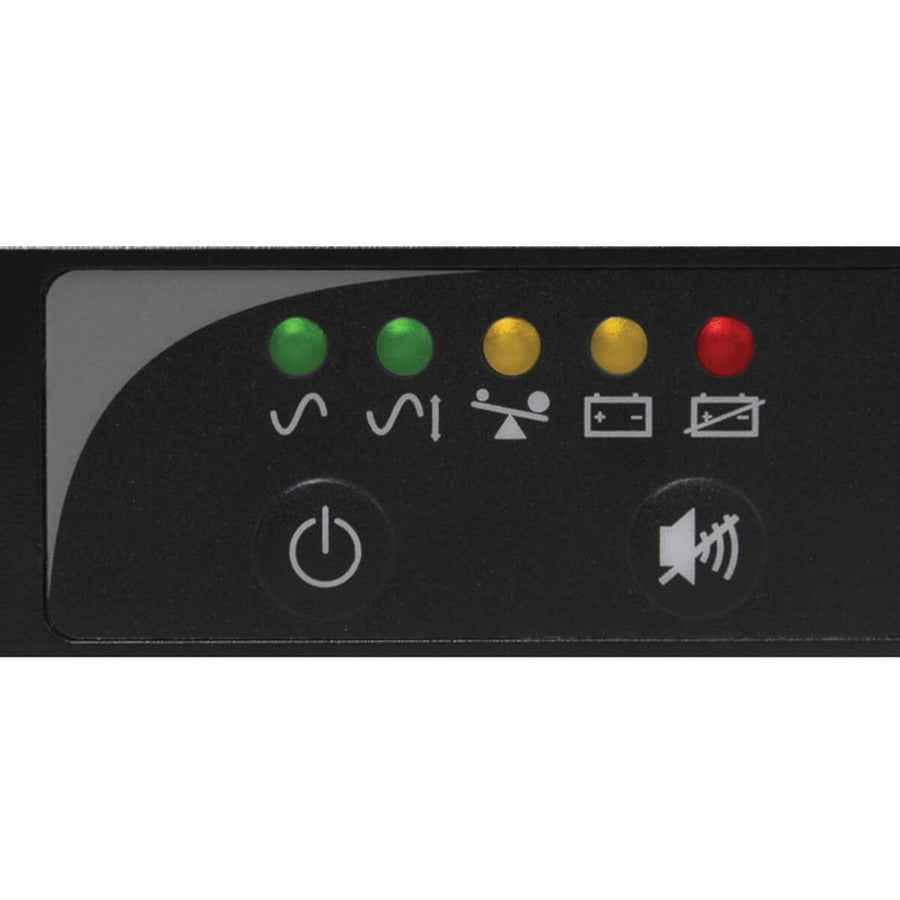

• Audible alarm signals loss of utility power, overload and low battery
• 6 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

• Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH, and CLI.
• Optional E2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status

• Auto Probe feature (Fir
  Product Type: Line-interactive UPS


  Technical Information

  Receptacle Type: NEMA 5-15R
  Receptacle Detail: 6 x NEMA 5-15R


  Power Description

  Load Capacity (VA): 1 kVA
  Load Capacity (Watt): 800 W
  Input Voltage: 120 V AC
  Output Voltage: 120 V AC


  Battery Information

  Backup/Run Time (Full Load): 4 Minute


  Physical Characteristics

  Height: 1.70" (43.18 mm)
  Width: 17.50" (444.50 mm)
  Depth: 16.80" (426.72 mm)
  Rack Height: 1U
  Form Factor: Rack-mountable
  Weight (Approximate): 32 lb (14514.96 g)


  Miscellaneous

  Package Contents:
  • SmartPro SMART1000RM1UN 1kVA Rack-mountable
  • Mounting Hardware
  • Cabling for USB & DB9 Monitoring and EPO Switching
  • PowerAlert Unattended Shutdown and UPS/Power Monitoring Software
  • Instruction Manual

  Country of Origin: Taiwan
  TAA Compliant: Yes
  Environmentally Friendly: Yes
  Environmental Compliance: Restriction of Hazardous Substances (RoHS)


  Warranty

  Limited Warranty: 3 Year
