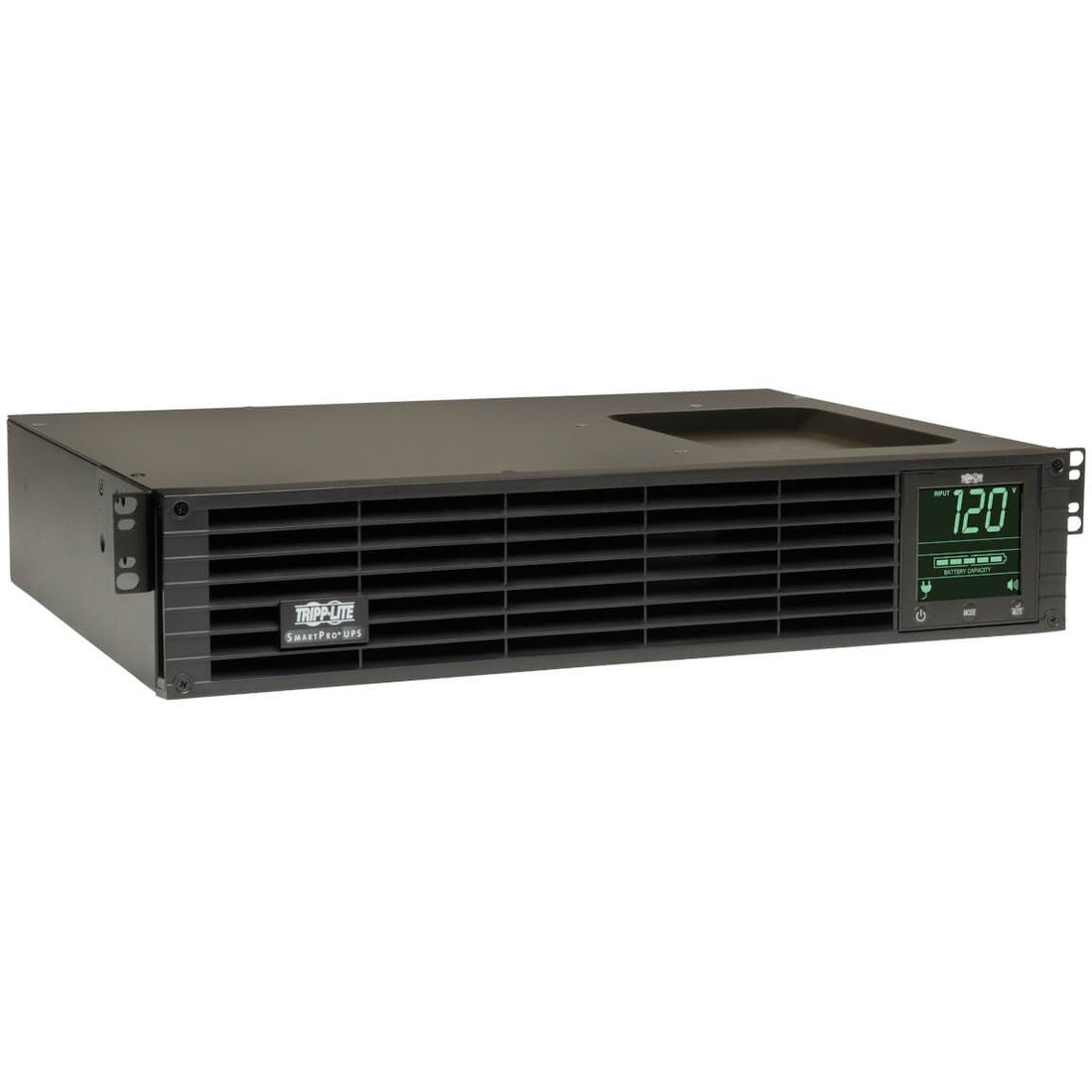

SMART1000RM2U Tripp Lite SmartPro 1000RM2U UPS

General Information

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload, low battery and fault conditions
• 6 NEMA 5-15R outlets

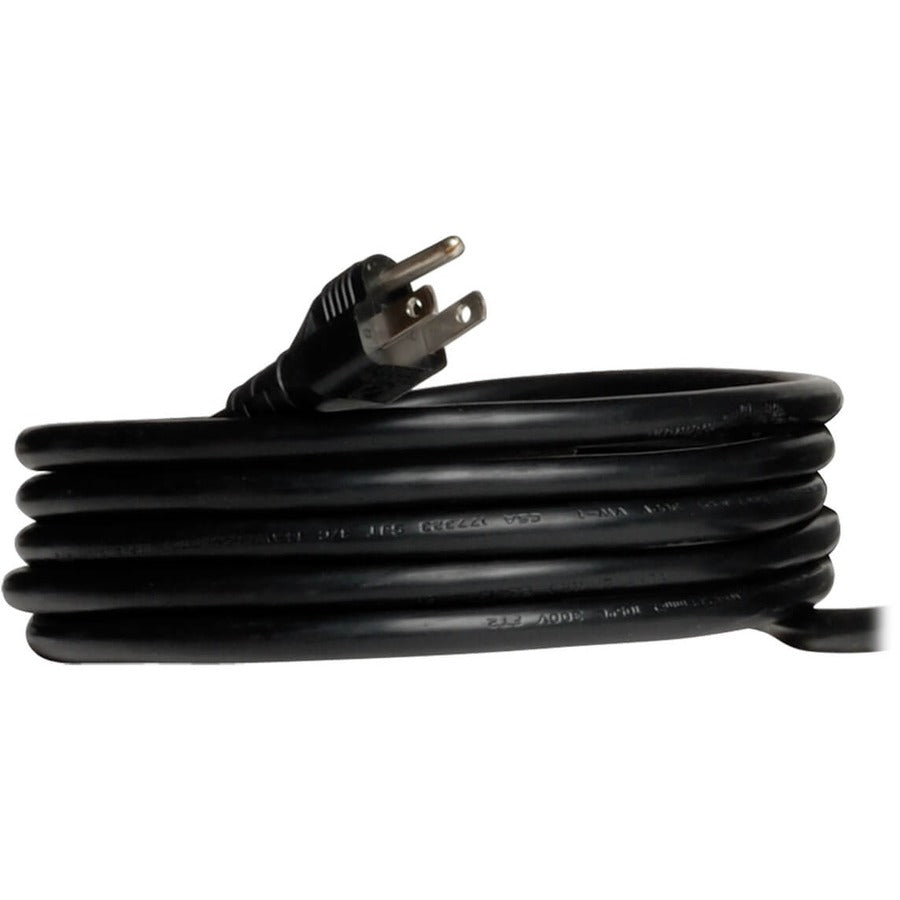

• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 570-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 15 min. and full load up to 5.3 min.
• Internal batteries designed for hot-swap field replacement
• 95% line-power efficiency rating saves money in energy costs

Switchable Outlets

• 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

Product Type: Line-interactive UPS


Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 10 ft (3.05 m)


Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 800 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave


Management

Network Management: SNMP Manageable
Alarm: On Battery,Overload,Low Battery


Interfaces/Ports

USB: Yes


Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5.30 Minute
Backup/Run Time (Half Load): 15 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour


Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)


Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 12.50" (317.50 mm)
Rack Height: 2U
Weight (Approximate): 35.40 lb (16057.17 g)


Miscellaneous

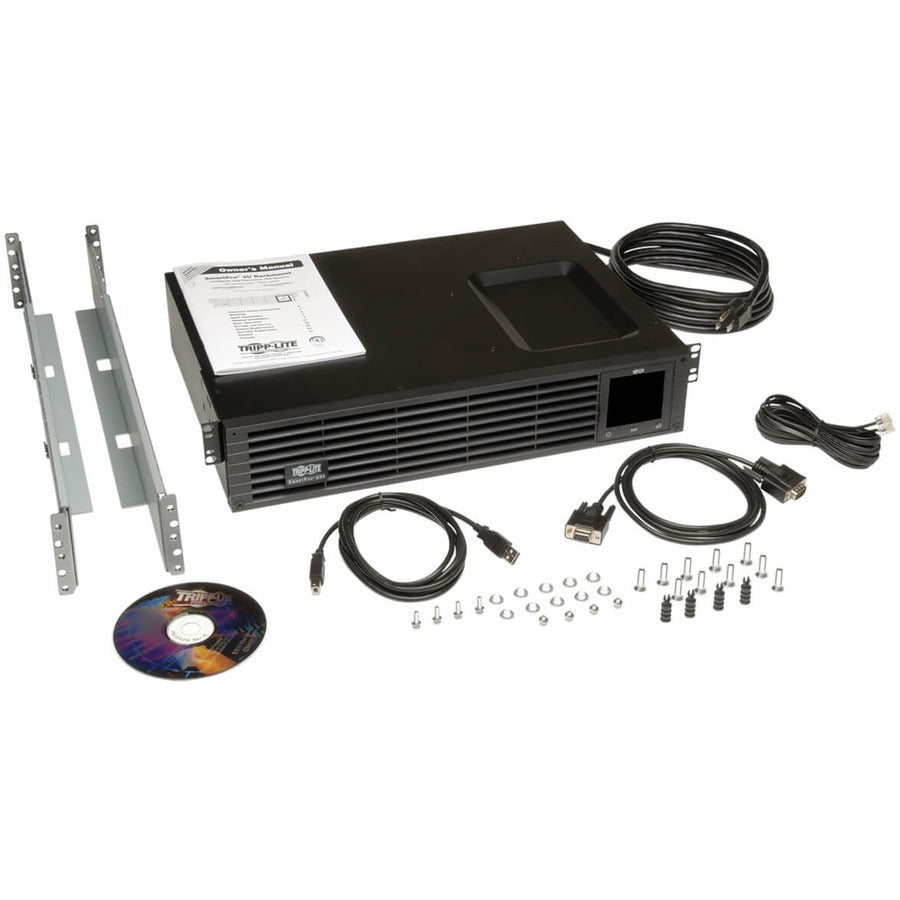

Package Contents:
• SMART1000RM2U UPS System
• PowerAlert Software CD
• Serial & EPO Cabling
• 4 x Post Rackmount Installation Kit
• Instruction Manual

Software Included: PowerAlert Software
Country of Origin: Taiwan


Warranty

Limited Warranty: 3 Year
