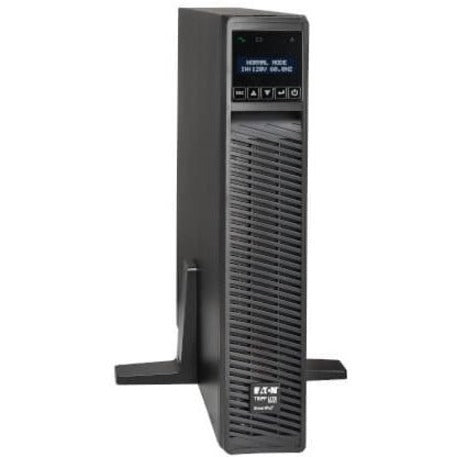

SMART1000RMX2UN Tripp Lite series SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1000RMX2UN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART1000RMX2UN
Product Name: SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS
Marketing Information:

1kVA/1kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1000RMX2UN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without in
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Green Energy-Saving
Application/Usage: Data Storage,Server,Switch,IT Equipment,VoIP

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J
Output Power Factor: 1

Display & Graphics

Display: LCD

Management

Network Management: SNMP/Web
Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery

Controls/Indicators

Status Indicators:

Front Panel LCD Information And Configuration Screen:

• UPS and Site Power Status
• Operating Data
• Plus Configuration Of Voltage
• Frequency
• Operating Mode
• Alarm Function and A Variety Of Additional Options

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 48 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 6 Minute
Backup/Run Time (Half Load): 17 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 542 BTU/h

Physical Characteristics

Height: 3.46" (88 mm)
Width: 17.28" (439 mm)
Depth: 17.60" (447 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 44.53 lb (20198.47 g)

Miscellaneous

Package Contents:

SmartPro SMART1000RMX2UN 1000VA Rack/Tower UPS

WEBCARDLX Network Management Card

USB cable

DB9 cable

Rack-mounting hardware

Tower support stands

Safety instructions

Advanced User Guide

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
