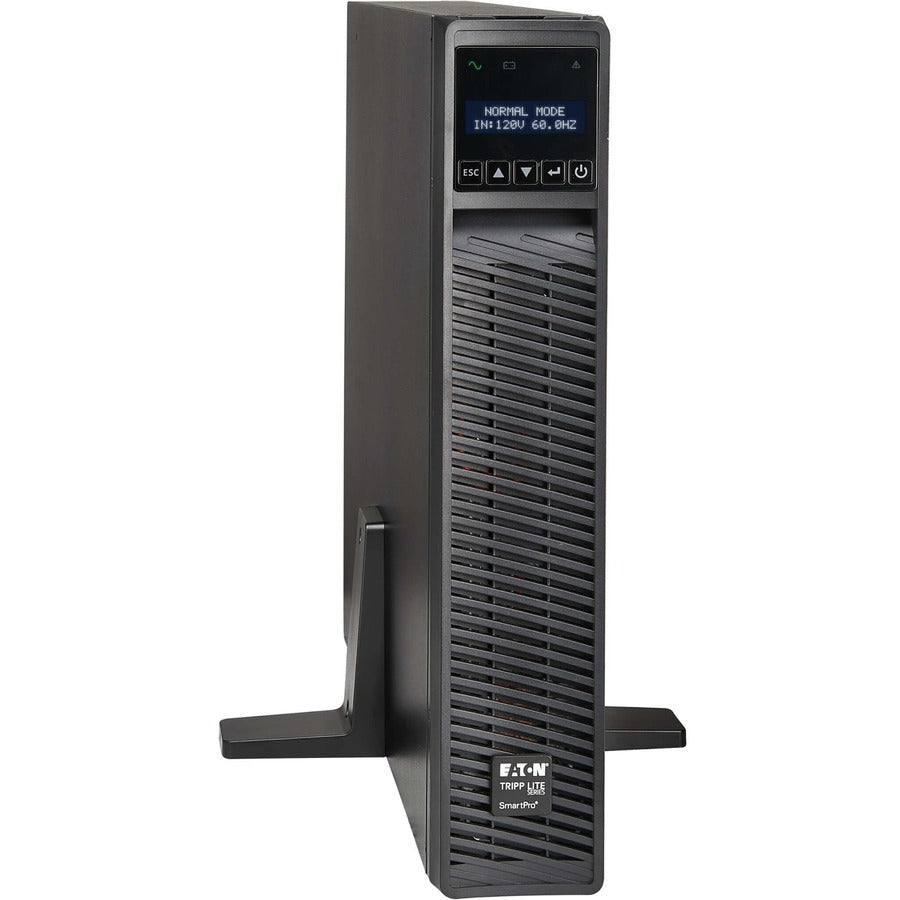

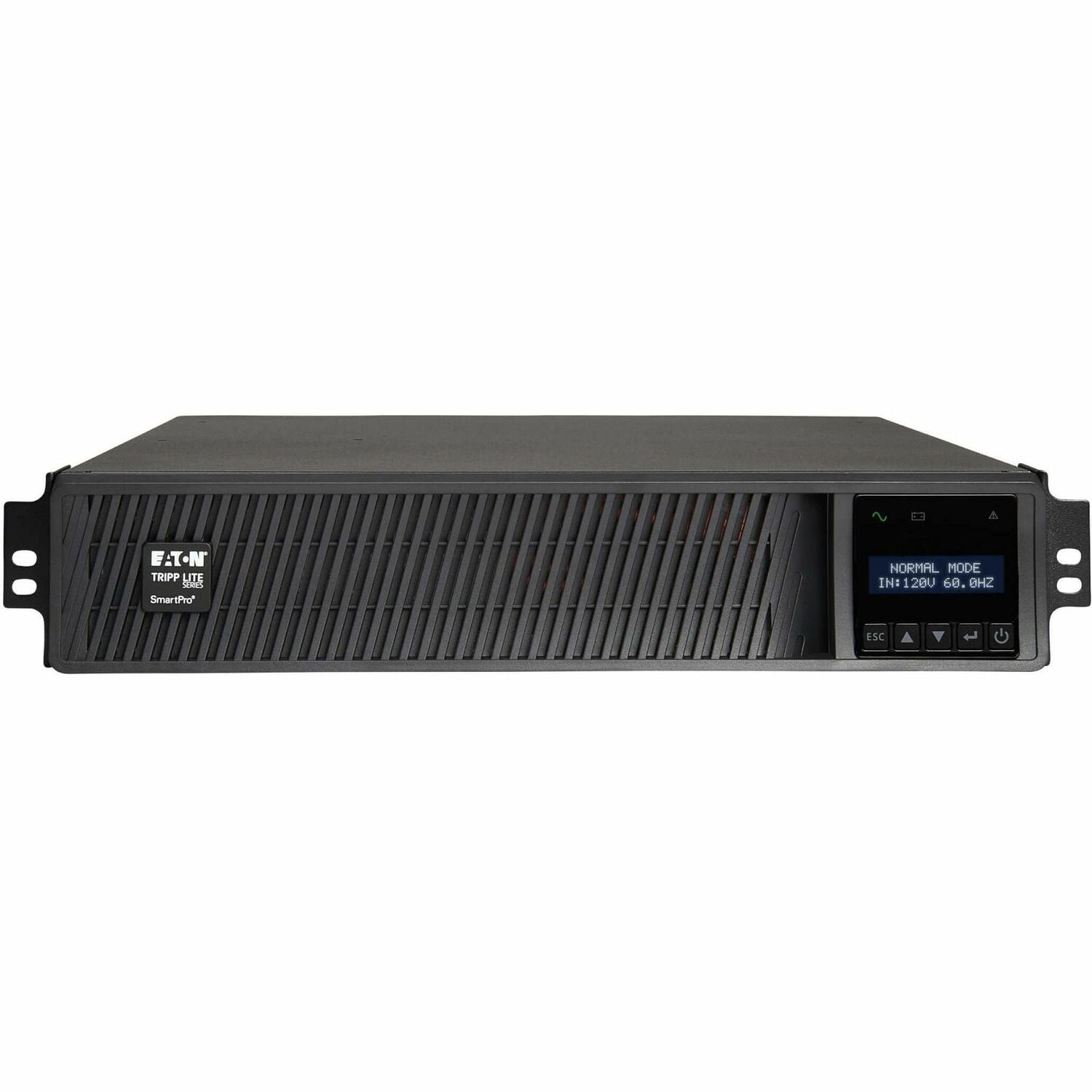

SMART1000RMXL2U Tripp Lite series SmartPro SMART1000RMXL2U 1000VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1000RMXL2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Series: SmartPro
Product Model: SMART1000RMXL2U
Product Name: SmartPro SMART1000RMXL2U 1000VA Rack/Tower UPS
Marketing Information:

1kVA/1kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1000RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outage

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment with
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Overload Protection: Yes
Transfer Time: 4 ms
Phase: Single Phase
Application/Usage: Data Storage,Server,Switch,IT Equipment,VoIP

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J

Management

Network Management: SNMP Manageable

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 6.30 Minute
Backup/Run Time (Half Load): 18 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 17.60" (447.04 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 44.50 lb (20184.86 g)

Miscellaneous

Package Contents:

SmartPro SMART1000RMXL2U 1000VA Rack/Tower UPS

USB Cable

DB9 Cable

Rack-mounting Hardware

Tower Support Stands

Safety Instructions

Advanced User Guide/li>

Software Included: PowerAlert Software
Energy Star: Yes
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
