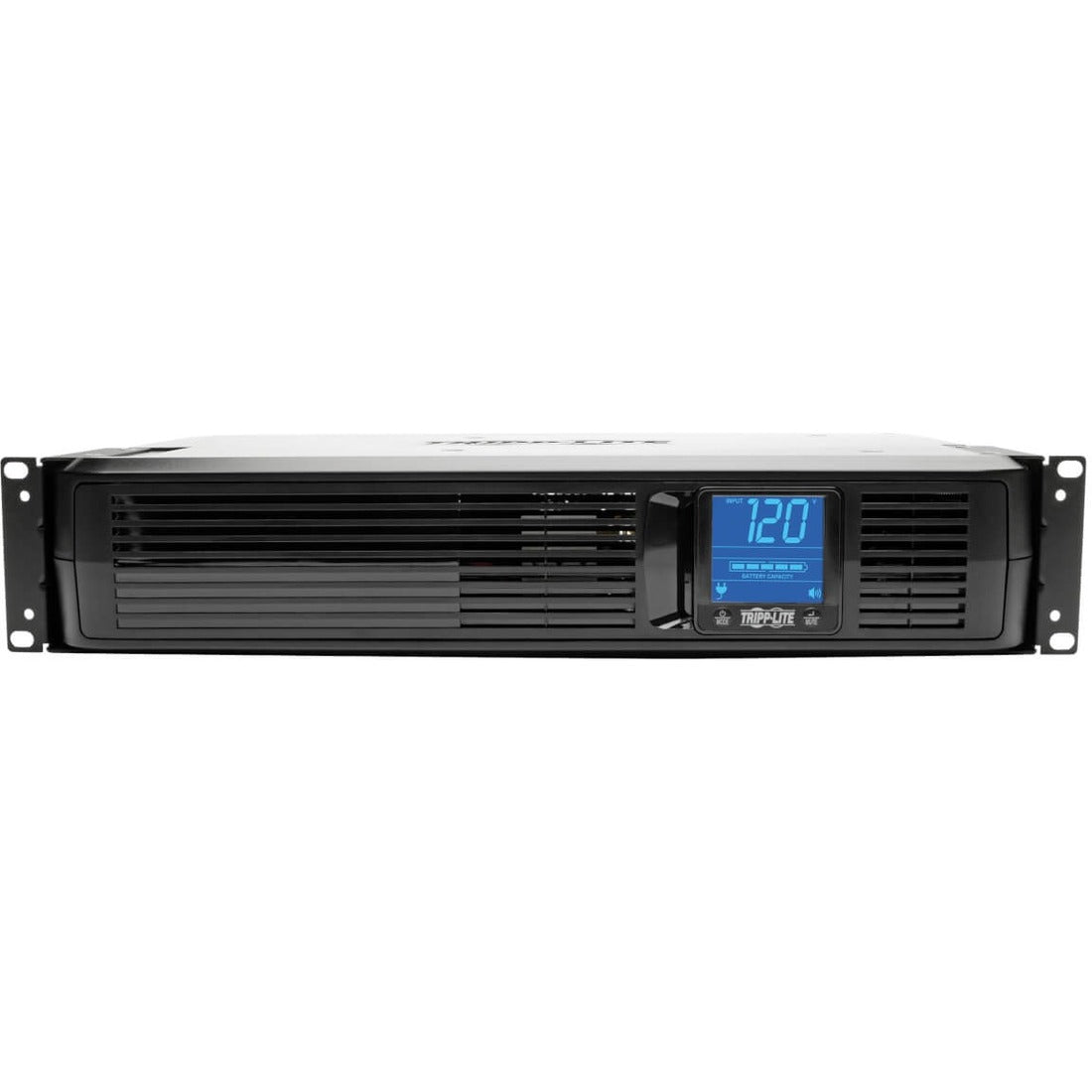

SMART1200LCD Tripp Lite SmartPro 1200 VA Rack-mountable Tower Digital UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1200LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART1200LCD
Product Name: SmartPro 1200 VA Rack-mountable Tower Digital UPS
Marketing Information:

The SMART1200LCD SmartPro LCD 120V, 1200VA/700W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Eight NEMA 5-15R outlets protect against surges, as well as provide up to 14.3 minutes of UPS battery support at half load (350W) and 4.0 minutes of support at full load (700W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.

NEMA 5-15P plug
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

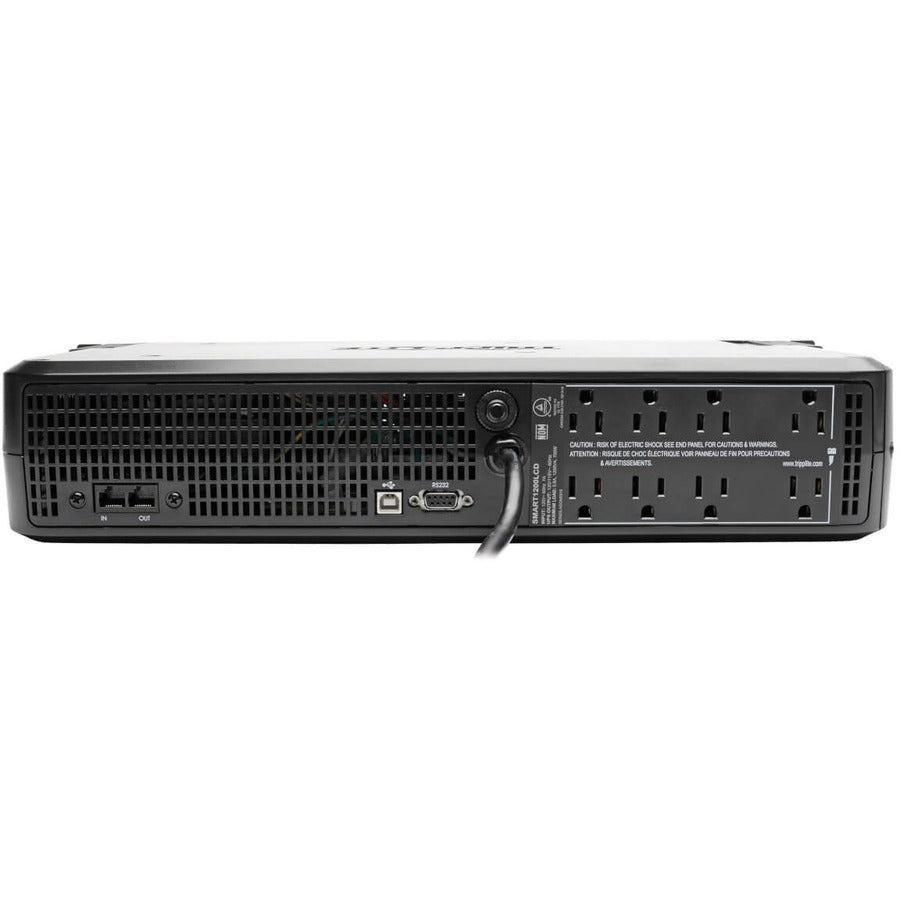

Receptacle Detail: 8 x NEMA 5-15R
Dataline Protection: RJ-45
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 1.20 kVA
Load Capacity (Watt): 700 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 870 J
Circuit Breaker: Yes

Controls/Indicators

Status Indicators:

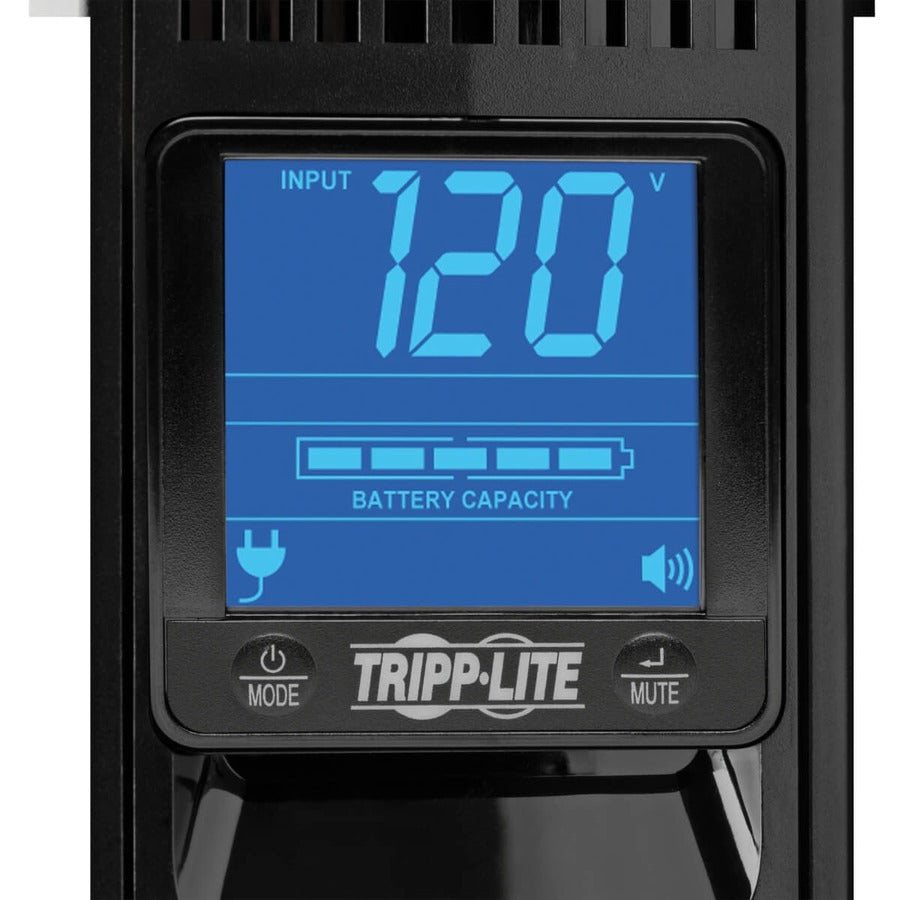

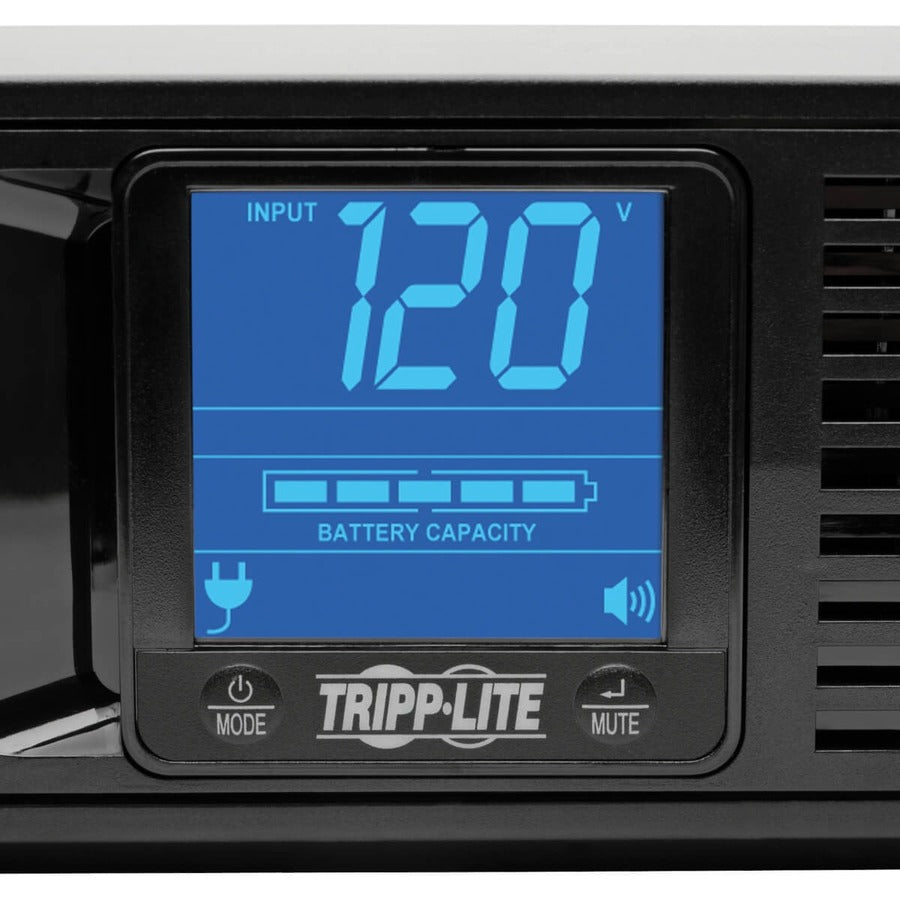

Front panel LCD screen with blue backlight offers:

• Continuous input line voltage data
• Line power
• Battery power
• Battery charge level
• Voltage regulation operation

Interfaces/Ports

Serial Port: Yes
USB: Yes

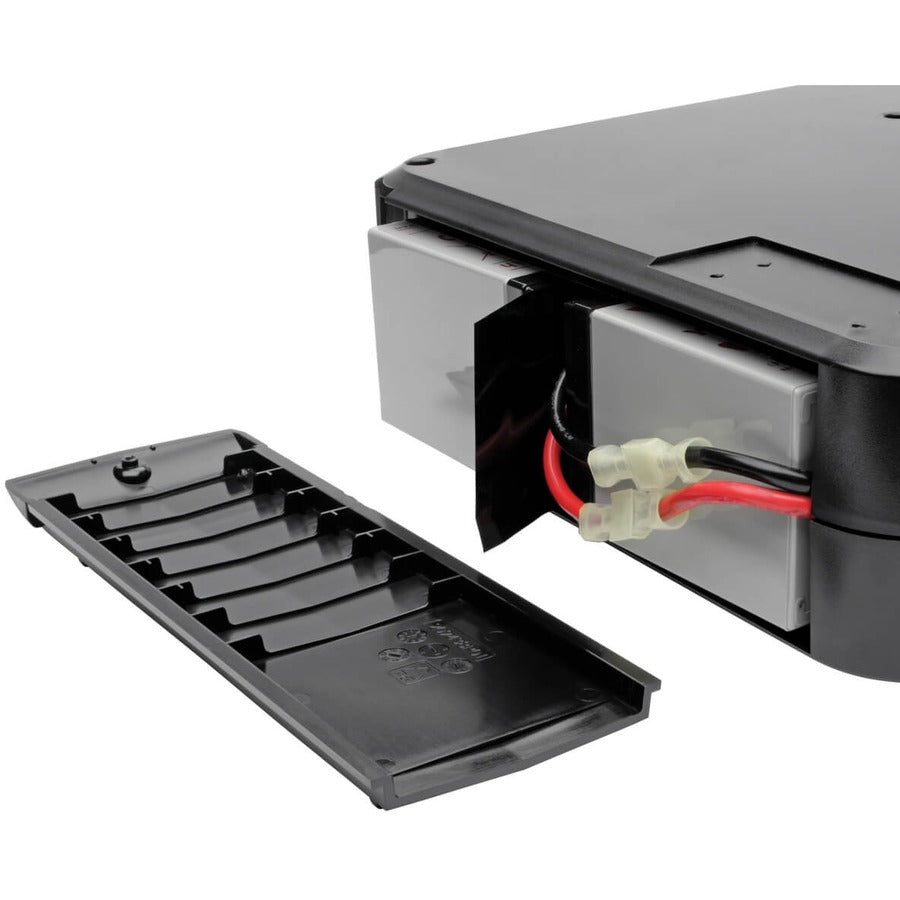

Battery Information

Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 14.30 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 8 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)
Thermal Dissipation: 243.70 BTU/h

Physical Characteristics

Product Color: Black
Height: 17.25" (438.15 mm)
Width: 3.50" (88.90 mm)
Depth: 10.50" (266.70 mm)
Rack Height: 2U

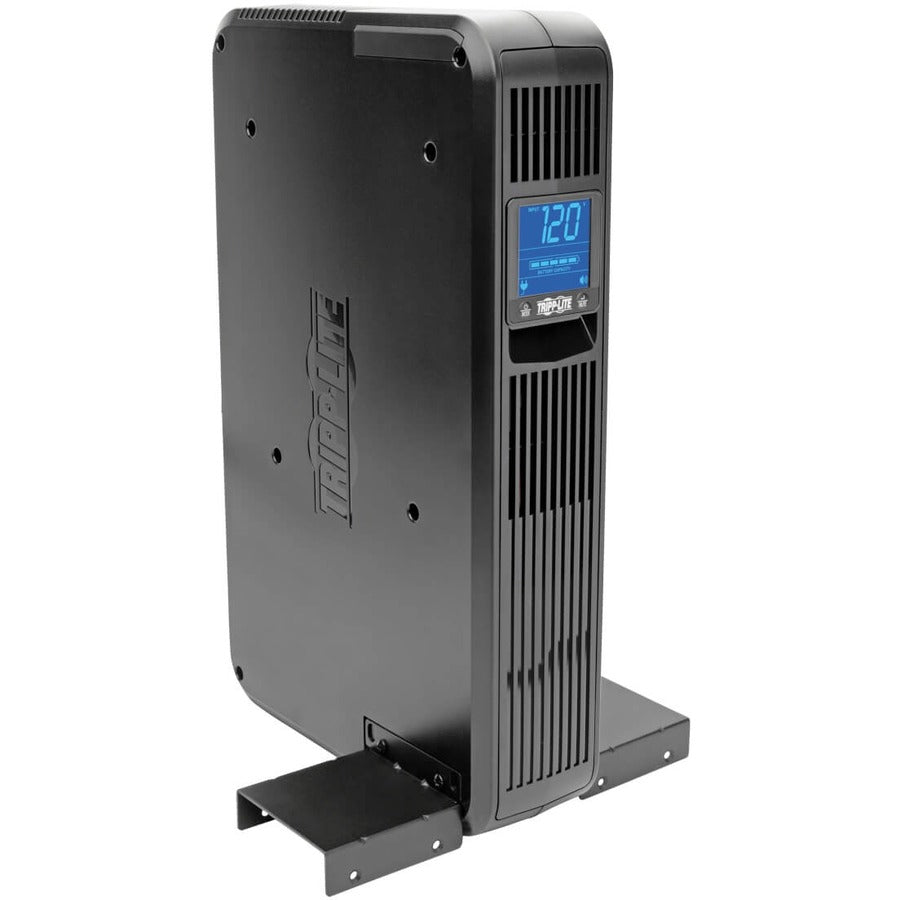

Form Factor: Tower
Weight (Approximate): 25.13 lb (11400 g)

Miscellaneous

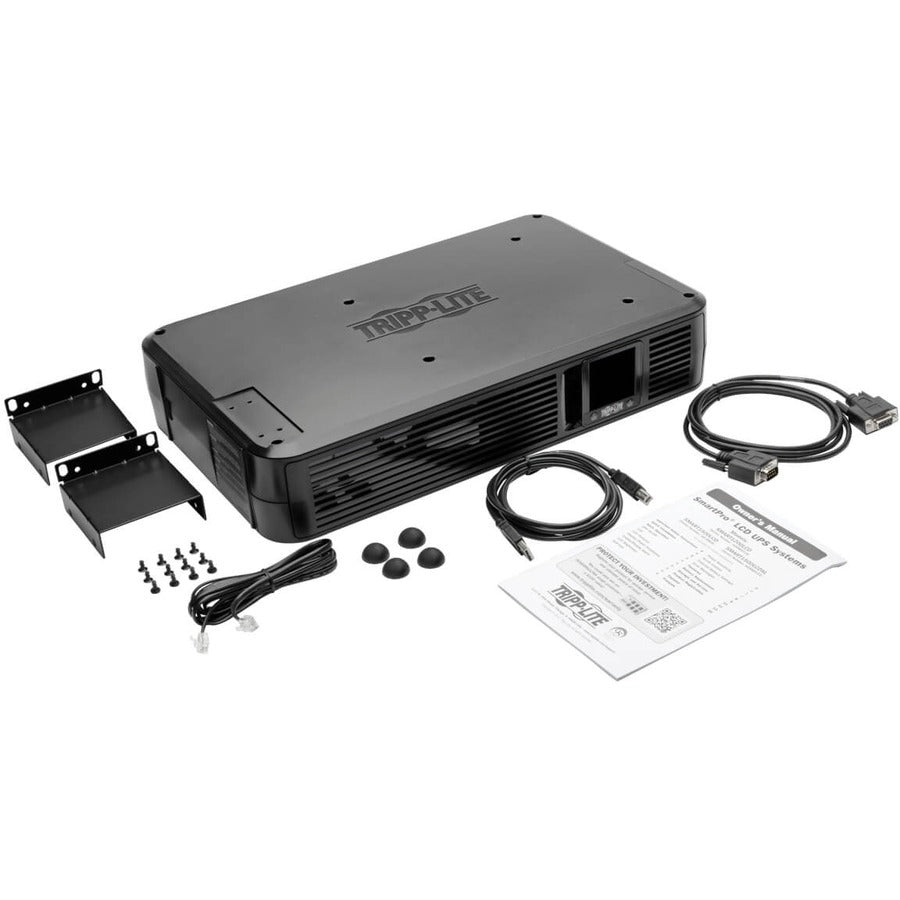

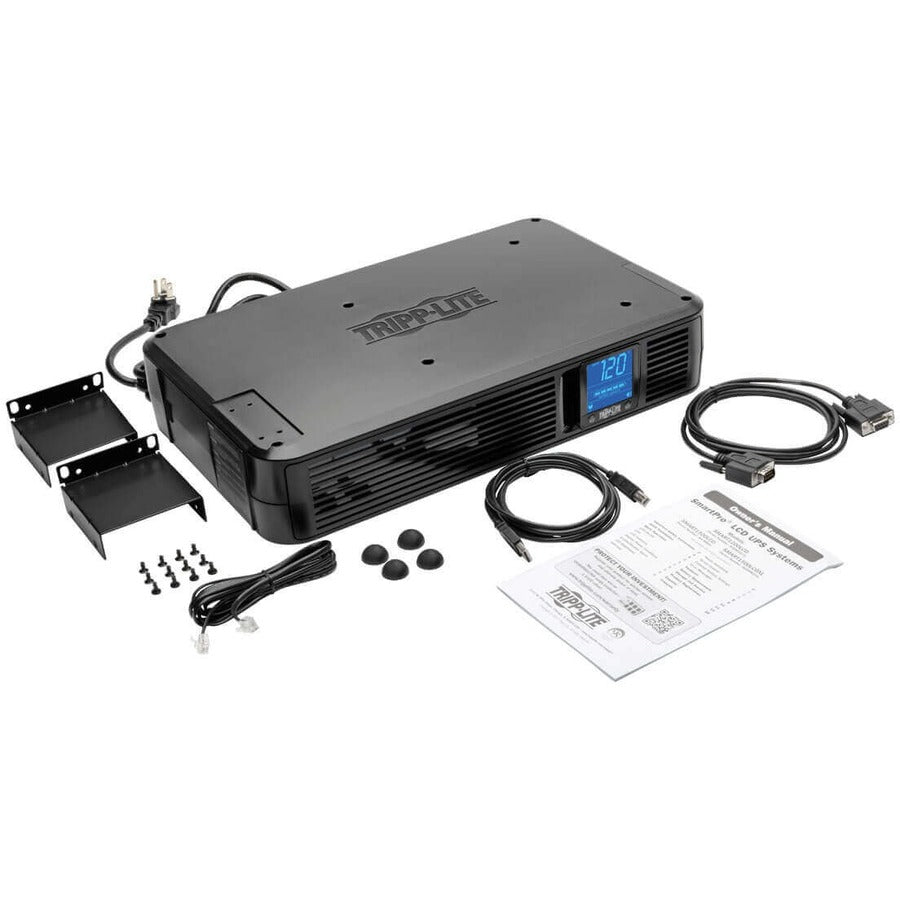

Package Contents:

• SmartPro 1200 VA Rack-mountable Tower Digital UPS
• SMART1200LCD Digital UPS
• USB, DB9 and phone cabling
• Mounting hardware
• Manual with warranty information

Country of Origin: Taiwan

Warranty

Limited Warranty: 3 Year
