Manufacturer Part Number: SMART1200XLHG
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro

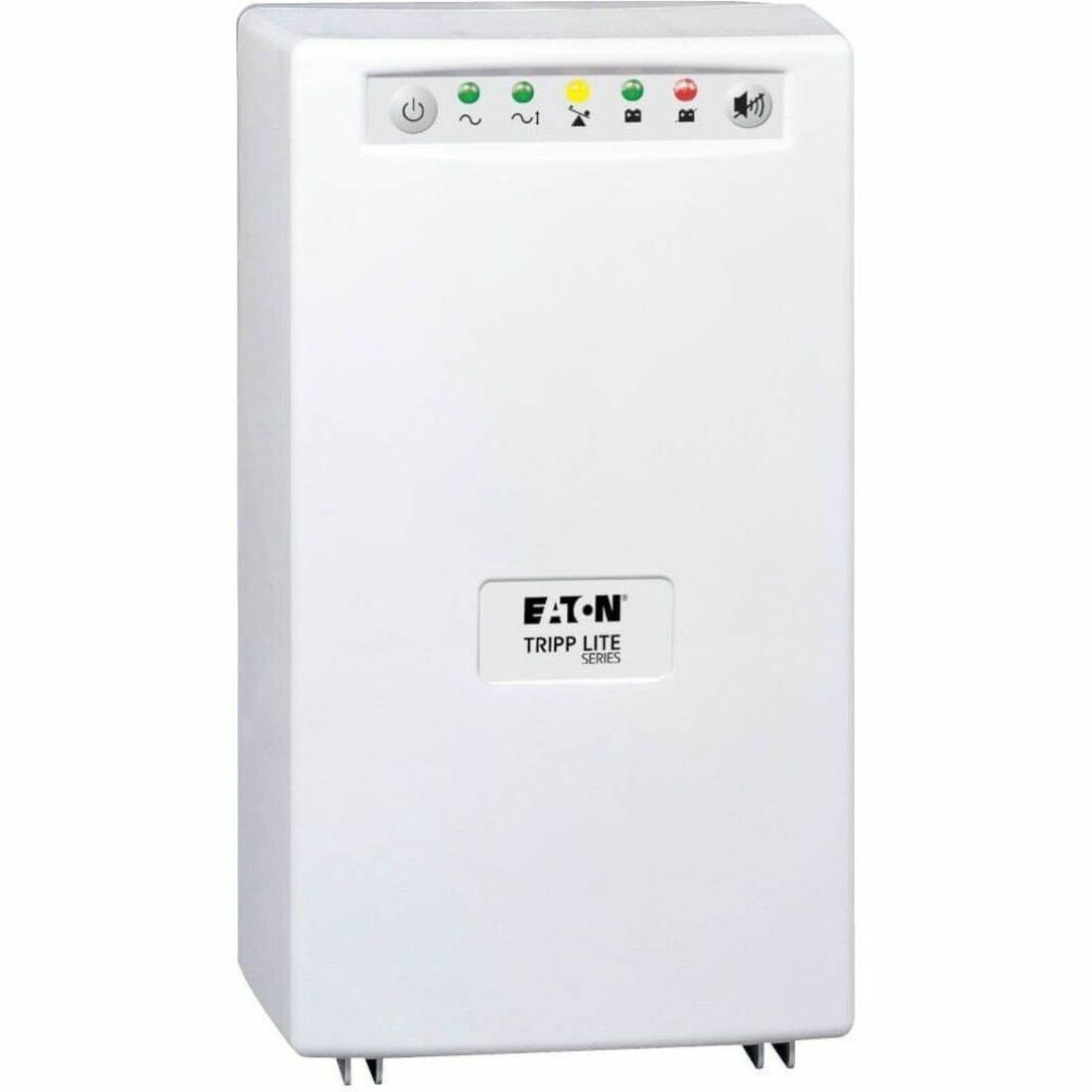

Product Name: SmartPro 1200XLHG UPS
Marketing Information: Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge p
Product Type: Line-interactive UPS
Receptacle Type: NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15R
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms
Load Capacity (Watt): 750 W
Input Voltage: 120 V AC
Output Voltage: 115 V AC,120 V AC
Alarm: On Battery,Overload,Low Battery
Backup/Run Time (Full Load): 10 Minute
Backup/Run Time (Half Load): 28 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Width: 7.50" (190.50 mm)
Depth: 9" (228.60 mm)
Form Factor: Tower
Weight (Approximate): 44.60 lb (20230.22 g)
Country of Origin: Taiwan
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SMART1200XLHG
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro 1200XLHG UPS
Marketing Information: Tripp Lite's SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge p
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15R
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms
Power Description
Load Capacity (VA): 1 kVALoad Capacity (Watt): 750 W
Input Voltage: 120 V AC
Output Voltage: 115 V AC,120 V AC
Management
Network Management: SNMP ManageableAlarm: On Battery,Overload,Low Battery
Controls/Indicators
Status Indicators: Includes 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warningInterfaces/Ports
USB: YesBattery Information
Battery Chemistry: Lead AcidBackup/Run Time (Full Load): 10 Minute
Backup/Run Time (Half Load): 28 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)Physical Characteristics
Height: 12.75" (323.85 mm)Width: 7.50" (190.50 mm)
Depth: 9" (228.60 mm)
Form Factor: Tower
Weight (Approximate): 44.60 lb (20230.22 g)
Miscellaneous
Package Contents:- SmartPro 1200XLHG UPS
- SMART 1200XLHG Medical Grade Tower UPS System
- PowerAlert Software and cabling
- Warranty information
- Instruction manual
Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
