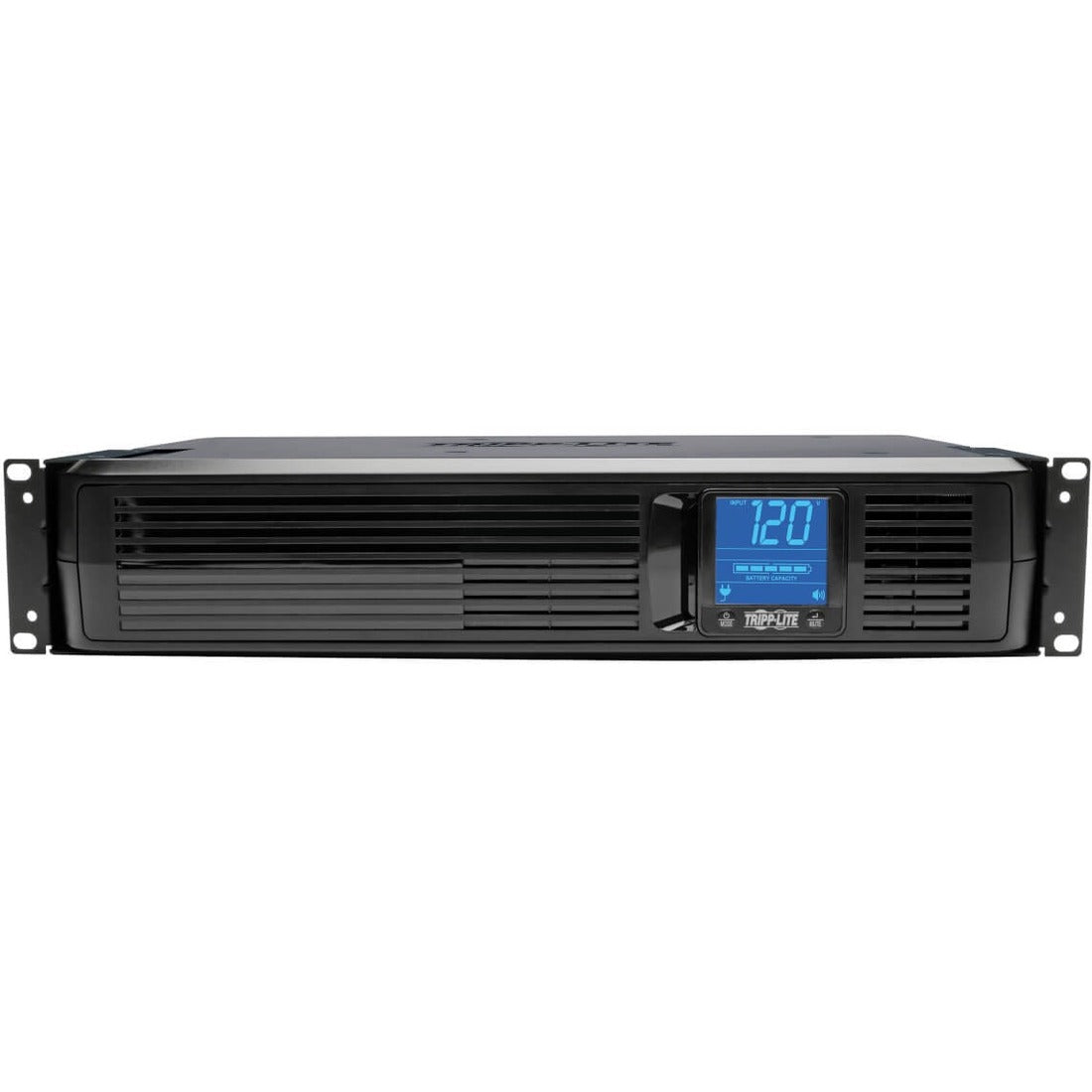

SMART1500LCD Tripp Lite series SmartPro 1500 VA Rackmount/Tower Digital UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1500LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro 1500 VA Rackmount/Tower Digital UPS
Marketing Information: 1500VA/900W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

This SmartPro® line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The SMART1500LCD is ideal protection for small business networks, VoIP systems, point-of-sale applications, desktop workstations, home offices and home theater systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

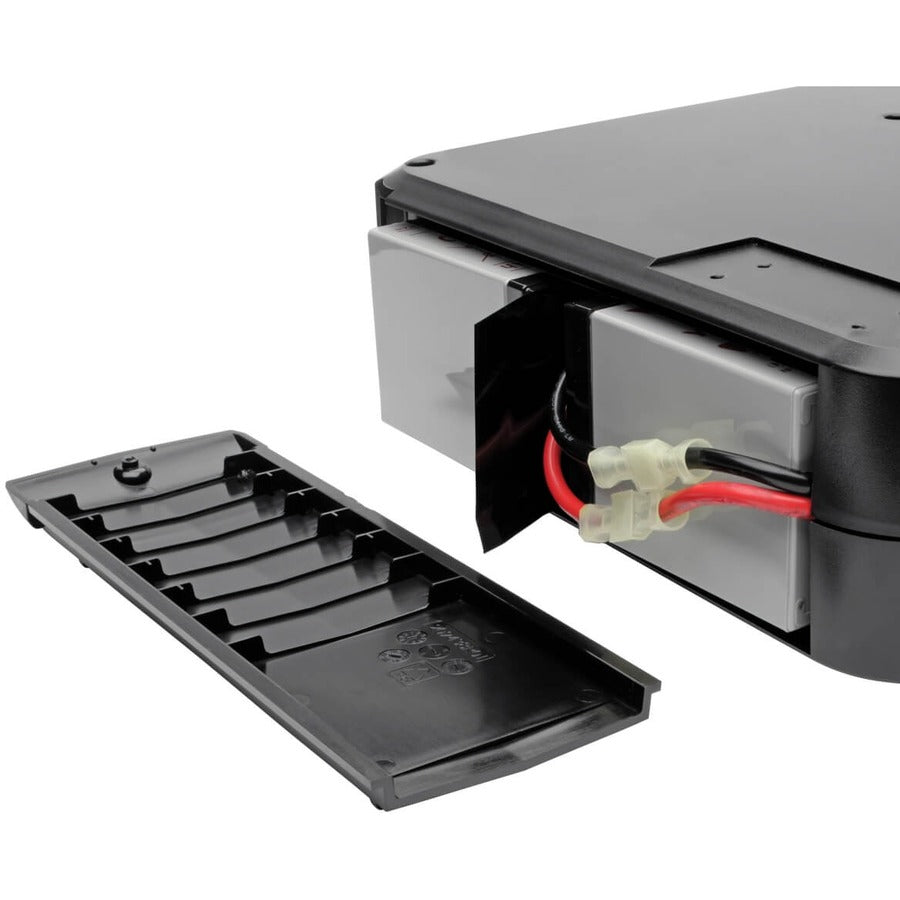

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting.

NEMA 5-15R Outlets Protect Your Connected Compon
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

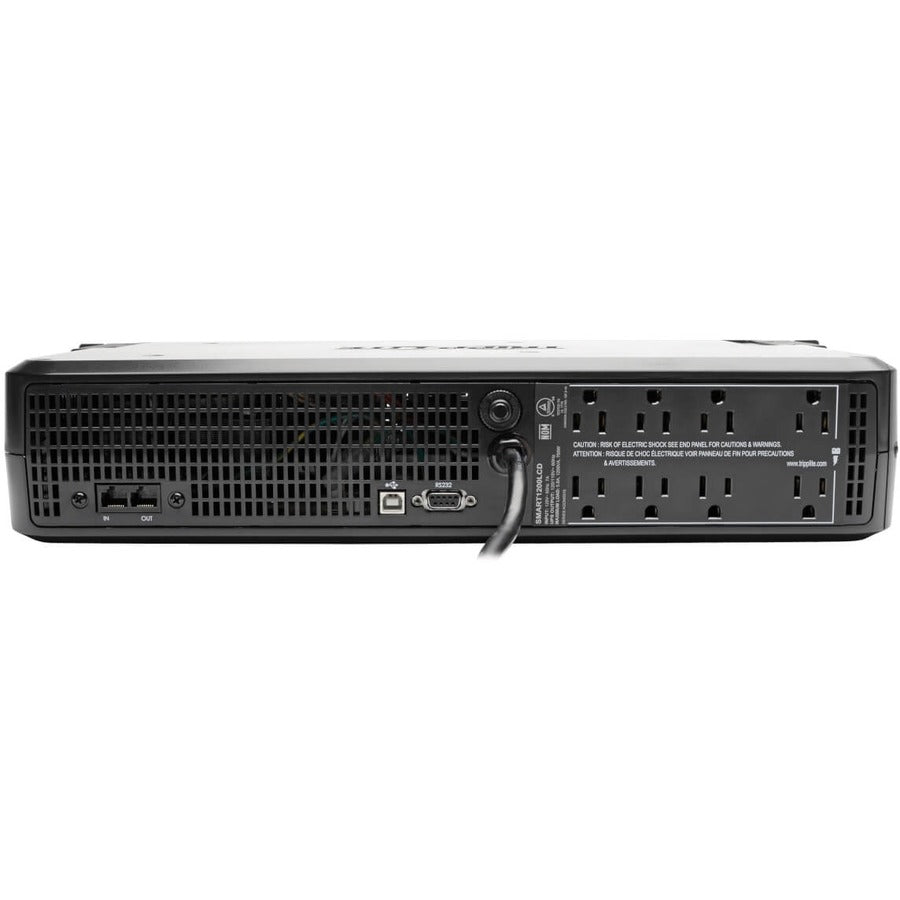

Receptacle Detail: 8 x NEMA 5-15R
Dataline Protection: RJ-45
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 900 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 480 J

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 3.50 Minute
Backup/Run Time (Half Load): 13 Minute
Typical Battery Recharge Time: 8 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Product Color: Black
Height: 17.25" (438.15 mm)
Width: 3.50" (88.90 mm)
Depth: 10.50" (266.70 mm)
Rack Height: 2U

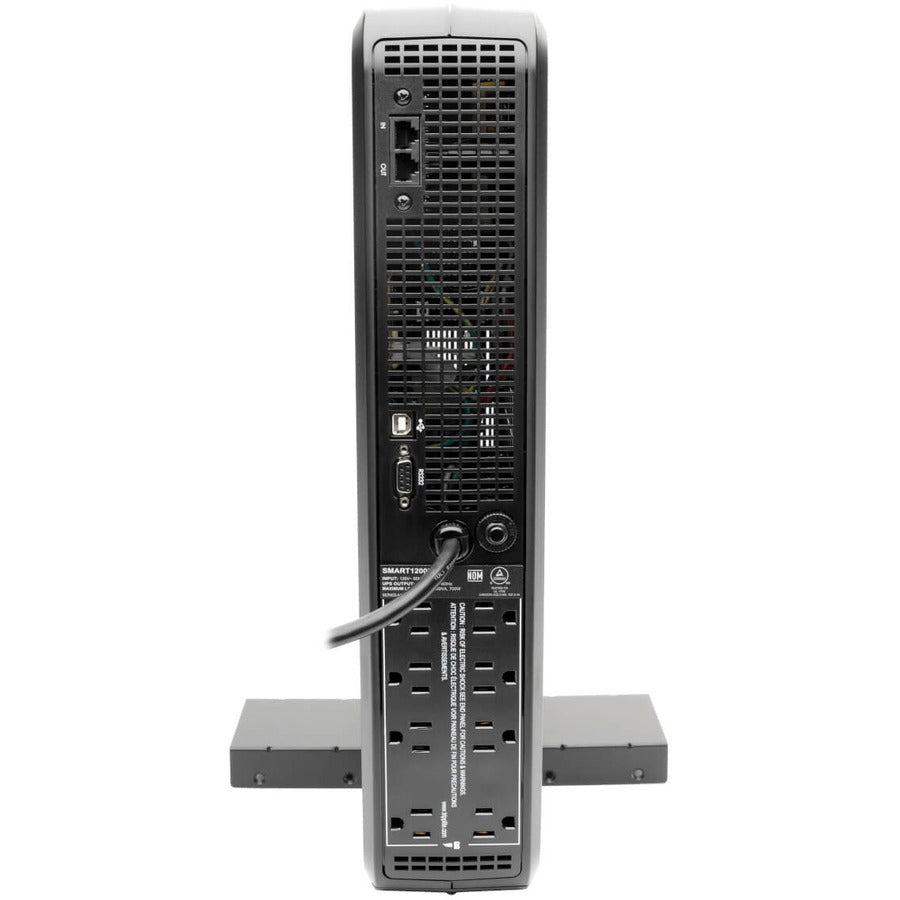

Form Factor: Rack/Tower
Weight (Approximate): 29 lb (13154.18 g)

Miscellaneous

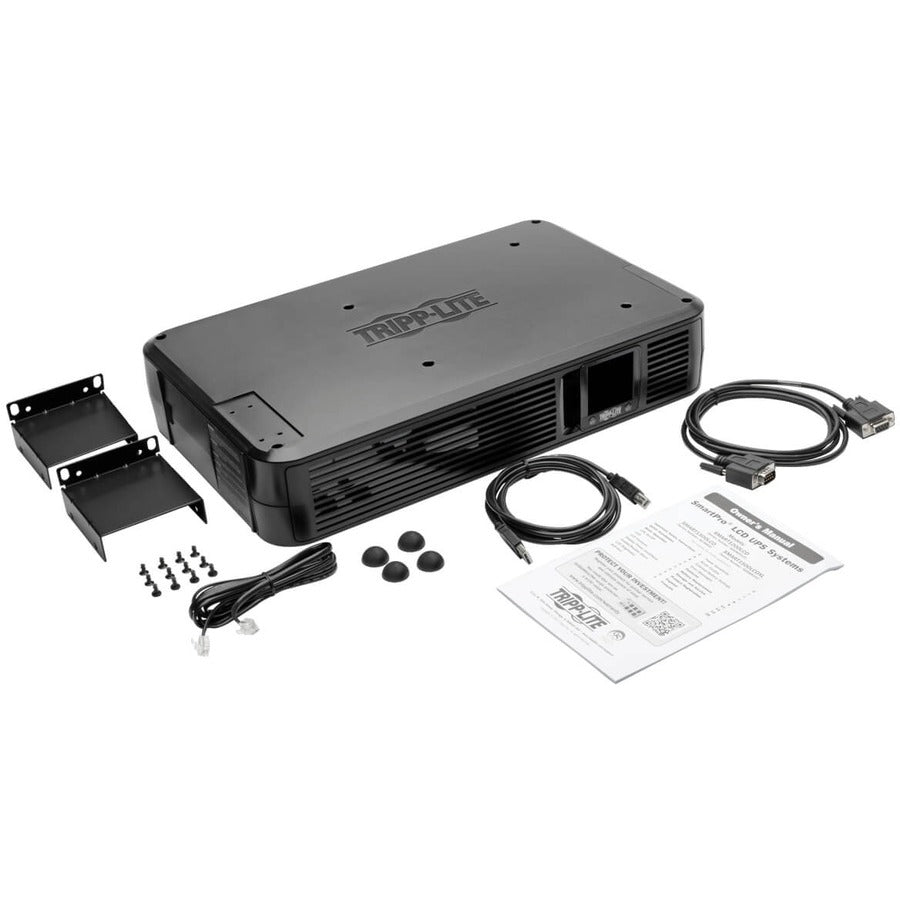

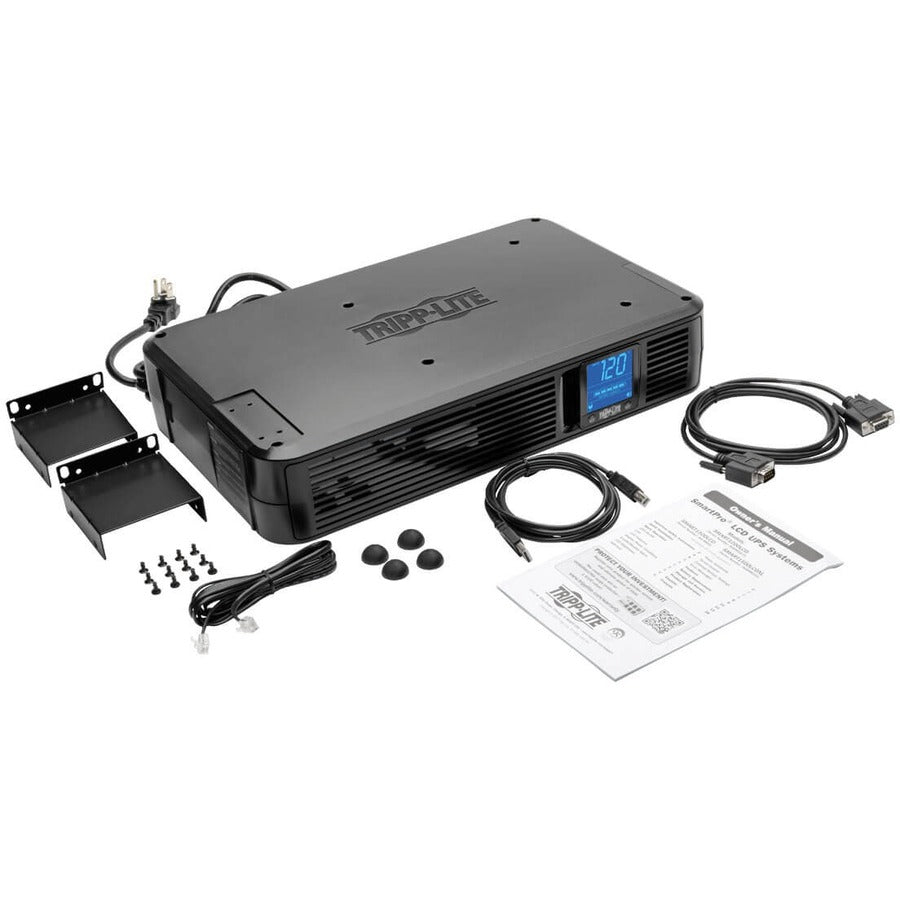

Package Contents:

• SmartPro 1500 VA Rackmount/Tower Digital UPS
• USB Cable
• Serial Cable
• Mounting Hardware
• Manual with Warranty Information

Country of Origin: Taiwan

Warranty

Limited Warranty: 3 Year
