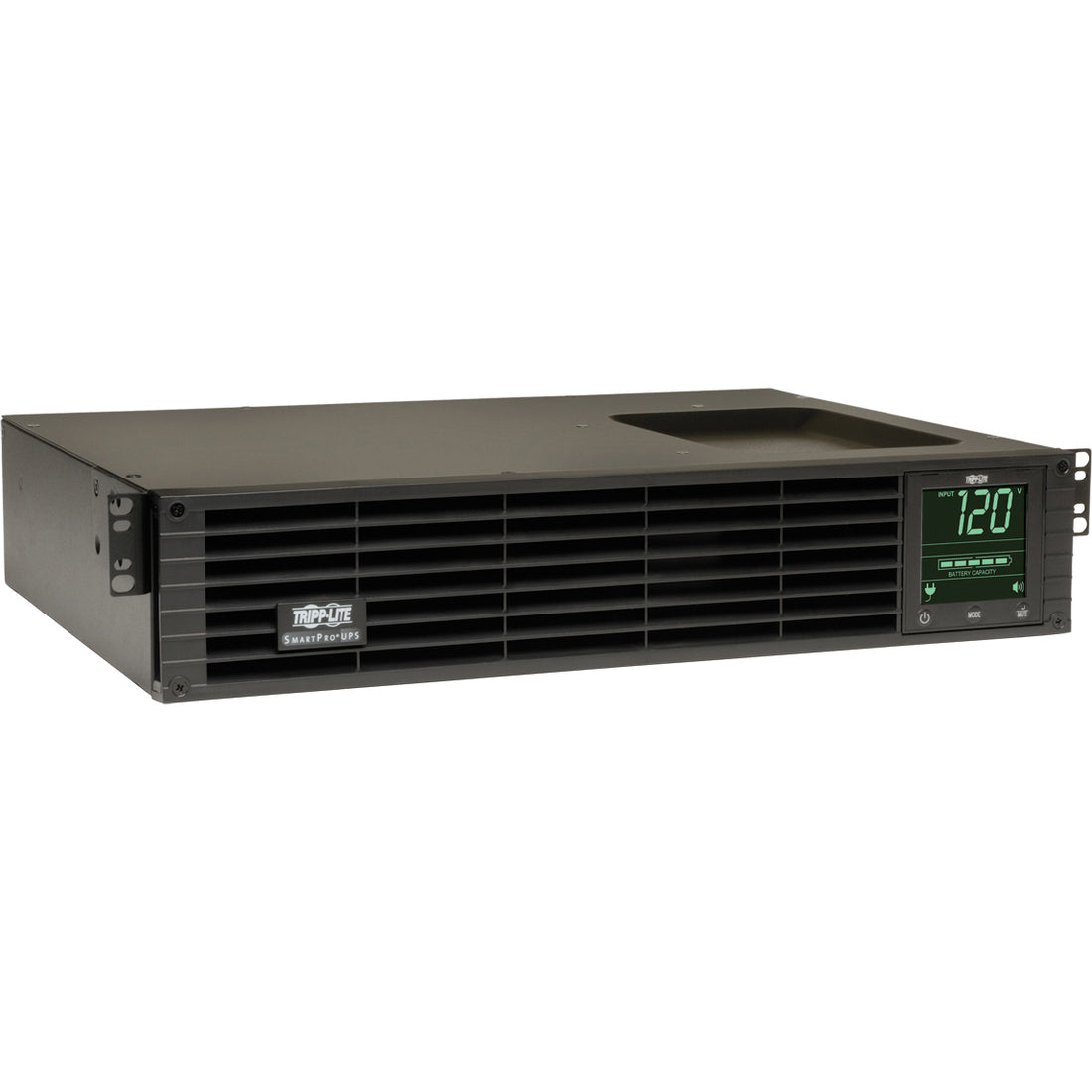

Tripp Lite series SmartPro 1500RM2U UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1500RM2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro 1500RM2U UPS
Marketing Information:

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload, low battery and fault conditions
• 8 NEMA 5-15R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 0.9 power factor rating
• 570-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 13 min. and full load up to 4.5 min.
• Internal batteries designed for hot-swap field replacement
• 95% line-power efficiency rating saves money in energy costs

2 Load Banks with Switchable Outlets

• Can control 4 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

Interactive LCD Screen

• Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
• Rotates for easy viewing in rack-mount or tower configurations

Network Management Cards

• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD and RELAYIOCARD

Communications Ports

• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
• EPO">www.tripplite.com/poweralert port supports emergency shutdown in large facilities

• EPO">
  Versatile Installation Options


• EPO">
  • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
  • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
  • Mounts in upright tower position with optional 2-9USTAND accessory
• EPO">

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 570 J

Management

Network Management: SNMP/Webcard
Alarm: On Battery,Overload,Low Battery

Controls/Indicators

Status Indicators: LED Indicator

Interfaces/Ports

USB: Yes

Battery Information

DC System Voltage: 36 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 13 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 6561.68 ft (2000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 267 BTU/h

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 13.45" (341.63 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 46 lb (20865.25 g)

Miscellaneous

Package Contents:

• SmartPro 1500RM2U UPS
• Mounting hardware for 4 post rackmount installation
• Cabling for USB & DB9 monitoring and EPO switching
• PowerAlert unattended shutdown and UPS/Power monitoring software
• Warranty information

Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
