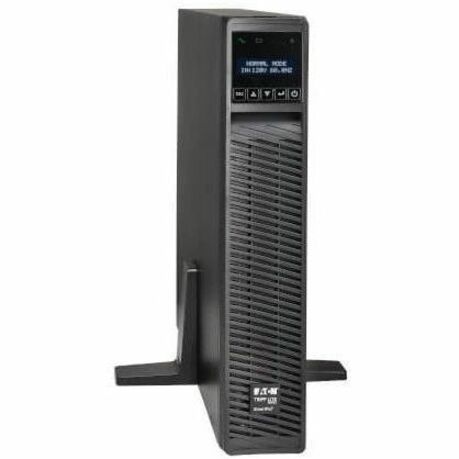

SMART1500RMXL2U Tripp Lite SMART1500RMXL2U UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1500RMXL2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SMART1500RMXL2U UPS
Marketing Information: 1.44kVA/1.44kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1500RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Cord Length: 10 ft (3.05 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Network Device,High-end System

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1.44 kW
Input Voltage: 120 V AC
Output Voltage: 100 V AC,110 V AC,120 V AC,125 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Output Power Factor: 1

Management

Network Management: SNMP Manageable
Alarm: UPS StartUp,Remote Shutdown,Overload,Low Battery,Power Failure

Controls/Indicators

Status Indicators:

UPS status (Solid Green)

Battery Mode (Solid Orange)

Battery Low Warning (Flashing Orange)

Fault/Alarm (Solid Red)

Interfaces/Ports

USB: Yes
EPO Port: Yes

Battery Information

DC System Voltage: 48 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5.10 Minute
Backup/Run Time (Half Load): 15.10 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 40 dB(A)

Physical Characteristics

Height: 3.45" (87.63 mm)
Width: 17.20" (436.88 mm)
Depth: 17.60" (447.04 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 50.71 lb (23001.67 g)

Miscellaneous

Package Contents:

• SMART1500RMXL2U UPS System
• PowerAlert software with USB and DB9 cables
• Mounting hardware for 4 post rackmount installation
• Cable for Emergency Power Off interface
• Instruction manual with warranty information

Country of Origin: China

Warranty

Limited Warranty: 3 Year
