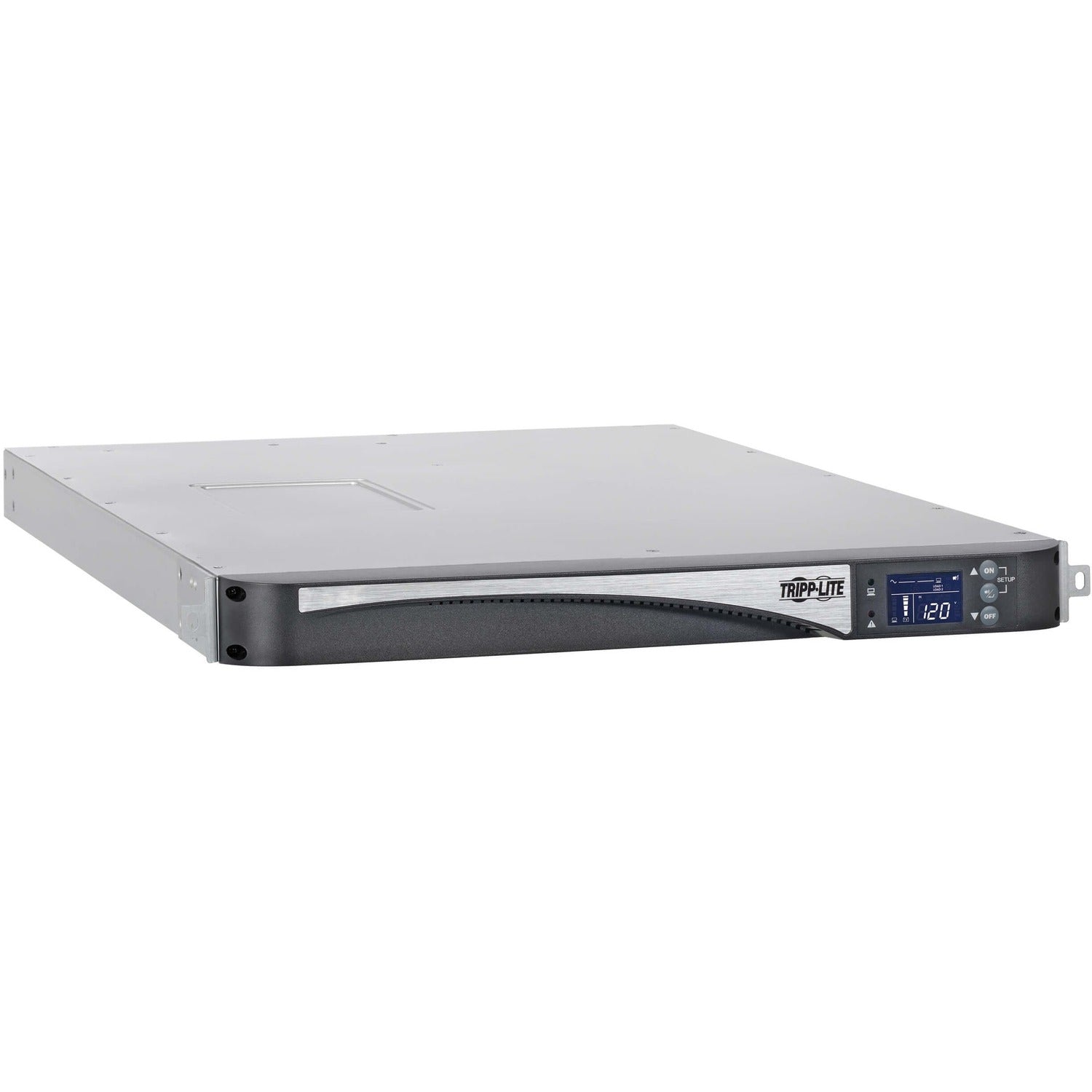

SMART1500RT1U Tripp Lite series SMART1500RT1U 1500VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART1500RT1U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: SMART1500RT1U
Product Name: SMART1500RT1U 1500VA Rack/Tower UPS
Marketing Information:

1440VA/1100W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
This SmartPro® line-interactive UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1500RT1U is ideal protection for point-of-sale and kiosk applications, a small-business VoIP network or rack-mount equipment, such as servers and switches, in your server room or network closet.

Reliable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides eight minutes of support at half load (550W) and two minutes at full load (1100W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout.

Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures aut
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 5 x NEMA 5-15R
Dataline Protection: DB-9
Transfer Time: 8 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: IT Equipment,Telecommunication,Network Device,Equipment,Business,VoIP,Server,Switch,Server Room,Network Closet

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.10 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 540 J

Management

Network Management: Network-MS Card
Alarm: Power Failure,Overload,Low Battery

Controls/Indicators

Status Indicators:

LED Indicators:

• 5 LEDs Indicate Line Power
• Battery Power
• Overload
• Voltage Regulation and Battery Low/Replace Status

Interfaces/Ports

Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 36 V DC
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 8 Minute
Hot Swappable: Yes
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 3280 ft (999744 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 40 dB(A)

Physical Characteristics

Rack Height: 1U
Form Factor: Rack/Tower

Miscellaneous

Package Contents:

• SMART1500RT1U 1500VA Rack/Tower UPS
• USB Cable
• DB9 Cable
• EPO Cable

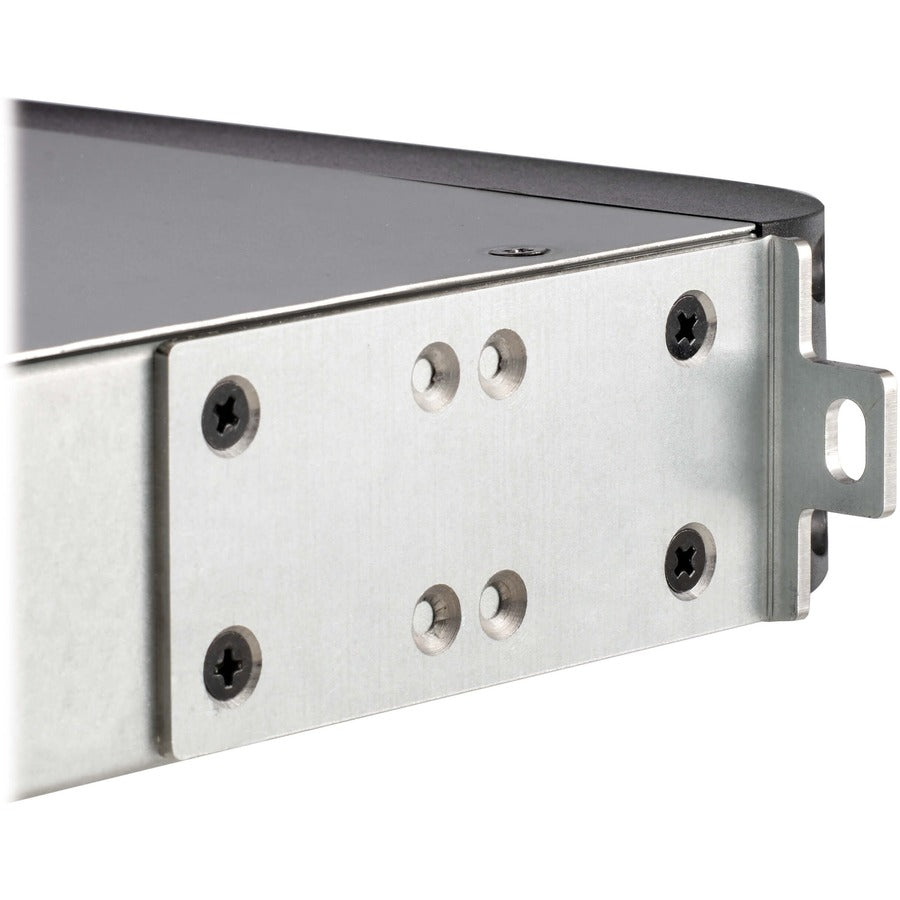

• Rack-mounting Hardware
• Owner's Manual

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
