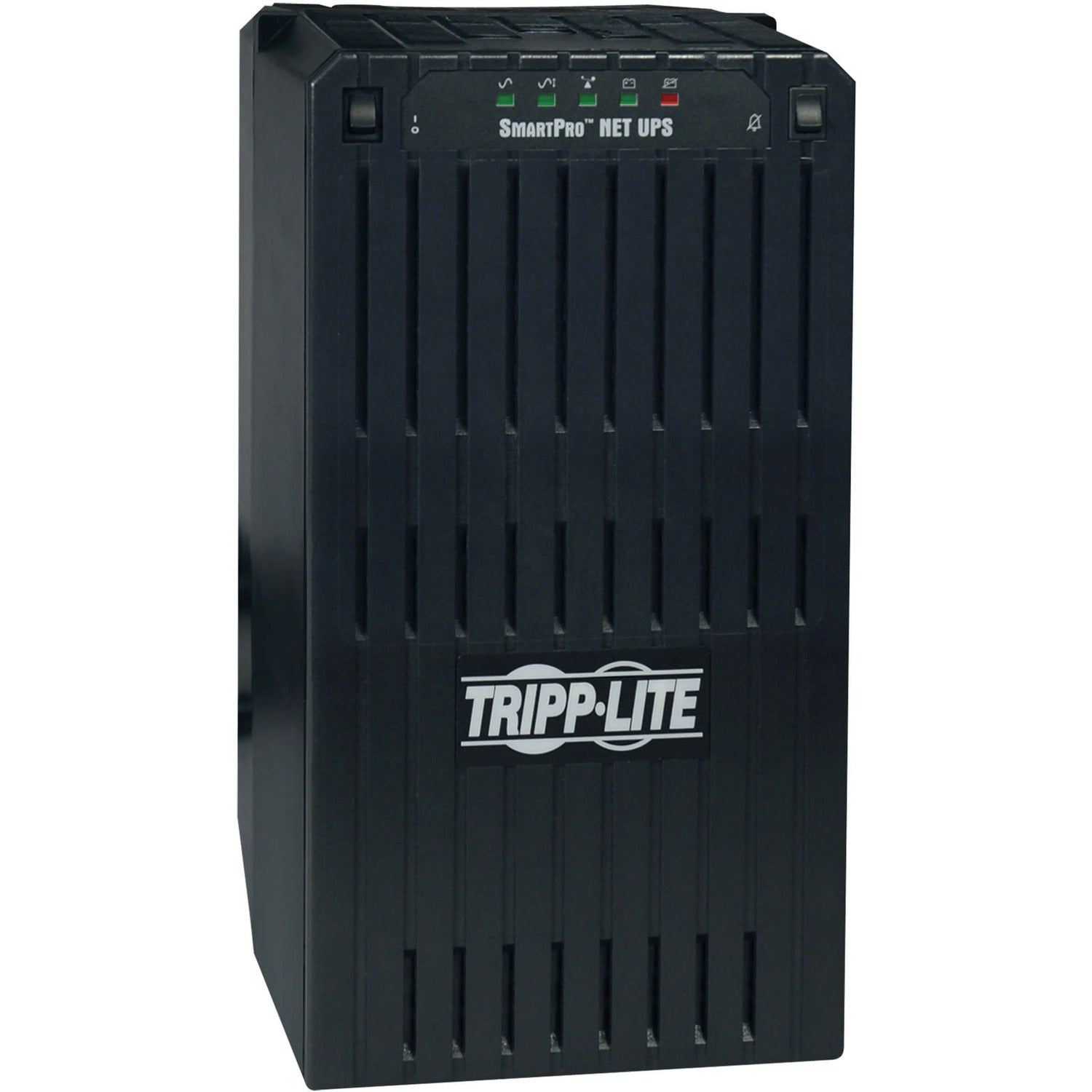

SMART2200NET Tripp Lite series SmartPro 2200VA UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART2200NET
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro 2200VA UPS
Marketing Information:

Tripp Lite's SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 8 ft (2.44 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.70 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 720 J

Management

Network Management: SNMP Manageable
Alarm: On Battery

Controls/Indicators

Status Indicators: Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 11 Minute
Backup/Run Time (Half Load): 27 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Product Color: Gray
Height: 17" (431.80 mm)
Width: 9" (228.60 mm)
Depth: 12.50" (317.50 mm)
Form Factor: Tower
Weight (Approximate): 80 lb (36287.39 g)

Miscellaneous

Package Contents:

• SMART2200NET UPS System
• PowerAlert Software CD
• 3 x 6-ft. network cables
• Warranty information
• Instruction manual

Software Included: PowerAlert Software
Country of Origin: China

Warranty

Limited Warranty: 3 Year
