SMART2200RM2UN Tripp Lite series SmartPro SMART2200RM2UN 2200VA Rack-mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART2200RM2UN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART2200RM2UN

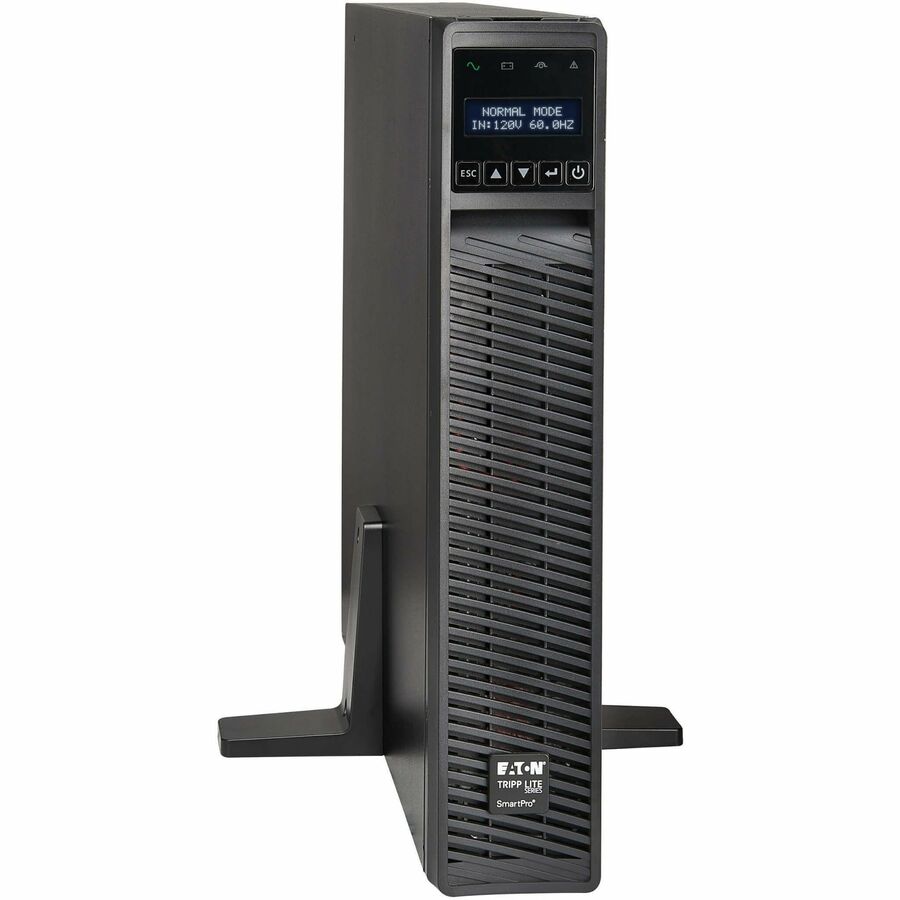

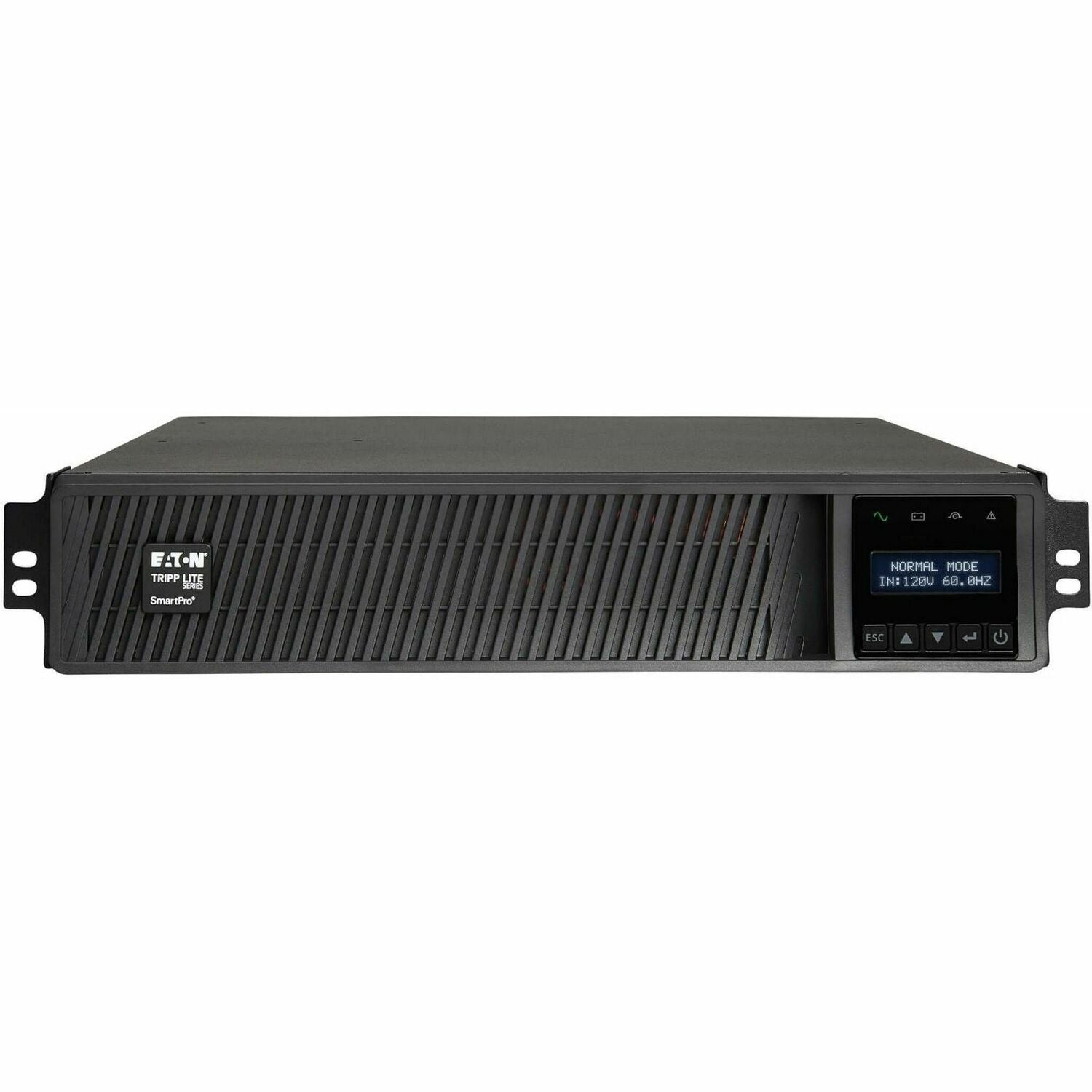

Product Name: SmartPro SMART2200RM2UN 2200VA Rack-mountable UPS
Marketing Information: 1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART2200RM2UN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-15R,NEMA 5-15/20R
Receptacle Detail: 4 x NEMA 5-15R,4 x NEMA 5-15/20R
Transfer Time: 5 ms

Power Description

Load Capacity (VA): 1.95 kVA
Load Capacity (Watt): 1.95 kW
Input Voltage: 110 V AC
Output Voltage: 120 V AC

Management

Network Management: SNMP Manageable

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 23.70" (601.98 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 57.60 lb (26126.92 g)

Miscellaneous

Package Contents:

• SmartPro SMART2200RM2UN 2.2kVA Rack-mountable UPS
• PowerAlert Software CD
• USB Cable
• Serial Cable
• EPO Cable
• 4 Post Rackmount Installation kit
• Instruction Manual
• Network Interface Card

Software Included: PowerAlert Software
Country of Origin: Philippines

Warranty

Limited Warranty: 3 Year
