SMART2200RXLTAA Tripp Lite series SmartPro SMART2200RXLTAA 1950VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART2200RXLTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART2200RXLTAA
Product Name: SmartPro SMART2200RXLTAA 1950VA Rack/Tower UPS
Marketing Information:

Features | 1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment. The SMART2200RXLTAA is ideal for large and small network devices, high-end workstations, storage and security equipment in labs, server rooms and data centers.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRXLT
Product Type: Line-interactive UPS

Technical Information

AVR: Yes

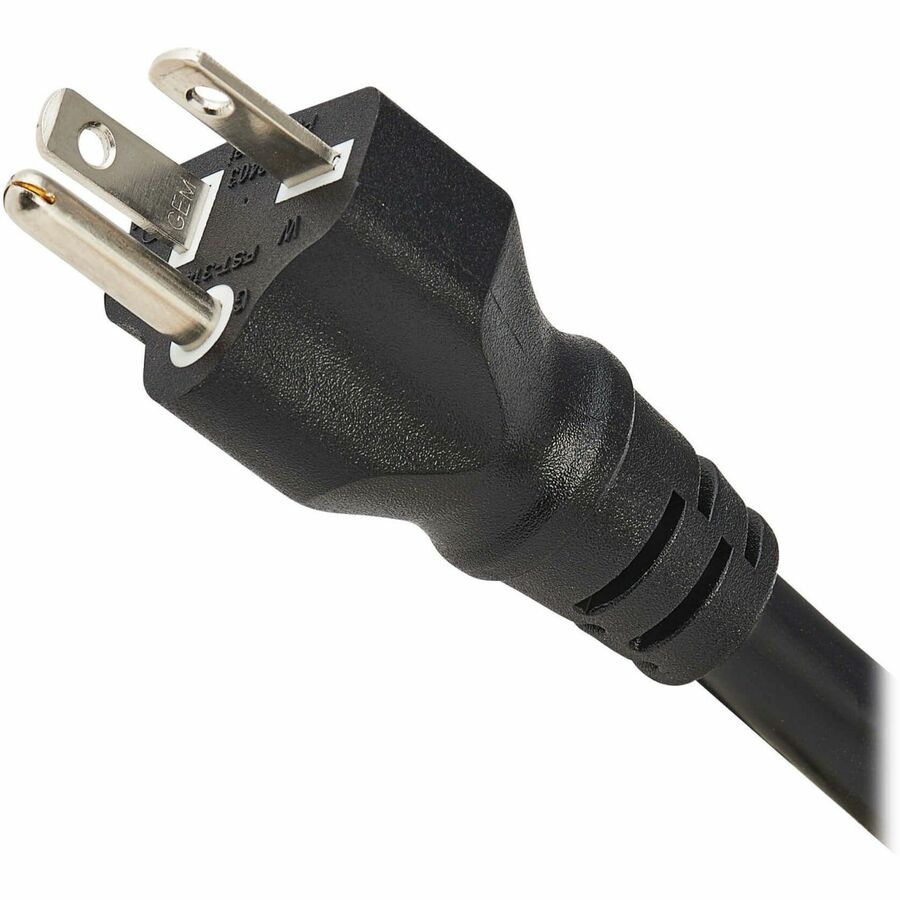

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20R,NEMA L5-20R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R
Number of Load Management Outlets: 2
Cord Length: 10 ft (3.05 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 96% (AC Mode)
Application/Usage: Server,Switch,IT Equipment,Telecommunication,Enterprise,Workstation,Storage,Security,Lab Equipment,Server Room,Data Center,Network,Desktop
Surge Suppression: Yes
Features: Cold Start Function

Power Description

Load Capacity (VA): 1.95 kVA
Load Capacity (Watt): 1.95 kW
Input Voltage: 120 V AC
Input Voltage Range: 70 V AC - 153 V AC
Input Current: 16 A
Output Voltage: 120 V AC,100 V AC,110 V AC,125 V AC
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J
Circuit Breaker: Yes
Output Power Factor: 1

Display & Graphics

Display: LCD

Management

Network Management: Dry Contact,DB-9 RS-232,Contact Closure,SNMP/Web
Alarm: Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

LED Indicators:

• Battery Mode
• Battery Low Warning
• Fault/Alarm

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 72 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Storage Elevation: 32808 ft (9999878.40 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 591 BTU/h

Physical Characteristics

Height: 3.40" (86.36 mm)
Width: 17" (431.80 mm)
Depth: 23" (584.20 mm)

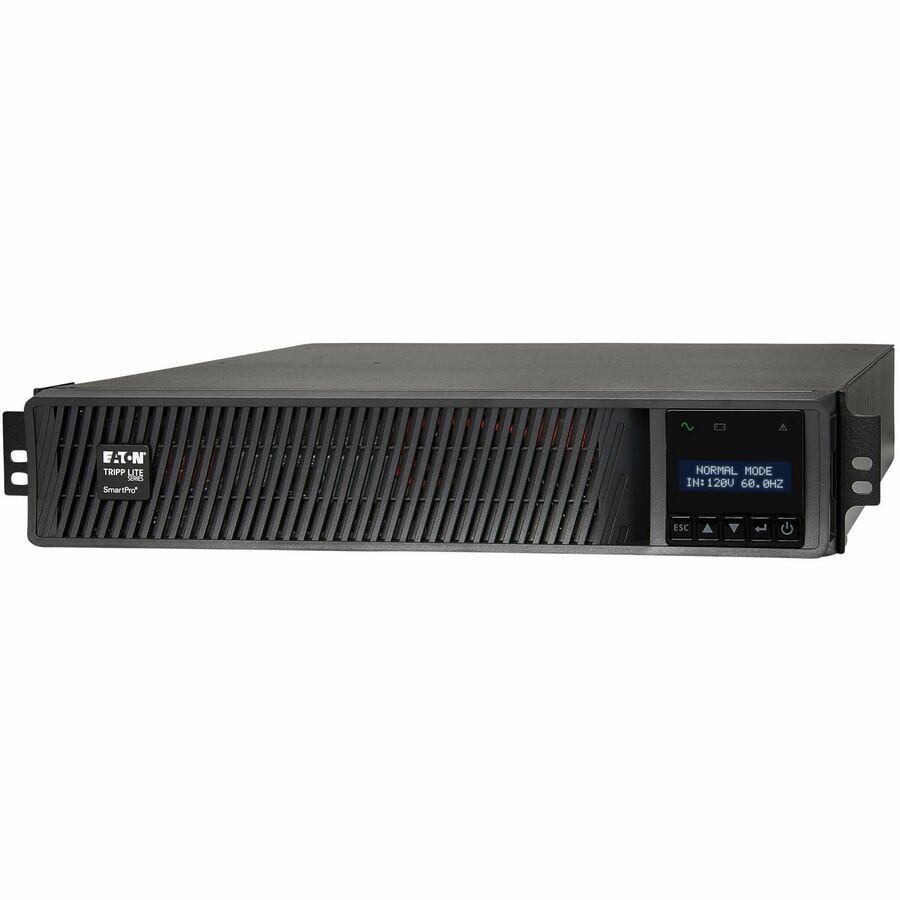

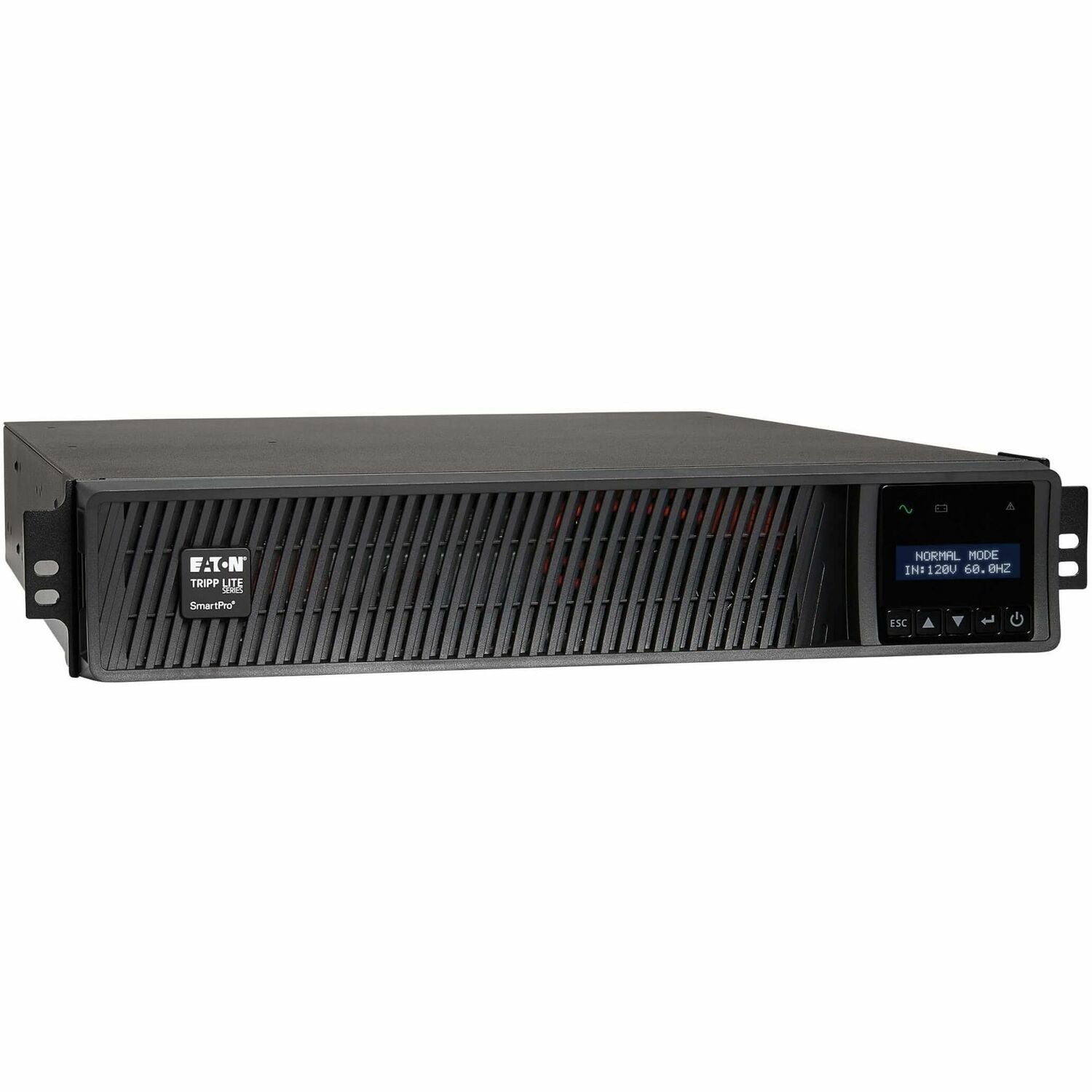

Rack Height: 2U

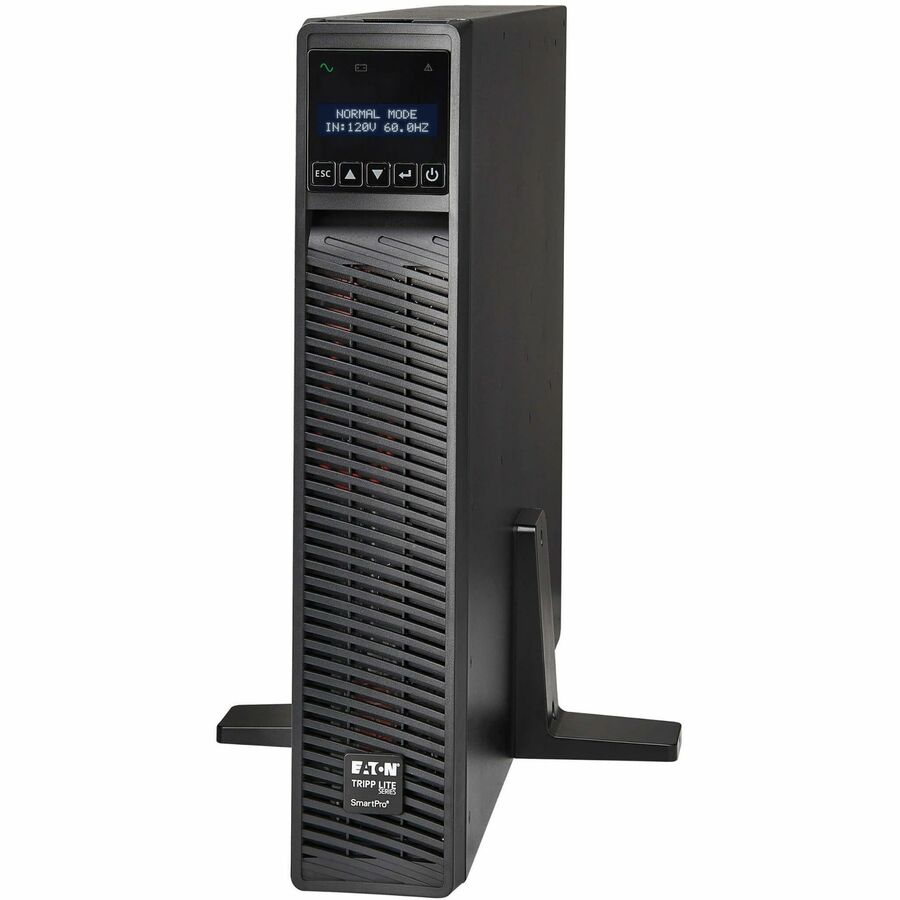

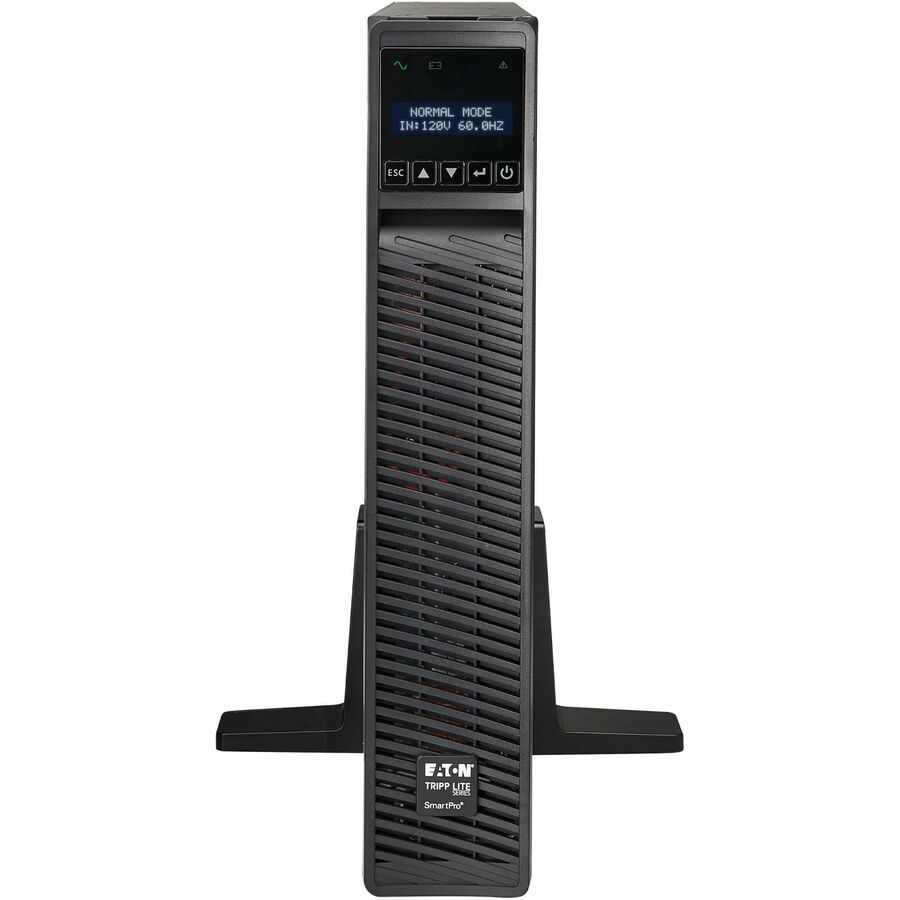

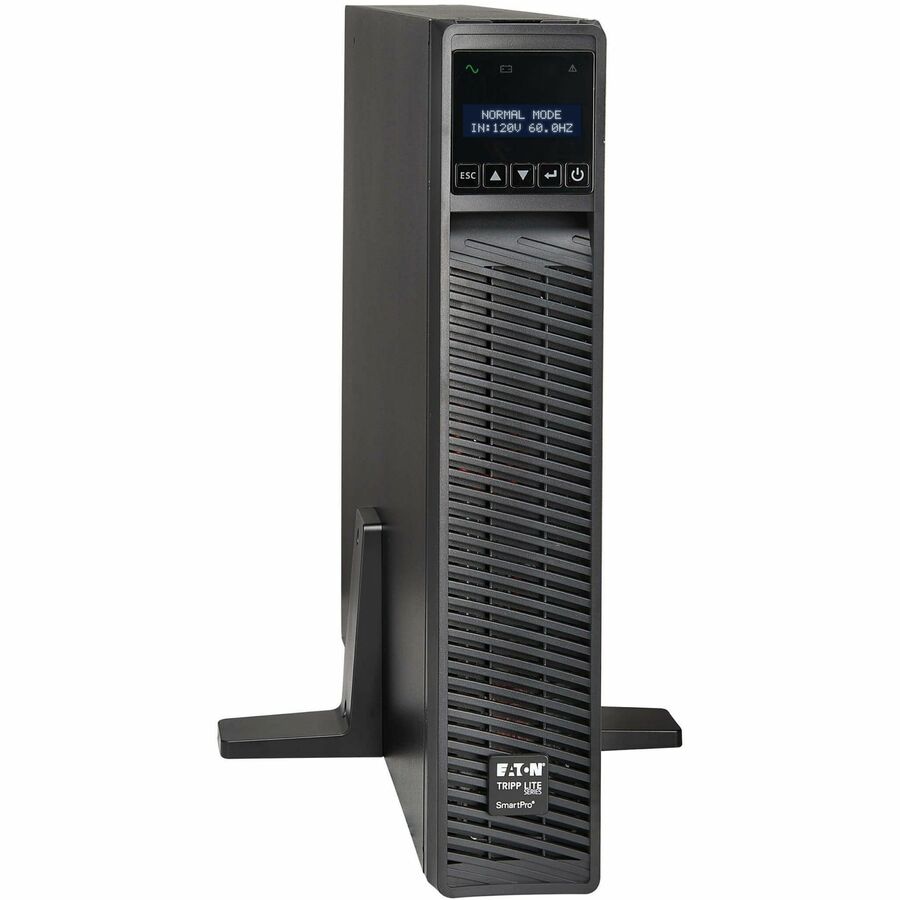

Form Factor: Rack/Tower
Weight (Approximate): 65.30 lb (29619.58 g)

Miscellaneous

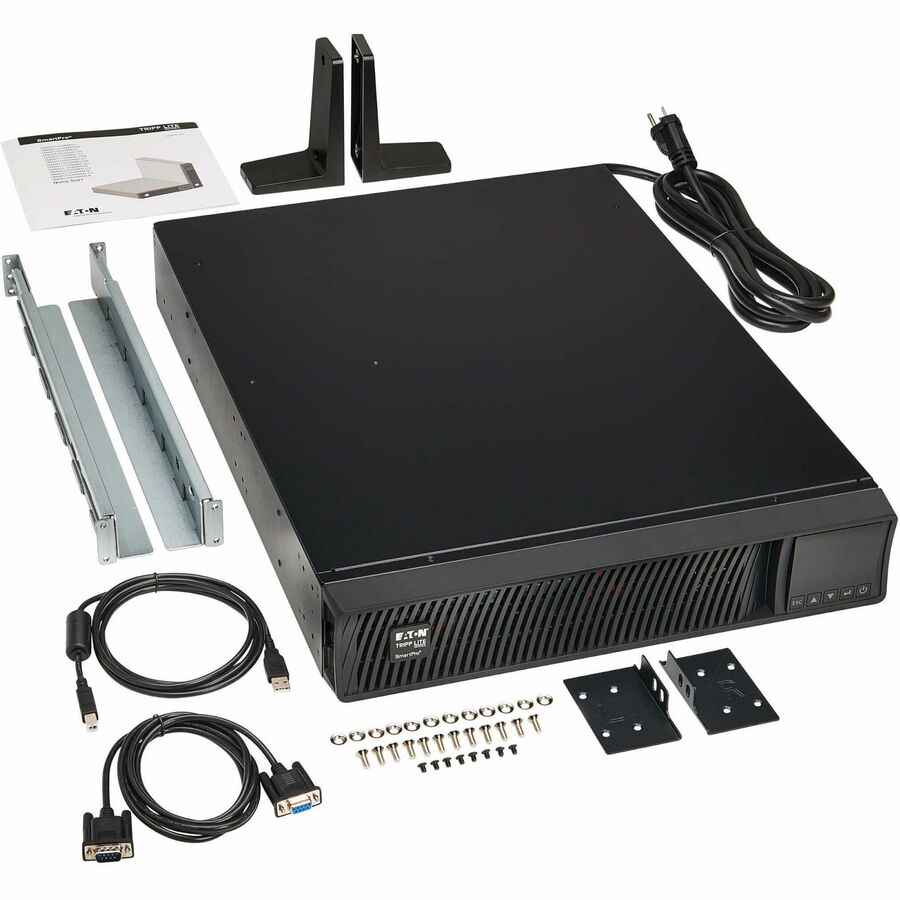

Package Contents:

• SmartPro SMART2200RXLTAA 1950VA Rack/Tower UPS
• USB Cable
• DB9 Cable
• Rack-mounting Hardware
• Tower Support Stands
• Safety Instructions
• Quick Start Guide

Energy Star: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

2-year warranty, 3 year with registration.
