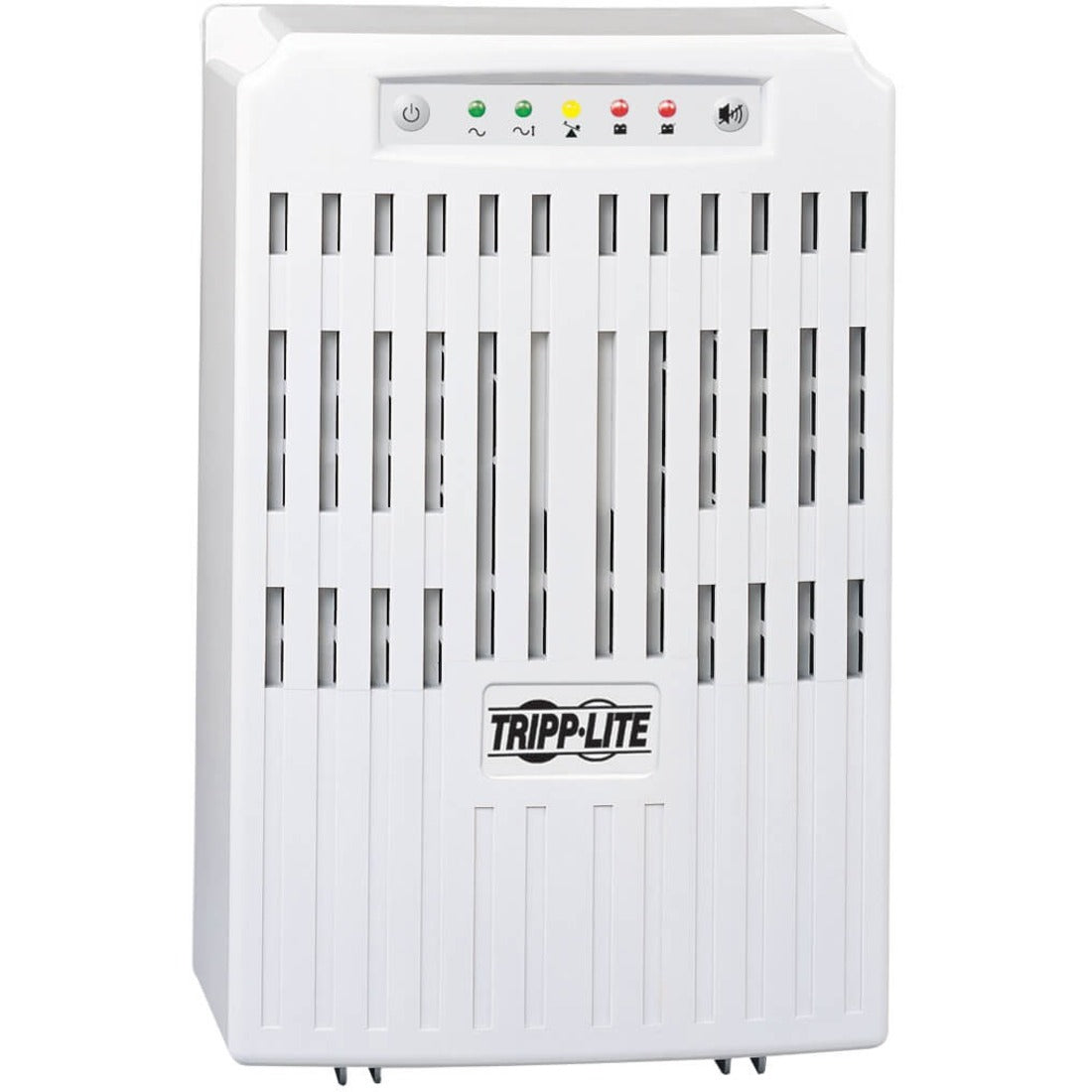

SMART2200VS Tripp Lite SmartPro SMART2200VS UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART2200VS
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro SMART2200VS UPS
Marketing Information:

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractiv
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-15R,NEMA 5-20R
Receptacle Detail: 7 x NEMA 5-15R,2 x NEMA 5-20R
Cord Length: 8 ft (2.44 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.60 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC

Management

Network Management: SNMP Manageable
Alarm: On Battery,Overload,Low Battery

Controls/Indicators

Status Indicators: Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information

Interfaces/Ports

USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 7 Minute
Backup/Run Time (Half Load): 19 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 14.25" (361.95 mm)
Width: 9.25" (234.95 mm)
Depth: 12" (304.80 mm)
Form Factor: Tower
Weight (Approximate): 52.40 lb (23768.24 g)

Miscellaneous

Package Contents:

• SmartPro SMART2200VS UPS
• SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual

Country of Origin: China

Warranty

Limited Warranty: 2 Year
