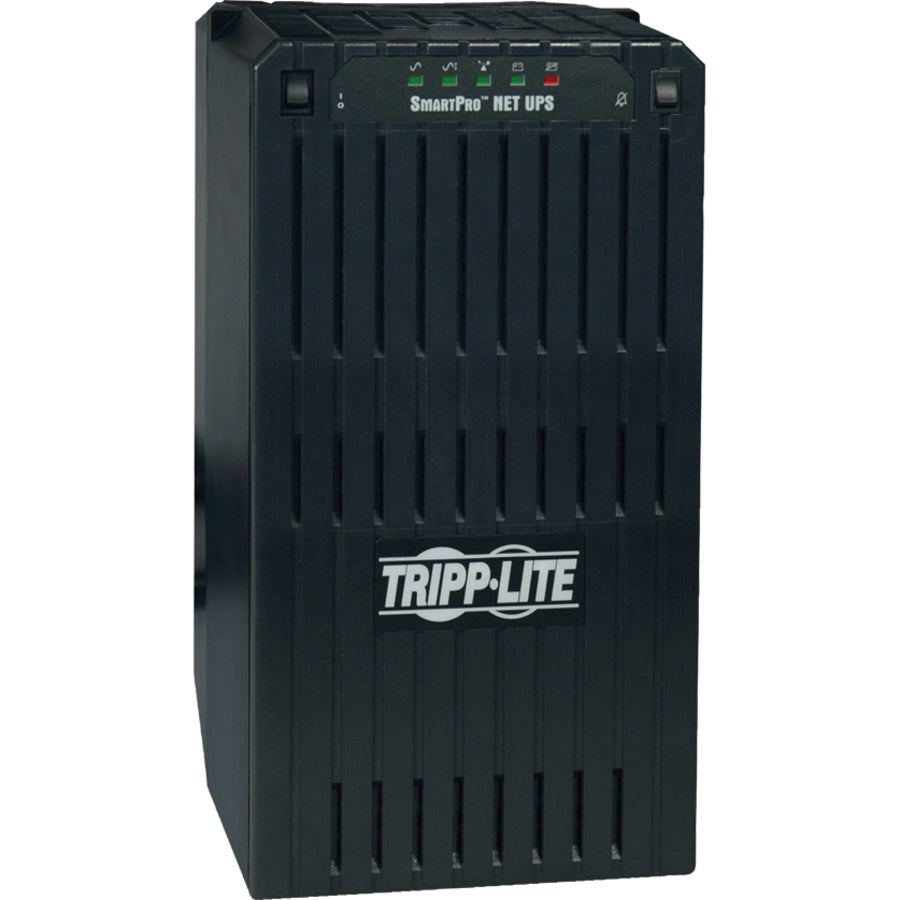

SMART3000NET Tripp Lite SmartPro 3000NET UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART3000NET
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro 3000NET UPS
Marketing Information: Tripp Lite's SMART3000NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully loaded. Runtime is expandable with optional BP24V33 external battery packs. 3000VA / 2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Supports SNMP with optional external SNMPWEBSOLO adapter. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge supp
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-15R,NEMA 5-20R
Receptacle Detail: 4 x NEMA 5-15R,4 x NEMA 5-20R
Cord Length: 8 ft (2.44 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.40 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC

Management

Network Management: SNMP Manageable
Alarm: On Battery

Controls/Indicators

Status Indicators: Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 7 Minute
Backup/Run Time (Half Load): 23 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 17" (431.80 mm)
Width: 9" (228.60 mm)
Depth: 13" (330.20 mm)
Form Factor: Tower
Weight (Approximate): 80 lb (36287.39 g)

Miscellaneous

Package Contents:

• SmartPro 3000NET UPS
• SMART 3000NET UPS System
• PowerAlert Software and three 6 foot network cables
• Warranty information
• Instruction manual

Country of Origin: China

Warranty

Limited Warranty: 2 Year
