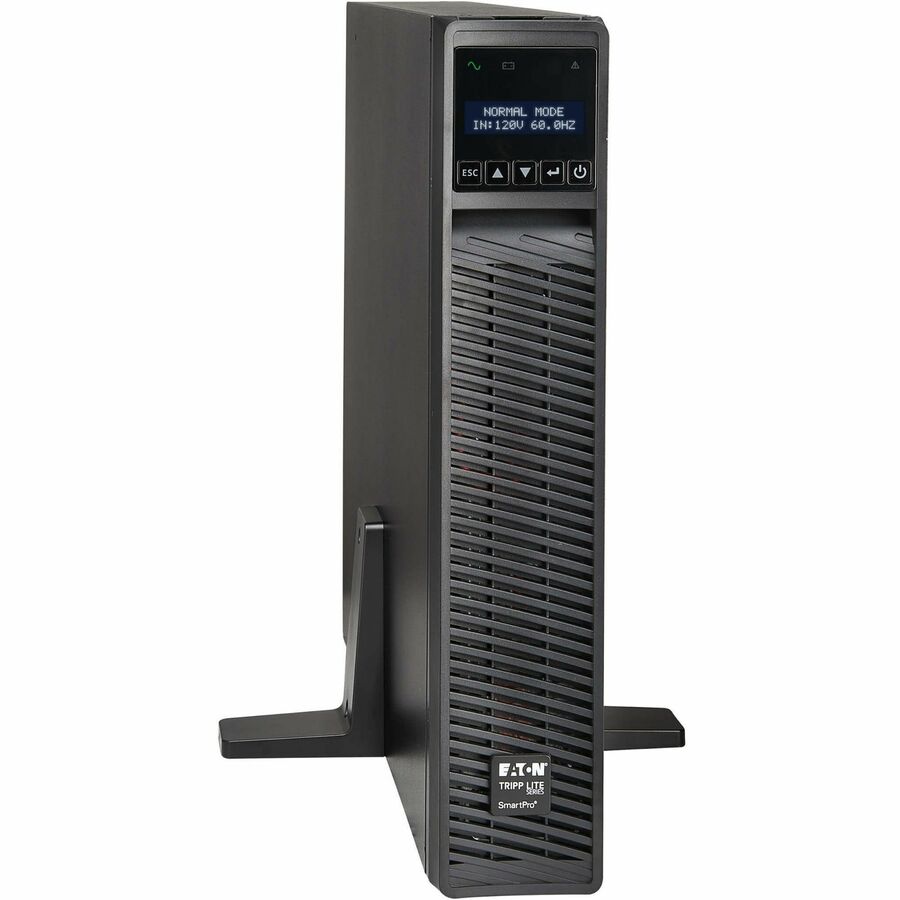

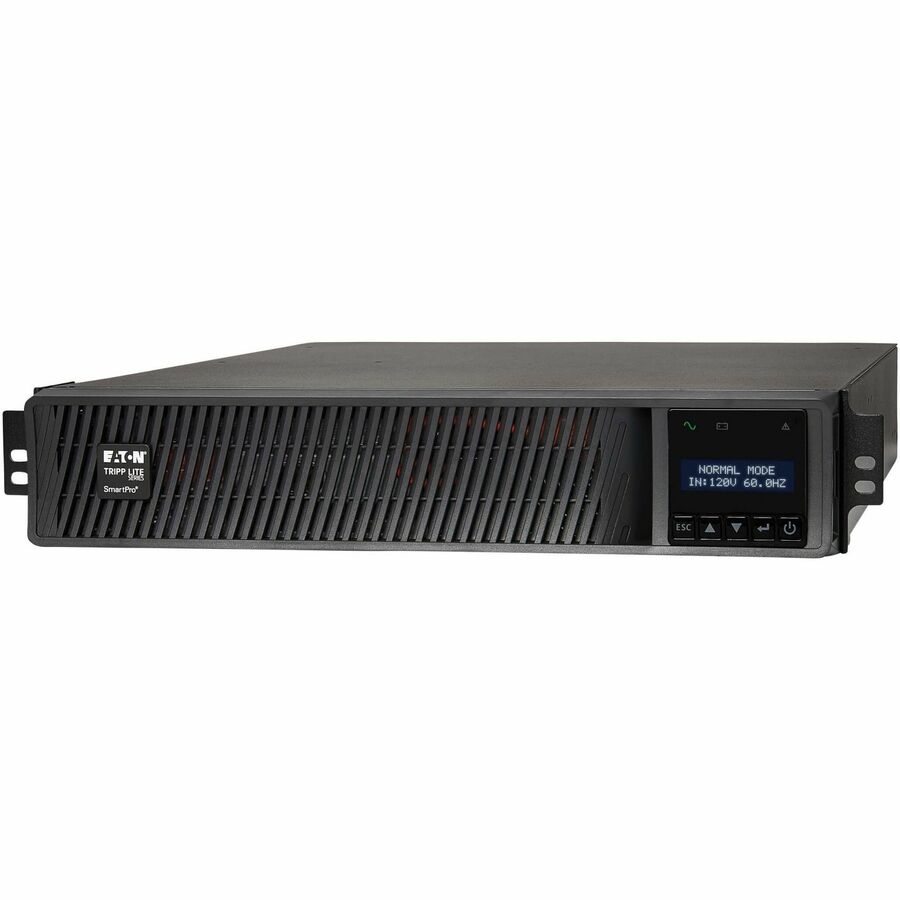

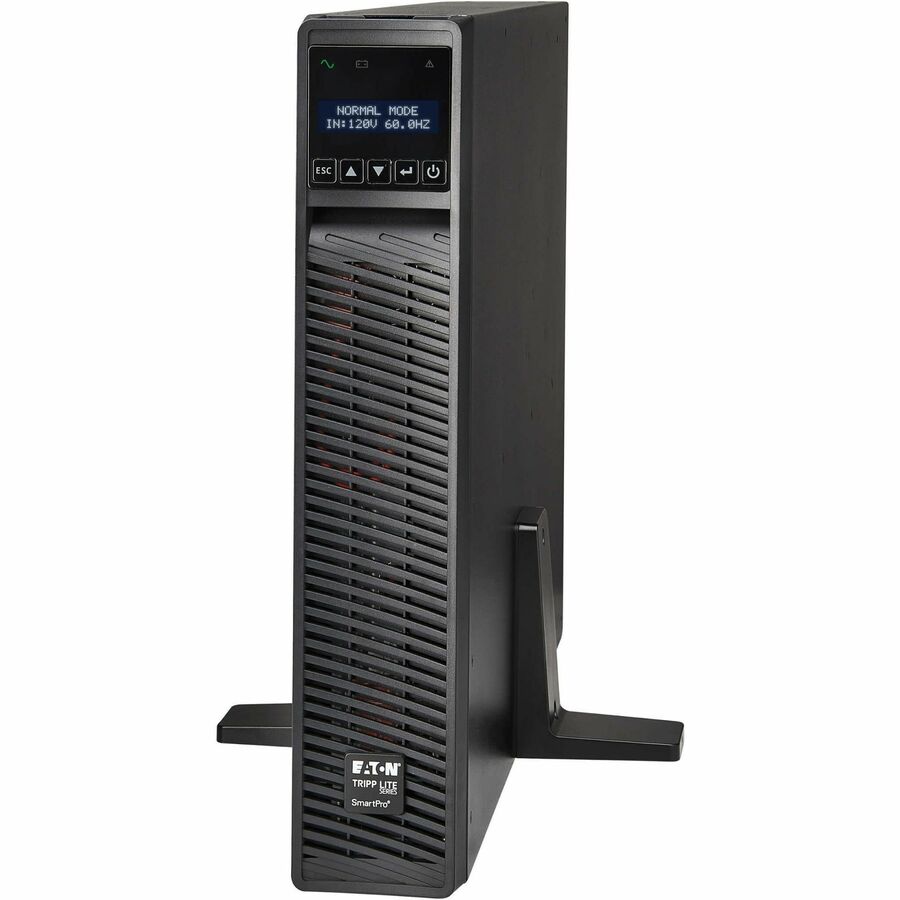

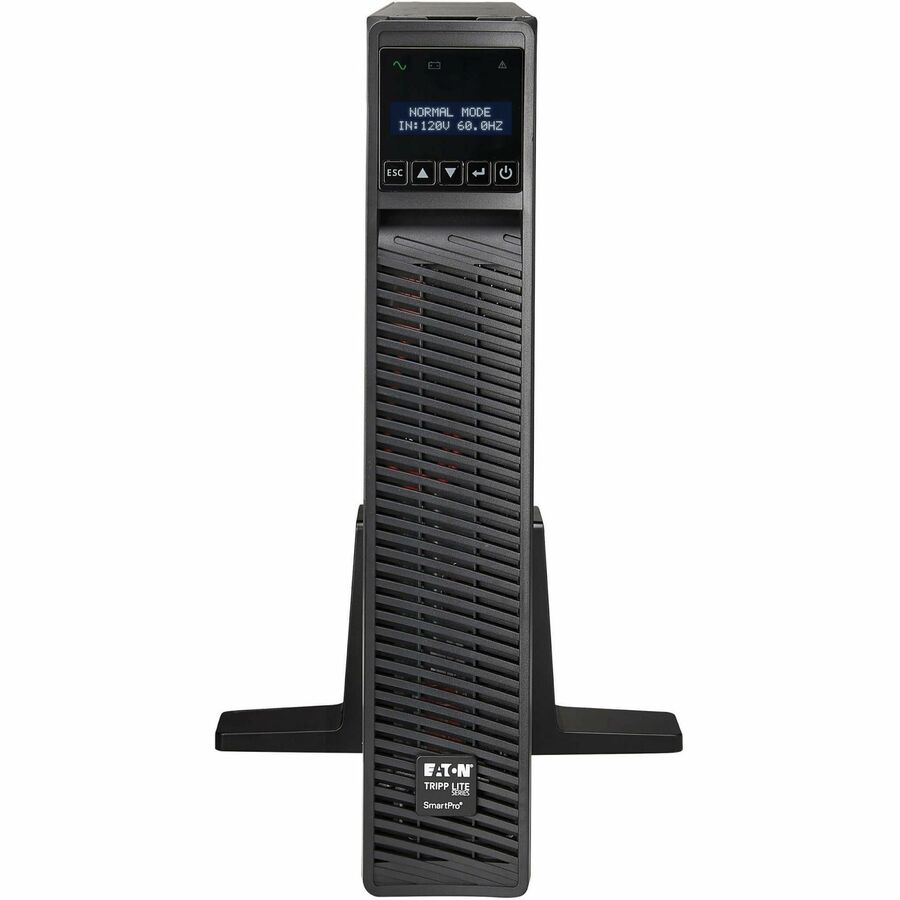

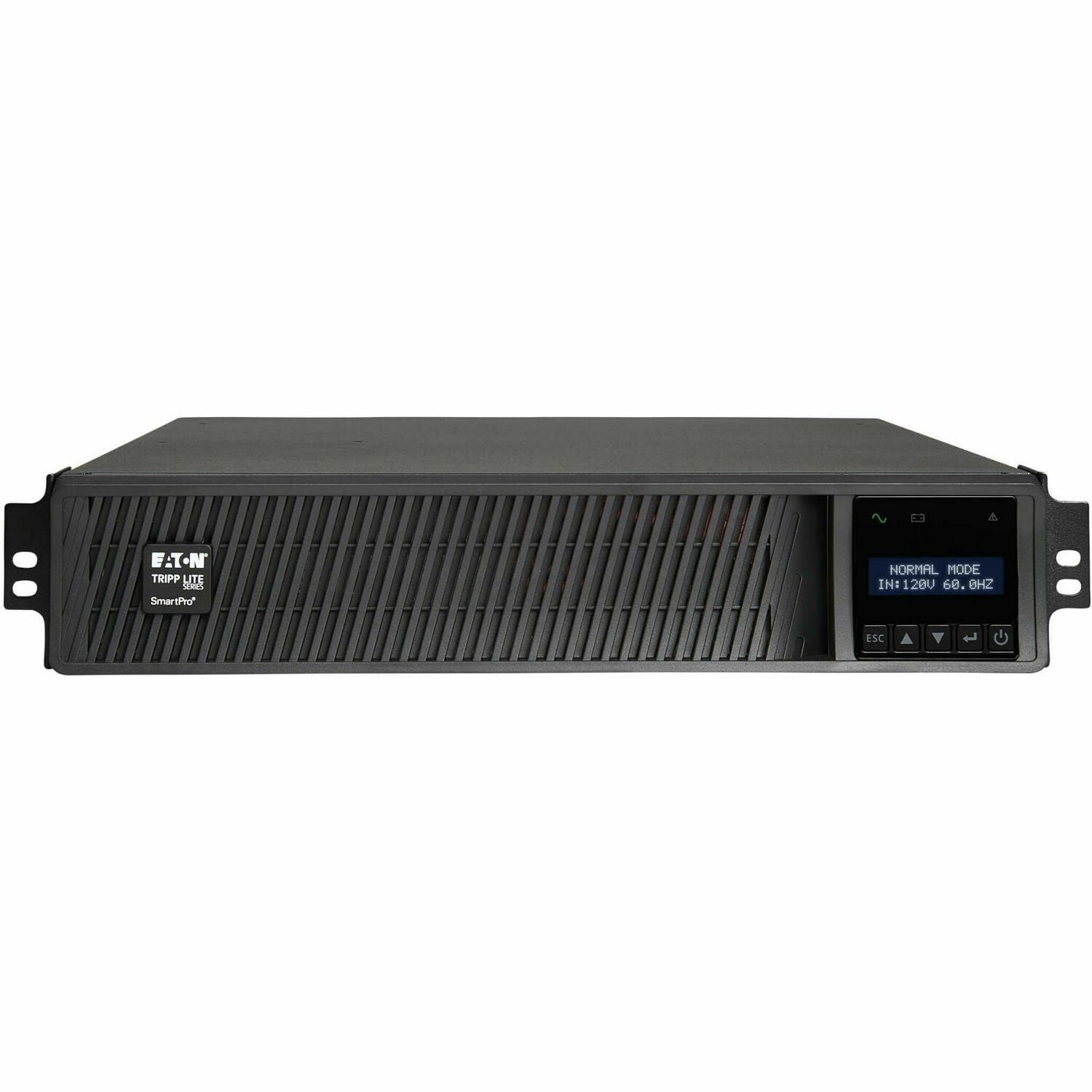

SMART3000RMXL2U Tripp Lite series SmartPro SMART3000RMXL2U 3000VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART3000RMXL2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART3000RMXL2U
Product Name: SmartPro SMART3000RMXL2U 3000VA Rack/Tower UPS
Marketing Information: 3kVA/3kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART3000RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without inte
Product Type: Line-interactive UPS

Technical Information

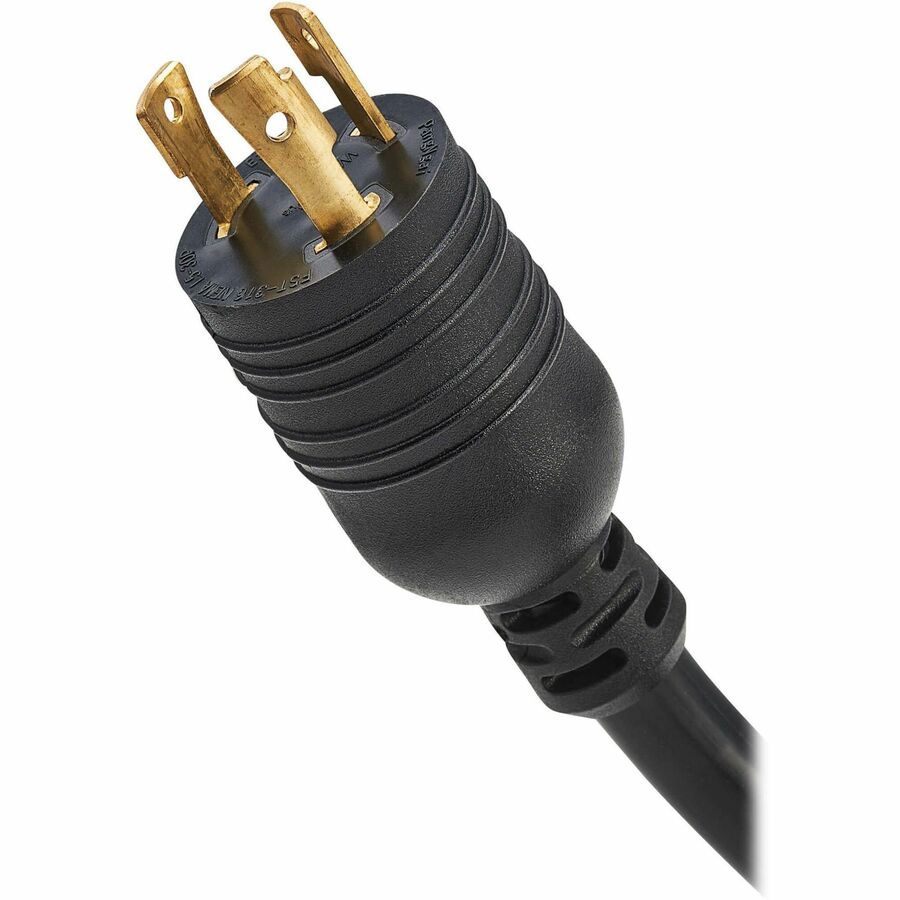

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA L5-30R,NEMA 5-20R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-30R
Overload Protection: Yes
Transfer Time: 4 ms
Phase: Single Phase
Application/Usage: Data Storage,Server,Switch,IT Equipment

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 3 kW
Input Voltage: 120 V AC
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J
Output Power Factor: 1

Display & Graphics

Display: LCD

Management

Network Management: SNMP/Web
Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 72 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 9 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 5 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 32808 ft (9999878.40 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 3.39" (86 mm)
Width: 17.20" (437 mm)
Depth: 23.70" (602 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 74.50 lb (33792.63 g)

Miscellaneous

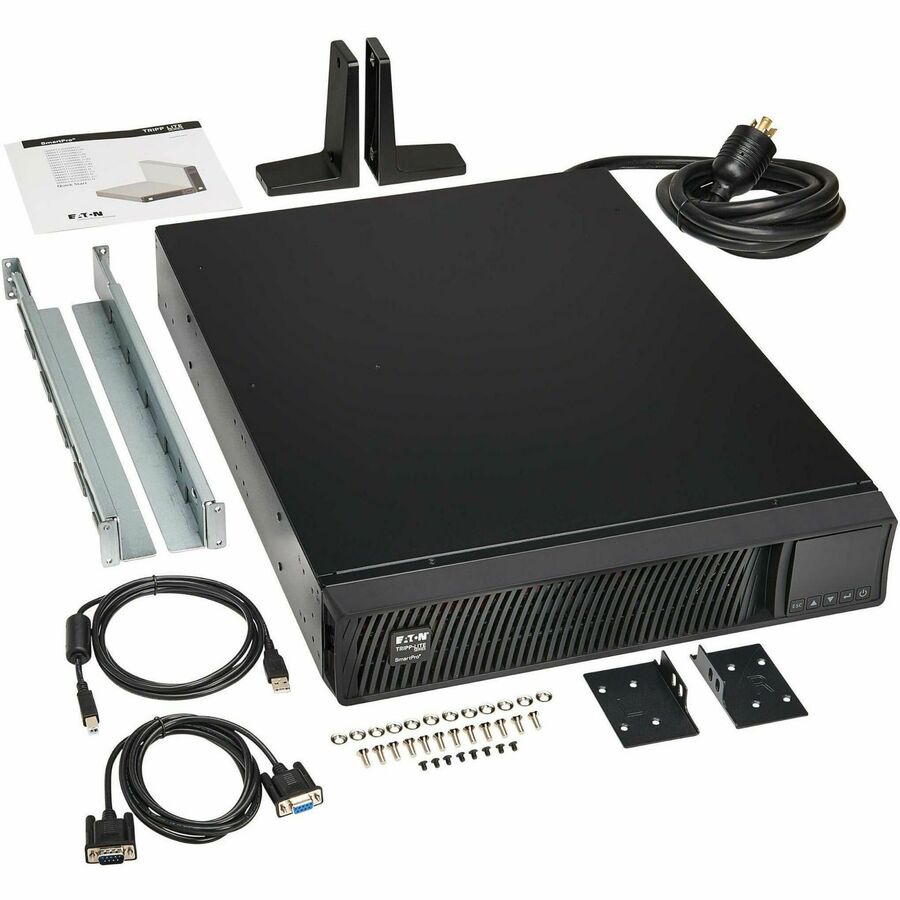

Package Contents:

SmartPro SMART3000RMXL2U 3000VA Rack/Tower UPS

USB Cable

DB9 Cable

Rack-mounting Hardware

Tower Support Stands

Safety Instructions

Quick Start Guide

Software Included: PowerAlert Software
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
