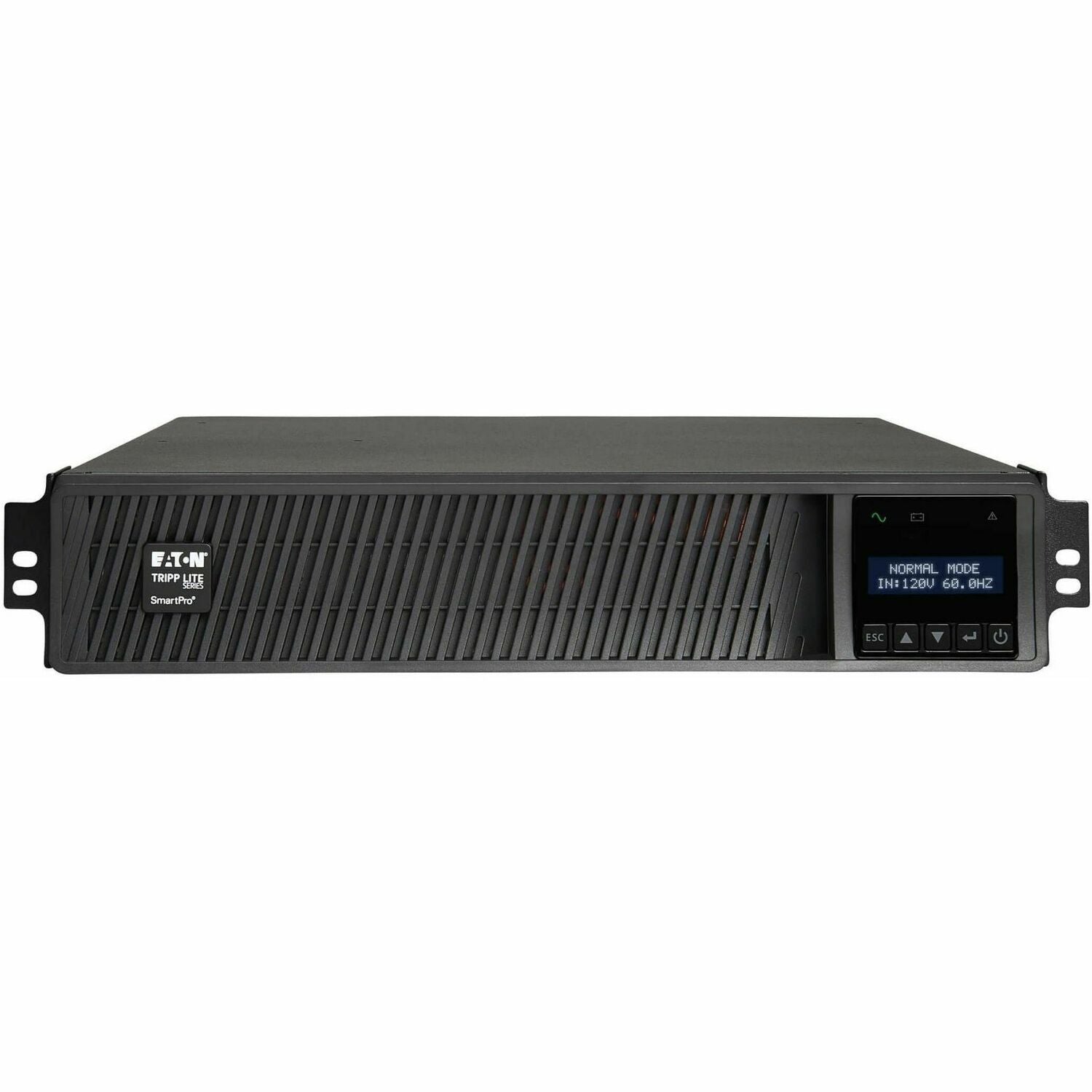

SMART3000RMXLN Tripp Lite series SMART3000RMXLN UPS System with Pre-installed SNMPWEBCARD

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART3000RMXLN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: SmartPro
Product Model: SMART3000RMXLN
Product Name: SMART3000RMXLN UPS System with Pre-installed SNMPWEBCARD
Marketing Information: 3kVA/3kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

The SMART3000RMXLN provides reliable battery backup and AC power protection for connected devices against blackouts, brownouts, surges and line noise. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Pure sine wave power and unity power factor, even when on battery, means this SmartPro® UPS can be used with sensitive IT equipment, including servers, VoIP phones, data storage and PoE switches. Even if the battery is depleted, the UPS will automatically restart when the power comes back on after an extended outage.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Extra runtime is available by connecting
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA L5-30R,NEMA 5-15/20R
Receptacle Detail: 1 x NEMA L5-30R,8 x NEMA 5-15/20R
Transfer Time: 5 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.88 kW
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J

Management

Network Management: SNMP Manageable
Alarm: UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown

Controls/Indicators

Status Indicators: Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

DC System Voltage: 48 V DC
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 10 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 5 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 19" (482.60 mm)
Rack Height: 2U

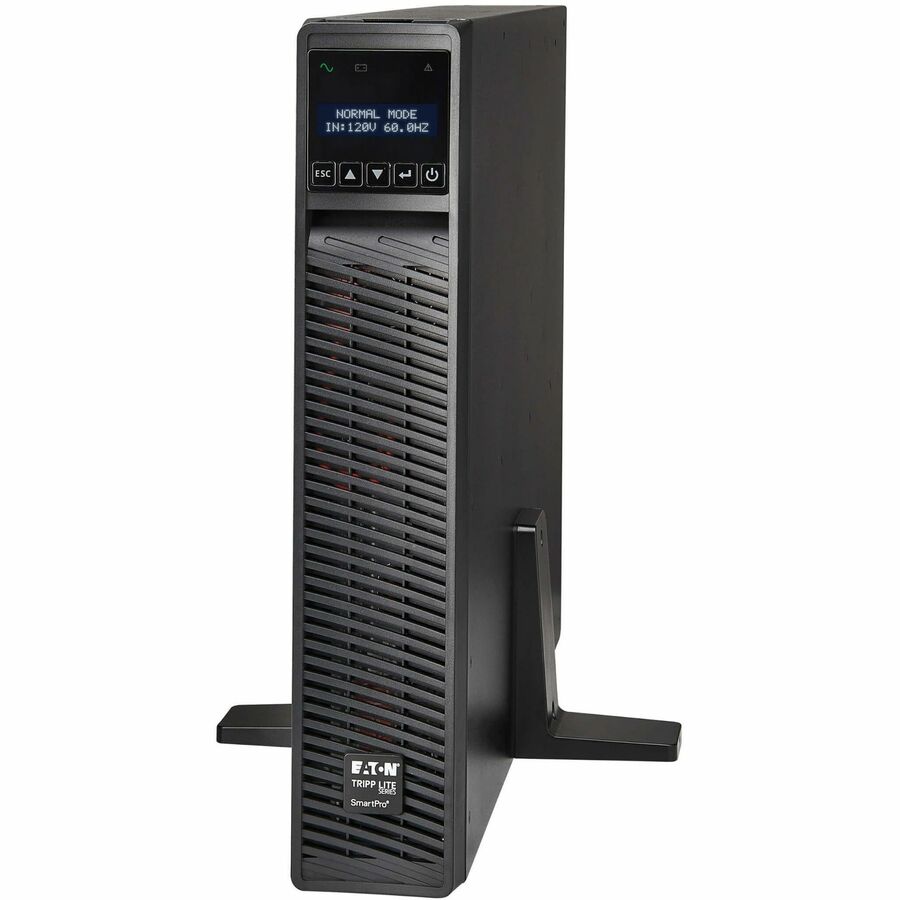

Form Factor: Rack/Tower
Weight (Approximate): 72.80 lb (33021.52 g)

Miscellaneous

Package Contents:

3000VA 3000W 120V Line-Interactive UPS

WEBCARDLXE network management card

2 x USB cables

DB9 cable

Rack-mounting hardware

Tower support stands

Quick Start Guide with safety instructions

Software Included: PowerAlert Software
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
