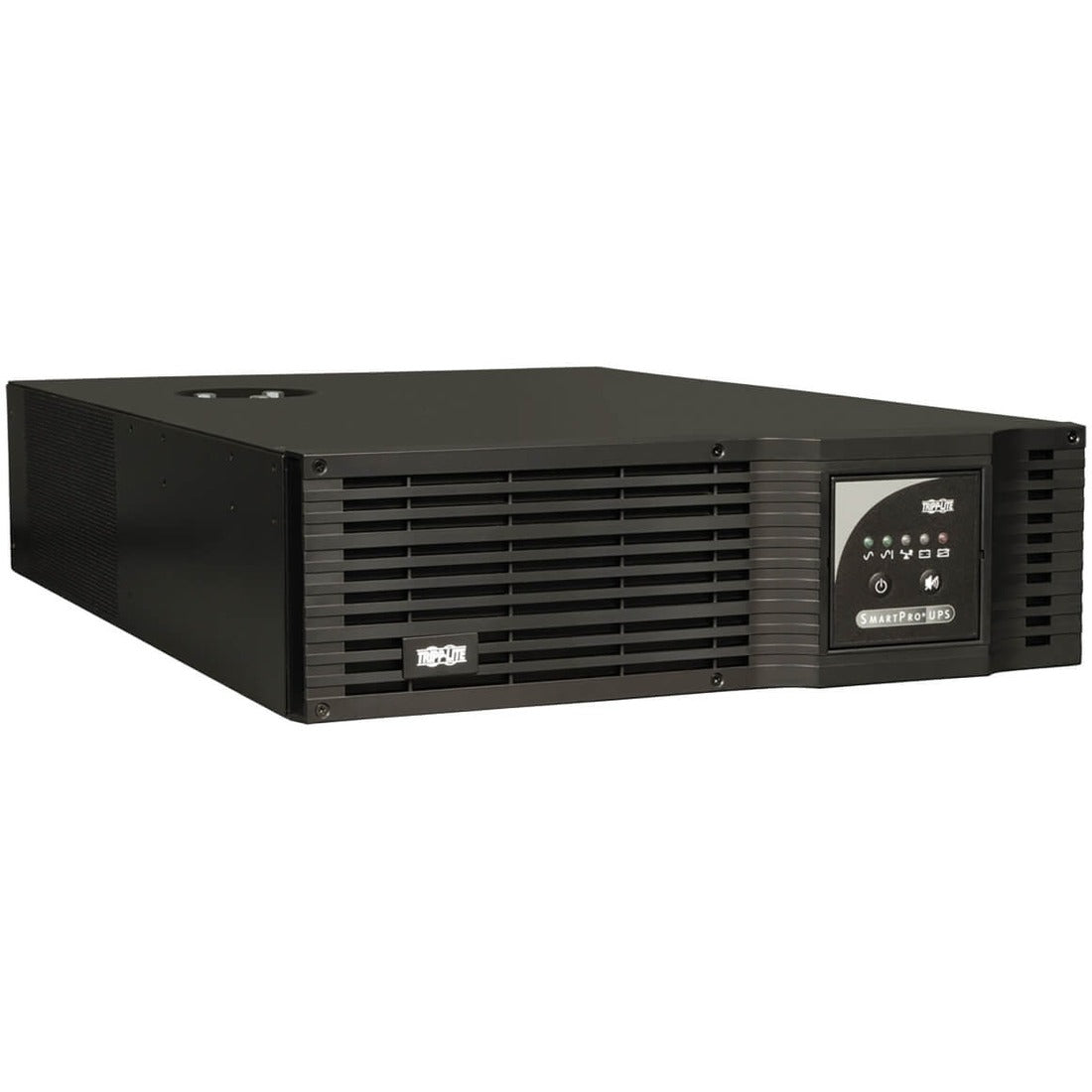

SMART5000XFMRXL Tripp Lite SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART5000XFMRXL
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART5000XFMRXL
Product Name: SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
Marketing Information:

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery ch
Product Type: Line-interactive UPS

Technical Information

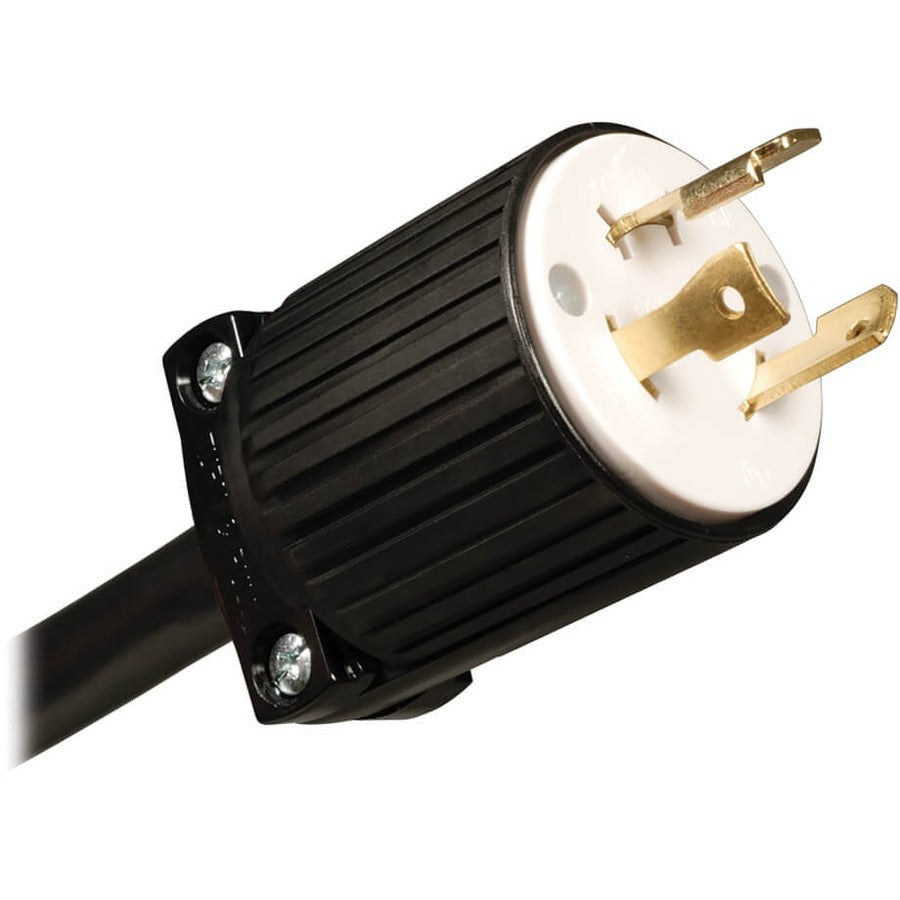

Plug/Connector Type: NEMA L6-30P
Receptacle Type: NEMA L6-30R,NEMA L6-20R,NEMA 5-15/20R
Receptacle Detail: 1 x NEMA L6-30R,2 x NEMA L6-20R,8 x NEMA 5-15/20R
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 5 kVA
Load Capacity (Watt): 3.75 kW
Input Voltage: 208 V AC
Input Current: 27 A
Output Voltage: 208 V AC

Management

Network Management: SNMP Manageable

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 8.50 Minute
Backup/Run Time (Half Load): 20 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour

Physical Characteristics

Height: 5.25" (133.35 mm)
Width: 17.50" (444.50 mm)
Depth: 25" (635 mm)
Rack Height: 3U
Form Factor: Tower
Weight (Approximate): 143.30 lb (64999.79 g)

Miscellaneous

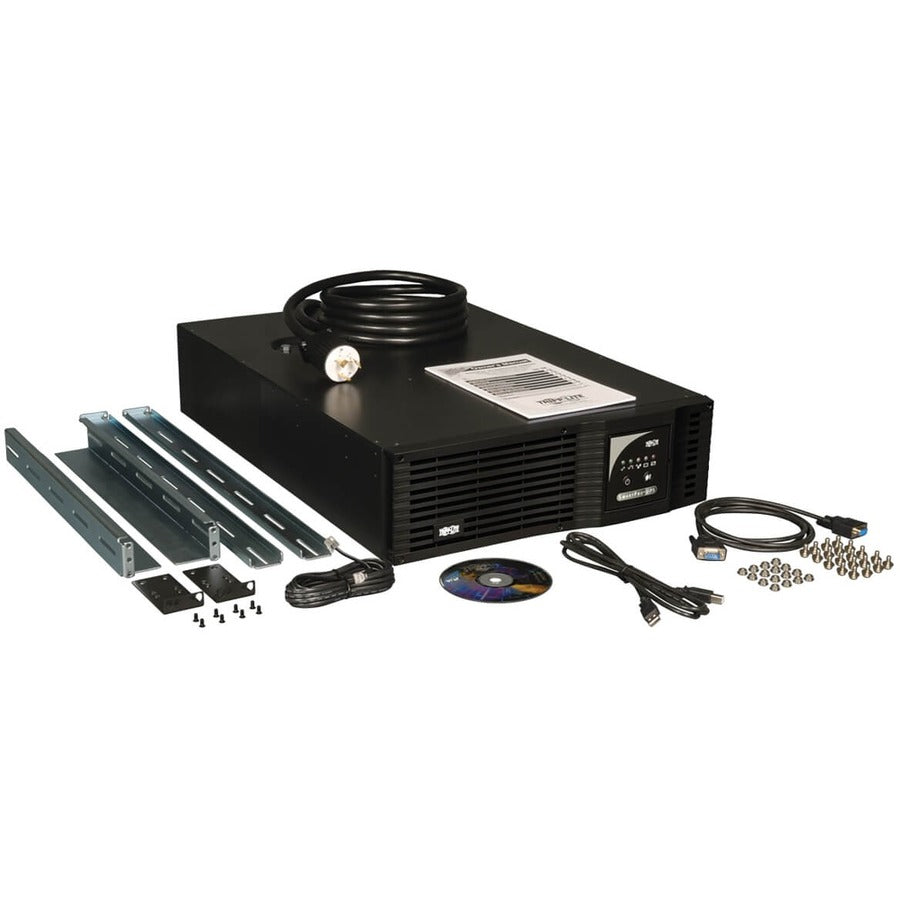

Package Contents:

• SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
• SMART 5000XFMRXL UPS System
• PowerAlert Software and Cabling
• Mounting hardware for 4-post rackmount installation
• Warranty information
• Instruction manual

Software Included: PowerAlert UPS Monitoring Software
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 3 Year
