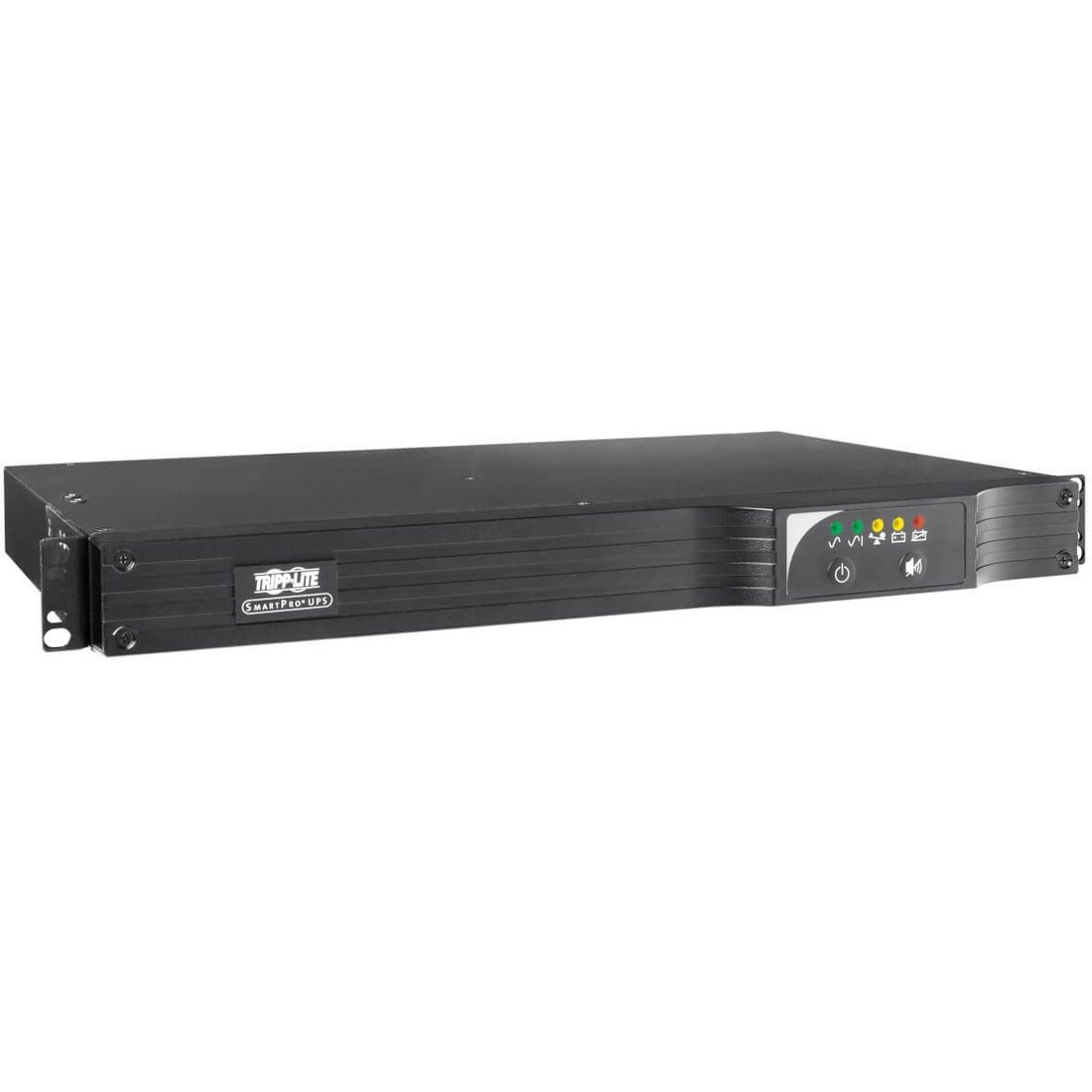

SMART500RT1U Tripp Lite series SmartPro 500VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART500RT1U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART500RT1U
Product Name: SmartPro 500VA Rack/Tower UPS
Marketing Information: 500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The SmartPro® line-interactive SMART500RT1U UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The 120V battery backup is ideal protection for point-of-sale and kiosk applications, a small business VoIP network, or rack-mount equipment in your server room or network closet.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes.

6 NEMA Outlets Protect Your Connected Components
Product Type: Line-interactive UPS

Technical Information

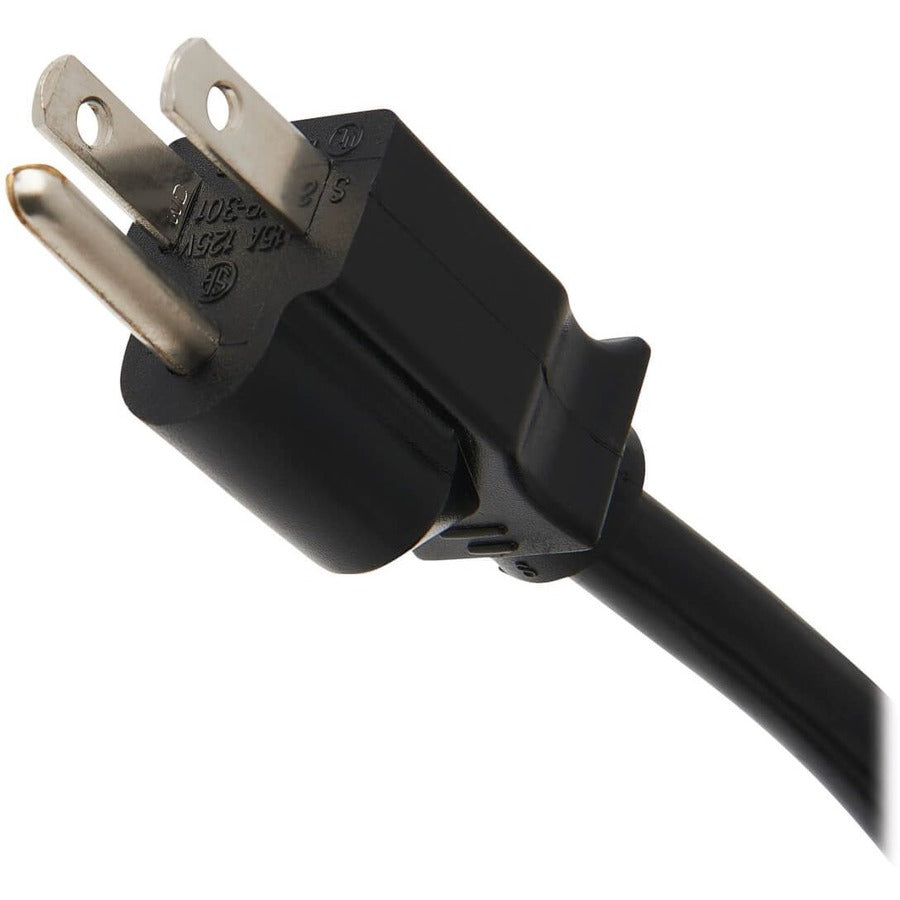

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 10 ft (3.05 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 480 J

Management

Network Management: SNMP Manageable
Alarm: On Battery,Overload,UPS Fault,Low Battery

Controls/Indicators

Status Indicators: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3.20 Minute
Backup/Run Time (Half Load): 14.60 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Product Color: Black
Width: 17.50" (444.50 mm)
Depth: 11.75" (298.45 mm)
Rack Height: 1U
Form Factor: Rack/Tower
Weight (Approximate): 18.80 lb (8527.54 g)

Miscellaneous

Package Contents:

• SMART500RT1U UPS System

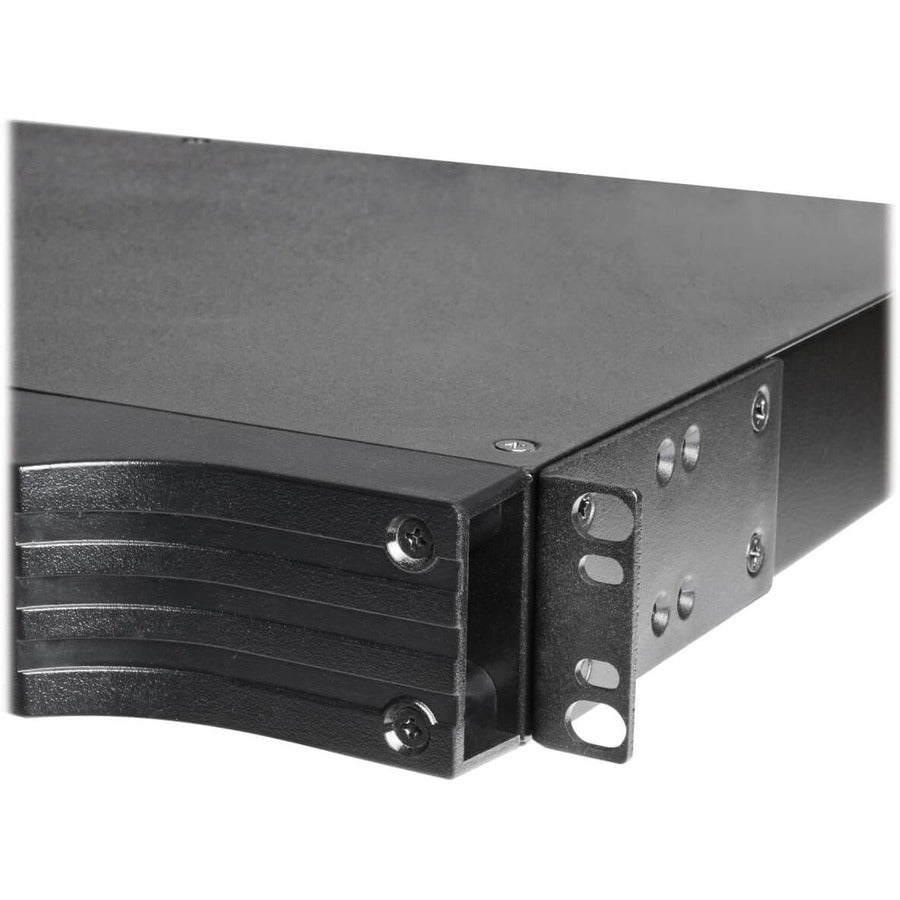

• Mounting hardware
• Cabling for USB & DB9 monitoring and EPO switching
• PowerAlert unattended shutdown and UPS/Power monitoring software
• Warranty information and instruction manual

Software Included: PowerAlert Software
Country of Origin: China

Warranty

Limited Warranty: 3 Year
